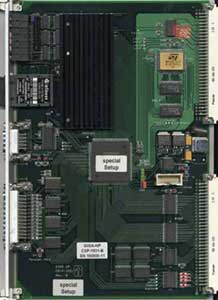

giga-B-100800-11
| Used by | Part of... System | Altera source code | Altera prog. file | Schematic | Description | Releases | Power consumption |
| Prima1 | main | 19.12.2002 | GigaHp_B.pof GigaHp_B.sof |
Gigahp_rev_B.pdf | GigaHp | CS-P-1931-B | VCC, 8.5 W |
Comments
|
R94, R95, R96, R70, JP4, R65, R66, R67, R68 are removed. Pin number 5 of U30 is disconnected. | ||||||
