GIGA (CS-P-1798-A)

Features

  • Double Euro size module
  • High speed fiber channel transmission of 1062.5 Mbaud (one gigabit / sec)
  • Up to two kilometers fiber length possible
  • 32 bit wide data input and output
  • Data input and output FIFO buffered
{GIGA module}

General Description

GIGA is a VME 6HE module. It is a fiber optics transceiver with a transmission speed of one gigabit/s and uses for serial transmission a modified FIBERCHANNEL protocol. The data enter the module on the front panel connector from the synchronous Giga Bus to the fiber optics transmitter and the serial data from the fiber optics receiver leave the module to the synchronous Giga Bus on the VME P2 connector. The protocol and pin-out of the parallel bus is identical on transmitter and receiver side. Input and output data are FIFO buffered. The Transceiver hybrid itself (SIEMENS V23806) has a 32-bit wide data input and output and a 4-bit command input and output. The command signals are transmitted like data and are used to form the protocol of the parallel Giga Bus.


GIGA (CS-P-1931-B)

Features

  • Double Euro size module
  • VME bus compatible
  • High speed fiber channel transmission of 1062.5 Mbaud (one gigabit / sec)
  • Up to two kilometers fiber length possible
  • 32 bit wide data input and output
  • Data input and output FIFO buffered

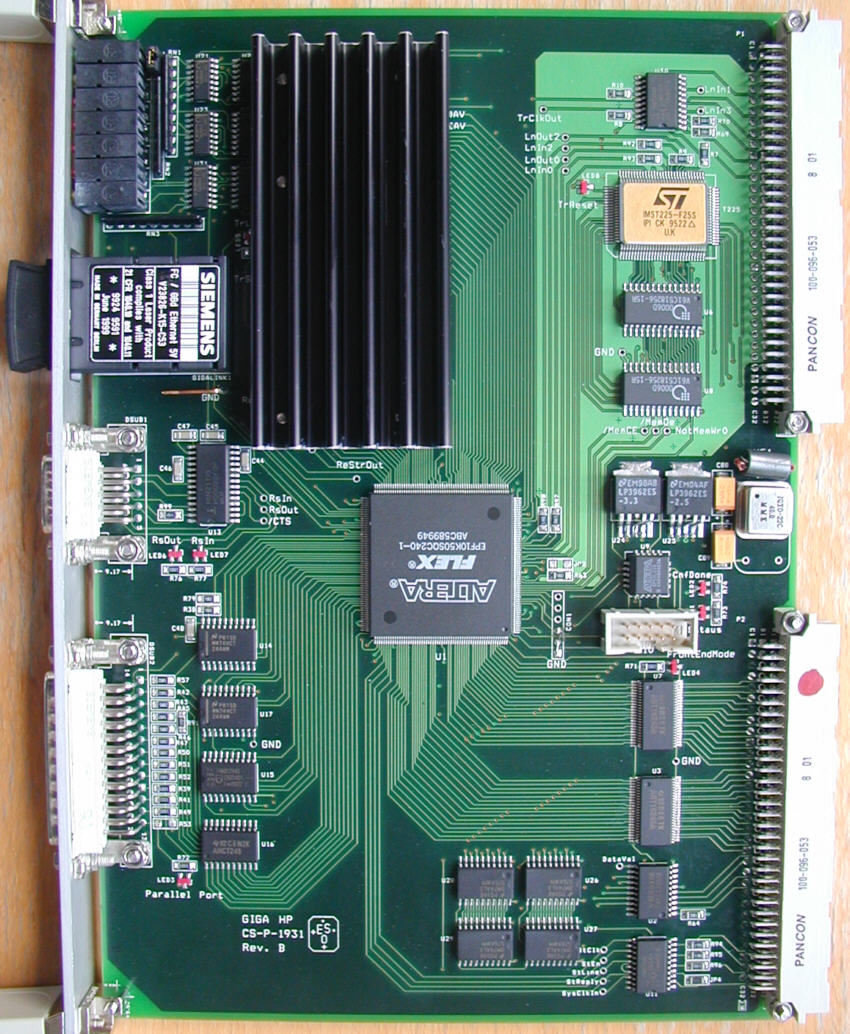

{GIGA module}

General Description

GIGA is the main module in the IRACE system. It is a fiber optics transceiver with a transmission speed of one gigabit/s and uses for serial transmission a modified FIBERCHANNEL protocol. The data enter the module on the front panel connector from the synchronous Giga Bus to the fiber optics transmitter and the serial data from the fiber optics receiver leave the module to the synchronous Giga Bus on the VME P2 connector. The protocol and pin-out of the parallel bus is identical on transmitter and receiver side. Input and output data are FIFO buffered. The Transmitter fiber optic controller (HP hpdm-1022) has a 40-bit wide data output. The command signals are transmitted like data and are used to form the protocol of the parallel Giga Bus.

GIGA releases

CS-P-1798- revision A

CS-P-1921- revision B

Interface compatiblity not compatible to CS-P-1921-B not compatible to CS-P-1798-A
Port interfaces - RS232- and parallel-port
Transputer interface - T2 Transputer, network distributer
Data bus monitoring - with LEDs on front panel
FIFO buffered external FIFO component EPLD integrated FIFO
VME compatibility only P1 conn. P1 and P2 conn.
Fiber optic controller SIEMENS, V23806 HP, HDMP-1022/1024
Fiber optic transceiver Hybrid, integrated transceiver SIEMENS, V23826
Data input bus P3 conn. front panel, flat-band cable switchable P2 conn. back panel
Data output bus P2 conn. back panel switchable P2 conn. back panel
Cascadable over front panel, flat-band cable over back plane
