X-Shooter CCD Detector System: CCD Dimensions and Formats
Note: The pictures are not drawn to scale.
UVB Arm CCD Data Format

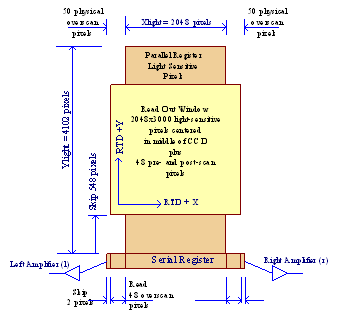

Normal Scientific Readout Modes (1 - 6)
There are 48 prescan and 48 overscan pixels visible on the image.

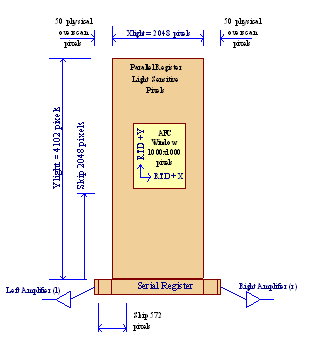

AFC Readout Mode (7)
No prescan or overscan pixels visible on the image.
VIS Arm CCD Data Format

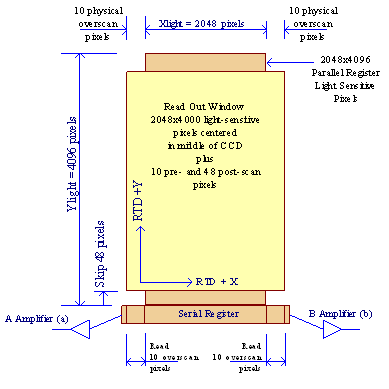

Normal Scientific Readout Modes (1 - 6)
There are 8 prescan and 48 overscan pixels visible on the image.

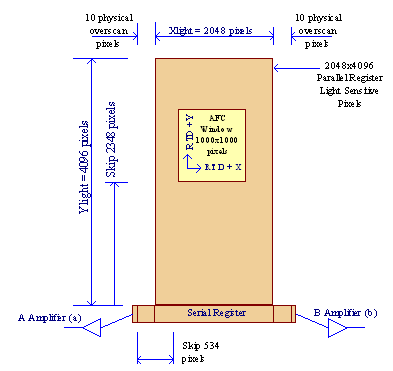

AFC Readout Mode (7)
No prescan or overscan pixels visible on the image.
