FORS2 CCD upgrade - latest news
Table of Content
In General
Since March 22, 2002 we are operating FORS2 with new red/IR-optimizedMIT CCDs. There were some very late changes done which are not yet documented in user manuals and on these WEB pages. Please take the following supplementary informations as update to the existing documents.The older version of the MIT CCD upgrade page is still available.
Detector Characteristics
Gain factors
The Video board and CCD configuration parameters were modified.As a consequence the gain factors have changed:
| mode | gain e/adu |
|---|---|
| 200kHz low gain | 1.25 |
| 100kHz high gain | 0.7 |
Another brick in the wall
| Not only the FORS2 CCDs look like that! The UV and Blue flat fields showsome brick wall like pattern which has it's origin in the thinning procedure. |
   |
|---|
| The 3 frames are taken in the lab at 400nm, 600nm and 900nm. This pattern can be easily removed with twilight flats. |
User Interfaces
FIMS - Mask Preparation Software - patch 2.31.1.9
Bad news! The mask preparation software had to be patched. For the released version 2.31.1.8 we have mistaken keyword DET.NAME with DET.ID to check for old SITE images for which we overwrite the astrometry in the fits header with improved new distortion coefficients. The users have to reload the masks prepared on FORS2 SITE CCD images with fims version 2.31.1.9 and save it then without any further changes in the mask design to correct the astrometry. Masks based on MIT pre-images are not affected by the bug. Users affected by the bug will be informed in the next days by the user support group (USG).Scientific Performance
Zero points
Expected and measured changes of the photometric zero points.The November 2001 measurements were taken with a dirty M1/M3.
| Filter | Calculated | Measured | Calculated | Measured |
|---|---|---|---|---|
| MIT/ETC | MIT - Nov. 6, 2001 | SITE/ETC | SITE - Aug.18, 2001 | |
| z | 27.15 | 26.31 | ||
| I | 27.63 | 27.80 | 27.26 | 27.23 |
| Rsp | 28.20 | 28.30 | 28.13 | 28.13 |
| V | 28.00 | 28.01 | 28.00 | 27.95 |
| B | 27.60 | 27.39 | 27.64 | 27.58 |
| Usp | 23.96 | 23.69 | 24.70 | 24.71 |
Compare the latest FORS1 and FORS2 values (zero points in e-/s):
Sky brightness
On FORS2, due to the higher NIR throughput of the MIT CCDs the effective wavelength of the filters have been shifted toward the red and therefore the night sky background is over-proportionally increased after the CCD upgrade. The following sky brightness measurements have been performed:
| Filter | MIT-LL | SITE |
|---|---|---|
| B | 22.3 | 22.5 |
| V | 21.4 | 21.5 |
| R_SP | 20.7 | 20.8 |
| I | 19.3 | 20.0 |
| z | 18.0 | TBD |
For narrow and intermediate band filters as well as for spectroscopy there is of cause no problem with this feature. One should be aware that imaging exposure times are now restricted to 240 seconds with I_BESS and 120 seconds with z_GUNN and about 3000 seconds inspectroscopy to avoid saturation.
Fringes

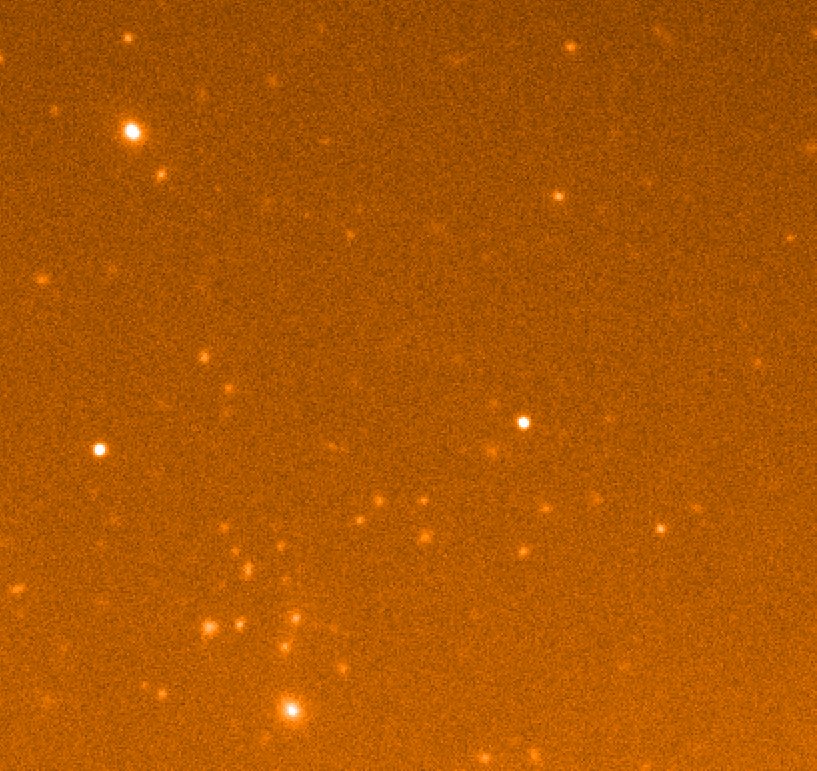

The detector cosmetics and fringe amplitudes are excellent! Please take the followingz_GUNN image as an example: 6x100s imaging (combined) with the z_GUNN filter of an empty field arround quasar Q0044-273. The raw data was flatfielded with twilight flats (no de-fringing was applied, no sky subtracted). Only about a section of 1' x 1' of the image is displayed.
