QC documentation system: QC procedure std_lss_qc.prg for FORS2

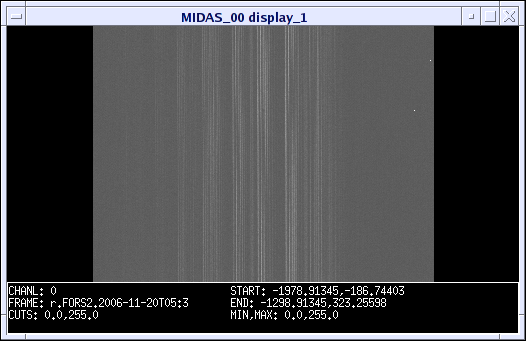

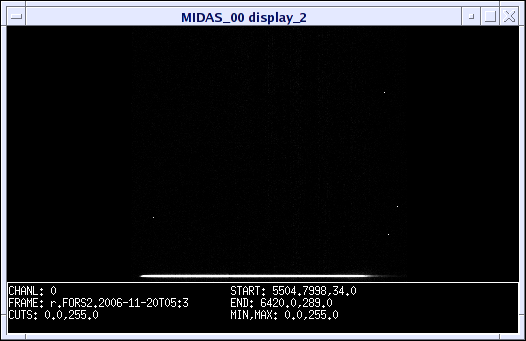

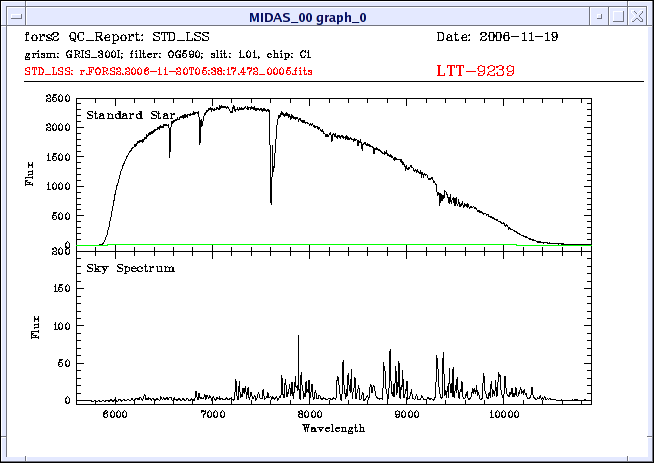

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] bias_qc.prg dark_qc.prg detmon_qc.prg lamp_chk_qc.prg flat_scr_qc.prg lamp_std_qc.prg lamp_lss_qc.prg lamp_mos_qc.prg lamp_mxu_qc.prg lamp_pmos_qc.prg flat_sky_qc.prg std_ima_qc.prg std_lss_qc.prg std_mos_qc.prg std_pmos_qc.prg sci_img_qc_dimm.prg sci_lss_qc.prg sci_mos_qc.prg sci_mxu_qc.prg sci_pmos_qc.prg   bottom  plots   |   contact NAME std_lss_qc.prg VERSION 1.0 -- adapted for FORS2 (PS, 05/2002) SYNTAX MIDAS CALL measureQuality from $DFS_PRODUCT/STD_LSS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/std_lss_qc.prg $date $PF" INSTRUMENT FORS2 RAWTYPE STD_LSS PURPOSE compares raw and product STD_LSS files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The first plot (std_lss_grap1.png) is stored as Postscript file in $DFO_PLT_DIR. PROCINPUT raw image from AB; STD_LSS product; QC1TABLE trending | table in QC1 database: none TRENDPLOT trending | HealthCheck plot associated to this procedure: none QC1PAGE trending | associated documentation: none QC1PLOTS top std_lss_grap1.png left: upper panel: extracted, sky-subtracted spectrum of brightest source (black) with error spectrum (green) lower panel: extracted sky background for brightest object (black) with sky lines marked (magenta) std_lss_disp1.png full display of raw frame std_lss_disp2.png full display of reduced, sky-subtracted frame QC1PARAM QC1 parameters written into QC1 table: none ALGORITHM CERTIF Reasons for rejection: - lack of signal; - saturated spectra (flat parts) COMMENTS Chip 2 usually does not contain a spectrum. top [2015-11-05T15:15:58]         created by qcDocu v1.1.2, a tqs tool
