NAME lamp_pmos_qc.prg
VERSION 1.0 -- adapted from lamp_mos_qc.prg
SYNTAX MIDAS
CALL measureQuality
from $DFS_PRODUCT/LAMP_PMOS/$DATE:
inmidas -P -j "@@ $DFO_PROC_DIR/lamp_pmos_qc.prg $date $PF"
INSTRUMENT FORS2
RAWTYPE LAMP_PMOS
PURPOSE compares raw and product WAVE and FLAT files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The plots are stored as Postscript file in $DFO_PLT_DIR.
PROCINPUT first raw flat and arc from AB;
products: resolution table, reduced arc image, delta image,
disp residuals table, wavemap image; master screen flat and normalized master flat
QC1TABLE trending | table(s) in QC1 database:
fors2_pmos_wave
TRENDPLOT trending | HealthCheck plot associated to this procedure: none
QC1PAGE trending | associated documentation:
pmoswlc/pmoswlc.html (not yet active)
QC1PLOTS
top

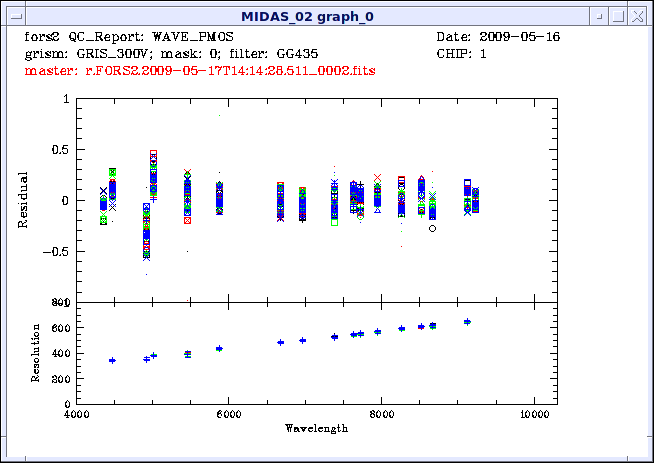

top:residuals per slitlet; the number of the slitlet determines the plot symbol and the colour changes from one frame to the next
bottom: average resolving power;
top panel: date; name of disp residuals table (red), setup parameters (filter, grism, mask, chip)

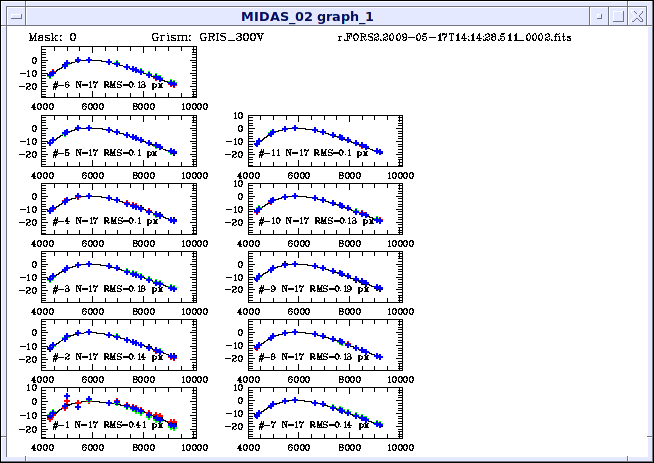

each box: non-linear terms of fit and deviations from linear fit for each slitlet with different colours for different angles
top panel: date; name of disp residuals table (red), setup parameters (filter, grism, mask, chip)

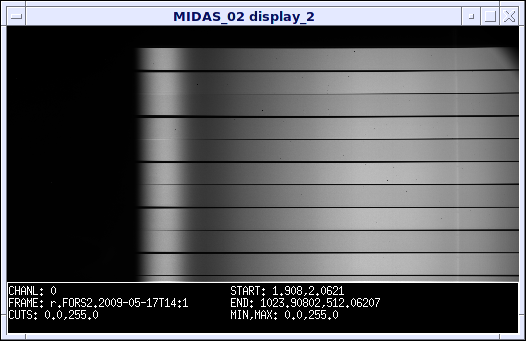

full display of reduced arc frame

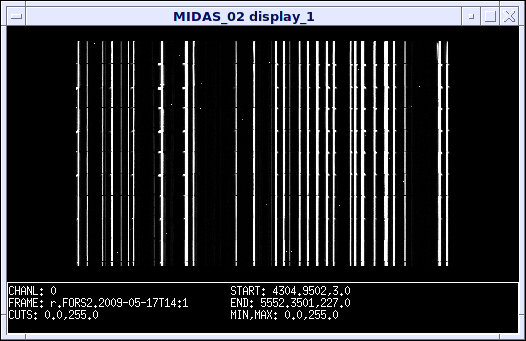

full display of averaged master flat

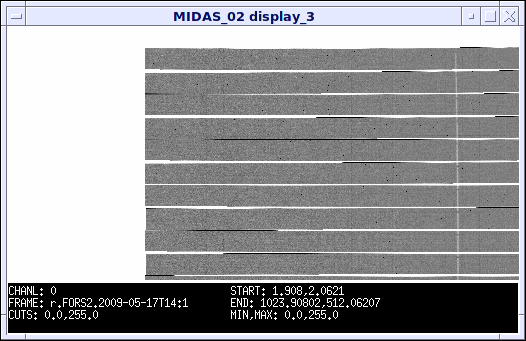

full display of normalized master flat
QC1PARAM QC1 parameters written into QC1 table:
QC1db names: num_slit | n_lin_av | avg_accuracy## | sig_accuracy## | mean_disp_av
FITS key names: (lamp_pmos_qc.prg) | (lamp_pmos_qc.prg) | (QC.WAVE.ACCURACY) | (QC.WAVE.ACCURACY.ERROR) | (lamp_pmos_qc.prg)
QC1db names: central_wlen## | central_resol## | central_resol_meanrms## | nwave##
FITS key names: QC.PMOS.CENTRAL.WAVELENGTH | QC.PMOS.RESOLUTION | QC.PMOS.RESOLUTION.MEANRMS | QC.PMOS.RESOLUTION.NWAVE
## stands for 0_0, 22_5,..., 315_0, 337_5, i.e. the possible angles. Not all angles are always present.
ALGORITHM Description of algorithms:
num_slit: number of slitlets identified
n_lin_av: number of identified arc lines per CCD row, averaged over all slitlets
disp: mean dispersion, averaged over all slitlets
CERTIF Reasons for rejection:
- unusual shape of non-linear terms (e.g. double peak/valley);
- curved/slanted lines in the reduced arc image;
- missing/empty slitlets in normalized flat field image;
- spatially curved slitlets in the normalized master flat or rebinned arc frame
- different line widths are NO cause for rejection, as observers may use different slit widths in one setup
COMMENTS Gaps due to unused slitlets do not show up in the reduced arc frame, which shows only detected slitlets.
