QC documentation system: QC procedure sci_pmos_qc.prg for FORS2

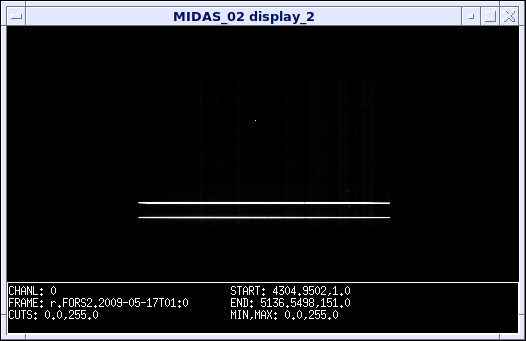

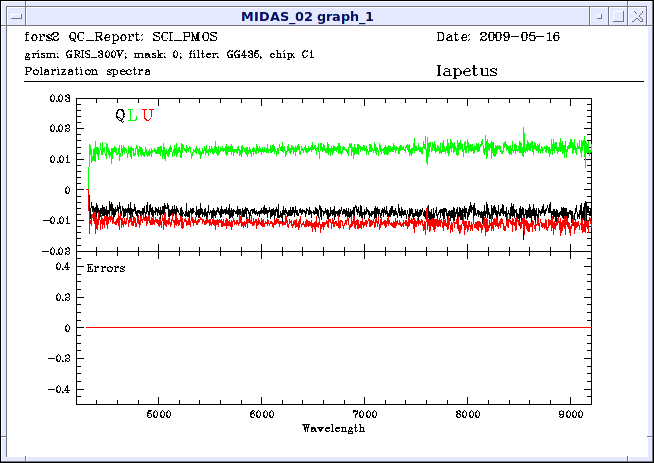

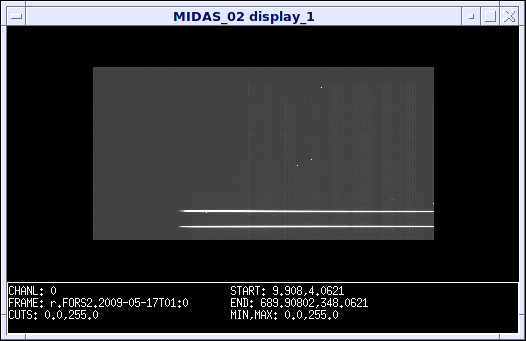

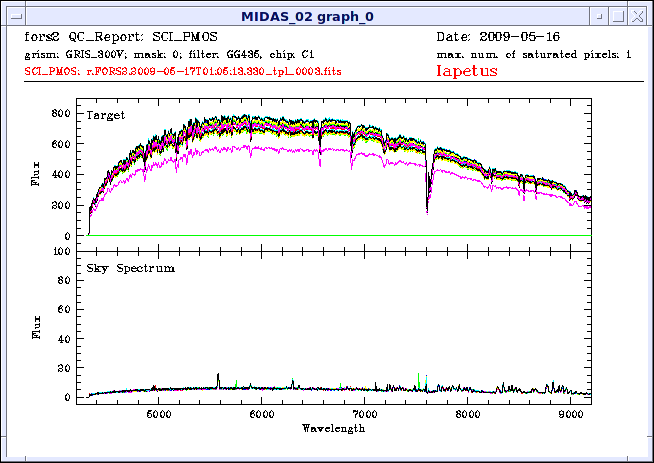

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] bias_qc.prg dark_qc.prg detmon_qc.prg lamp_chk_qc.prg flat_scr_qc.prg lamp_std_qc.prg lamp_lss_qc.prg lamp_mos_qc.prg lamp_mxu_qc.prg lamp_pmos_qc.prg flat_sky_qc.prg std_ima_qc.prg std_lss_qc.prg std_mos_qc.prg std_pmos_qc.prg sci_img_qc_dimm.prg sci_lss_qc.prg sci_mos_qc.prg sci_mxu_qc.prg sci_pmos_qc.prg   bottom  plots   |   contact NAME sci_pmos_qc.prg VERSION 1.0 -- adapted from std_pmos_qc.prg (2009-04, SM) SYNTAX MIDAS CALL measureQuality from $DFS_PRODUCT/STD_PMOS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/sci_pmos_qc.prg $date $PF" INSTRUMENT FORS2 RAWTYPE SCI_PMOS PURPOSE compares raw and product SCI_PMOS files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The first plot (std_mos_grap1.png) is stored as Postscript file in $DFO_PLT_DIR. PROCINPUT raw image from AB; SCI_PMOS product; QC1TABLE trending | table(s) in QC1 database: fors2_sci_pmos TRENDPLOT trending | HealthCheck plot associated to this procedure: none QC1PAGE trending | associated documentation: none QC1PLOTS top sci_pmos_grap1.png upper panel: extracted, sky-subtracted spectra of brightest source with error spectrum (green) lower panel: extracted sky background for brightest object Different colours mark different angles. sci_pmos_grap2.png polarization spectra of brightest source (top) with error spectrum (bottom) sci_pmos_disp1.png full display of raw frame sci_pmos_disp2.png full display of reduced, sky-subtracted frame QC1PARAM QC1 parameters written into QC1 table: QC1db names: n_saturated | avg_accuracy## FITS key names: (sci_pmos_qc.prg) | (QC.WAVE.ACCURACY) QC1 params created by pipeline: avg_accuracy## (from wavelength calibration data) ## stands for 0_0, 22_5,..., 315_0, 337_5, i.e. the possible angles. Not all angles are always present. QC1 params created by this procedure: n_saturated ALGORITHM Description of algorithms: n_saturated Maximum number of pixels above 60000 counts in the raw frame within the slitlet containing the brightest spectrum. CERTIF COMMENTS Chip 2 usually does not contain a spectrum. top [2015-11-05T15:19:23]         created by qcDocu v1.1.2, a tqs tool
