| NAME | flat_scr_qc.prg | |||||||||||||||||||||||||||
| VERSION |
1.0 -- taken from FORS1 to FORS2 1.1 -- adapted for two FORS2 CCDs with different field-of-view 1.3 -- adapted for new imaging pipeline (2008-03-19) | |||||||||||||||||||||||||||
| SYNTAX | MIDAS | |||||||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/FLAT_scr/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/flat_scr_qc.prg $date $PF" | |||||||||||||||||||||||||||
| INSTRUMENT | FORS2 | |||||||||||||||||||||||||||
| RAWTYPE | FLAT_SCR | |||||||||||||||||||||||||||
| PURPOSE | compares raw and product FLAT_SCR files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The plot (flat_scr_grap1.png) is stored as Postscript file in $DFO_PLT_DIR. | |||||||||||||||||||||||||||
| PROCINPUT |
first raw flat from AB; MASTER_SCREEN_FLAT_IMG product; | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors2_scrflat | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_SCR_FF_uv_HC.html | trend_report_SCR_FF_b_HC.html | trend_report_SCR_FF_RI_HC.html | trend_report_CONAD_HC.html | trend_report_FPN_rel_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: scrflat_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

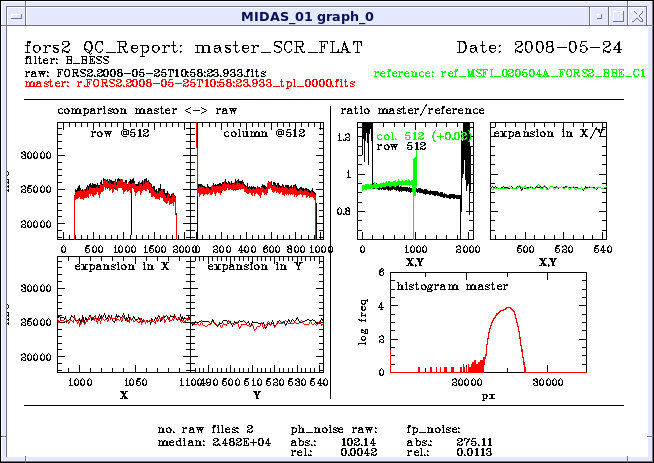

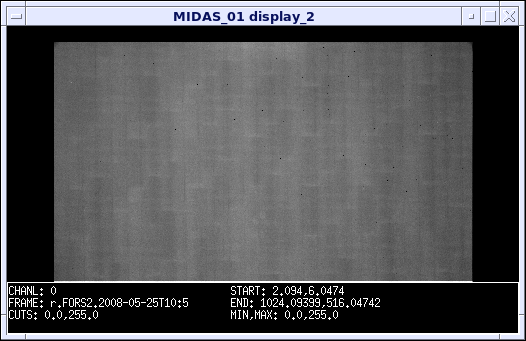

flat_scr_grap1.png left: comparison master (red) <-> raw (black); upper panel: middle row and middle column, full pixel range, in ADU; lower panel: middle row and middle column, central 100 pixels, in ADU top right: ratio master/reference left panel: central row/column, full pixel range right panel: central row/column, central pixel range bottom right: histogram: all pixel values of master skyflat in log frequency histogram flat_scr_disp1.png full display of master frame flat_scr_disp2.png full display of 1st raw frame flat_scr_disp3.png full display of ratio master/reference | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: datancom | median_master | sigma_master FITS key names: DATANCOM | (flat_scr_qc.prg) | (flat_scr_qc.prg) QC1db names: efficiency | fixp_noise | FPN_rel | phot_noise FITS key names: QC.FLAT.EFF | QC.FLAT.FPN | QC.FLAT.FPN.REL | QC.FLAT.PHN QC1db names: conad | conad_err FITS key names: QC.FLAT.CONAD | QC.FLAT.CONADERR QC1 params created by pipeline: datancom, conad, conad_err, efficiency, fixed-pattern noise (absolute and relative), photon noise QC1 params created by this procedure: median_master, sigma_master | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: median_master: median level of master screen flat within X200...1800, Y400...800 (MIDAS stat/ima; outputr(8)) sigma_master: std.dev. of master screen flat within X200...1800, Y400...800 (MIDAS stat/ima; outputr(4)) | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - unusual structure; Smooth, large scale variations, individual bright/dark spots in the central area of the ratio master/reference are no reason for rejection. | |||||||||||||||||||||||||||
| COMMENTS | ||||||||||||||||||||||||||||
| top | [2015-11-05T15:10:28] created by qcDocu v1.1.2, a tqs tool | |||||||||||||||||||||||||||
