| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | lamp_mxu_qc.prg | |||||||||||||||||||||||||||
| VERSION | 2.0 -- adapted for WAVE and FLAT for new pipeline | |||||||||||||||||||||||||||
| SYNTAX | MIDAS | |||||||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/LAMP_MXU/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/lamp_mxu_qc.prg $date $PF" | |||||||||||||||||||||||||||
| INSTRUMENT | FORS2 | |||||||||||||||||||||||||||
| RAWTYPE | LAMP_MXU | |||||||||||||||||||||||||||
| PURPOSE | compares raw and product WAVE and FLAT files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The plots are stored as Postscript file in $DFO_PLT_DIR. | |||||||||||||||||||||||||||
| PROCINPUT |
first raw flat and arc from AB; products: resolution table, reduced arc image, delta image, disp residuals table, wavemap image; master screen flat and normalized master flat | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors2_mxu_wave | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: mxuwlc/mxuwlc.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

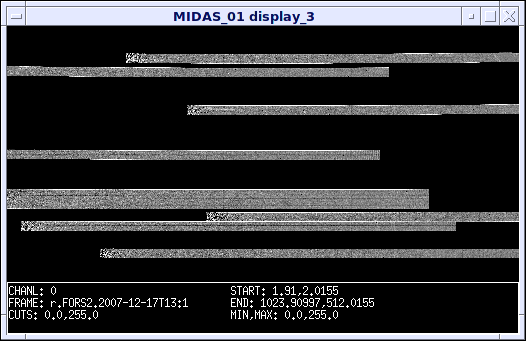

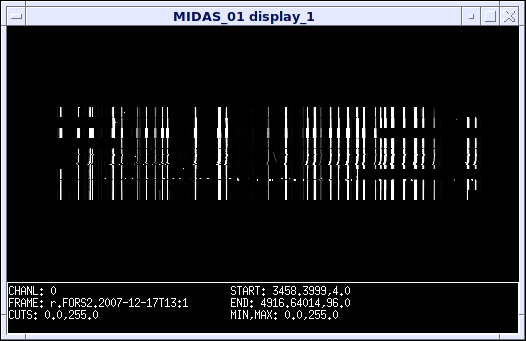

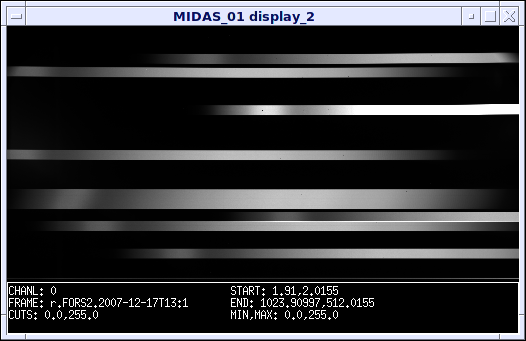

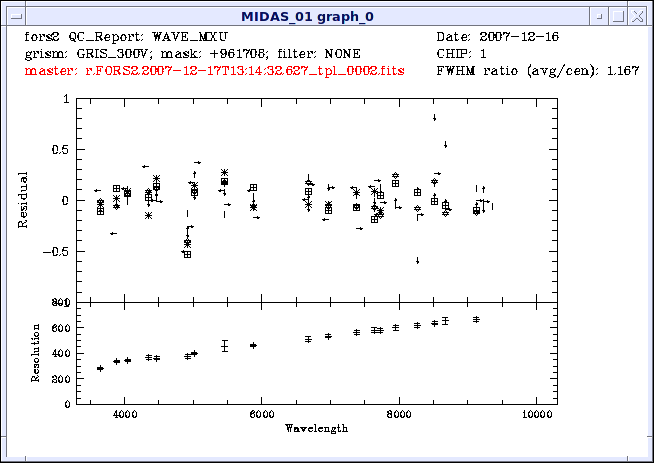

lamp_mxu_grap1.png top:residuals per slitlet; the number of the slitlet determines the plot symbol bottom: average resolving power; top panel: date; name of disp residuals table (red), setup parameters (filter, grism, mask, chip) lamp_mxu_grap2.png each box: non-linear terms of fit and deviations from linear fit for some slitlets top panel: date; name of disp residuals table (red), setup parameters (filter, grism, mask, chip) lamp_mxu_disp1.png full display of reduced arc frame lamp_mxu_disp2.png full display of master screen flat lamp_mxu_disp3.png full display of normalized master flat | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: num_slit | n_lin_av | avg_accuracy | sig_accuracy | mean_disp_av FITS key names: (lamp_mxu_qc.prg) | QC.WAVE.ACCURACY | QC.WAVE.ACCURACY.ERROR | (lamp_mxu_qc.prg) QC1db names: resol_avg | resol_rms | nlines_total FITS key names: QC.MXU.RESOLUTION | QC.MXU.RESOLUTION.RMS | QC.MXU.RESOLUTION.NLINES QC1db names: resol_meanrms | nwave FITS key names: QC.MXU.RESOLUTION.MEANRMS | QC.MXU.RESOLUTION.NWAVE | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: num_slit: number of slitlets identified n_lin_av: number of identified arc lines per CCD row, averaged over all slitlets disp: mean dispersion, averaged over all slitlets | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - unusual shape of non-linear terms (e.g. double peak/valley); - curved/slanted lines in the reduced arc image (unless they were originally non-vertical, as the almost central spectrum in the example plot, see below); - several missing/empty slitlets in normalized flat field image; - curved slitlets in the normalized master flat - different line widths are NO cause for rejection, as observers may use different slit widths in one setup | |||||||||||||||||||||||||||
| COMMENTS |
Gaps due to unused slitlets do not show up in the reduced arc frame, which shows only detected slitlets. Curved or slanted slitlets are not handled correctly by the pipeline | |||||||||||||||||||||||||||
