| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | sci_lss_qc.prg | |||||||||||||||||||||||||||
| VERSION |
1.0 -- adapted for new pipeline (SM, 10/2006) | |||||||||||||||||||||||||||
| SYNTAX | MIDAS | |||||||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/SCI_LSS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/sci_lss_qc.prg $date $PF" | |||||||||||||||||||||||||||
| INSTRUMENT | FORS2 | |||||||||||||||||||||||||||
| RAWTYPE | SCI_LSS | |||||||||||||||||||||||||||
| PURPOSE | compares raw and product SCI_LSS files for FORS2 QC assessment; the plots are later reviewed within certifyProducts and stored in $DFO_PLT_DIR.\ | |||||||||||||||||||||||||||
| PROCINPUT |
raw image from AB; SCI_LSS product; | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors2_sci_lss | |||||||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | |||||||||||||||||||||||||||
| QC1PAGE | trending | associated documentation: none | |||||||||||||||||||||||||||
| QC1PLOTS top |

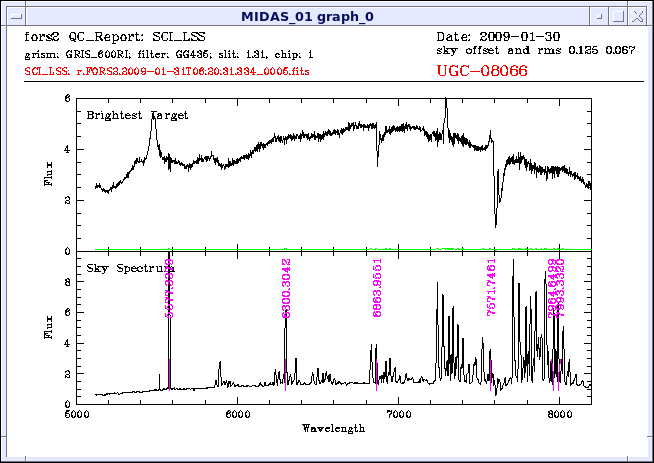

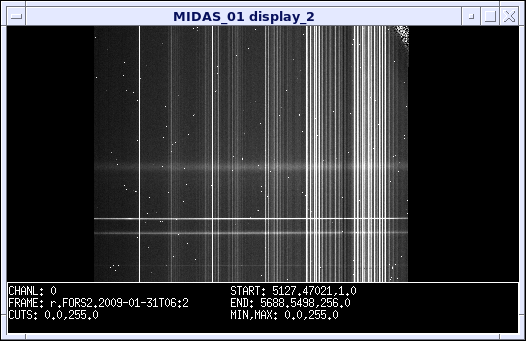

sci_lss_grap1.png upper panel: extracted, sky-subtracted spectrum of brightest source (black) with error spectrum (green) lower panel: extracted sky background for brightest object (black) with sky lines marked (magenta) sci_lss_grap2.png position of a bright sky line along the slit sci_lss_disp1.png full display of raw frame sci_lss_disp2.png full display of reduced frame | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: skyline_position | skyline_rms | skyline_offset | skyline_number | avg_accuracy QC1 params created by pipeline: avg_accuracy (from wavelength calibration data) QC1 params created by this procedure: all others | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: The whole rebinned frame is searched for emission lines. Then lines within +/- 1 pixel around skyline_position are selected and their offset with respect to the reference line is determined. The mean and rms of these offsets are stored in skyline_offset and skyline_rms. The number of skylines used is stored in skyline_number | |||||||||||||||||||||||||||
| CERTIF |
to be rejected only if obviously bad, e.g. curved or
slanted sky lines skyline offsets of more than 0.3 pixels violate the nominal calibration accuracy, but may be due to temperature differences between science and calibration data and are no cause for rejection | |||||||||||||||||||||||||||
| COMMENTS | ||||||||||||||||||||||||||||
