| NAME | lamp_mos_qc.prg | |||||||||||||||||||||||||||
| VERSION | 2.0 -- adapted for WAVE and FLAT for new pipeline | |||||||||||||||||||||||||||
| SYNTAX | MIDAS | |||||||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/LAMP_MOS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/lamp_mos_qc.prg $date $PF" | |||||||||||||||||||||||||||
| INSTRUMENT | FORS2 | |||||||||||||||||||||||||||
| RAWTYPE | LAMP_MOS | |||||||||||||||||||||||||||
| PURPOSE | compares raw and product WAVE and FLAT files for FORS2 QC assessment; the plots are later reviewed within certifyProducts. The plots are stored as Postscript file in $DFO_PLT_DIR. | |||||||||||||||||||||||||||
| PROCINPUT |
first raw flat and arc from AB; products: resolution table, reduced arc image, delta image, disp residuals table, wavemap image; master screen flat and normalized master flat | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors2_mos_wave | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_MOS_lambda_c_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: moswlc/moswlc.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

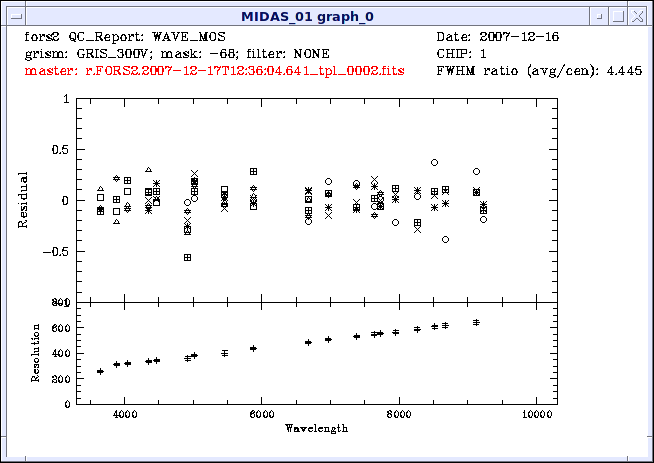

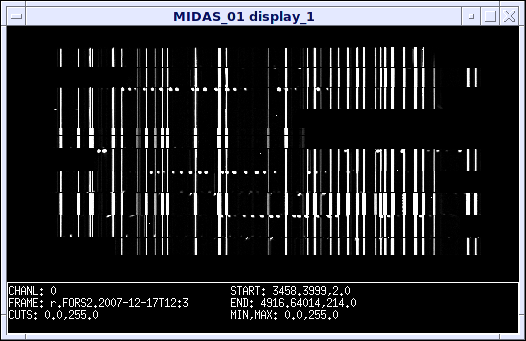

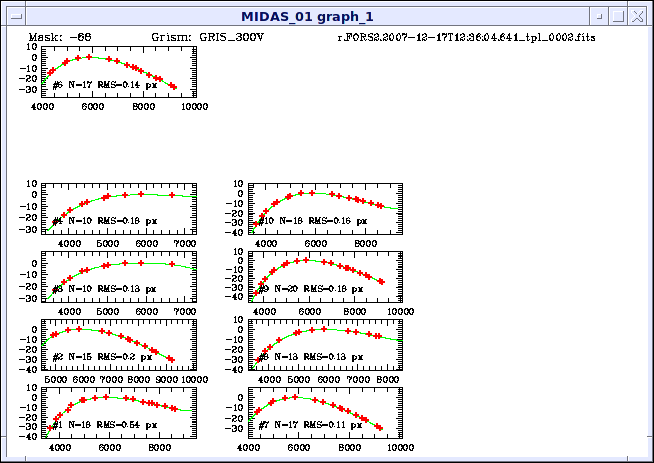

lamp_mos_grap1.png top:residuals per slitlet; the number of the slitlet determines the plot symbol bottom: average resolving power; top panel: date; name of disp residuals table (red), setup parameters (filter, grism, mask, chip) lamp_mos_grap2.png each box: non-linear terms of fit and deviations from linear fit for each slitlet top panel: date; name of disp residuals table (red), setup parameters (filter, grism, mask, chip) lamp_mos_disp1.png full display of reduced arc frame lamp_mos_disp2.png full display of averaged master flat lamp_mos_disp3.png full display of normalized master flat | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: num_slit | n_lin_av | avg_accuracy | sig_accuracy | mean_disp_av FITS key names: (lamp_mos_qc.prg) | QC.WAVE.ACCURACY | QC.WAVE.ACCURACY.ERROR | (lamp_mos_qc.prg) QC1db names: central_wlen | central_resol | central_resol_rms | nlines_total FITS key names: QC.MOS.CENTRAL.WAVELENGTH | QC.MOS.RESOLUTION | QC.MOS.RESOLUTION.RMS | QC.MOS.RESOLUTION.NLINES QC1db names: central_resol_meanrms | nwave FITS key names: QC.MOS.RESOLUTION.MEANRMS | QC.MOS.RESOLUTION.NWAVE | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: num_slit: number of slitlets identified n_lin_av: number of identified arc lines per CCD row, averaged over all slitlets mean_disp_av: mean dispersion, averaged over all slitlets | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - unusual shape of non-linear terms (e.g. double peak/valley); - curved/slanted lines in the reduced arc image; - several missing/empty slitlets in normalized flat field image; - curved slitlets in the normalized master flat - different line widths are NO cause for rejection, as observers may use different slit widths in one setup | |||||||||||||||||||||||||||
| COMMENTS | Gaps due to unused slitlets do not show up in the reduced arc frame, which shows only detected slitlets. | |||||||||||||||||||||||||||
