Preliminary CCD test

CCD Test report


EEV 44-82
CCD name : Kate
Serial number : 8171-9-1
Type : Backside, Single layer AR Pixel size 15x15 µm
Number of photosensitive pixels 2048 x 4102 [HxV]
Number of outputs : 2
Overall rating : Science

Tested on Feb 2000



Quantum Efficiency, PRNU



Readout speed 350kps
Left readout port
Conversion Factor= 1.785e-/ADU ±0.0060 for 26285.3ADU
RMS noise = 4.41e- ±0.35

CCD temperature : -140Cº


Window area is : X1= 59 X2= 1070 Y1= 11 Y2= 510
Bandwidth 5nm

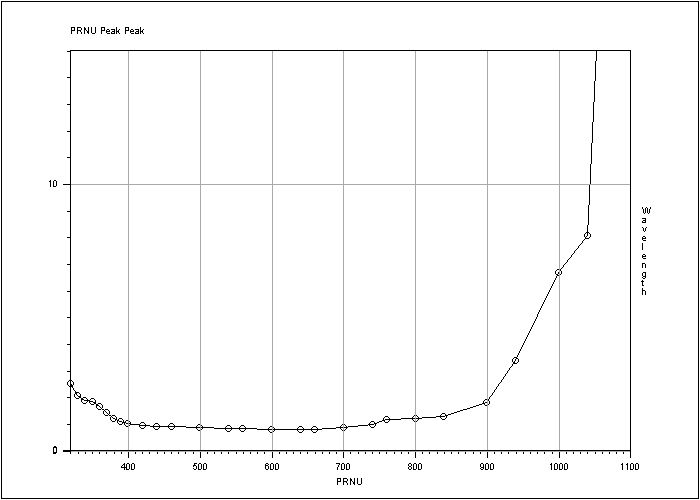

Wav. PRNU rms% QE%
320 2.501 38.2 ±1.07
330 2.072 42.7 ±1.23
340 1.888 45.8 ±0.89
350 1.828 47.3 ±0.46
360 1.653 49.8 ±0.49
370 1.443 54.8 ±0.54
380 1.208 63.2 ±0.63
390 1.076 70.2 ±0.70
400 0.9971 77.7 ±0.78
420 0.9256 82.5 ±0.83
440 0.916 84.8 ±0.84
460 0.8871 84.7 ±0.71
500 0.8763 84.2 ±0.84
540 0.8258 82.9 ±0.83
560 0.8131 81.5 ±0.81
600 0.7992 79.8 ±0.79
640 0.7833 77.9 ±0.75
660 0.779 76 ±0.73
700 0.8522 71 ±0.66
740 0.9698 64.3 ±0.58
760 1.145 60.6 ±0.54
800 1.187 52.6 ±0.45
840 1.285 43.7 ±0.36
900 1.786 28.3 ±0.22
940 3.366 16.9 ±0.13
1000 6.659 4.49 ±0.033
1040 8.053 0.77 ±0.0057
1100 41.52 0.0911 ±0.00067


Cosmetic defects



flat field

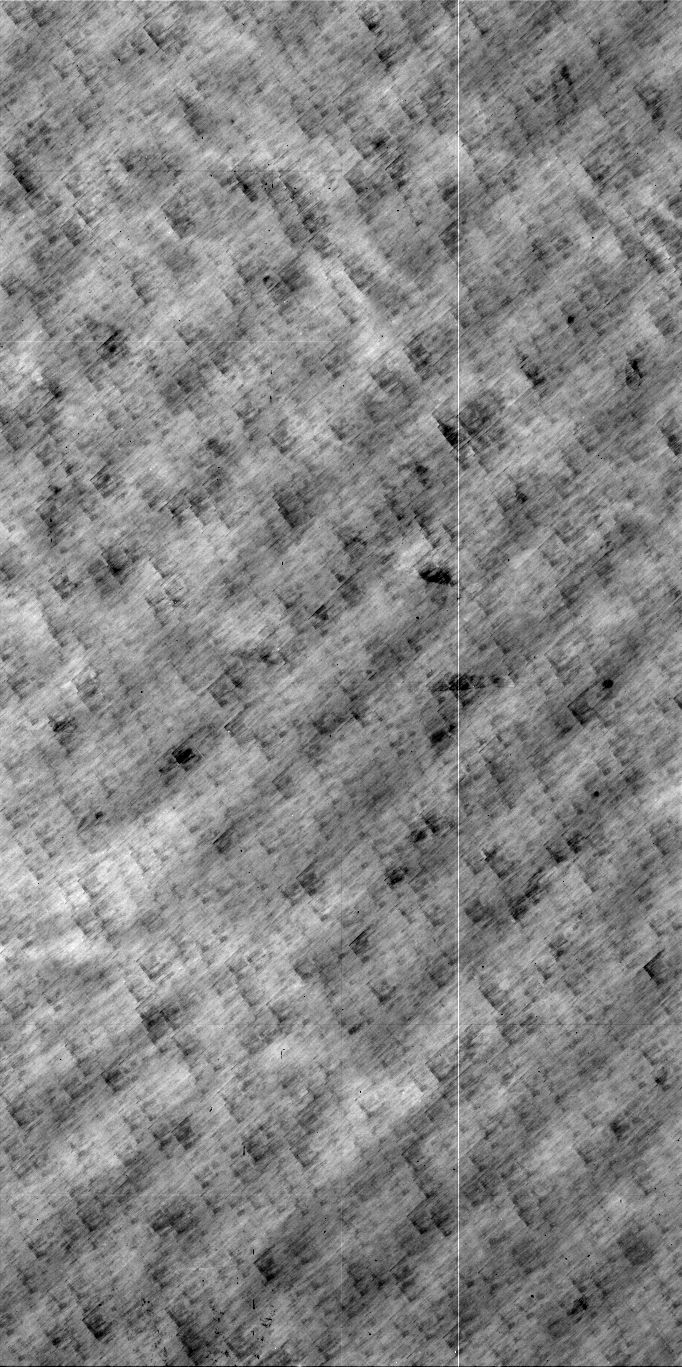

350nm (UV), bandwidth 5nm


High level

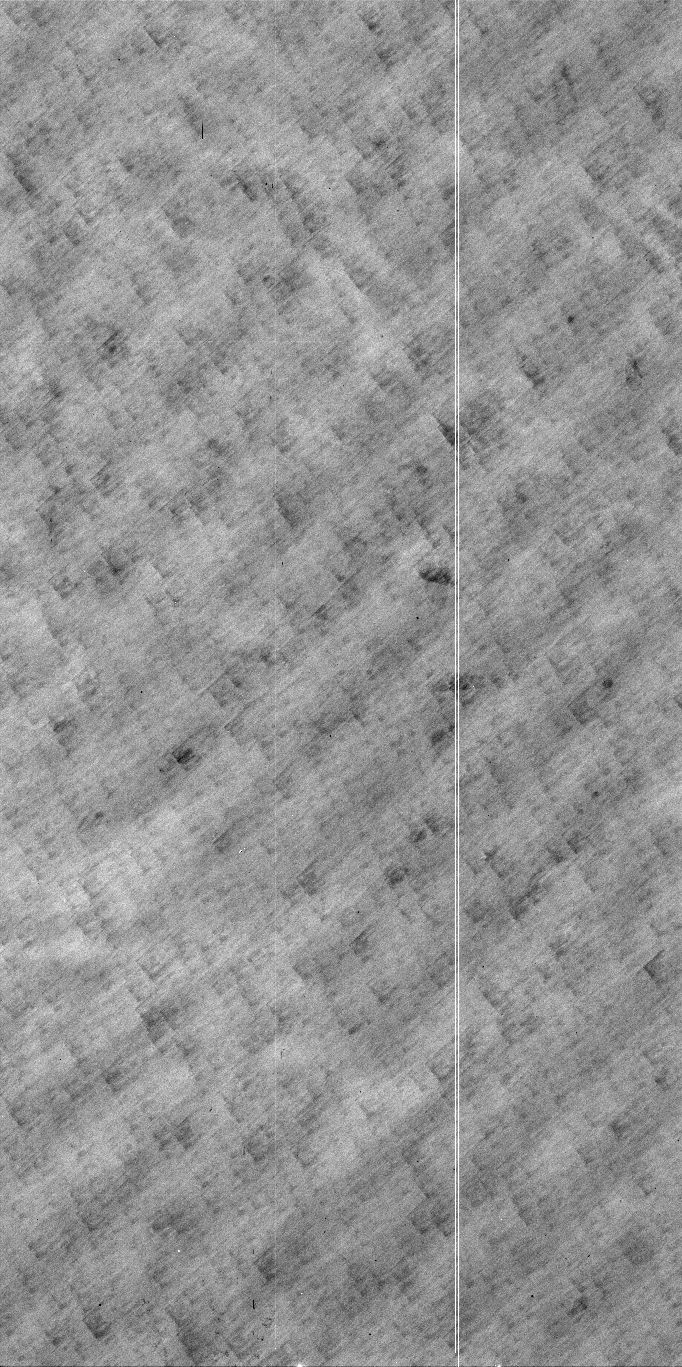

Low level

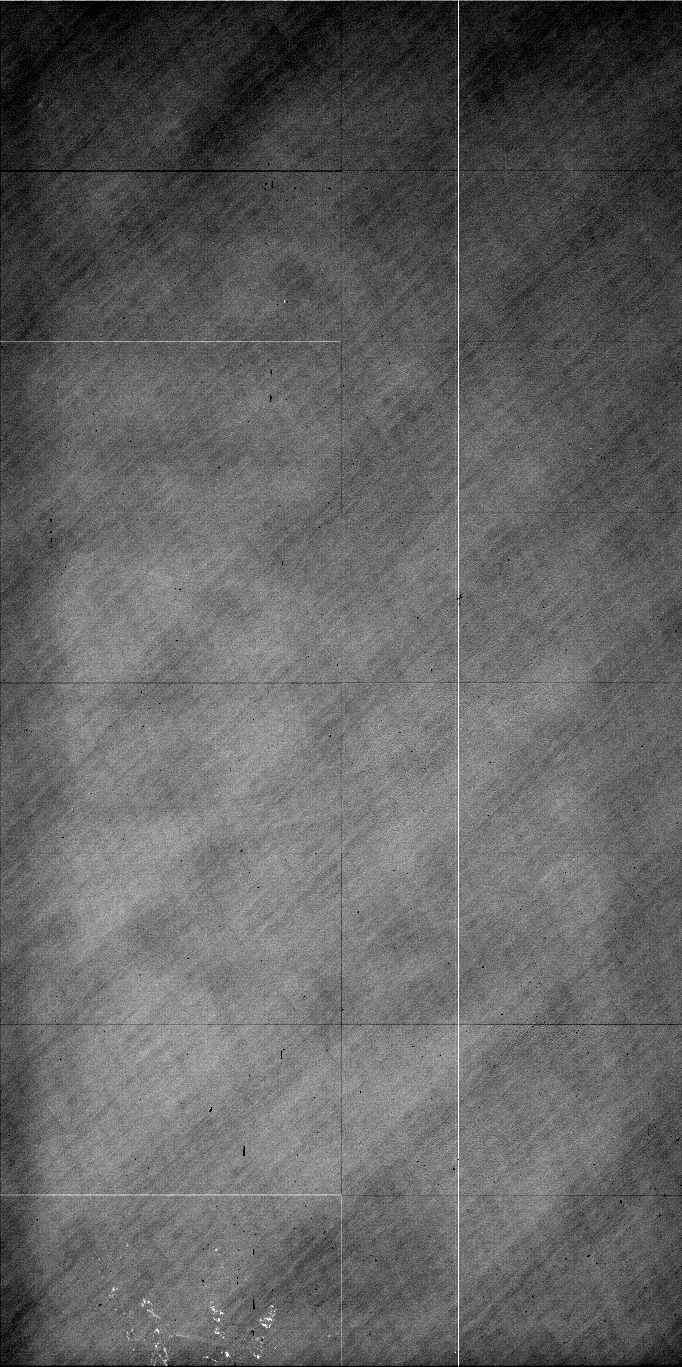

600 nm, bandwidth 5nm


High level

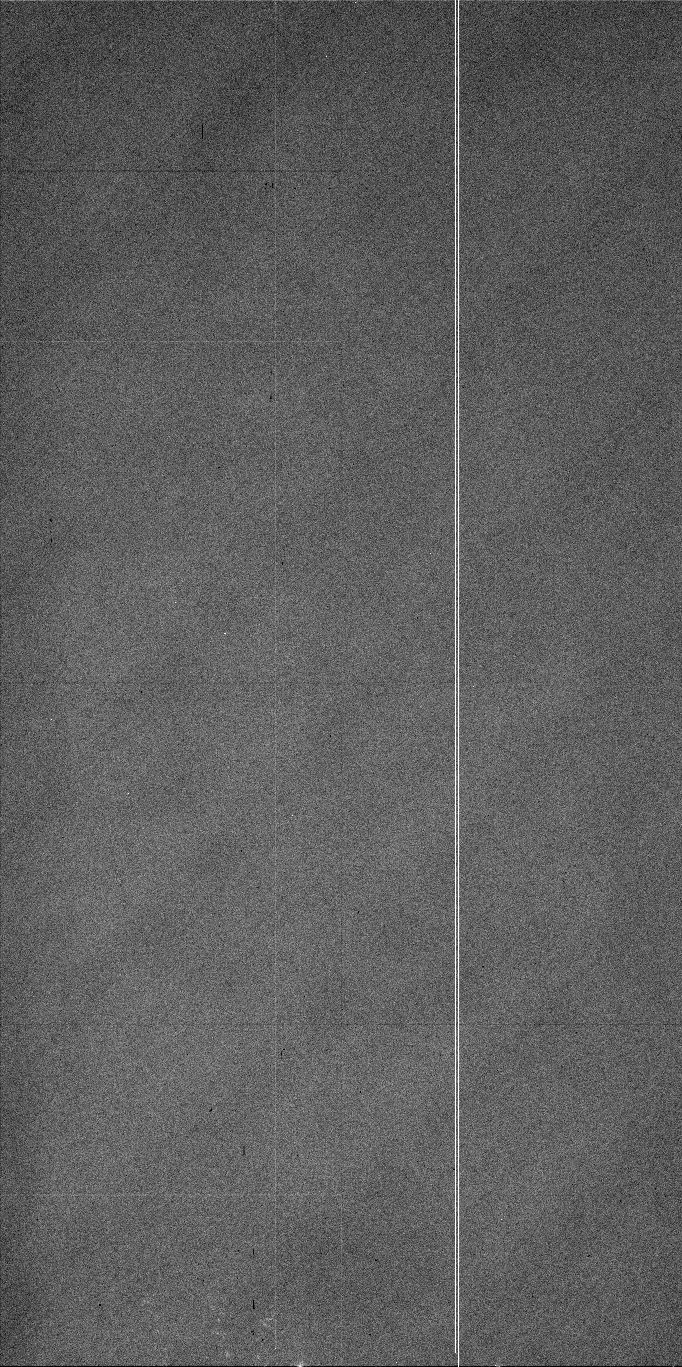

Low level

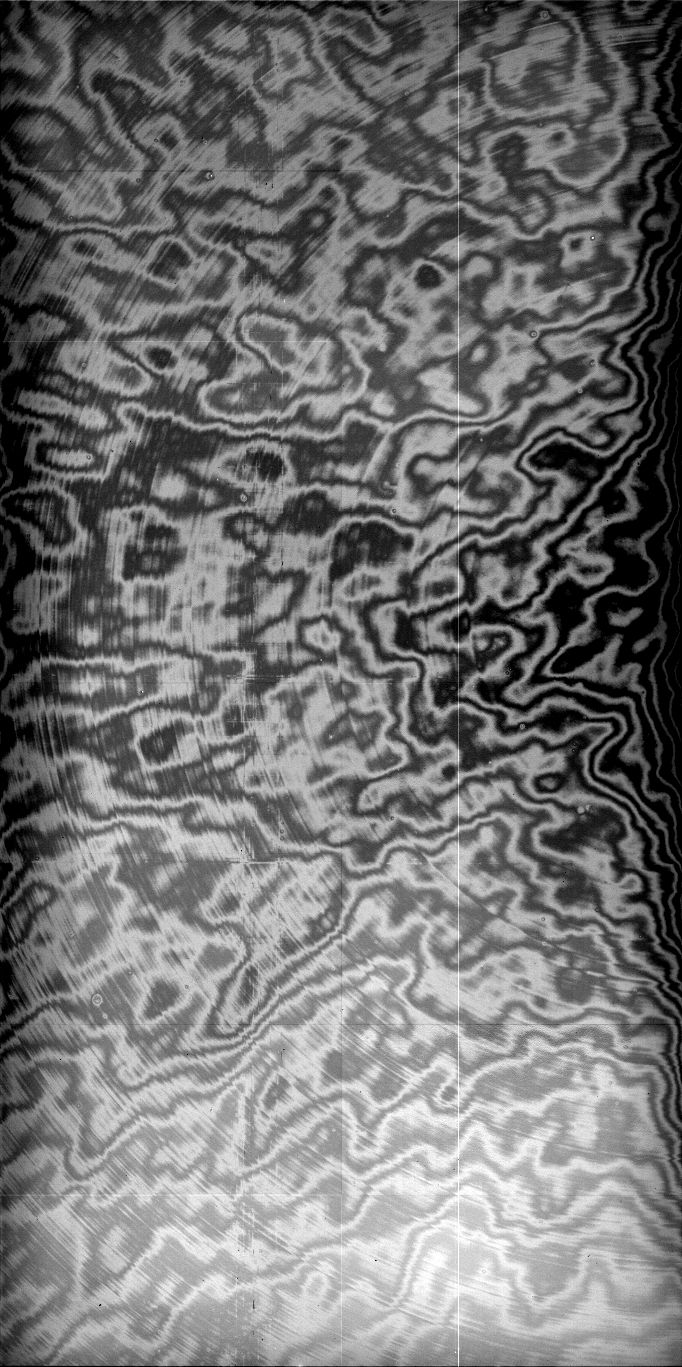

900 nm, bandwidth 5nm


High level

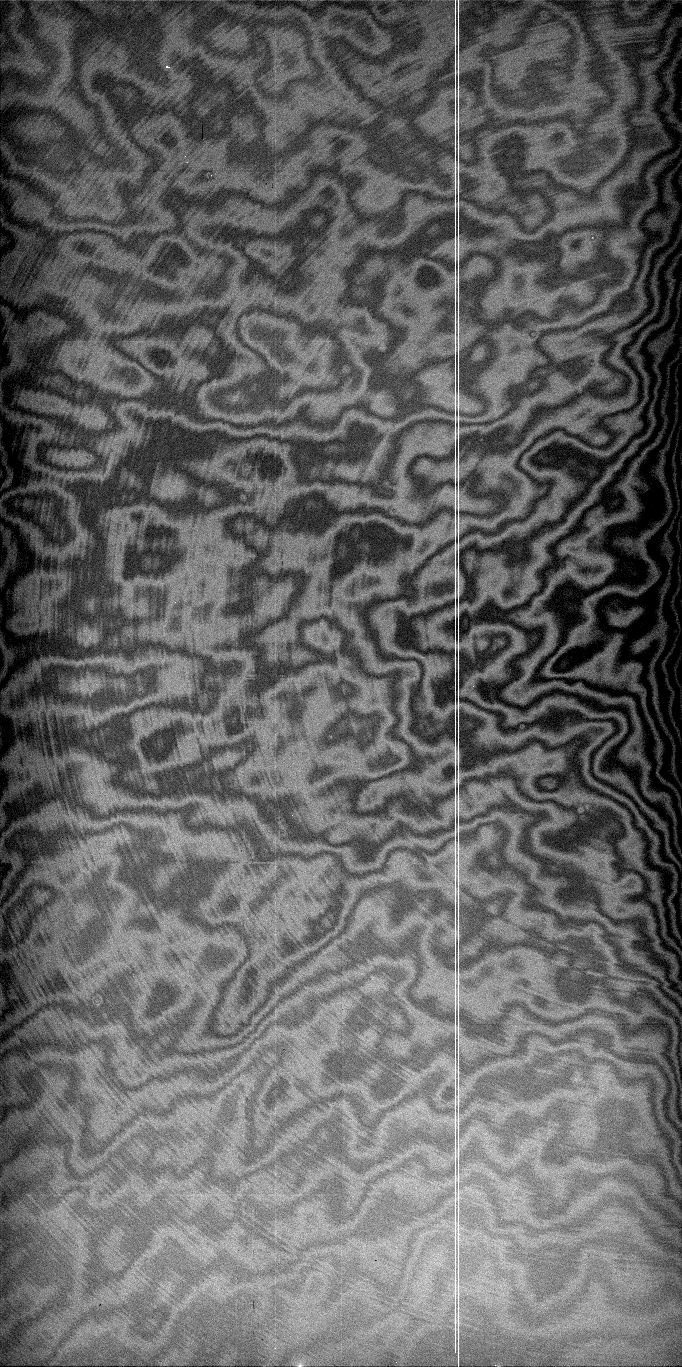

Low level

Type of defect Location (x,y) Number of pixels affected
3 neighboring traps x=1765 y=1515 3x1500

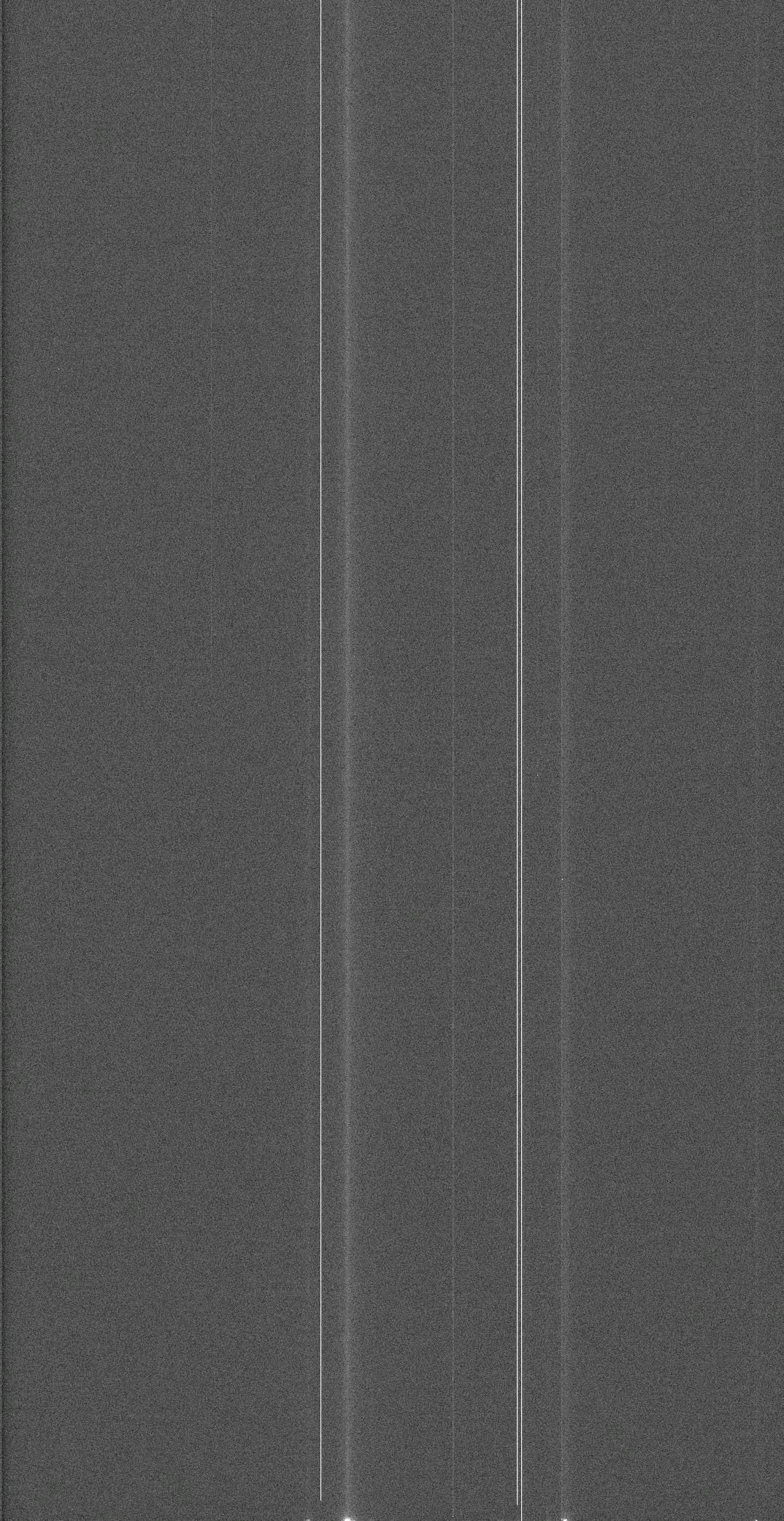

Bias





Type of defect Location Number of pixels affected
Hot pixel x=1816 y=1513 1500

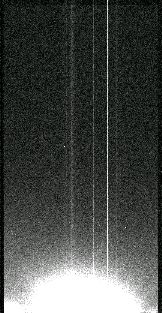

Long exposure dark image : large glowing -> VDD should be reduced to avoid charge injection from the wiping drain.



Readout noise/Conversion factor




Readout speed 166kps
Right readout port
Conversion Factor= 1.679e-/ADU ±0.0050 for 26860.5ADU
RMS noise = 5.54e- ±0.53

Readout speed 166kps
Left readout port
Conversion Factor= 1.663e-/ADU ±0.0059 for 27267.5ADU
RMS noise = 4.09e- ±0.27

Readout speed 350kps
Right readout port
Conversion Factor= 1.822e-/ADU ±0.0063 for 26493.9ADU
RMS noise = 5.63e- ±0.59

Readout speed 350kps
Left readout port
Conversion Factor= 1.785e-/ADU ±0.0060 for 26285.3ADU
RMS noise = 4.41e- ±0.35




Linearity (TDI method)



not done



Dark current

Data to be reduced



Charge Transfer Efficiency (CTE)




Horizontal CTE = 0.99999868
Vertical CTE = 0.99999948
