QC documentation system: QC procedure xshooter_wave.py for XSHOOTER

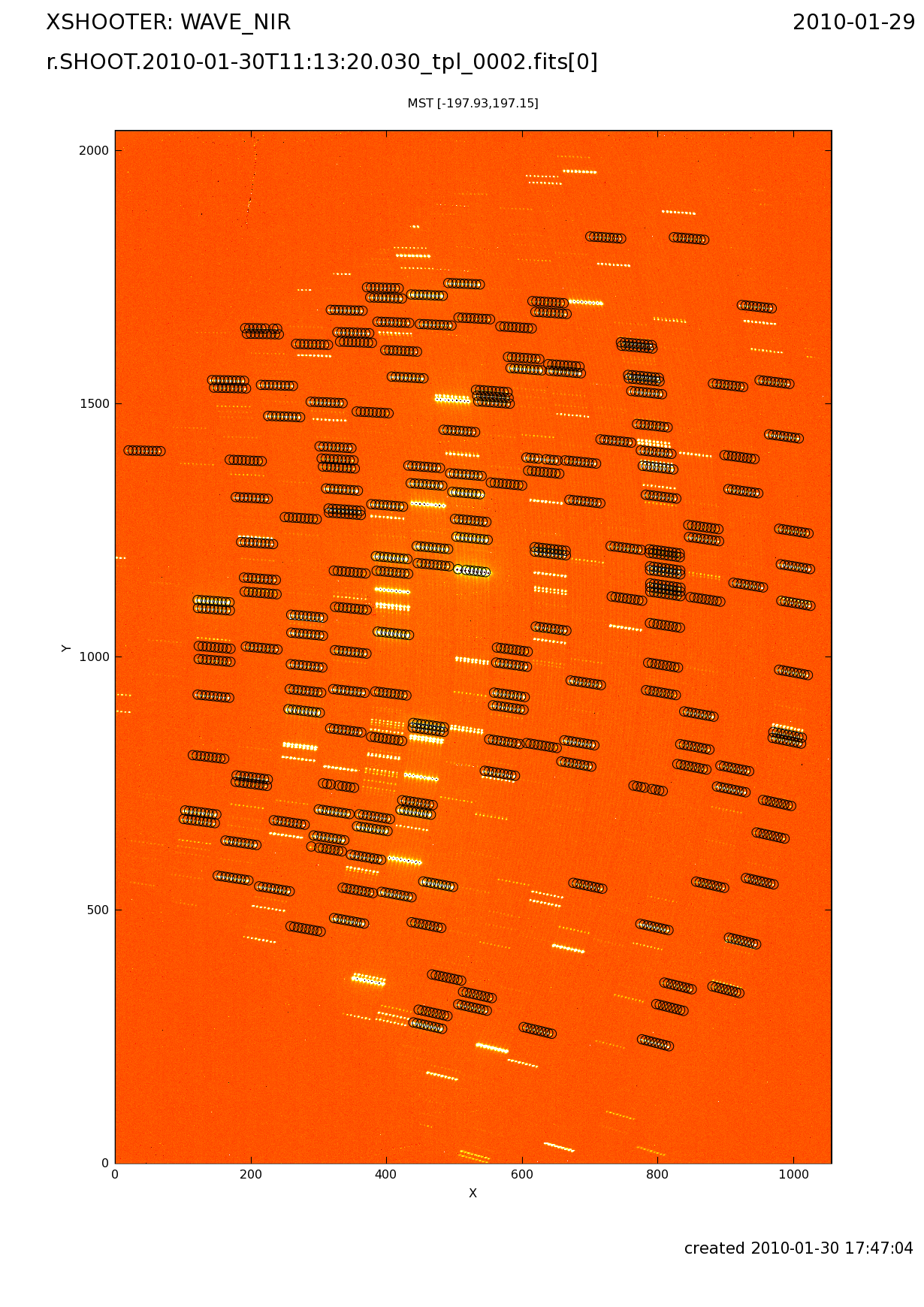

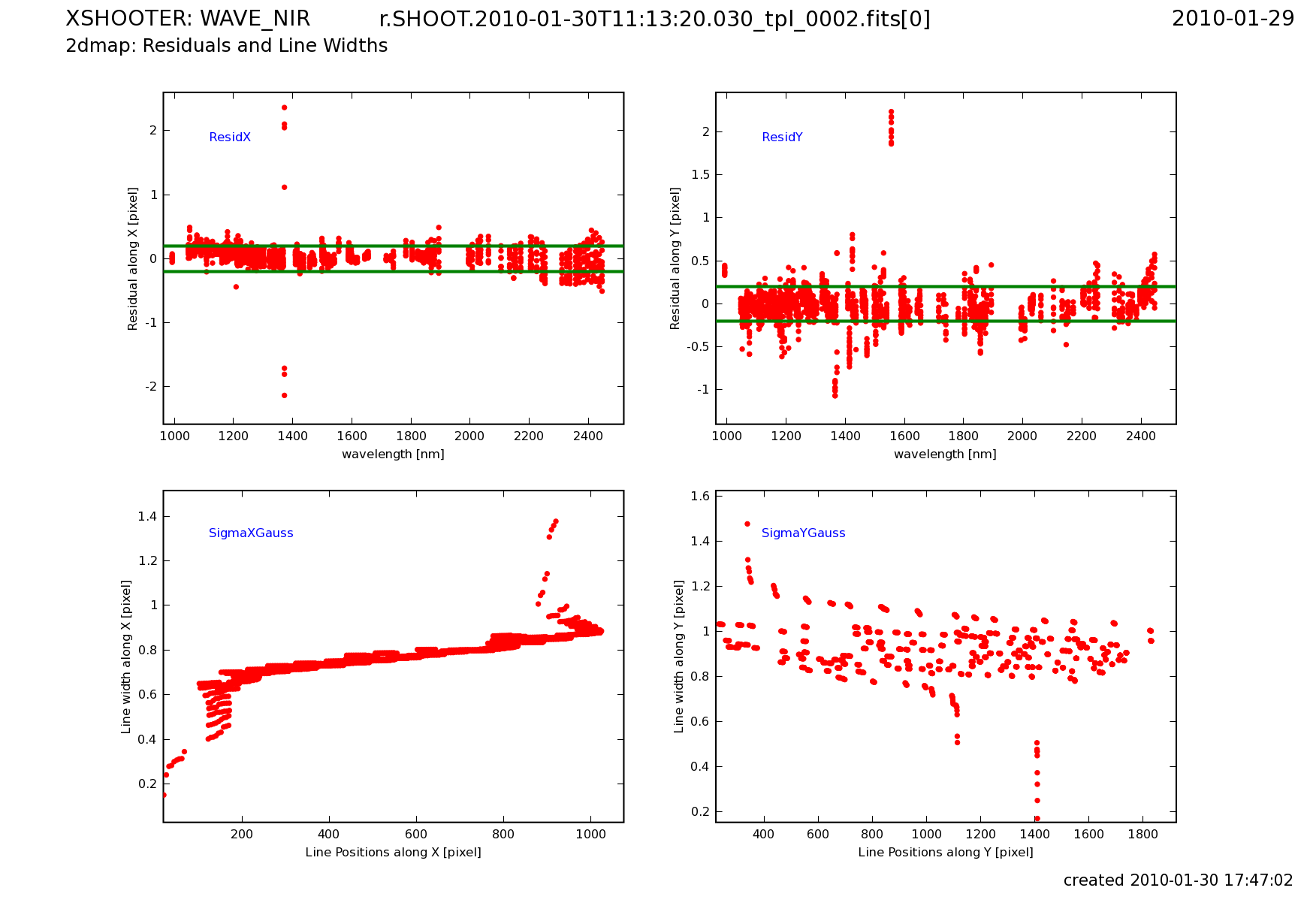

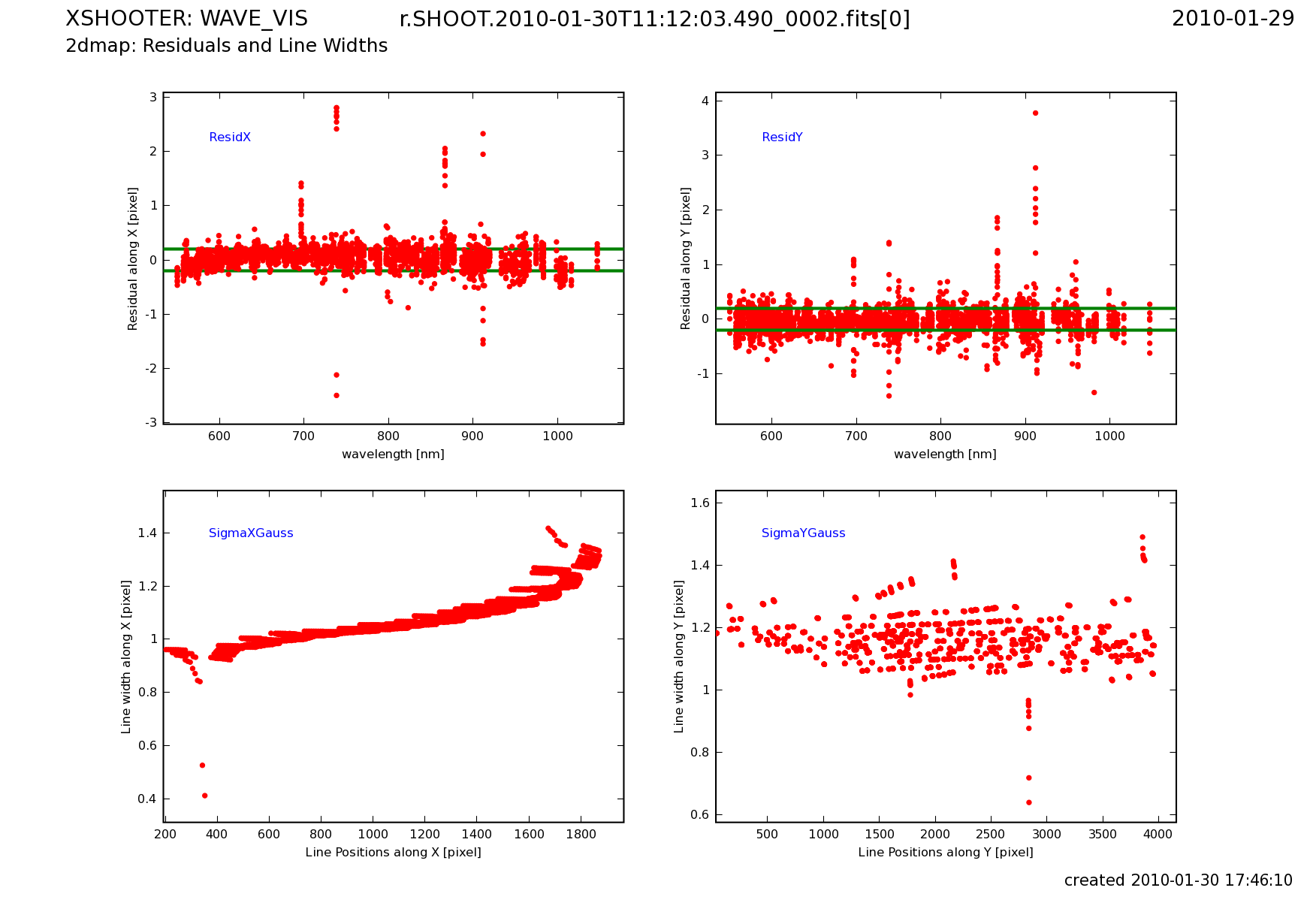

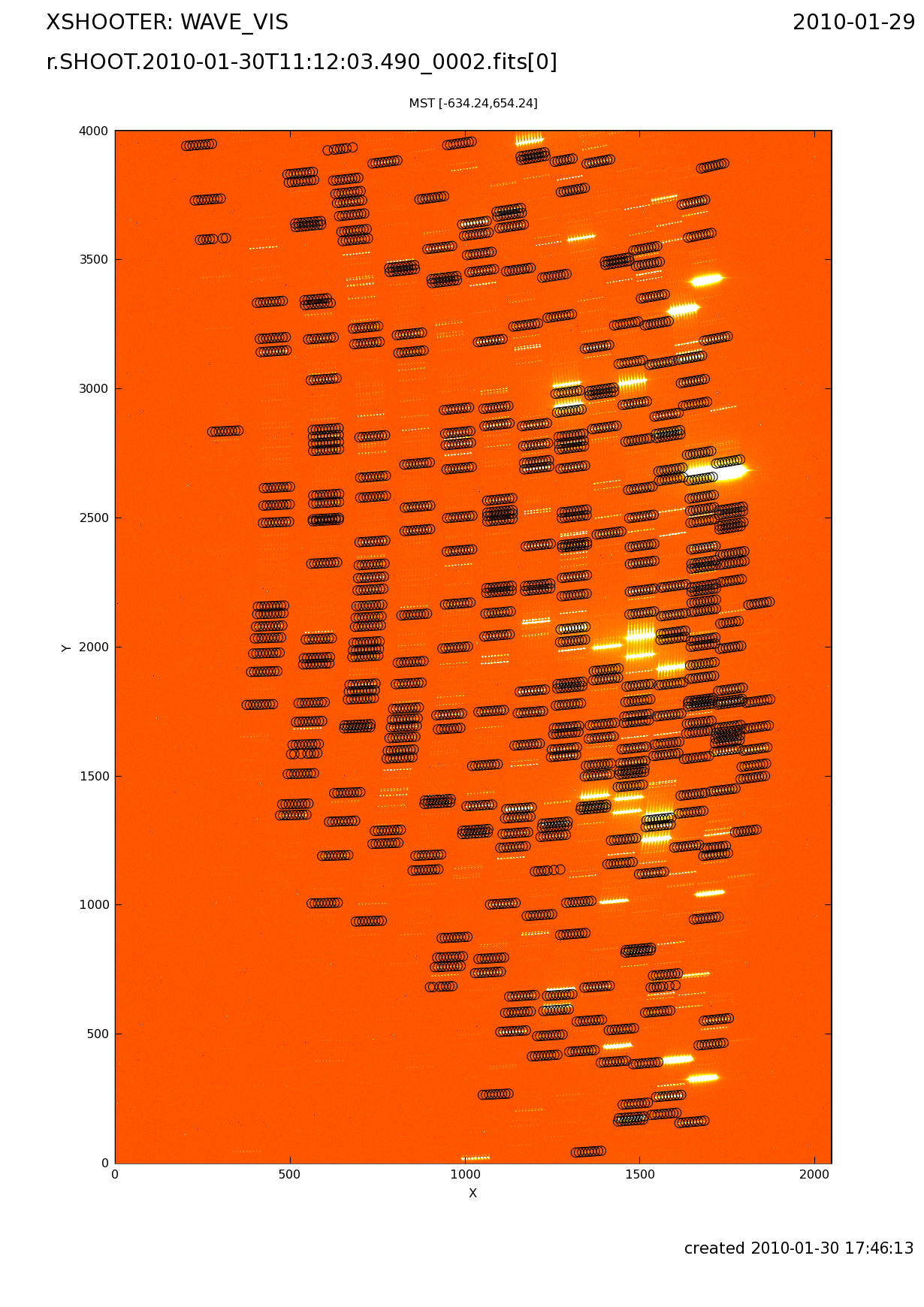

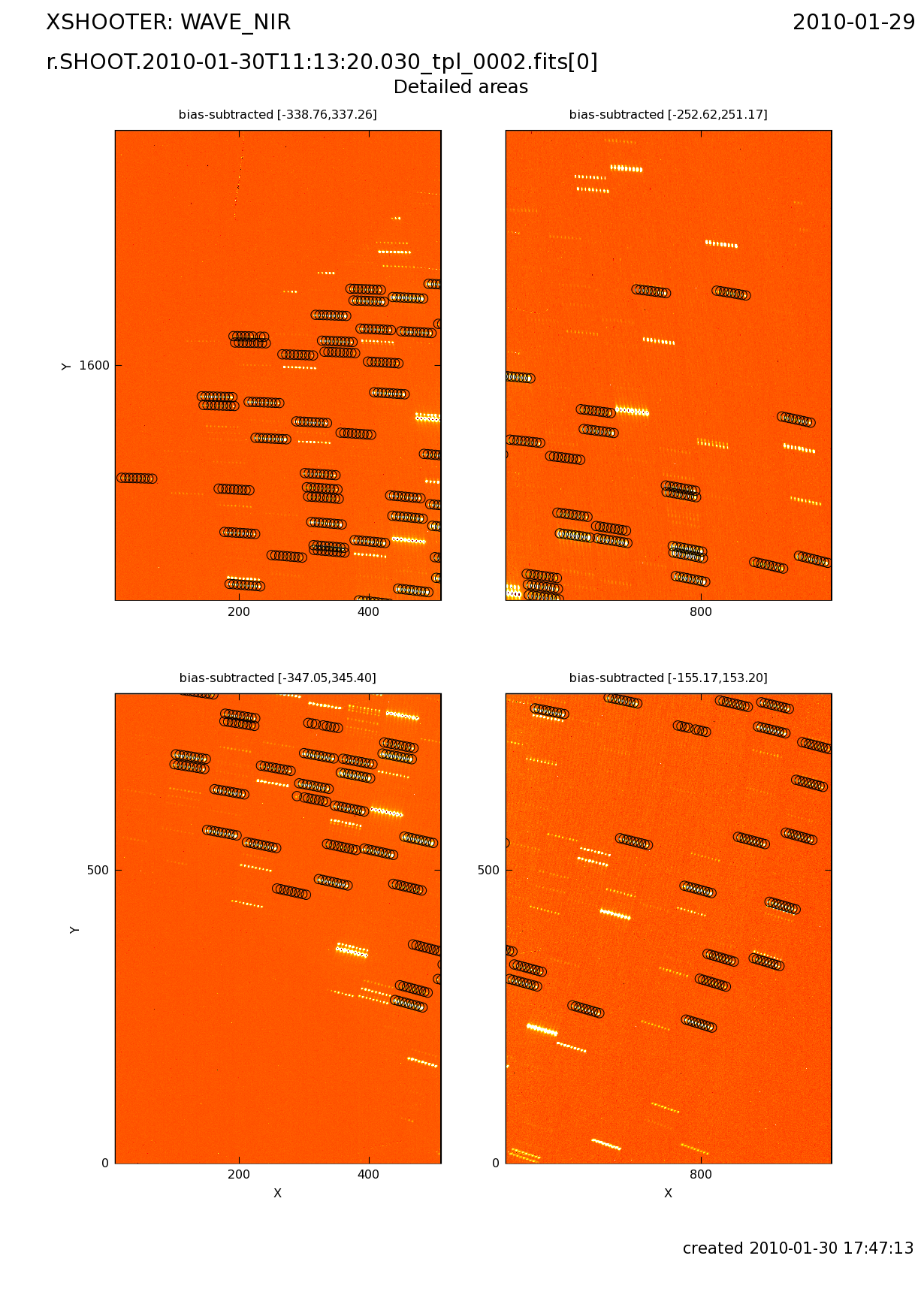

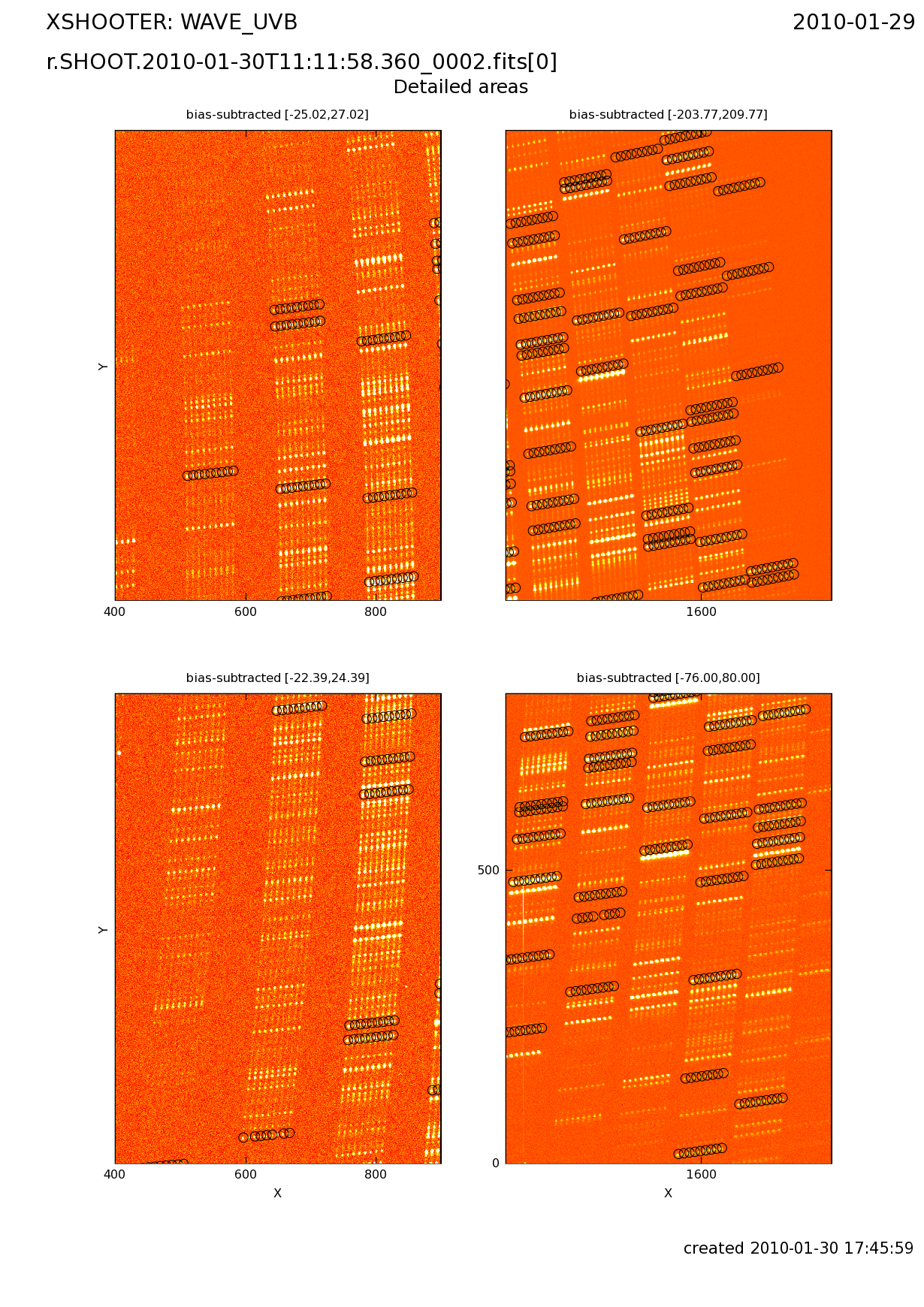

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] xshooter_bias.py xshooter_dark.py xshooter_dark_nir.py xshooter_detlin.py xshooter_fmtchk.py xshooter_orderdef.py xshooter_wave.py xshooter_flexure.py xshooter_flat_slit.py xshooter_arc_slit.py xshooter_flat_ifu.py xshooter_arc_ifu.py xshooter_std_slit_stare.py xshooter_std_slit_nodoff.py xshooter_sci_slit_stare.py xshooter_sci_slit_nodoff.py xshooter_sci_ifu.py   bottom  plots   |   contact NAME xshooter_wave.py VERSION : 1.0 -- February 2009 : 1.1 -- 2017-09-01 minor docu update SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/WAVE_<arm>/$DATE: $DFO_PROC_DIR/python/xshooter_wave.py -i -a $AB INSTRUMENT XSHOOTER RAWTYPE WAVE_UVB | WAVE_VIS | WAVE_NIR PURPOSE compares raw and product WAVE_<arm> files (= 9 pinhole arc frame) for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. PROCINPUT pre-processed WAVE; residual table; QC1TABLE trending | table(s) in QC1 database: xshooter_2dmap TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_NLINE_UVB_HC.html | trend_report_GAP_UVB_HC.html | trend_report_2D_UVB_resid_HC.html | trend_report_NLINE_VIS_HC.html | trend_report_GAP_VIS_HC.html | trend_report_2D_VIS_resid_HC.html | trend_report_NLINE_NIR_HC.html | trend_report_GAP_NIR_HC.html | trend_report_2D_NIR_resid_HC.html QC1PAGE trending | associated documentation: distortion_qc1.html QC1PLOTS top wave_UVB_X00.png top left:: residuals to updated model prediction in X vs wavelength with the limits +/-0.2 marked top right:: residuals to updated model prediction in Y vs wavelength with the limits +/-0.2 marked bottom left: sigma of Gaussian fit to line position (measure of line width) along X axis bottom right: sigma of Gaussian fit to line position (measure of line width) along Y axis wave_UVB_A00.png full display of pre-processed WAVE_UVB frame with identified lines overplotted wave_UVB_A01.png enlargements of the edge regions of pre-processed WAVE_UVB frame with identified lines overplotted wave_VIS_X00.png top left:: residuals to updated model prediction in X vs wavelength with the limits +/-0.2 marked top right:: residuals to updated model prediction in Y vs wavelength with the limits +/-0.2 marked bottom left: sigma of Gaussian fit to line position (measure of line width) along X axis bottom right: sigma of Gaussian fit to line position (measure of line width) along Y axis wave_VIS_A00.png full display of pre-processed WAVE_VIS frame with identified lines overplotted wave_VIS_A01.png enlargements of the edge regions of pre-processed WAVE_VIS frame with identified lines overplotted wave_NIR_X00.png top left:: residuals to updated model prediction in X vs wavelength with the limits +/-0.2 marked top right:: residuals to updated model prediction in Y vs wavelength with the limits +/-0.2 marked bottom left: sigma of Gaussian fit to line position (measure of line width) along X axis bottom right: sigma of Gaussian fit to line position (measure of line width) along Y axis wave_NIR_A00.png full display of pre-processed WAVE_NIR frame with identified lines overplotted wave_NIR_A01.png enlargements of the edge regions of pre-processed WAVE_NIR frame with identified lines overplotted QC1PARAM QC1 parameters written into QC1 table: QC1db names: line_difavg | line_difmax | line_difmax_ord FITS key names: QC.LINE.DIFAVG | QC.LINE.DIFMAX | QC.LINE.DIFMAX.ORD QC1db names: resx_rms | resx_min | resx_max FITS key names: QC.MODEL.RESX_RMS | QC.MODEL.RESX_MIN | QC.MODEL.RESX_MAX QC1db names: resy_rms | resy_min | resy_max FITS key names: QC.MODEL.RESY_RMS | QC.MODEL.RESY_MIN | QC.MODEL.RESY_MAX QC1 params created by pipeline: all ALGORITHM CERTIF Reasons for rejection: - strong trends in residuals; many large outliers COMMENTS top [2017-11-08T13:19:01]         created by qcDocu v1.1.2, a tqs tool
