QC documentation system: QC procedure xshooter_dark.py for XSHOOTER

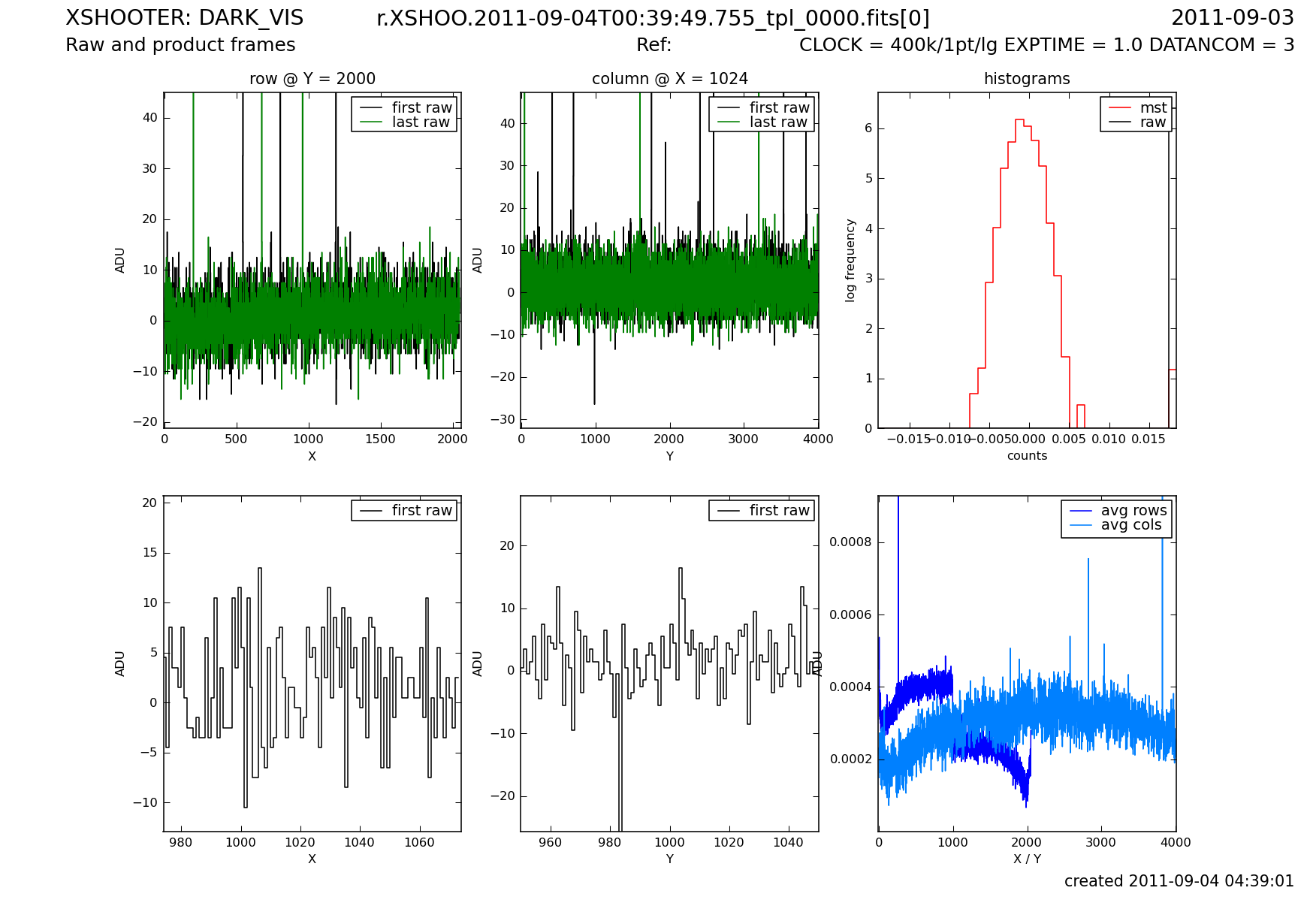

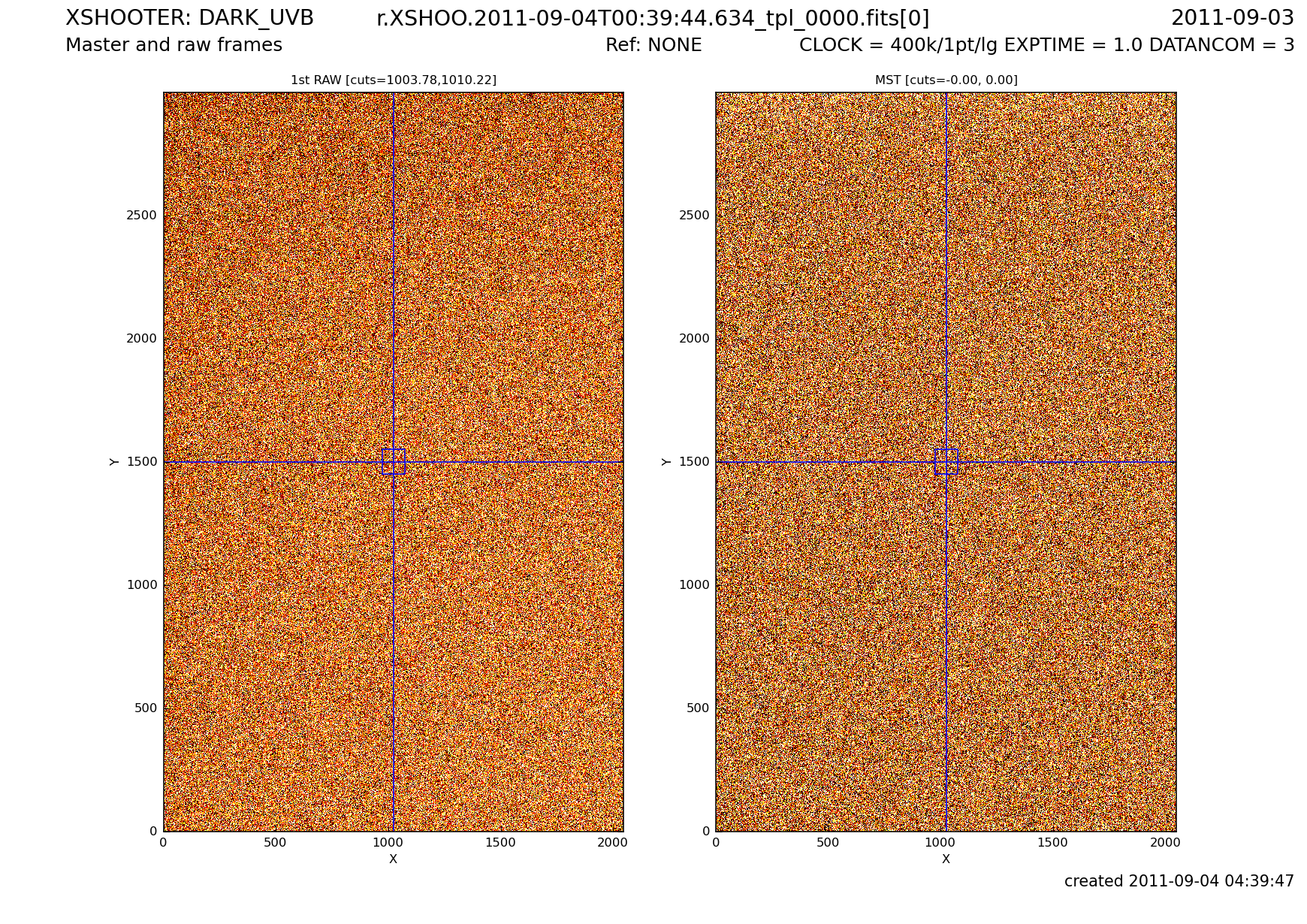

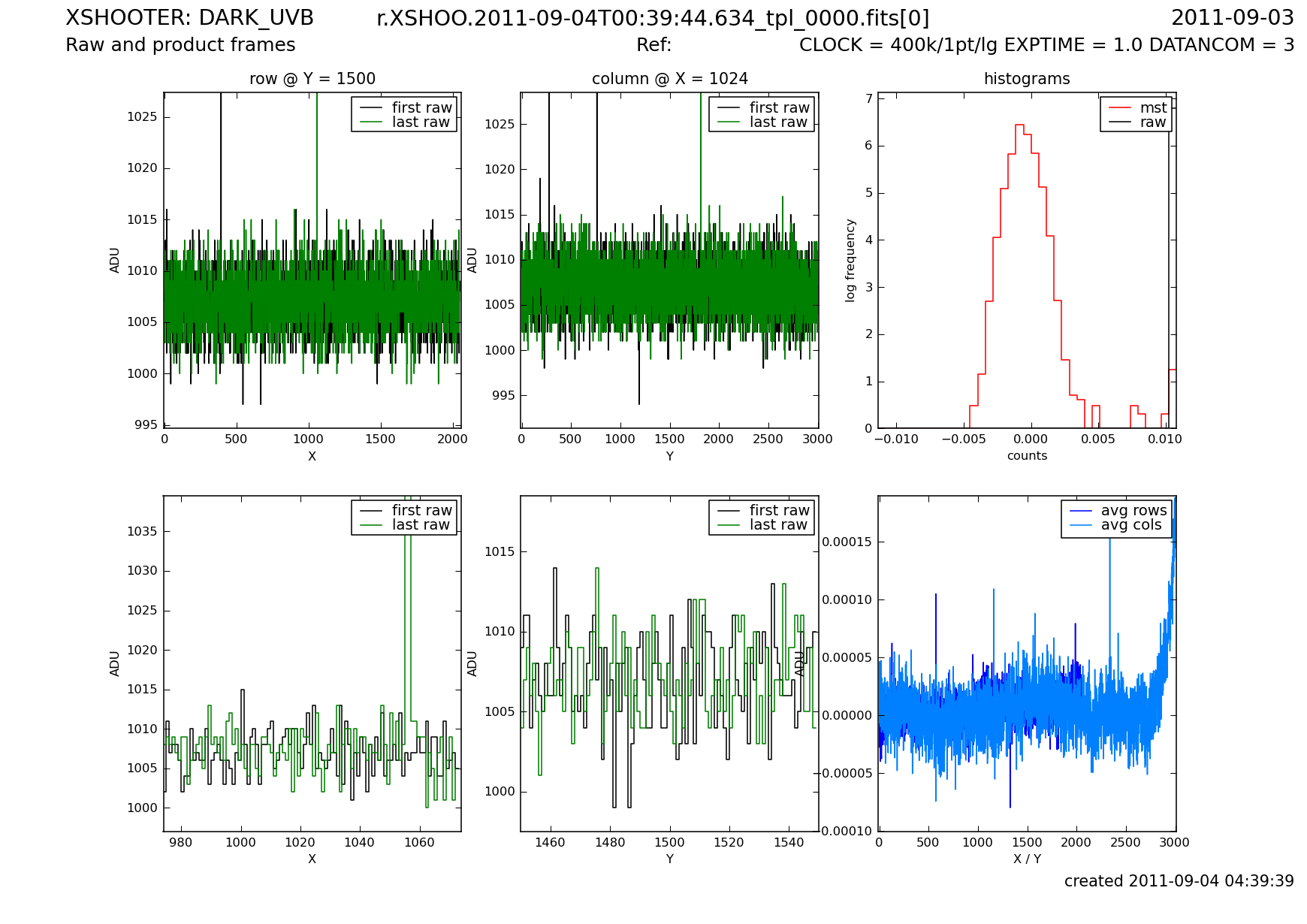

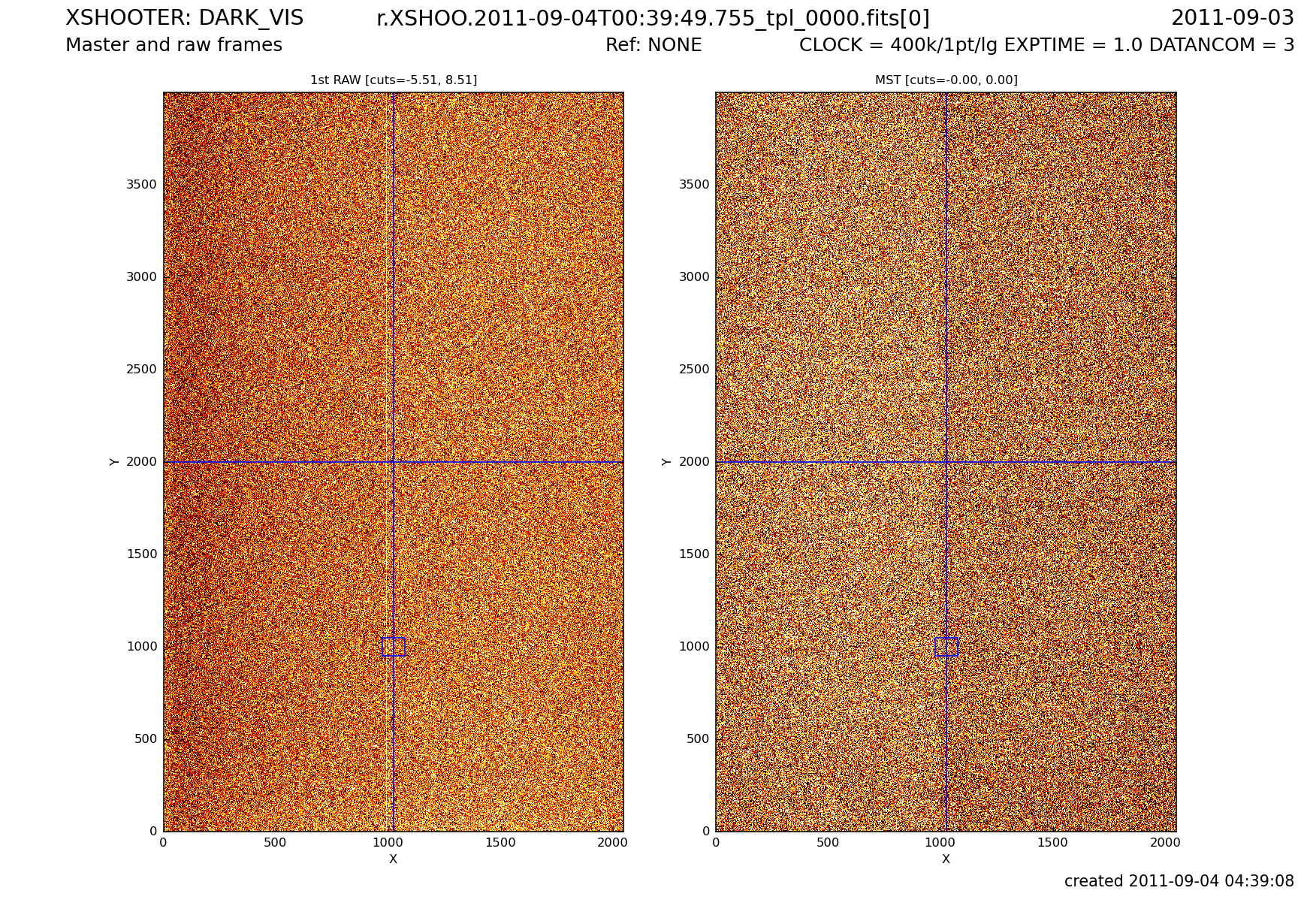

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   ESPRESSO   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] xshooter_bias.py xshooter_dark.py xshooter_dark_nir.py xshooter_detlin.py xshooter_fmtchk.py xshooter_orderdef.py xshooter_wave.py xshooter_flexure.py xshooter_flat_slit.py xshooter_arc_slit.py xshooter_flat_ifu.py xshooter_arc_ifu.py xshooter_std_slit_stare.py xshooter_std_slit_nodoff.py xshooter_sci_slit_stare.py xshooter_sci_slit_nodoff.py xshooter_sci_ifu.py   bottom  plots   |   contact NAME xshooter_dark.py VERSION : 1.0 -- July 2008 : 1.1 -- May 2009, adapted for from xshooter_bias.py SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/DARK_UVB/$DATE: from $DFS_PRODUCT/DARK_VIS/$DATE: $DFO_PROC_DIR/python/xshooter_dark.py -i -a $AB INSTRUMENT XSHOOTER RAWTYPE DARK_AGC DARK_UVB DARK_VIS PURPOSE compares raw and product DARK_UVB/VIS files for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. PROCINPUT first pre-processed DARK; MASTER_DARK product; QC1TABLE trending | table(s) in QC1 database: xshooter_dark TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_DET_AGC_dark_HC.html | trend_report_DET_UVB_dark_HC.html | trend_report_DET_VIS_dark_HC.html QC1PAGE trending | associated documentation: dark_qc1.html QC1PLOTS top dark_UVB_X00.png top left: comparison of central row in first (black) and last (green) raw file top center: comparison of central column in first (black) and last (green) raw file top right: histogram of flux in master (red) bottom left: comparison of central part of central row in first (black) and last (green) raw file bottom center: comparison of central part of central column in first (black) and last (green) raw file bottom right: average flux in rows (dark blue) and columns (light blue) of master frame dark_UVB_A00.png full display of UVB first raw and master frame dark_VIS_X00.png top left: comparison of central row in first (black) and last (green) raw file top center: comparison of central column in first (black) and last (green) raw file top right: histogram of flux in master (red) bottom left: comparison of central part of central row in first (black) and last (green) raw file bottom center: comparison of central part of central column in first (black) and last (green) raw file bottom right: average flux in rows (dark blue) and columns (light blue) of master frame dark_VIS_A00.png full display of VIS first raw and master frame QC1PARAM QC1 parameters written into QC1 table: QC1db names: median_dark | mean_dark | sigma_dark | cosmic_rate | avg_cosmic FITS key names: QC.MDARKMED | QC.MDARKAVG | QC.MDARKRMS | QC.CRRATE | QC.NCRH.AVG QC1db names: fixed_pattern | error_fixed_pattern | fp_norm | error_fp_norm FITS key names: QC.FPN | QC.FPN.ERR | QC.NORMFPN | QC.NORMFPN.ERR QC1 params created by pipeline: all ALGORITHM CERTIF Reasons for rejection: - remnants from redmost echelle orders (right side) COMMENTS There is no QC report for dark frames acquired with the acquisition and guiding camera (AGC) CCD top [2020-10-08T05:44:25]         created by qcDocu v1.1.2, a tqs tool
