QC documentation system: QC procedure xshooter_detlin.py for XSHOOTER

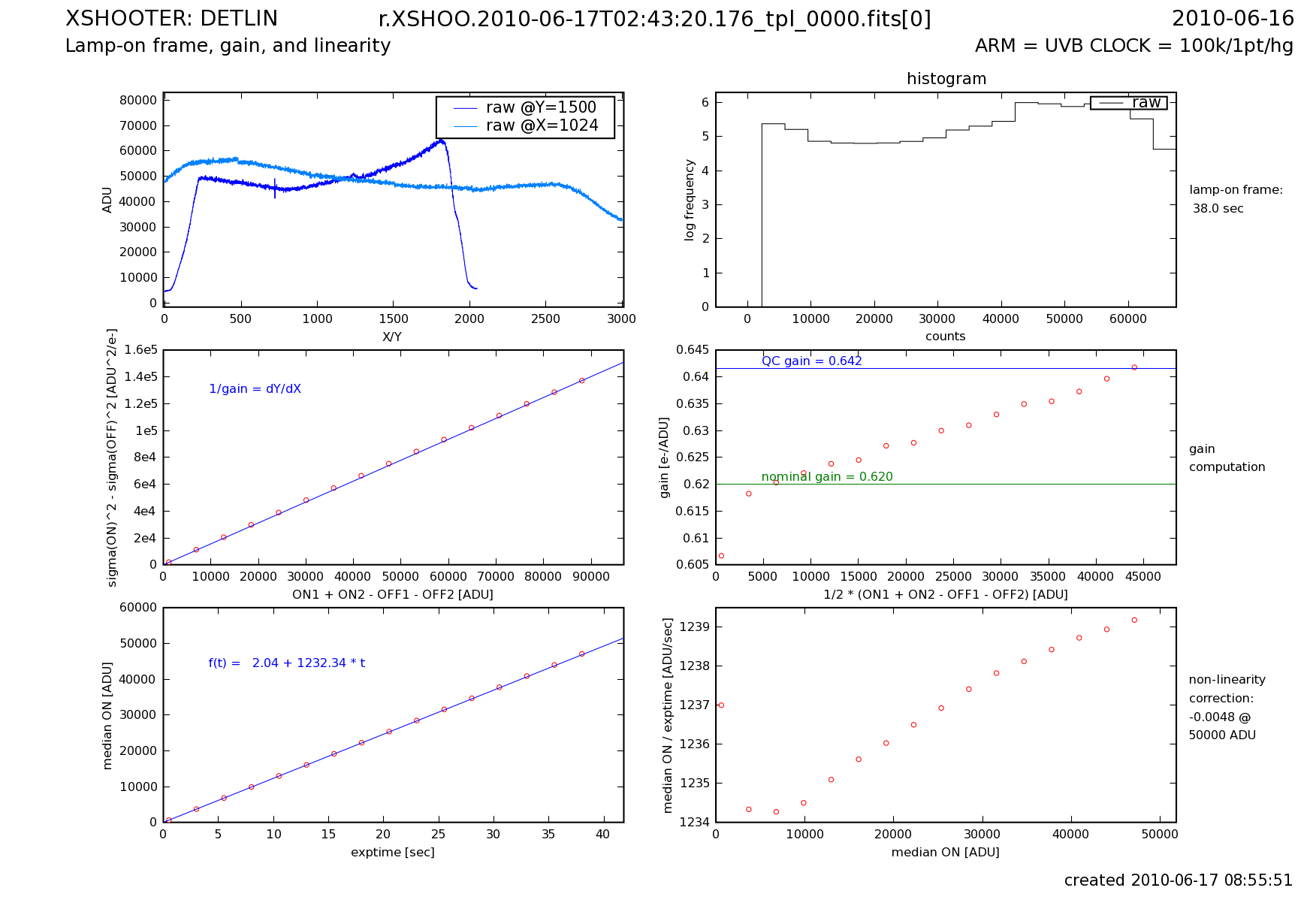

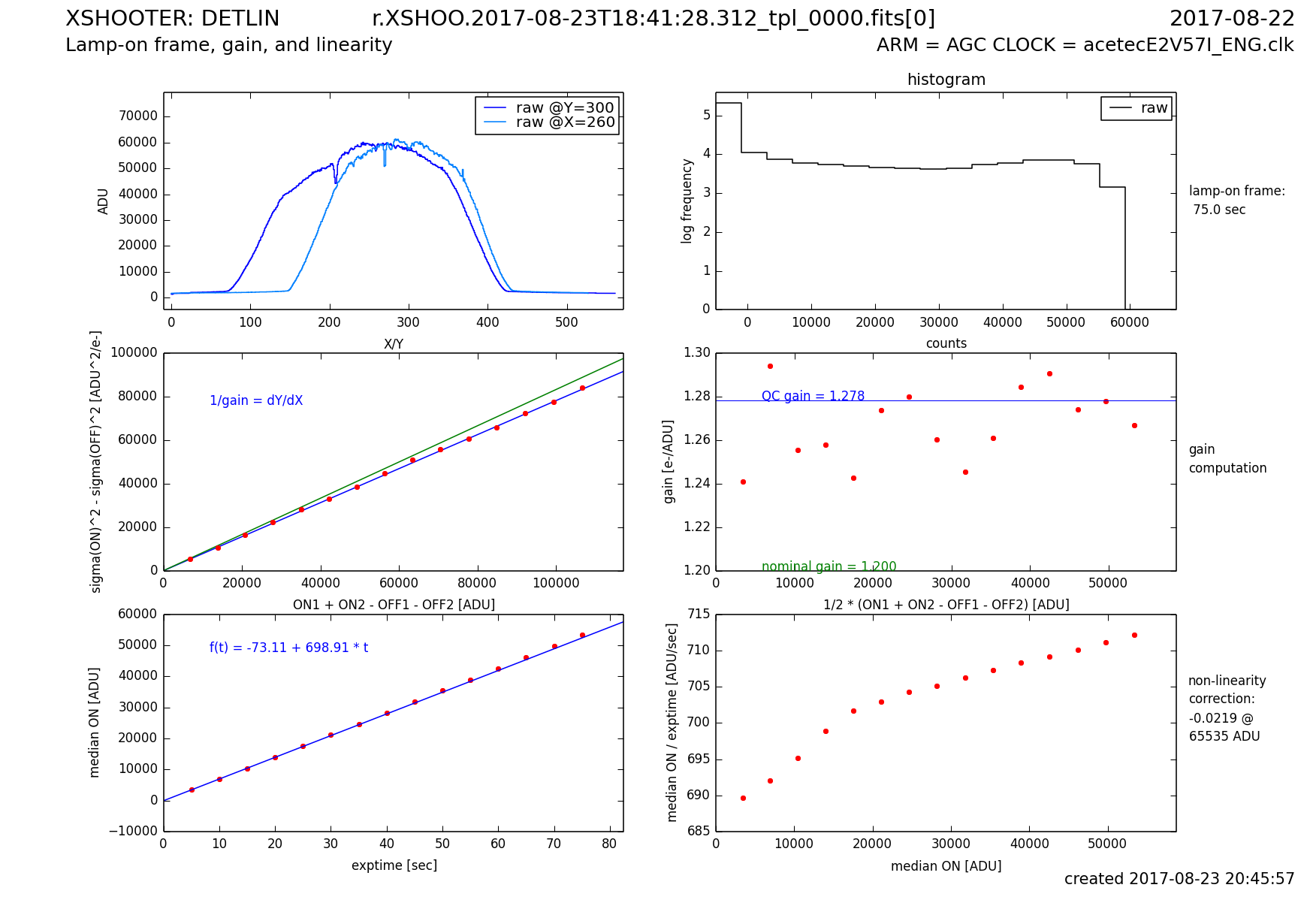

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] xshooter_bias.py xshooter_dark.py xshooter_dark_nir.py xshooter_detlin.py xshooter_fmtchk.py xshooter_orderdef.py xshooter_wave.py xshooter_flexure.py xshooter_flat_slit.py xshooter_arc_slit.py xshooter_flat_ifu.py xshooter_arc_ifu.py xshooter_std_slit_stare.py xshooter_std_slit_nodoff.py xshooter_sci_slit_stare.py xshooter_sci_slit_nodoff.py xshooter_sci_ifu.py   bottom  plots   |   contact NAME xshooter_detlin.py VERSION : 1.0 -- February 2009 : 1.1 -- 2017-09-12 docu updated, AGC included SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/LINEARITY_<arm>/$DATE: $DFO_PROC_DIR/python/xshooter_detlin.py -i -a $AB INSTRUMENT XSHOOTER RAWTYPE LINEARITY_UVB | LINEARITY_VIS | LINEARITY_NIR | LINEARITY_AGC PURPOSE checks DETMON product files for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. PROCINPUT tables with linearity and gain information QC1TABLE trending | table(s) in QC1 database: xshooter_detmon TRENDPLOT trending | HealthCheck plot associated to this procedure: none QC1PAGE trending | associated documentation: detmon_qc1.html QC1PLOTS top detmon.png top left: cuts through raw frame with higest exposure time top right: histogram of raw frame with highest exposure time middle left: photon transfer curve gain fit middle right: gain comparison bottom left: non-linearity fit bottom right: deviations from linearity detmon_AGC.png top left: cuts through raw frame with higest exposure time AGC top right: histogram of raw frame with highest exposure time middle left: photon transfer curve gain fit middle right: gain comparison bottom left: non-linearity fit bottom right: deviations from linearity QC1PARAM QC1 parameters written into QC1 table: QC.CONAD | QC.GAIN | QC.LIN.COEFi (i=0-3) | CQ.LIN.COEFI.ERR (i=0-3) | QC.LIN.EFF | QC.LIN.EFF.FLUX QC1 parameters written into QC1 table: QC.ERRFIT | QC.METHOD | QC.NUM.BPM | QC.COUNTS.MIN | QC.COUNTS.MAX | QC.FPN | QC.CONTAMi (i=1...5) QC1 parameters written into QC1 table: QC1db names: median_dark | mean_dark | sigma_dark | cosmic_rate | avg_cosmic FITS key names: QC.MDARKMED | QC.MDARKAVG | QC.MDARKRMS | QC.CRRATE | QC.NCRH.AVG QC1db names: fixed_pattern | error_fixed_pattern | fp_norm | error_fp_norm FITS key names: QC.FPN | QC.FPN.ERR | QC.NORMFPN | QC.NORMFPN.ERR QC1 params created by pipeline: all ALGORITHM CERTIF Reasons for rejection: NONE Reasons for rejection: - remnants from redmost echelle orders (right side) COMMENTS top [2017-11-08T13:18:52]         created by qcDocu v1.1.2, a tqs tool
