QC documentation system: QC procedure xshooter_flat_ifu.py for XSHOOTER

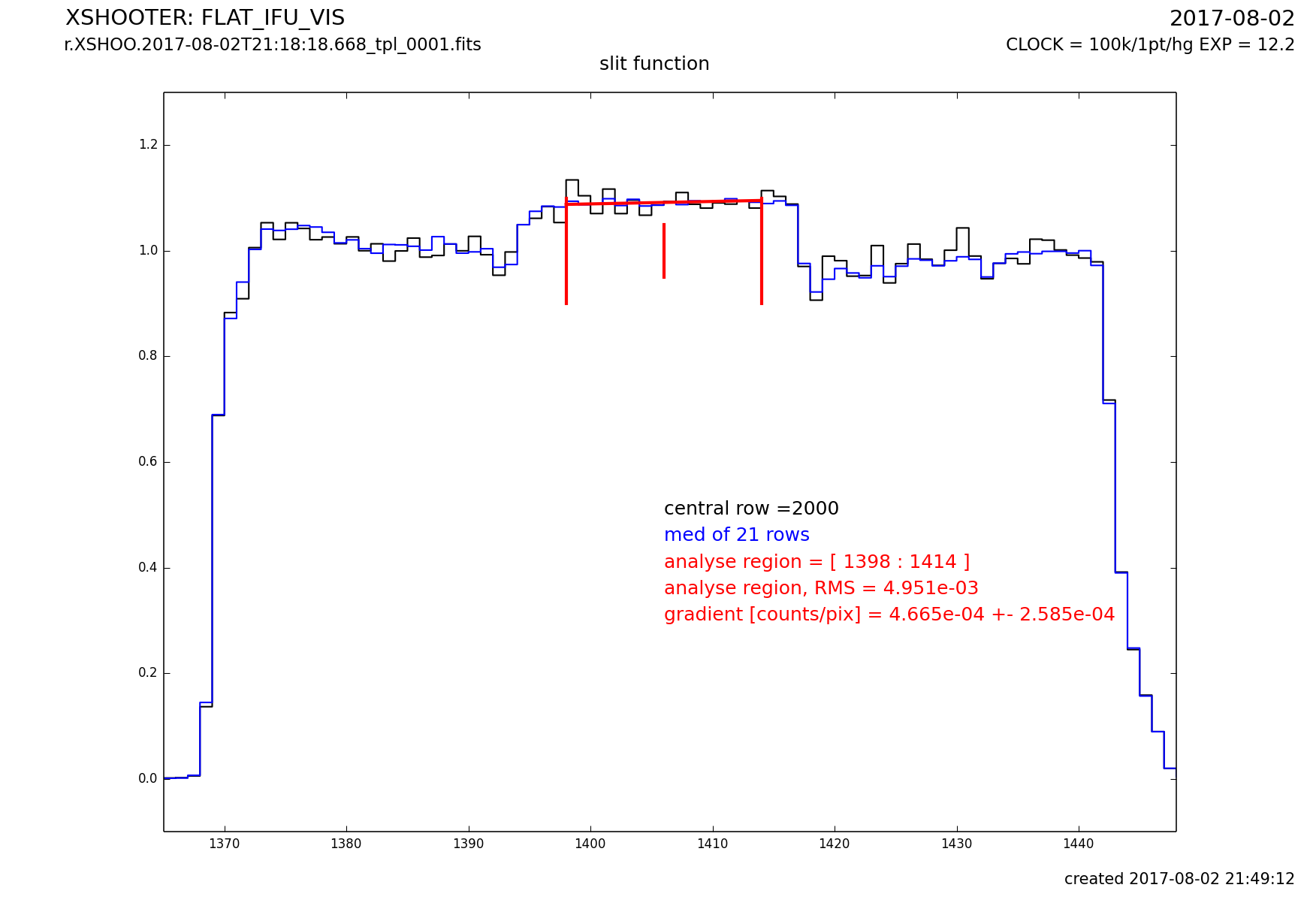

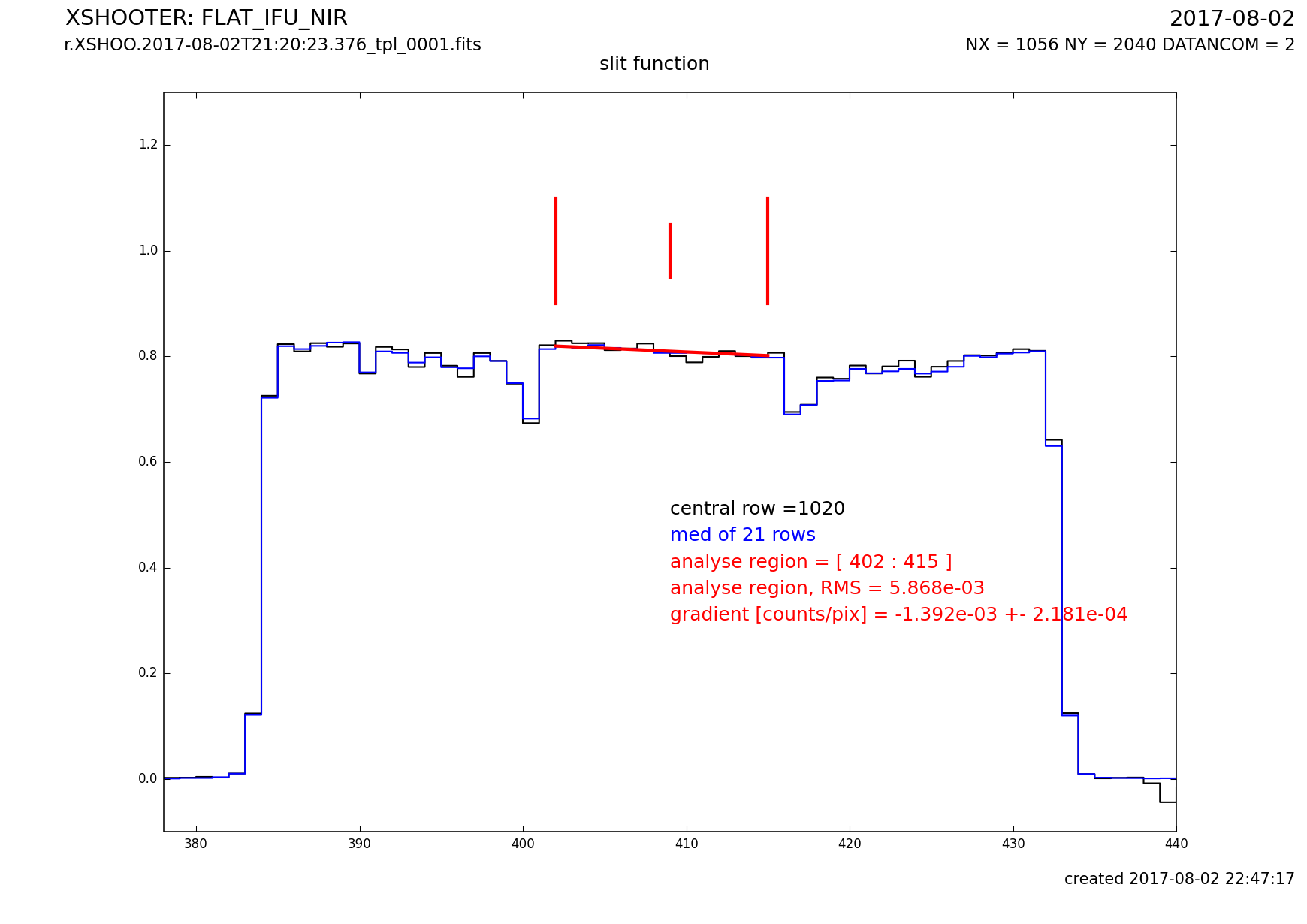

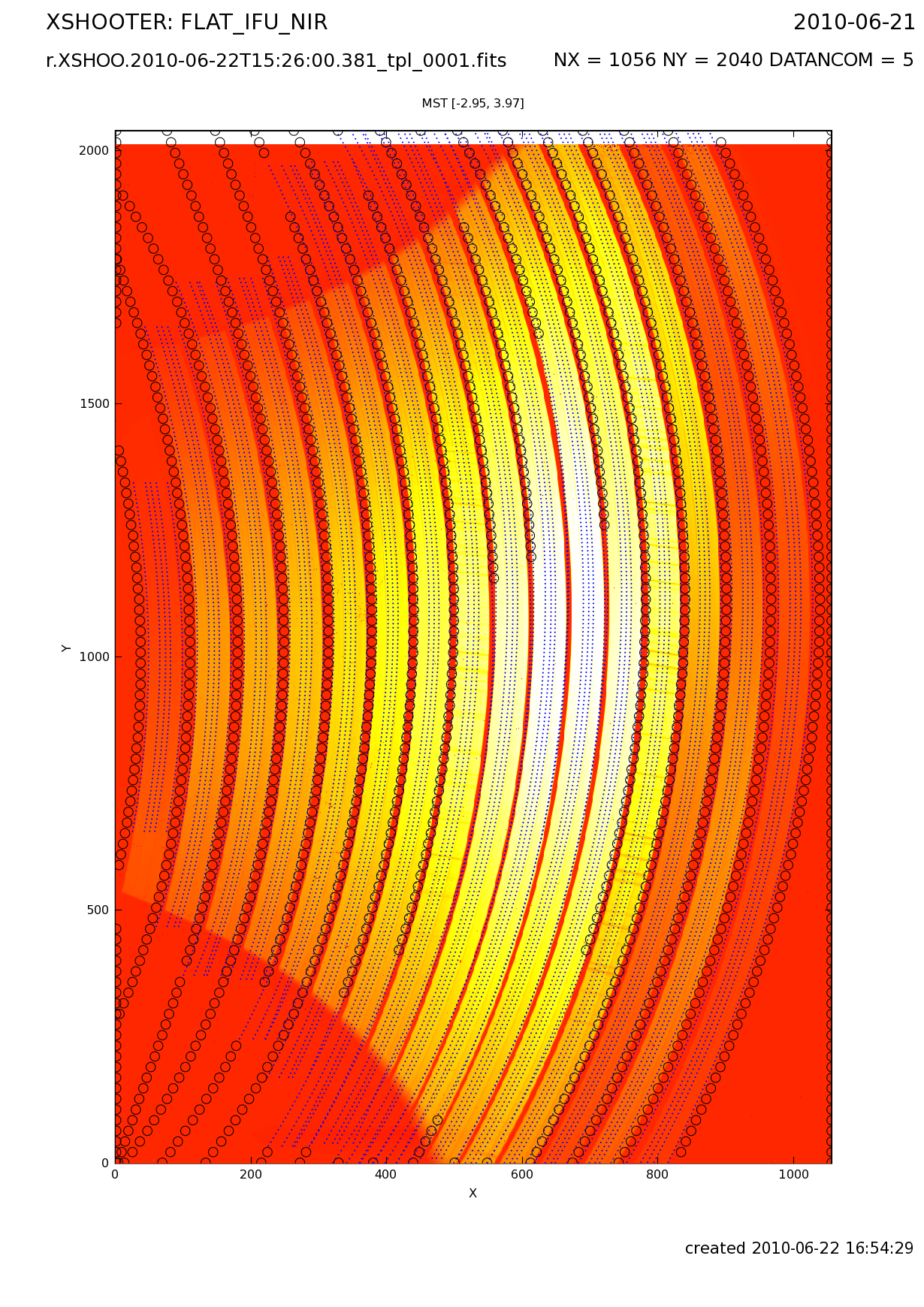

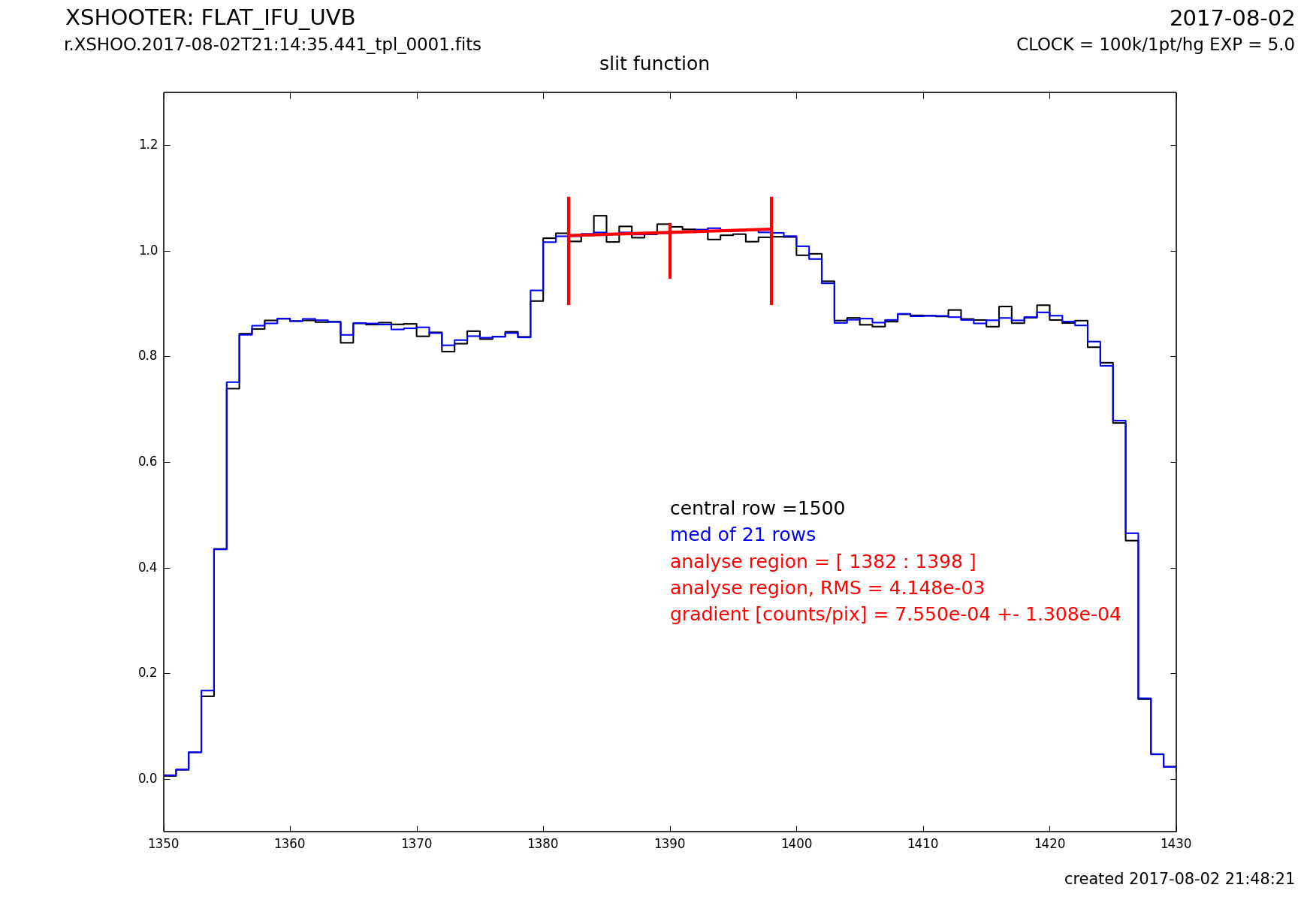

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] xshooter_bias.py xshooter_dark.py xshooter_dark_nir.py xshooter_detlin.py xshooter_fmtchk.py xshooter_orderdef.py xshooter_wave.py xshooter_flexure.py xshooter_flat_slit.py xshooter_arc_slit.py xshooter_flat_ifu.py xshooter_arc_ifu.py xshooter_std_slit_stare.py xshooter_std_slit_nodoff.py xshooter_sci_slit_stare.py xshooter_sci_slit_nodoff.py xshooter_sci_ifu.py   bottom  plots   |   contact NAME xshooter_flat_ifu.py VERSION : 1.0 -- February 2009 : 1.1 -- 2017-09-01 central slice slit function and reference slit function plots included SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/FLAT_IFU_<arm>/$DATE: $DFO_PROC_DIR/python/xshooter_flat_ifu.py -i -a $AB INSTRUMENT XSHOOTER RAWTYPE FLAT_IFU_UVB | FLAT_IFU_VIS | FLAT_IFU_NIR PURPOSE compares product FLAT_IFU_<arm> files for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. PROCINPUT master FLAT_IFU and fitted background QC1TABLE trending | table(s) in QC1 database: xshooter_flat TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_FLAT_IFU_UVB_HC.html | trend_report_FLAT_IFU_VIS_HC.html | trend_report_FLAT_IFU_NIR_HC.html QC1PAGE trending | associated documentation: flat_qc1.html QC1PLOTS top flat_ifu_UVB_A00.png full display of master FLAT_IFU_UVB frame with fitted order edge positions overplotted flat_ifu_UVB_A01.png enlargements of the edge regions of master FLAT_IFU_UVB frame with fitted order edge positions overplotted flat_ifu_UVB_A02.png full display of background fitted to FLAT_IFU_UVB frame with fitted order edge positions overplotted flat_ifu_UVB_A03.png full display of master FLAT_IFU_UVB frame divided by reference frame flat_ifu_UVB_A05.png order cross section and linear fit to the slit function illumination gradient of the central slice flat_ifu_UVB_A06.png slit function of two orders for the current and the reference flat. window markers for the ADC slice QC parameters flat_ifu_VIS_A00.png full display of master FLAT_IFU_VIS frame with fitted order edge positions overplotted flat_ifu_VIS_A01.png enlargements of the edge regions of master FLAT_IFU_VIS frame with fitted order edge positions overplotted flat_ifu_VIS_A02.png full display of background fitted to FLAT_IFU_VIS frame with fitted order edge positions overplotted flat_ifu_VIS_A03.png full display of master FLAT_IFU_VIS frame divided by reference frame flat_ifu_VIS_A05.png order cross section and linear fit to the slit function illumination gradient of the central slice flat_ifu_VIS_A06.png slit function of two orders for the current and the reference flat. window markers for the ADC slice QC parameters flat_ifu_NIR_A00.png full display of master FLAT_IFU_NIR frame with fitted order edge positions overplotted flat_ifu_NIR_A01.png enlargements of the edge regions of master FLAT_IFU_NIR frame with fitetd order positions overplotted flat_ifu_NIR_A02.png full display of background fitted to FLAT_IFU_NIR frame with fitted order edge positions overplotted flat_ifu_NIR_A03.png full display of master FLAT_IFU_NIR frame divided by reference frame flat_ifu_NIR_A05.png order cross section and linear fit to the slit function illumination gradient of the central slice flat_ifu_NIR_A06.png slit function of two orders for the current and the reference flat. window markers for the ADC slice QC parameters QC1PARAM QC1 parameters written into QC1 table (UVB has 2 separate lamps): QC1db names: min_flux_1 | max_flux_1 | max_flux_norm_1 FITS key names: QC.FLUX.MIN | QC.FLUX.MAX | flux_norm_1 QC1db names: (only UVB, QTH lamp) min_flux_2 | max_flux_2 | max_flux_norm_2 FITS key names: QC.FLUX.MIN | QC.FLUX.MAX | flux_norm_2 QC1 params created by pipeline: all except flux_norm_1/2 (= max_flux_1/2 divided by exposure time) ALGORITHM CERTIF Reasons for rejection: - saturation or severe underexposure; for UVB: lack of one lamp COMMENTS top [2017-11-08T13:19:22]         created by qcDocu v1.1.2, a tqs tool
