QC documentation system: QC procedure xshooter_bias.py for XSHOOTER

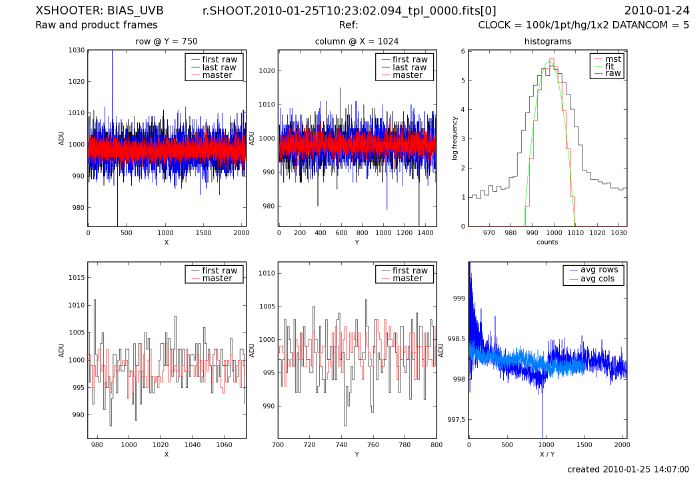

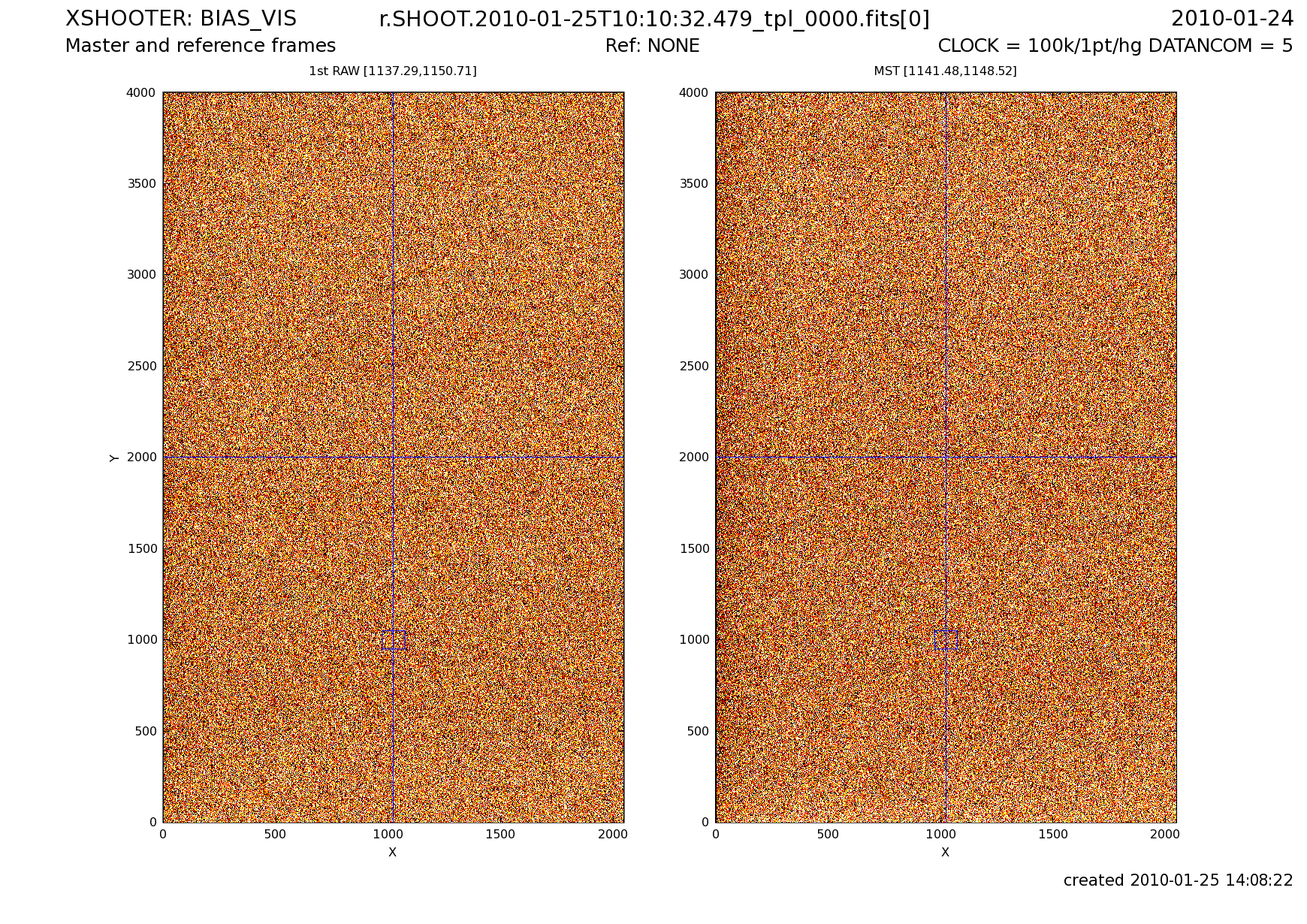

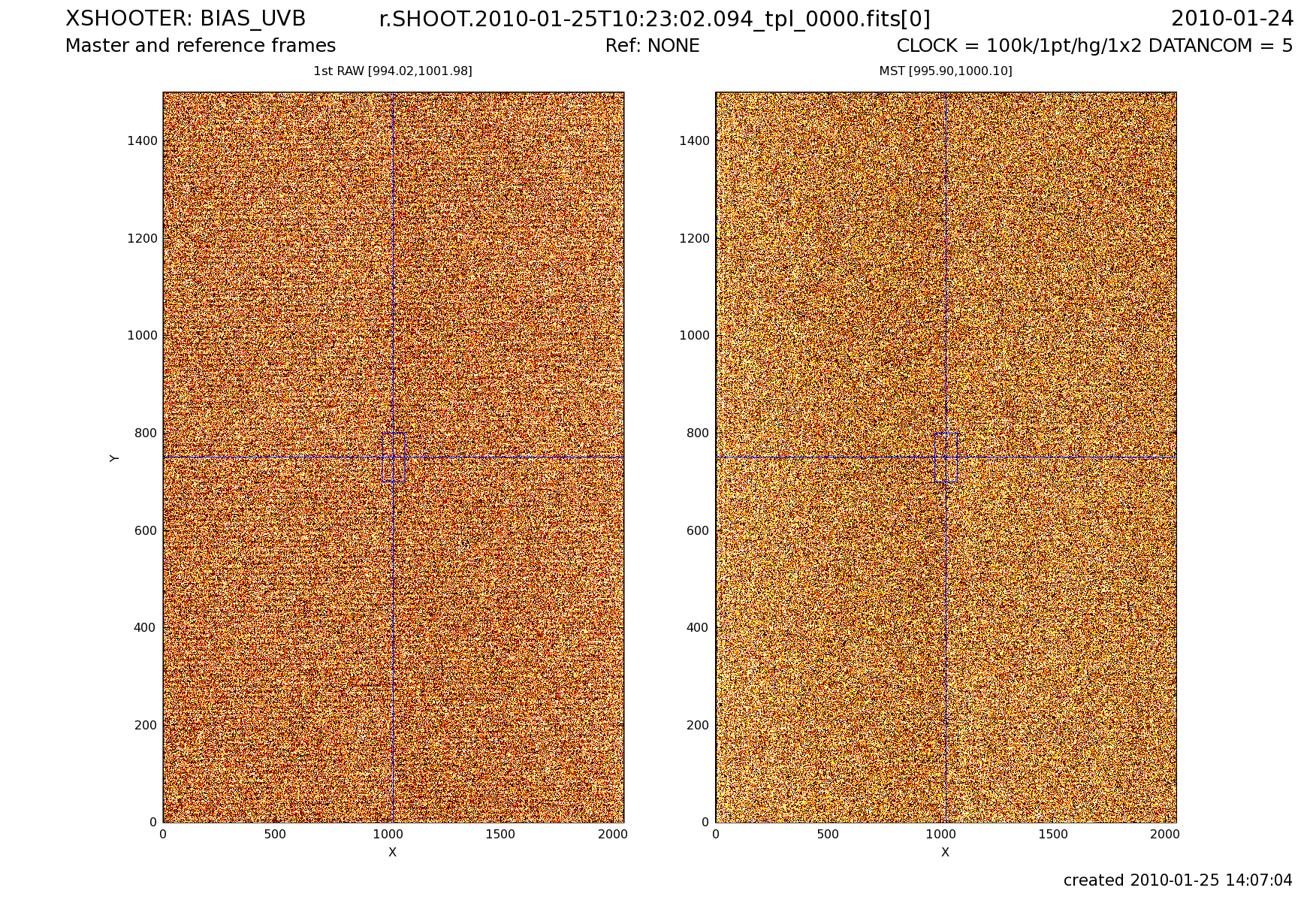

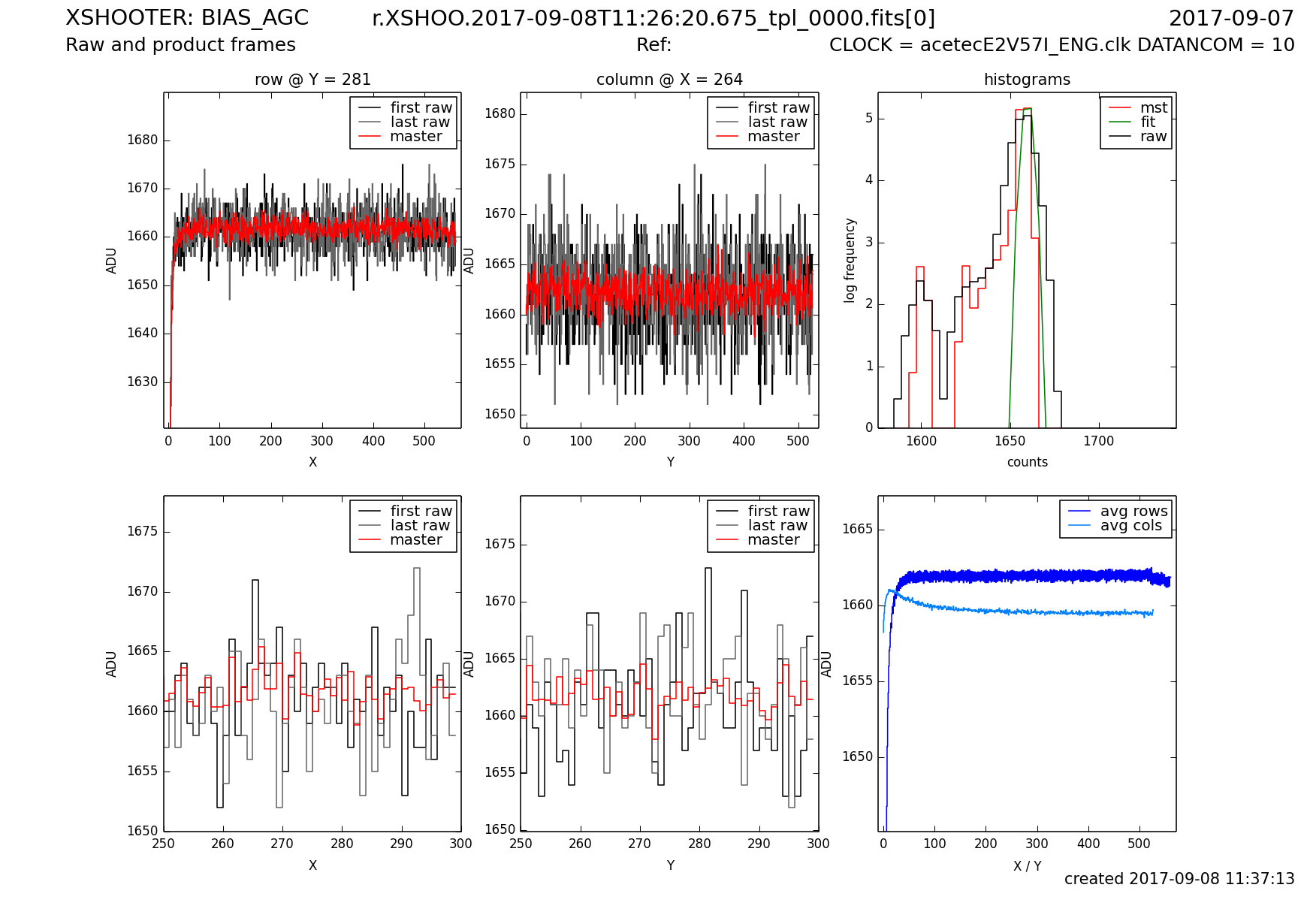

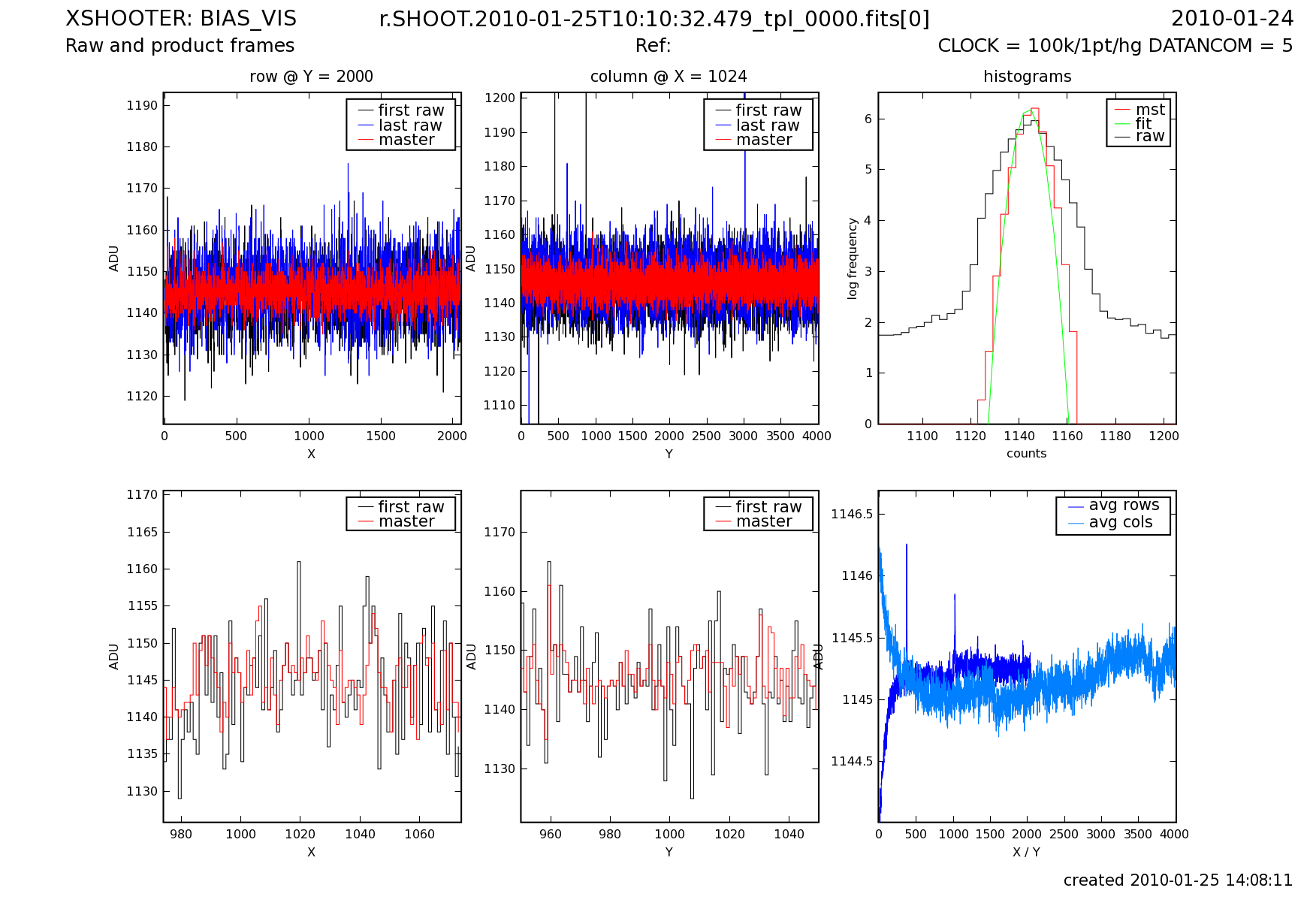

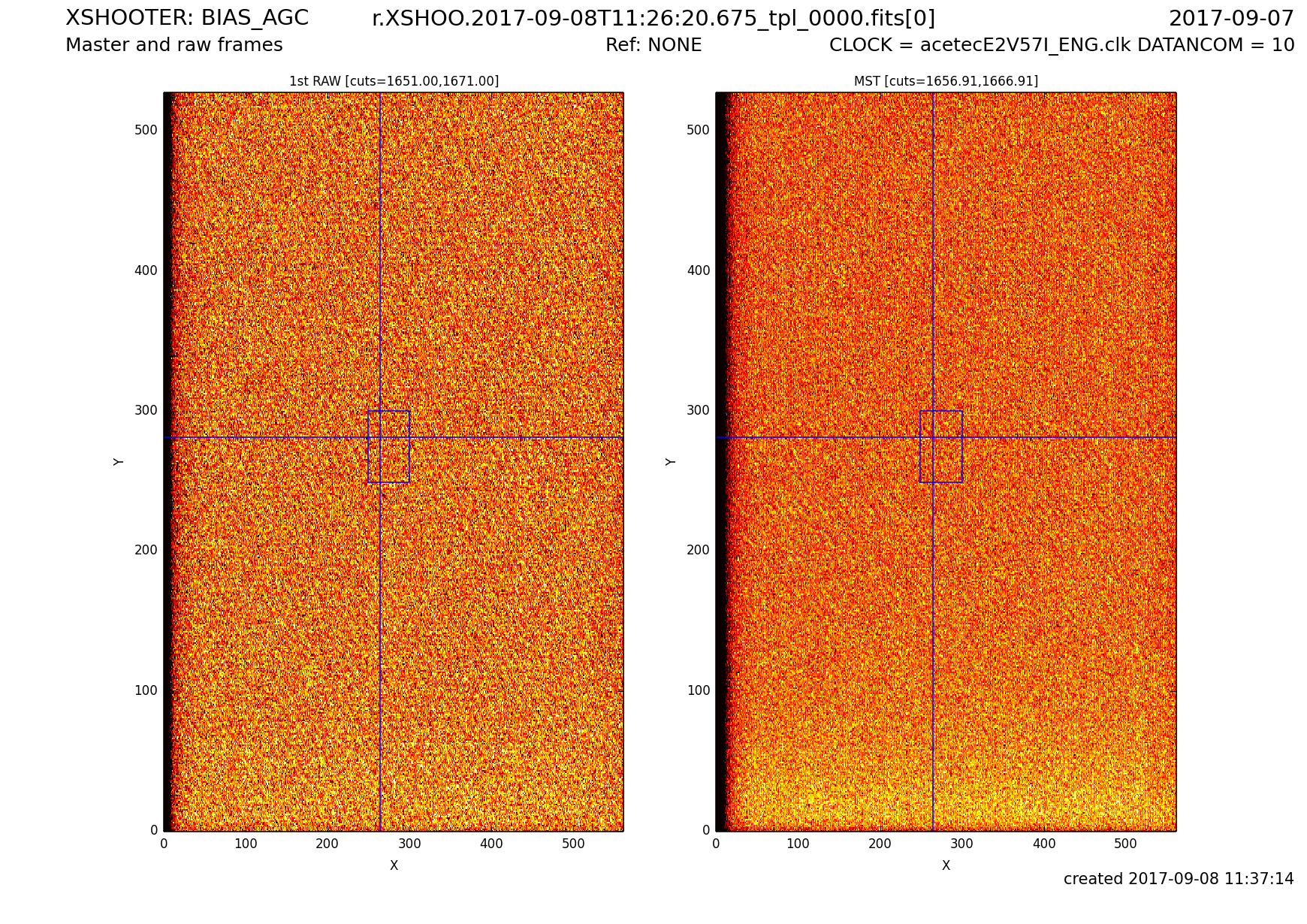

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] xshooter_bias.py xshooter_dark.py xshooter_dark_nir.py xshooter_detlin.py xshooter_fmtchk.py xshooter_orderdef.py xshooter_wave.py xshooter_flexure.py xshooter_flat_slit.py xshooter_arc_slit.py xshooter_flat_ifu.py xshooter_arc_ifu.py xshooter_std_slit_stare.py xshooter_std_slit_nodoff.py xshooter_sci_slit_stare.py xshooter_sci_slit_nodoff.py xshooter_sci_ifu.py   bottom  plots   |   contact NAME xshooter_bias.py VERSION : 1.0 -- February 2009 : 1.1 -- 2017-09-12 docu updated, AGC included SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/BIAS_<arm>/$DATE: $DFO_PROC_DIR/python/xshooter_bias.py -i -a $AB INSTRUMENT XSHOOTER RAWTYPE BIAS_UVB | BIAS_VIS | BIAS_AGC PURPOSE compares raw and product BIAS_<arm> files for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. PROCINPUT first raw BIAS; MASTER_BIAS product; QC1TABLE trending | table(s) in QC1 database: xshooter_bias TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_BIAS_UVB_med_master_HC.html | trend_report_BIAS_UVB_ron_raw_HC.html | trend_report_BIAS_UVB_ron_master_HC.html | trend_report_BIAS_UVB_struct_x_HC.html | trend_report_BIAS_UVB_struct_y_HC.html | trend_report_BIAS_VIS_med_master_HC.html | trend_report_BIAS_VIS_ron_raw_HC.html | trend_report_BIAS_VIS_ron_master_HC.html | trend_report_BIAS_VIS_struct_x_HC.html | trend_report_BIAS_VIS_struct_y_HC.html | trend_report_BIAS_AGC_HC.html QC1PAGE trending | associated documentation: bias_qc1.html QC1PLOTS top bias_AGC_X00.png top left: comparison of central row in master (red) and pre-processed (black) for bias_AGC top center: comparison of central column in master (red) and pre-processed (black) for bias_AGC top right: histogram of flux in master (red), pre-processed (blac) and Gaussian fit to master (green) for bias_AGC bottom left: comparison of central part of central row in master (red) and pre-processed (black) for bias_AGC bottom center: comparison of central part of central column in master (red) and pre-processed (black) for bias_AGC bottom right: average flux in rows (dark blue) and columns (light blue) of master frame for bias_AGC bias_UVB_X00.png top left: comparison of central row in master (red) and pre-processed (black) for bias_UVB top center: comparison of central column in master (red) and pre-processed (black) for bias_UVB top right: histogram of flux in master (red), pre-processed (blac) and Gaussian fit to master (green) for bias_UVB bottom left: comparison of central part of central row in master (red) and pre-processed (black) for bias_UVB bottom center: comparison of central part of central column in master (red) and pre-processed (black) for bias_UVB bottom right: average flux in rows (dark blue) and columns (light blue) of master frame for bias_UVB bias_VIS_X00.png top left: comparison of central row in master (red) and pre-processed (black) for BIAS_VIS top center: comparison of central column in master (red) and pre-processed (black) for BIAS_VIS top right: histogram of flux in master (red), pre-processed (blac) and Gaussian fit to master (green) for BIAS_VIS bottom left: comparison of central part of central row in master (red) and pre-processed (black) for BIAS_VIS bottom center: comparison of central part of central column in master (red) and pre-processed (black) for BIAS_VIS bottom right: average flux in rows (dark blue) and columns (light blue) of master frame for BIAS_VIS bias_AGC_A00.png full display of BIAS_AGC raw and master frame bias_UVB_A00.png full display of BIAS_UVB raw and master frame bias_VIS_A00.png full display of BIAS_VIS raw and master frame QC1PARAM QC1 parameters written into QC1 table: QC1db names: median_master | mean_master | sigma_master | ron | ron_err FITS key names: QC.MBIASMED | QC.MBIASAVG | QC.MBIASRMS | QC.RON1 | QC.RON1.ERR QC1db names: fp_master | ron_master | struct_x1 | struct_x2 | struct_y1 | struct_y2 FITS key names: QC.FPN.MASTER | QC.RON.MASTER | QC.STRUCTX1 | QC.STRUCTX2 | QC.STRUCTY1 | QC.STRUCTY2 QC1 params created by pipeline: all ALGORITHM CERTIF COMMENTS Note the different detector sizes (unbinned): 562 x 528 AGC 2144 x 3000 UVB 2106 x 4000 VIS top [2017-11-08T13:18:45]         created by qcDocu v1.1.2, a tqs tool
