QC documentation system: QC procedure xshooter_orderdef.py for XSHOOTER

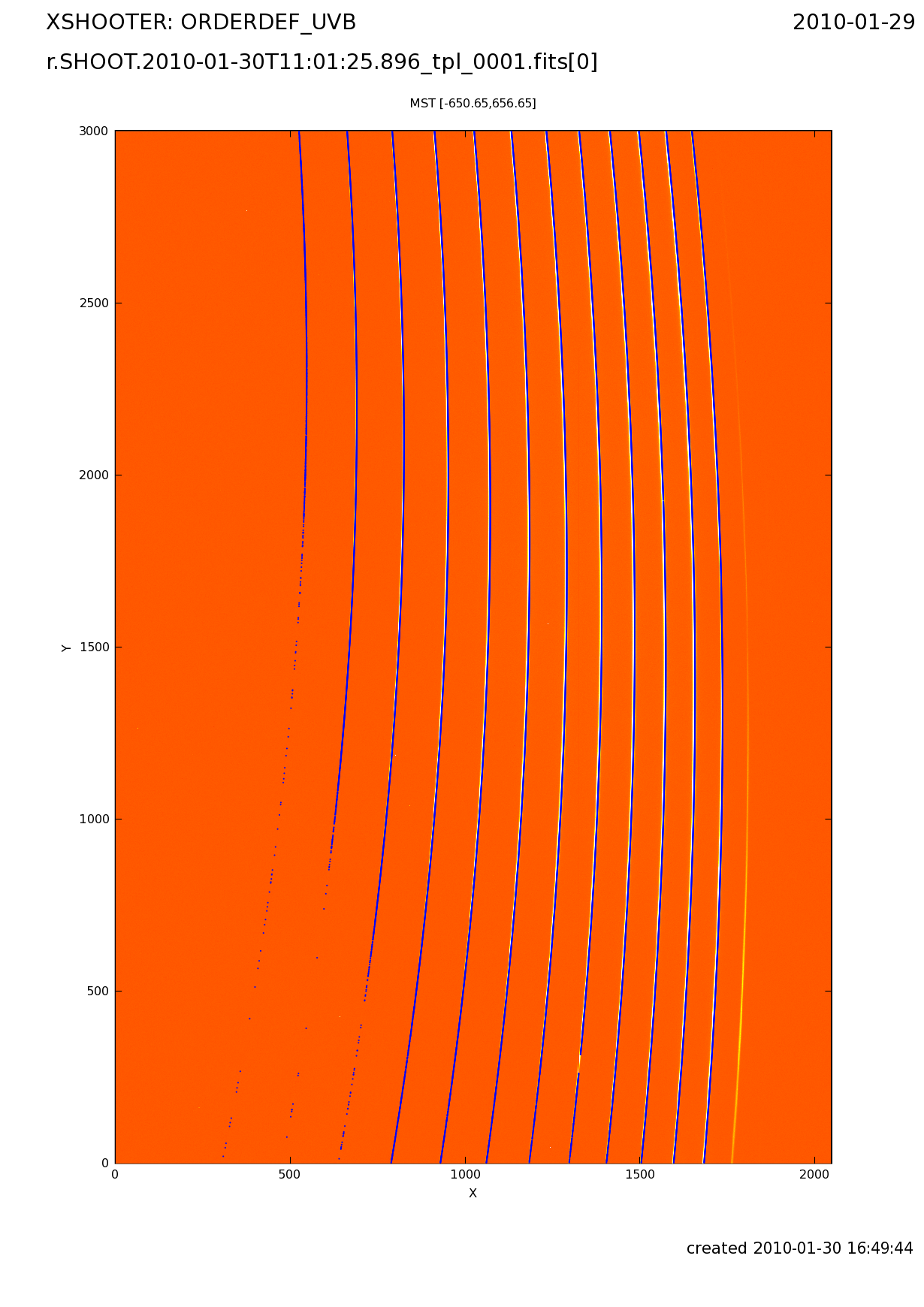

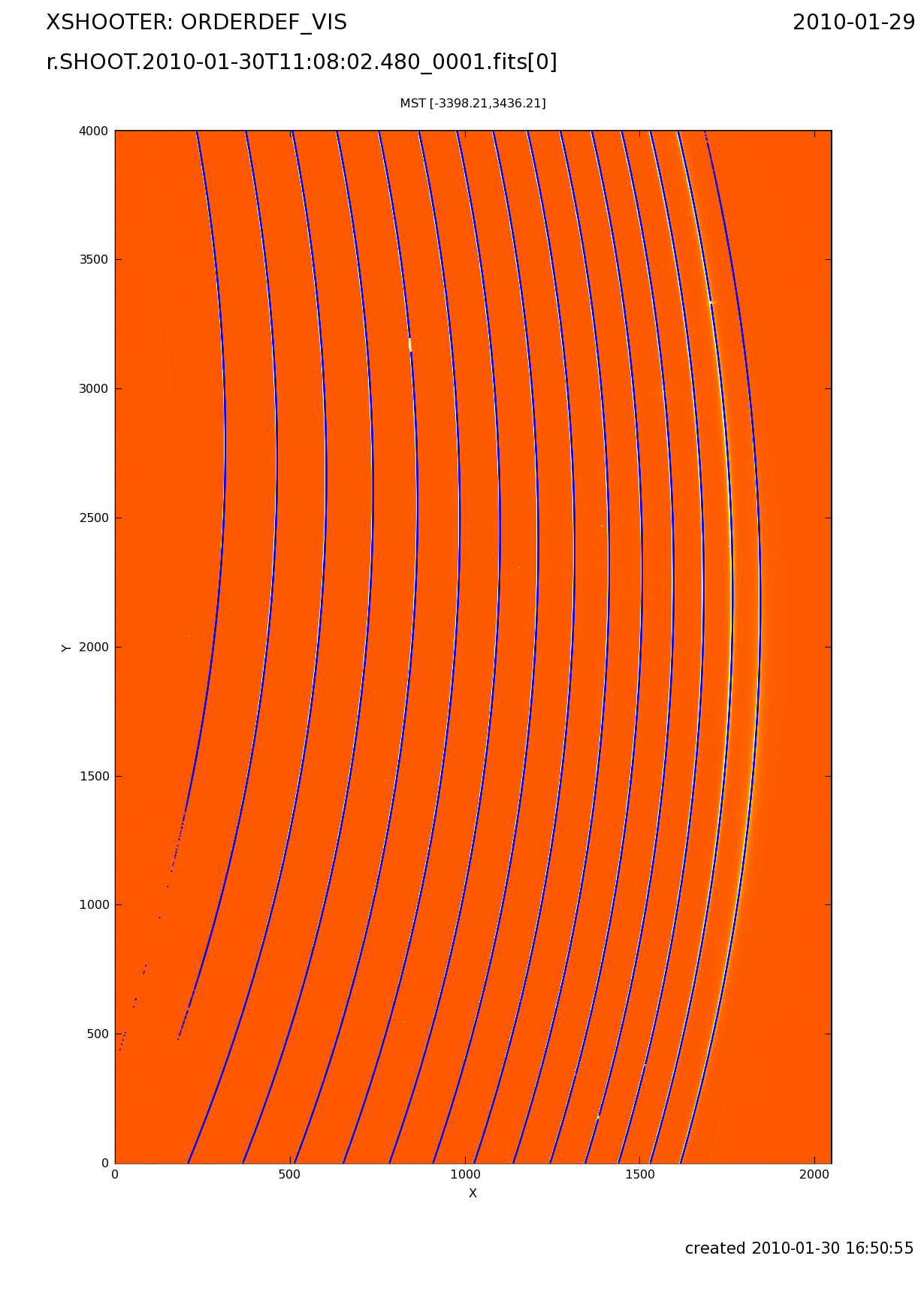

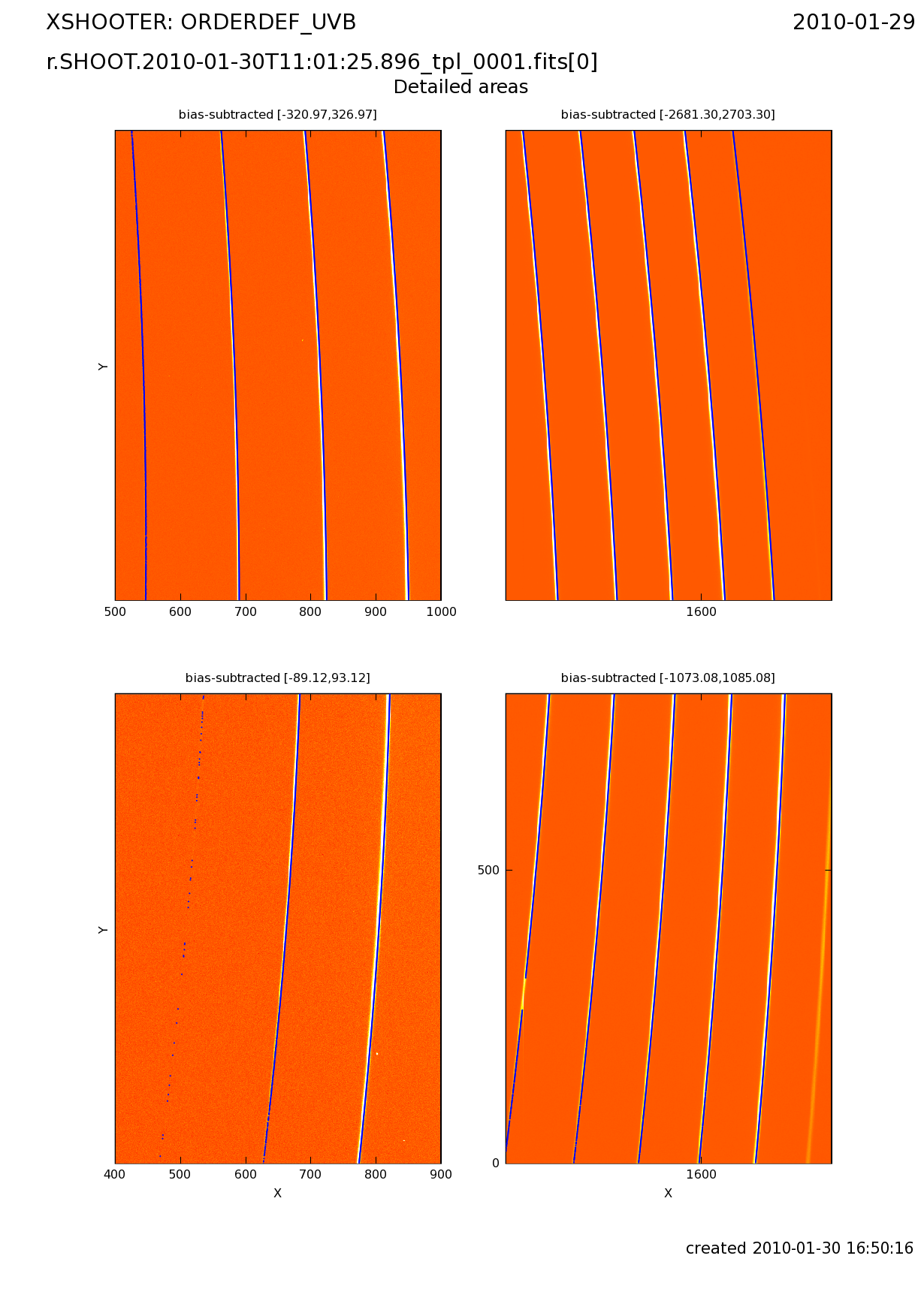

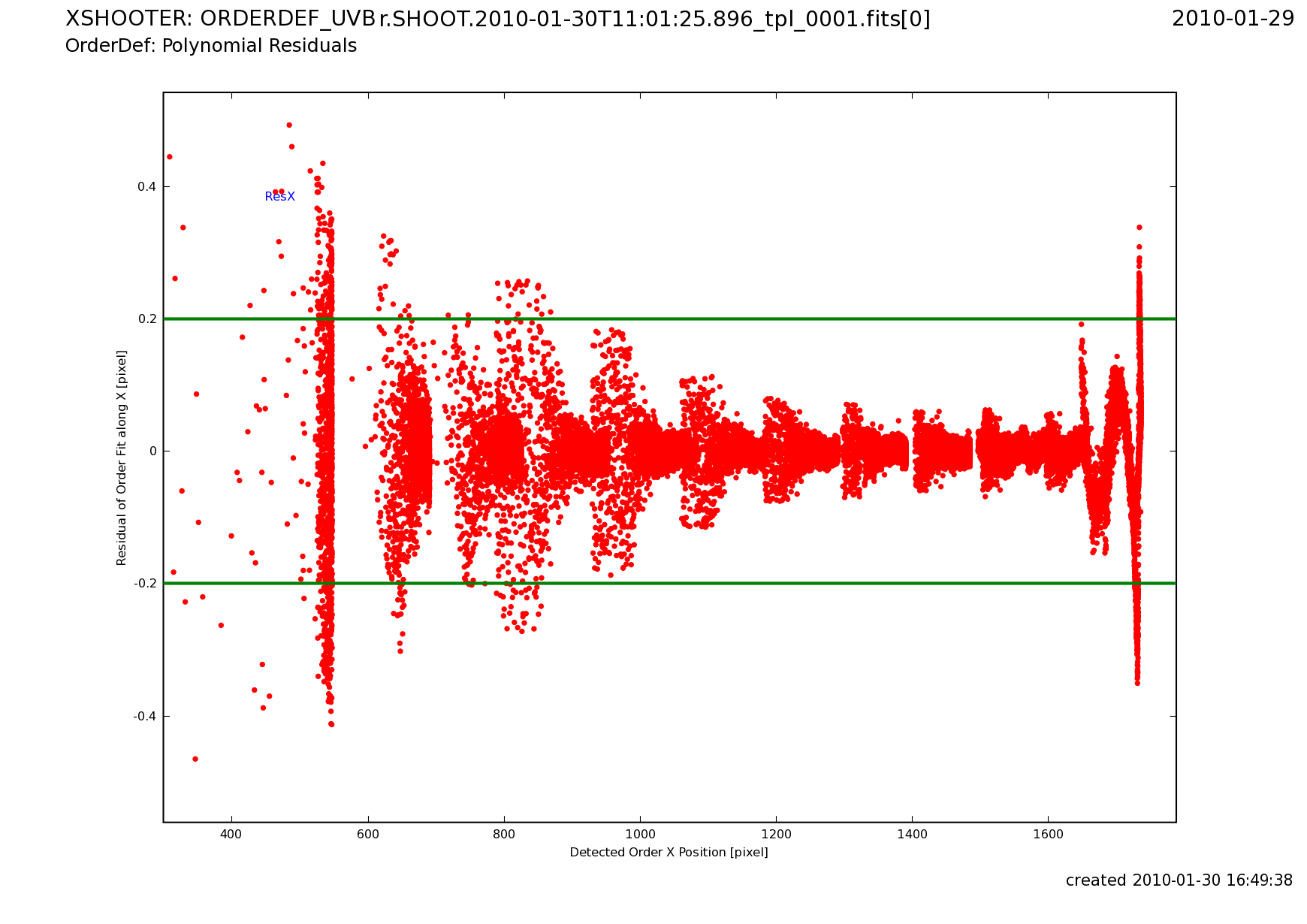

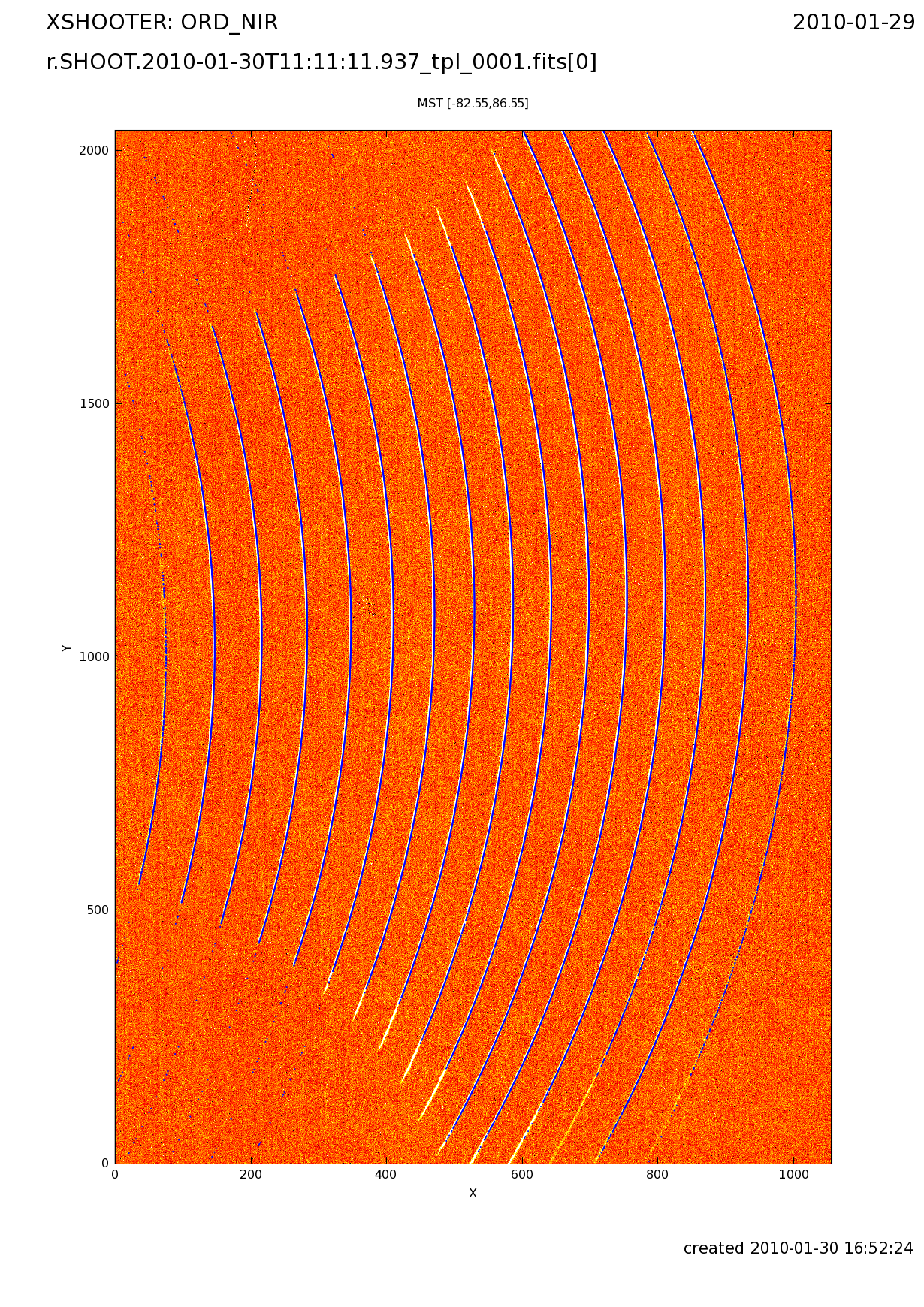

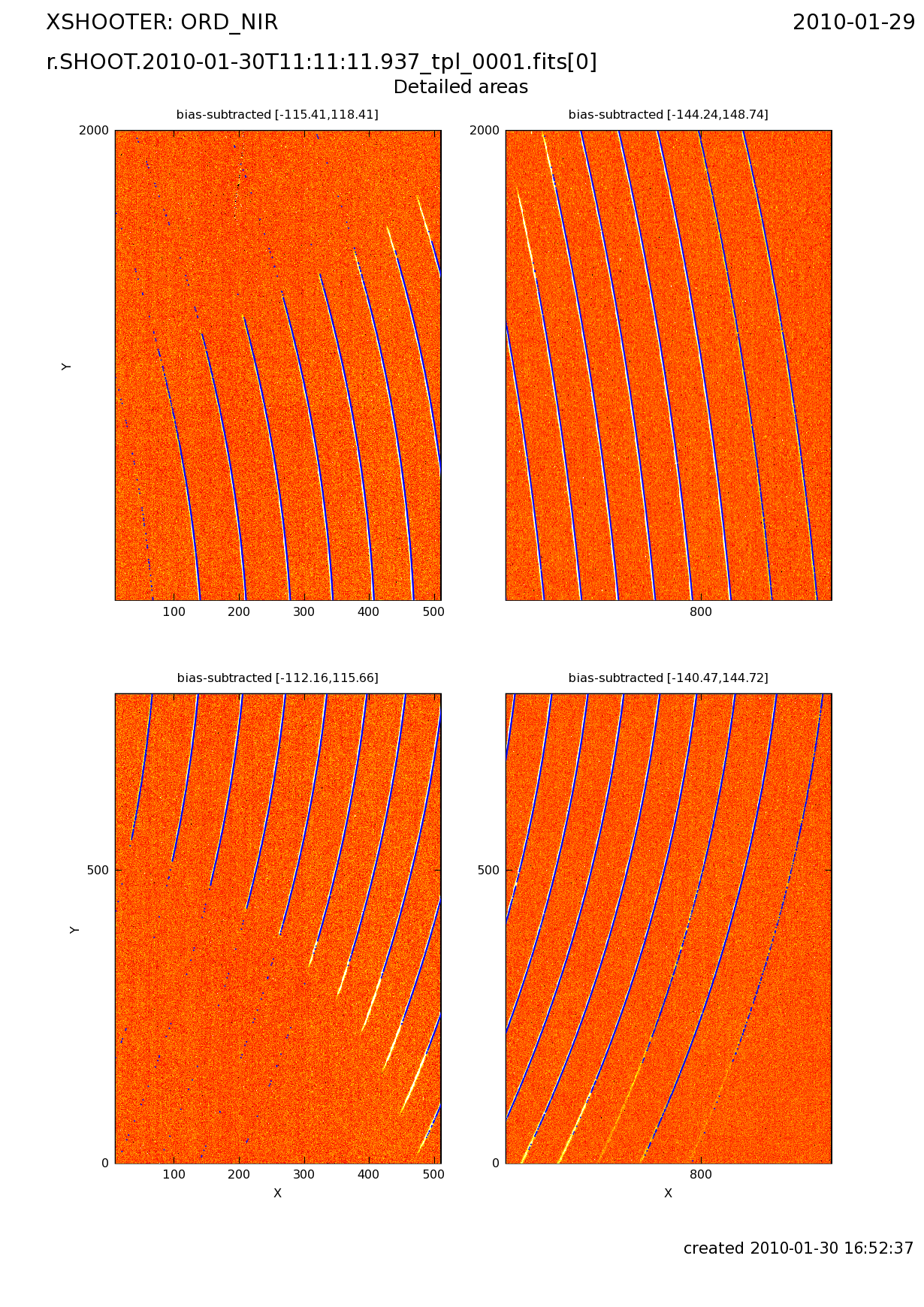

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] xshooter_bias.py xshooter_dark.py xshooter_dark_nir.py xshooter_detlin.py xshooter_fmtchk.py xshooter_orderdef.py xshooter_wave.py xshooter_flexure.py xshooter_flat_slit.py xshooter_arc_slit.py xshooter_flat_ifu.py xshooter_arc_ifu.py xshooter_std_slit_stare.py xshooter_std_slit_nodoff.py xshooter_sci_slit_stare.py xshooter_sci_slit_nodoff.py xshooter_sci_ifu.py   bottom  plots   |   contact NAME xshooter_orderdef.py VERSION : 1.0 -- February 2009 : 1.1 -- 2017-09-01 minor docu update SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/ORDERDEF_<arm>/$DATE: $DFO_PROC_DIR/python/xshooter_orderdef.py -i -a $AB INSTRUMENT XSHOOTER RAWTYPE ORDERDEF_UVB | ORDERDEF_VIS | ORD_NIR PURPOSE compares raw and product ORDERDEF_<arm>/ORD_NIR files (= 1 pinhole flat frame) for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. PROCINPUT pre-processed ORDERDEF; fit and residual table; QC1TABLE trending | table(s) in QC1 database: xshooter_order TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_NLINE_UVB_HC.html | trend_report_ORD_UVB_resid_HC.html | trend_report_NLINE_VIS_HC.html | trend_report_ORD_VIS_resid_HC.html | trend_report_NLINE_NIR_HC.html | trend_report_ORD_NIR_resid_HC.html QC1PAGE trending | associated documentation: distortion_qc1.html QC1PLOTS top order_UVB_X00.png residuals of fit in X vs detected X position with the limits +/-0.2 marked order_UVB_A00.png full display of pre-processed ORDERDEF_UVB frame with fitted order positions overplotted order_UVB_A01.png enlargements of the edge regions of pre-processed ORDERDEF_UVB frame with fitted order positions overplotted order_VIS_X00.png residuals of fit in X vs detected X position with the limits +/-0.2 marked order_VIS_A00.png full display of pre-processed ORDERDEF_VIS frame with fitted order positions overplotted order_VIS_A01.png enlargements of the edge regions of pre-processed ORDERDEF_VIS frame with fitted order positions overplotted order_NIR_X00.png residuals of fit in X vs detected X position with the limits +/-0.2 marked order_NIR_A00.png full display of pre-processed ORD_NIR frame with fitted order positions overplotted order_NIR_A01.png enlargements of the edge regions of pre-processed ORD_NIR frame with fitetd order positions overplotted QC1PARAM QC1 parameters written into QC1 table: QC1db names: n_order_det | n_order_pred |min_flux | max_flux FITS key names: QC.ORD.ORDERPOS.NDET |QC.ORD.ORDERPOS.NPRED | QC.FLUX.MIN | QC.FLUX.MAX QC1db names: resid_rms | resid_min | resid_max FITS key names: QC.ORD.ORDERPOS.RESIDRMS | QC.ORD.ORDERPOS.RESIDMIN | QC.ORD.ORDERPOS.RESIDMAX QC1db names: resel_rms | resel_min | resel_max FITS key names: QC.ORD.ORDERPOS.RESIDRMS | QC.ORD.ORDERPOS.RESIDMIN | QC.ORD.ORDERPOS.RESIDMAX QC1db names: resid_avg | resel_avg FITS key names:QC.ORD.ORDERPOS.RESIDAVG | QC.ORD.ORDERPOS.RESELAVG QC1 params created by pipeline: all ALGORITHM CERTIF Reasons for rejection: - strong trends in residuals; many large outliers; missing order COMMENTS top [2017-11-08T13:18:58]         created by qcDocu v1.1.2, a tqs tool
