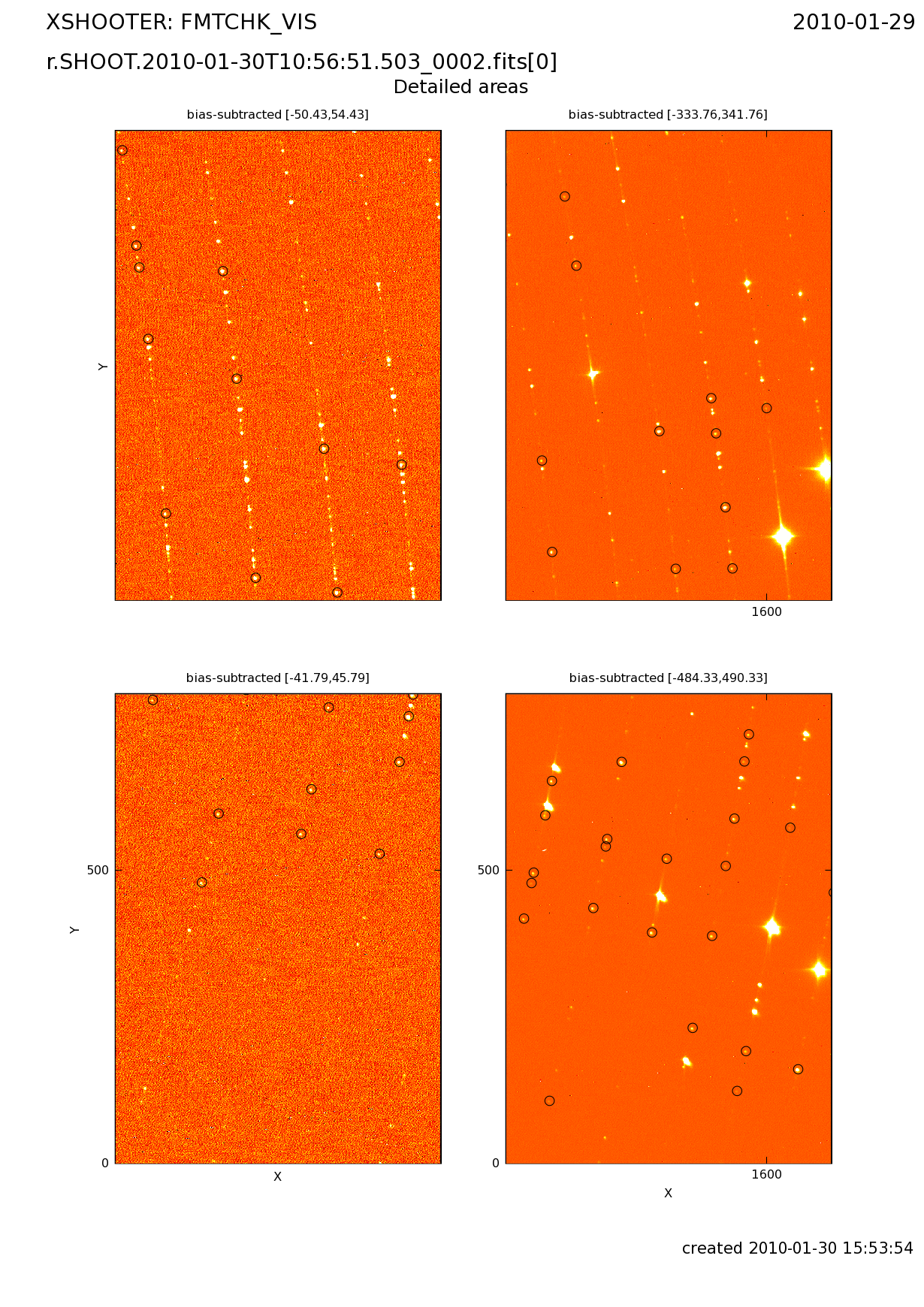

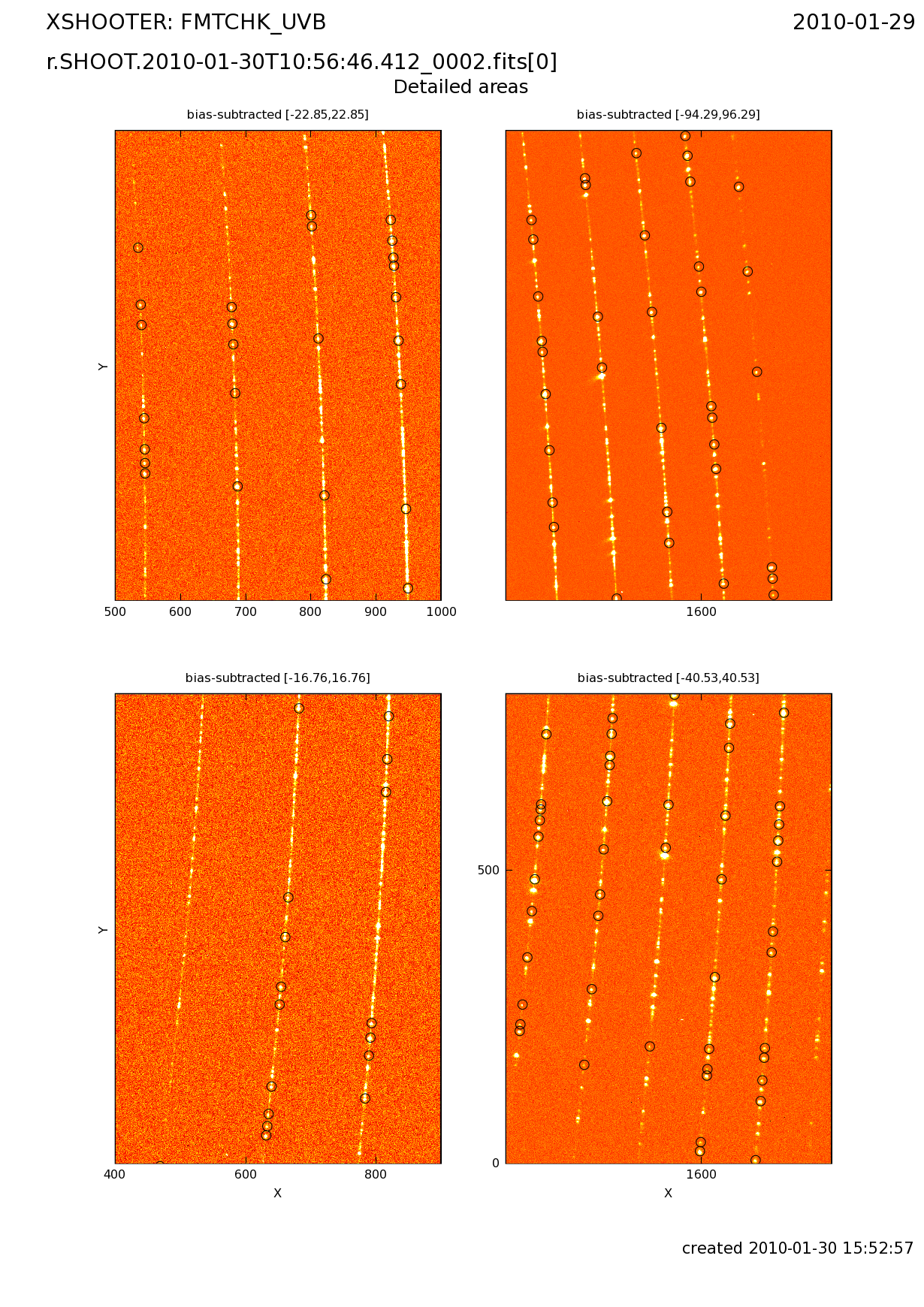

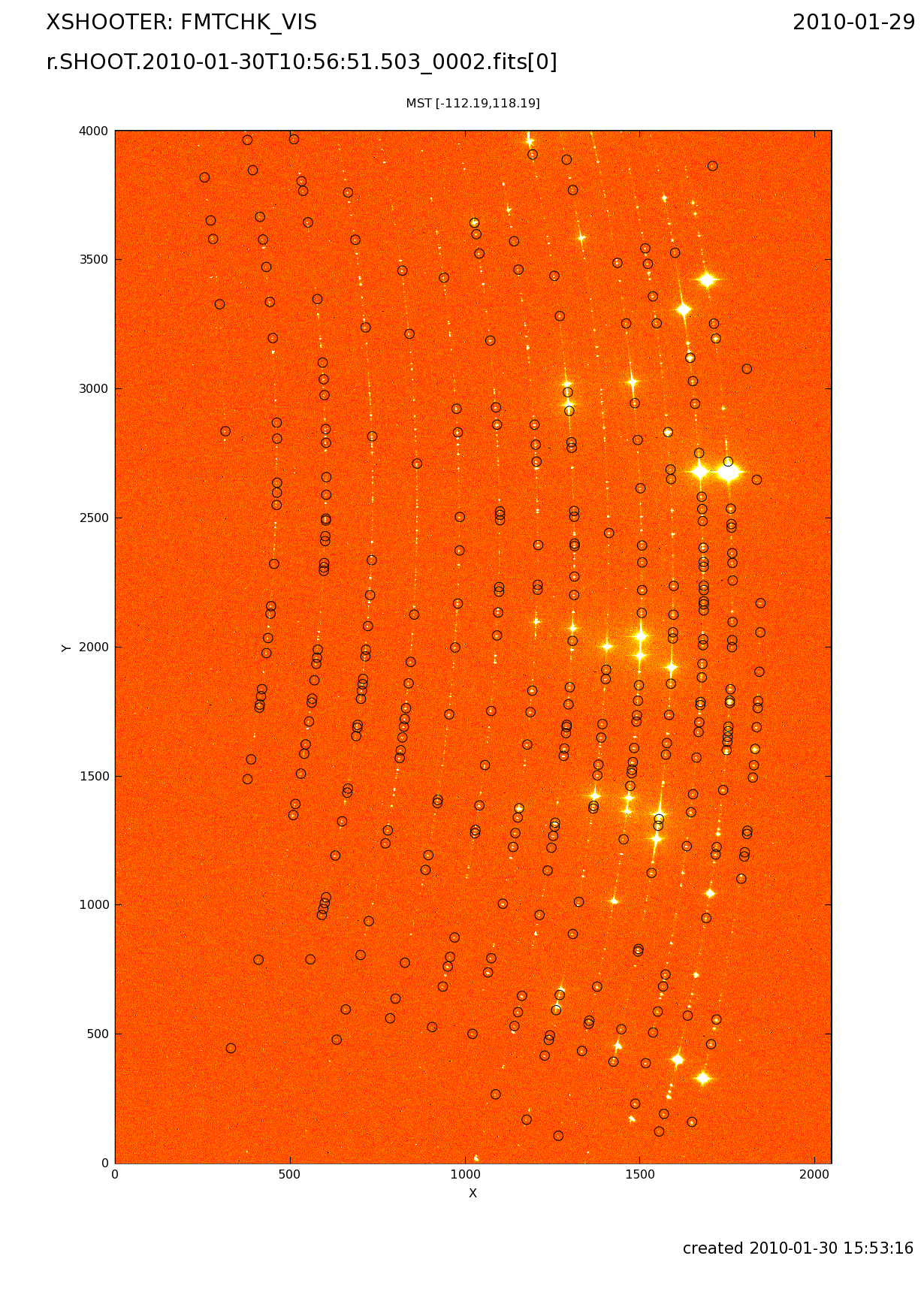

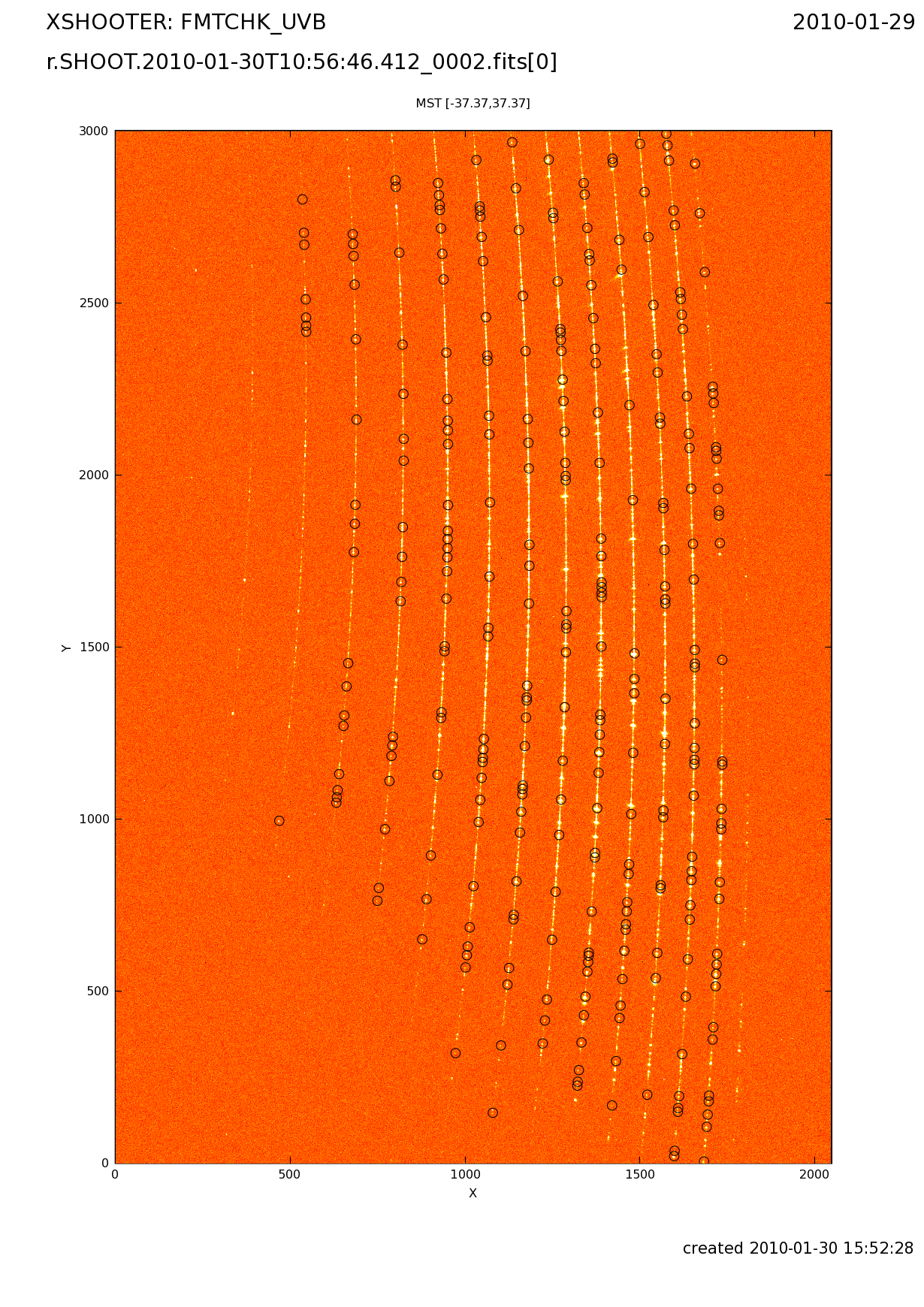

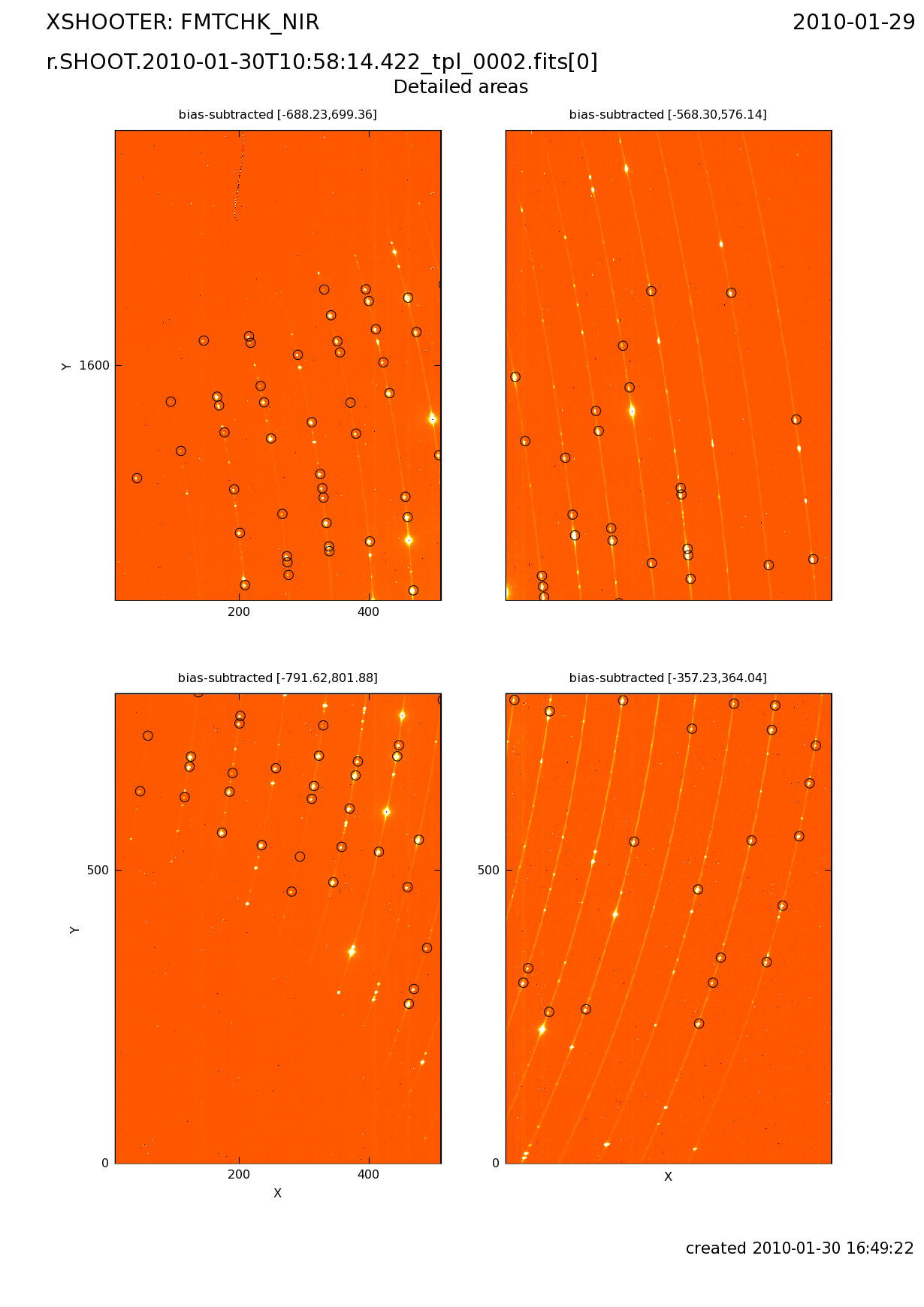

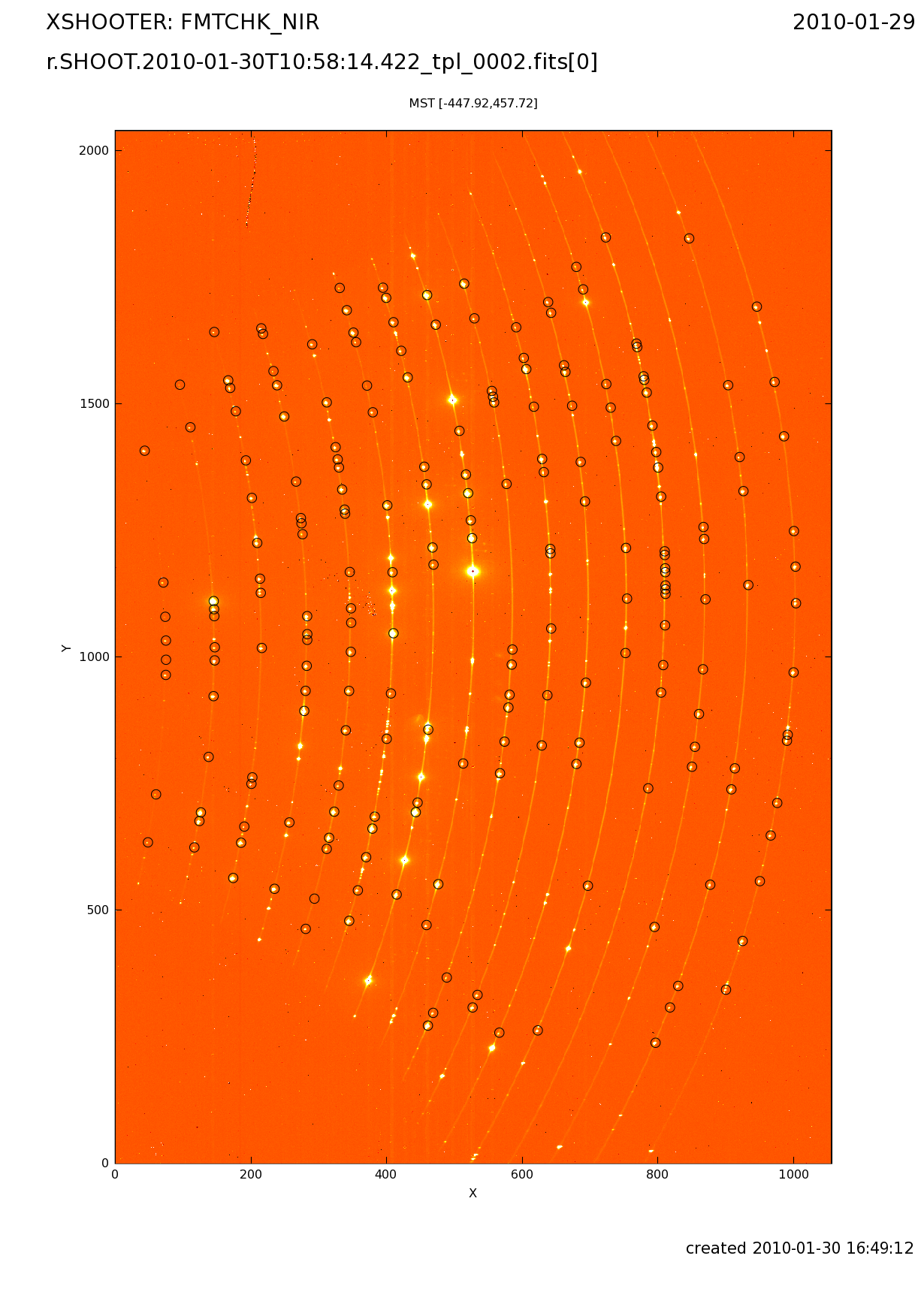

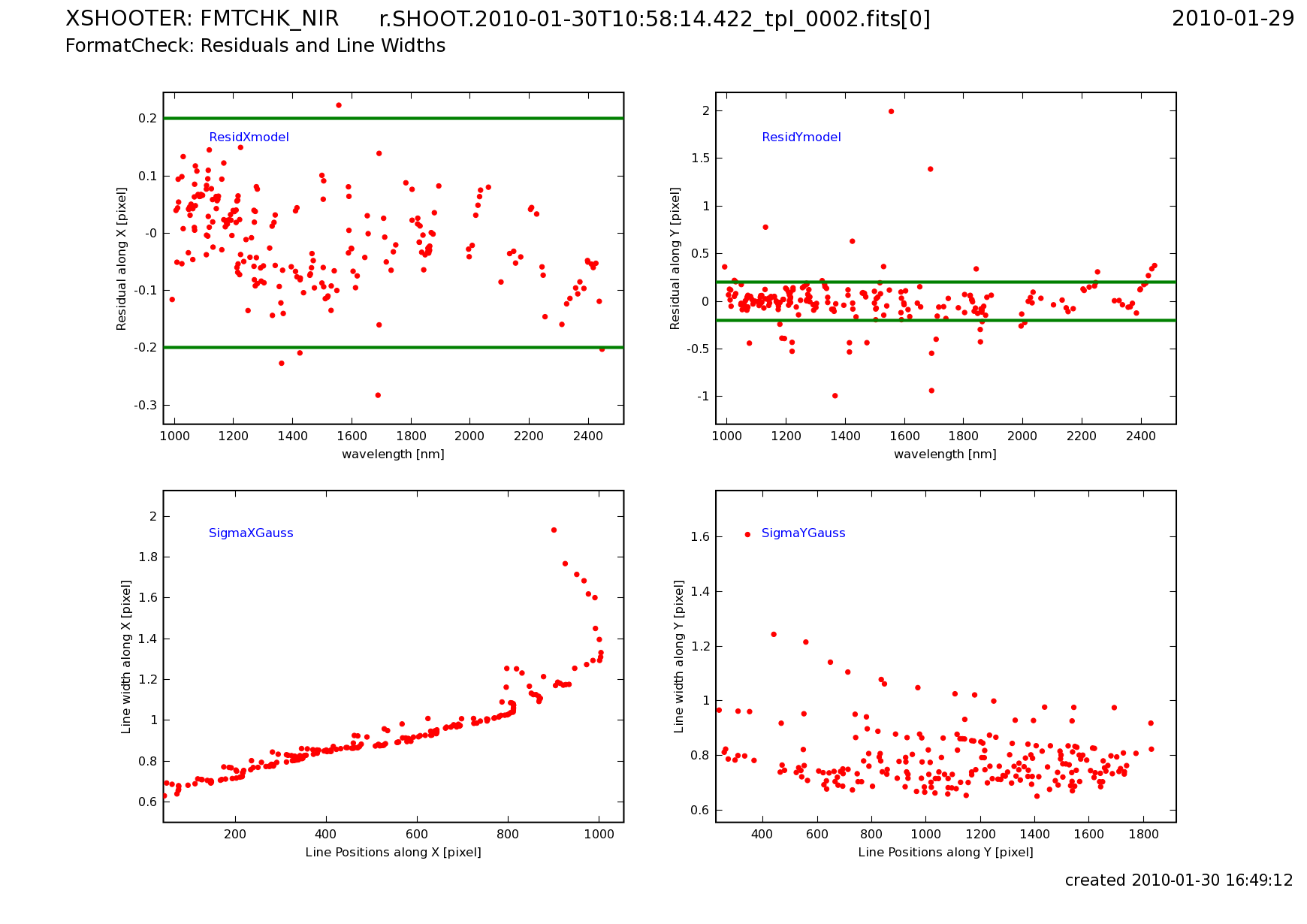

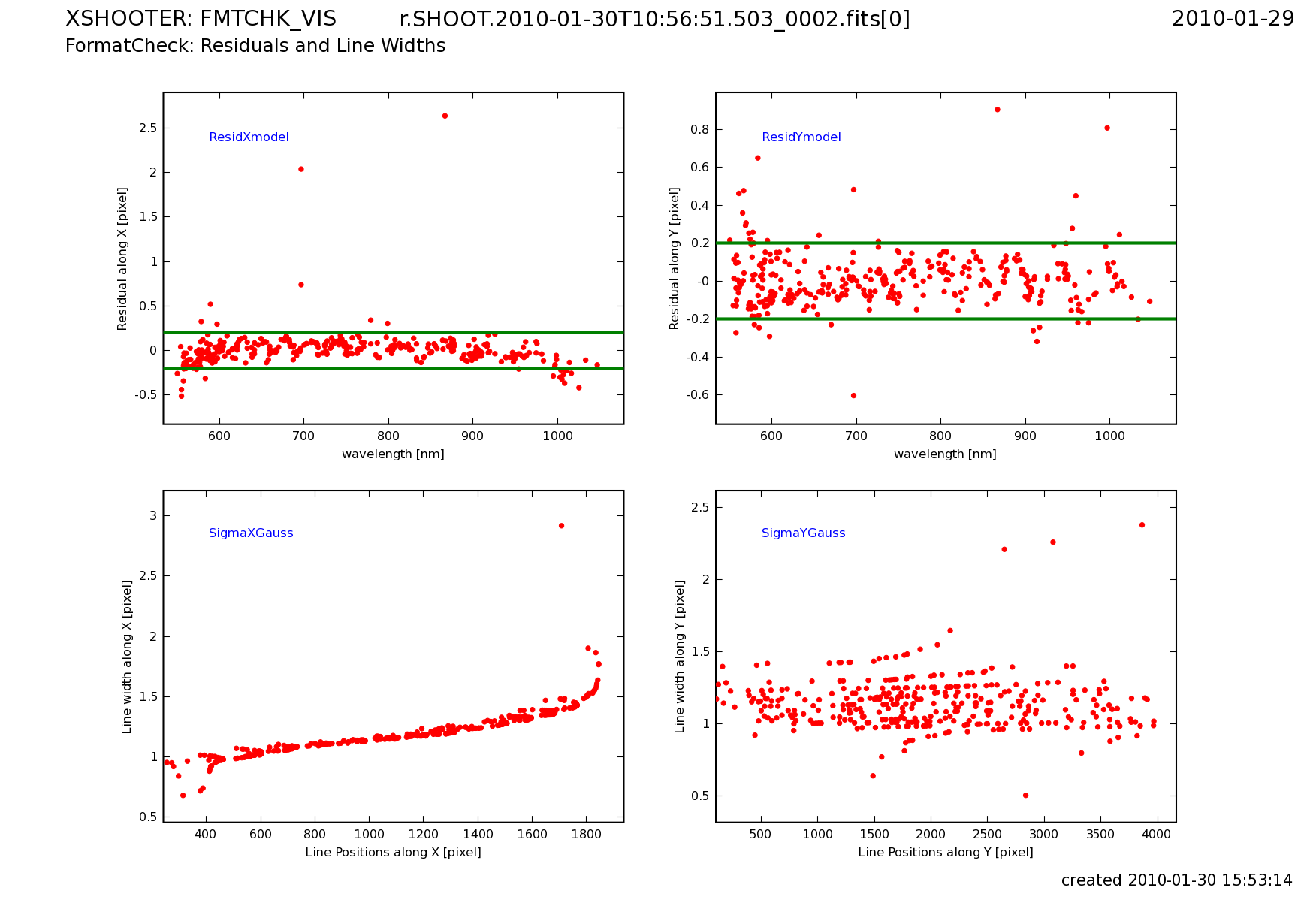

| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||
| bottom plots | contact | ||||||||||
| NAME | xshooter_fmtchk.py | |||||||||
| VERSION | : 1.0 -- February 2009 : 1.1 -- 2017-09-01 minor docu update | |||||||||
| SYNTAX | PYTHON | |||||||||
| CALL |
processQC from $DFS_PRODUCT/FMTCHK_<arm>/$DATE: $DFO_PROC_DIR/python/xshooter_fmtchk.py -i -a $AB | |||||||||
| INSTRUMENT | XSHOOTER | |||||||||
| RAWTYPE | FMTCHK_UVB | FMTCHK_VIS | FMTCHK_NIR | |||||||||
| PURPOSE | compares raw and product FMTCHK_<arm> files (= 1pinhole arc frame) for XSHOOTER QC assessment; the plots are later reviewed within certifyProducts. The plot is stored in $DFO_PLT_DIR. | |||||||||
| PROCINPUT |
pre-processed FMTCHK; residual table; | |||||||||
| QC1TABLE |
trending | table(s) in QC1 database: xshooter_format | |||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_ARC_UVB_HC.html | trend_report_NLINE_UVB_HC.html | trend_report_GAP_UVB_HC.html | trend_report_FMT_UVB_resid_HC.html | trend_report_FMT_X_UVB_HC.html | trend_report_ARC_VIS_HC.html | trend_report_NLINE_VIS_HC.html | trend_report_GAP_VIS_HC.html | trend_report_FMT_VIS_resid_HC.html | trend_report_FMT_X_VIS_HC.html | trend_report_ARC_NIR_HC.html | trend_report_NLINE_NIR_HC.html | trend_report_GAP_NIR_HC.html | trend_report_FMT_NIR_resid_HC.html | trend_report_FMT_X_NIR_HC.html | |||||||||
| QC1PAGE |
trending | associated documentation: distortion_qc1.html | |||||||||
| QC1PLOTS top |
format_UVB_X00.png top left:: residuals to updated model prediction in X vs wavelength with the limits +/-0.2 marked top right:: residuals to updated model prediction in Y vs wavelength with the limits +/-0.2 marked bottom left: sigma of Gaussian fit to line position (measure of line width) along X axis bottom right: sigma of Gaussian fit to line position (measure of line width) along Y axis format_UVB_A00.png full display of pre-processed FMTCHK_UVB frame with identified lines overplotted format_UVB_A01.png enlargements of the edge regions of pre-processed FMTCHK_UVB frame with identified lines overplotted format_VIS_X00.png top left:: residuals to updated model prediction in X vs wavelength with the limits +/-0.2 marked top right:: residuals to updated model prediction in Y vs wavelength with the limits +/-0.2 marked bottom left: sigma of Gaussian fit to line position (measure of line width) along X axis bottom right: sigma of Gaussian fit to line position (measure of line width) along Y axis format_VIS_A00.png full display of pre-processed FMTCHK_VIS frame with identified lines overplotted format_VIS_A01.png enlargements of the edge regions of pre-processed FMTCHK_VIS frame with identified lines overplotted format_NIR_X00.png top left:: residuals to updated model prediction in X vs wavelength with the limits +/-0.2 marked top right:: residuals to updated model prediction in Y vs wavelength with the limits +/-0.2 marked bottom left: sigma of Gaussian fit to line position (measure of line width) along X axis bottom right: sigma of Gaussian fit to line position (measure of line width) along Y axis format_NIR_A00.png full display of pre-processed FMTCHK_NIR frame with identified lines overplotted format_NIR_A01.png enlargements of the edge regions of pre-processed FMTCHK_NIR frame with identified lines overplotted | |||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: line_difavg | line_difmax | line_difmax_ord FITS key names: QC.LINE.DIFAVG | QC.LINE.DIFMAX | QC.LINE.DIFMAX.ORD QC1db names: resx_rms | resx_min | resx_max FITS key names: QC.MODEL.ANNEAL.RESX_RMS | QC.MODEL.ANNEAL.RESX_MIN | QC.MODEL.ANNEAL.RESX_MAX QC1db names: resy_rms | resy_min | resy_max FITS key names: QC.MODEL.ANNEAL.RESY_RMS | QC.MODEL.ANNEAL.RESY_MIN | QC.MODEL.ANNEAL.RESY_MAX QC1db names: flux_Ar | nlin_Ar | flux_Ne | nlin_Ne FITS key names: QC.INTAVG.AR | QC.NLININT.AR | QC.INTAVG.NE | QC.NLININT.NE QC1db names: flux_ThAr | nlin_ThAr | flux_Xe | nlin_Xe FITS key names: QC.INTAVG.THAR | QC.NLININT.THAR | QC.INTAVG.XE | QC.NLININT.XE | QC1db names: x_ll | y_ll | x_ul | y_ul | x_lr | y_lr | x_ur | y_ur local names: x_ll | y_ll | x_ul | y_ul | x_lr | y_lr | x_ur | y_ur QC1 params created by pipeline: all but line position parameters | |||||||||
| ALGORITHM | ||||||||||
| CERTIF |
Reasons for rejection: - strong trends in residuals; many large outliers | |||||||||
| COMMENTS | ||||||||||
| top | [2020-10-08T07:11:23] created by qcDocu v1.1.2, a tqs tool | |||||||||
