| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | qc_IFS_DFLAT.sh | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- 2015-04-01 begin of operations 1.1 -- 2017-09-05 docu updated | ||||||||||||||||||||||||||||
| SYNTAX | SHELL | ||||||||||||||||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/IFS_DFLAT/$DATE as qc_IFS_DFLAT -a $AB -u vircam -level 1 2\>\&1 \> $DFS_LOG/$AB.qclog meaning output is logged to $DFS_LOG/$AB.qclog !!! | ||||||||||||||||||||||||||||
| INSTRUMENT | SPHERE | ||||||||||||||||||||||||||||
| RAWTYPE | IFS_DFLAT | ||||||||||||||||||||||||||||
| PURPOSE |
quality control script for SPHERE IFS imaging flats pipeline products level 0 : debug, implicit call of writeQC scoreQC. level 1 : calls gen_pipe_suppl_histofit_I.py -a $AB -e $extension level 1 : calls gen_pipe_raw_stat_IV.py -a $AB -e $extension | ||||||||||||||||||||||||||||
| PROCINPUT |
-a AB -level level | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: sphere_ifs_dflat | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_IFS_DFLAT_YJ_HC.html | trend_report_IFS_DFLAT_YJH_HC.html | trend_report_IFS_DFLAT_NBP_YJ_HC.html | trend_report_IFS_DFLAT_NBP_YJH_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: SP_IFS_dflat_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

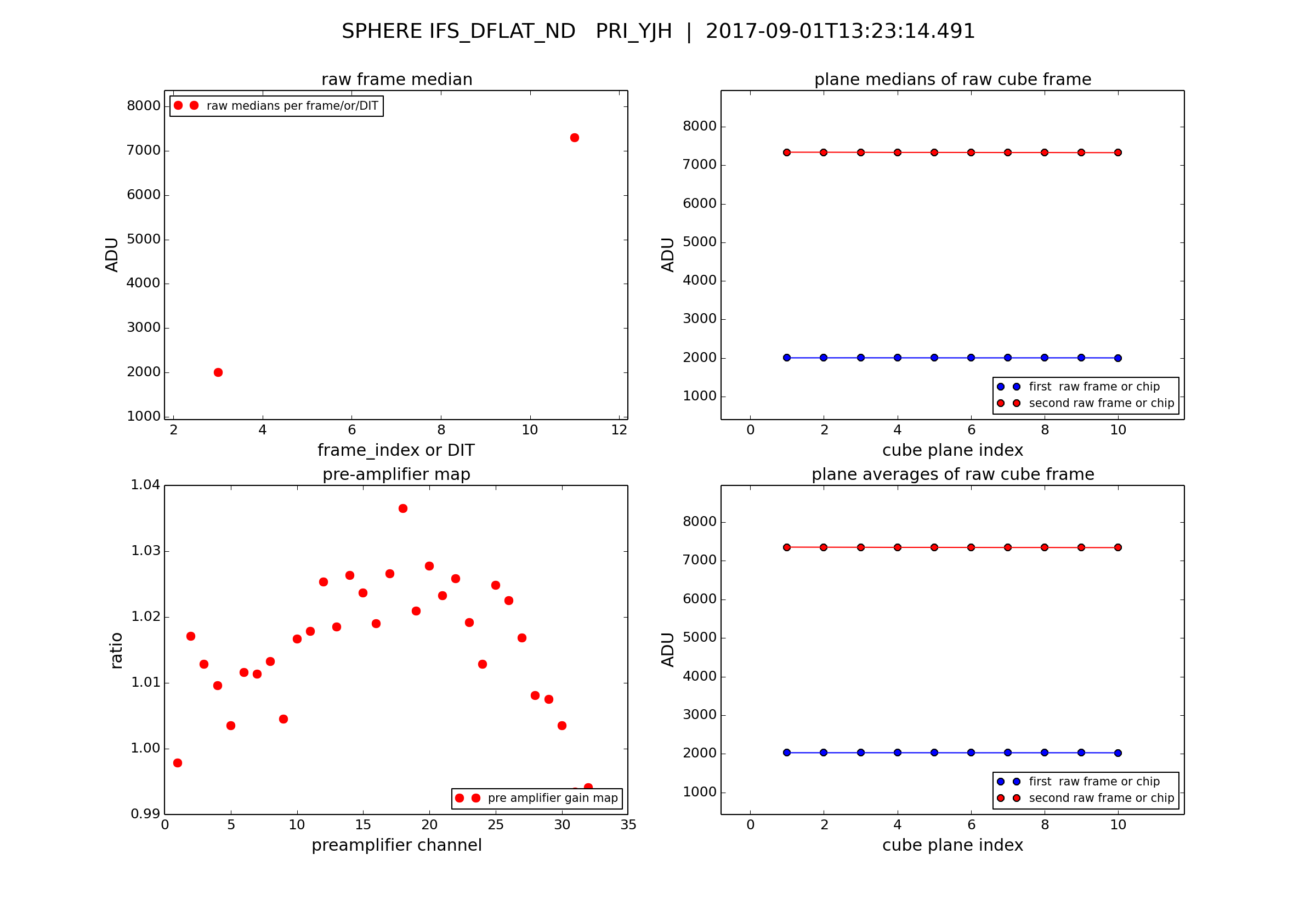

r.SPHER.2017-09-01T13:23:14.491_tpl_0010.png two raw frame cubes, each cube with 10 layers 32 pre-amplifier channels and their relative gain. | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC.LAMP.FLUX.AVG.2, qc_lam_flux_avg_0 first raw frame counts QC.LAMP.FLUX.AVG.7 qc_lam_flux_avg_1 second raw frame counts QC.PREAMP.CORR.MEDIAN15 qc_preamp_med_1 pre-amplifier of channel #15 QC.FPN qc_fpn fixed pattern noise (normalized) QC.FLAT.NONLINEARITY qc_flat_nonlin non-linearity | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: See pipeline user manual | ||||||||||||||||||||||||||||
| CERTIF |
Reasons to reject: unexposed or saturated | ||||||||||||||||||||||||||||
| COMMENTS | The IFS imaging flats (called detector flats by the pipeline) come for both prisms and for five different lamps, four narrow band laser lamps (lamps 1-4) and one broad band halogen lamp (lamp5). The pre-amplier map product is generated only for the broad band halogen lamp flat. | ||||||||||||||||||||||||||||
