NAME qc_IFS_WAVE.sh
VERSION 1.0 -- 2015-04-01 begin of operations
1.1 -- 2017-09-05 docu updated
SYNTAX SHELL
CALL called by processQC
from $DFS_PRODUCT/IFS_WAVE/$DATE as
qc_IFS_WAVE -a $AB -u sphere -level 1 2\>\&1 \> $DFS_LOG/$AB.qclog
meaning output is logged to $DFS_LOG/$AB.qclog !!!
INSTRUMENT SPHERE
RAWTYPE IFS_WAVE
PURPOSE quality control script for SPHERE IFS WAVE pipeline products
level 0 : writeQC scoreQC.
level 1 : calls qc_mstplt.py -a $AB
PROCINPUT -a AB -level level
QC1TABLE trending | table(s) in QC1 database:
sphere_ifs_wave
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
trend_report_IFS_DISP_HC.html | trend_report_IFS_RESPOW_HC.html
QC1PAGE trending | associated documentation:
SP_IFS_wave_qc1.html
QC1PLOTS
top

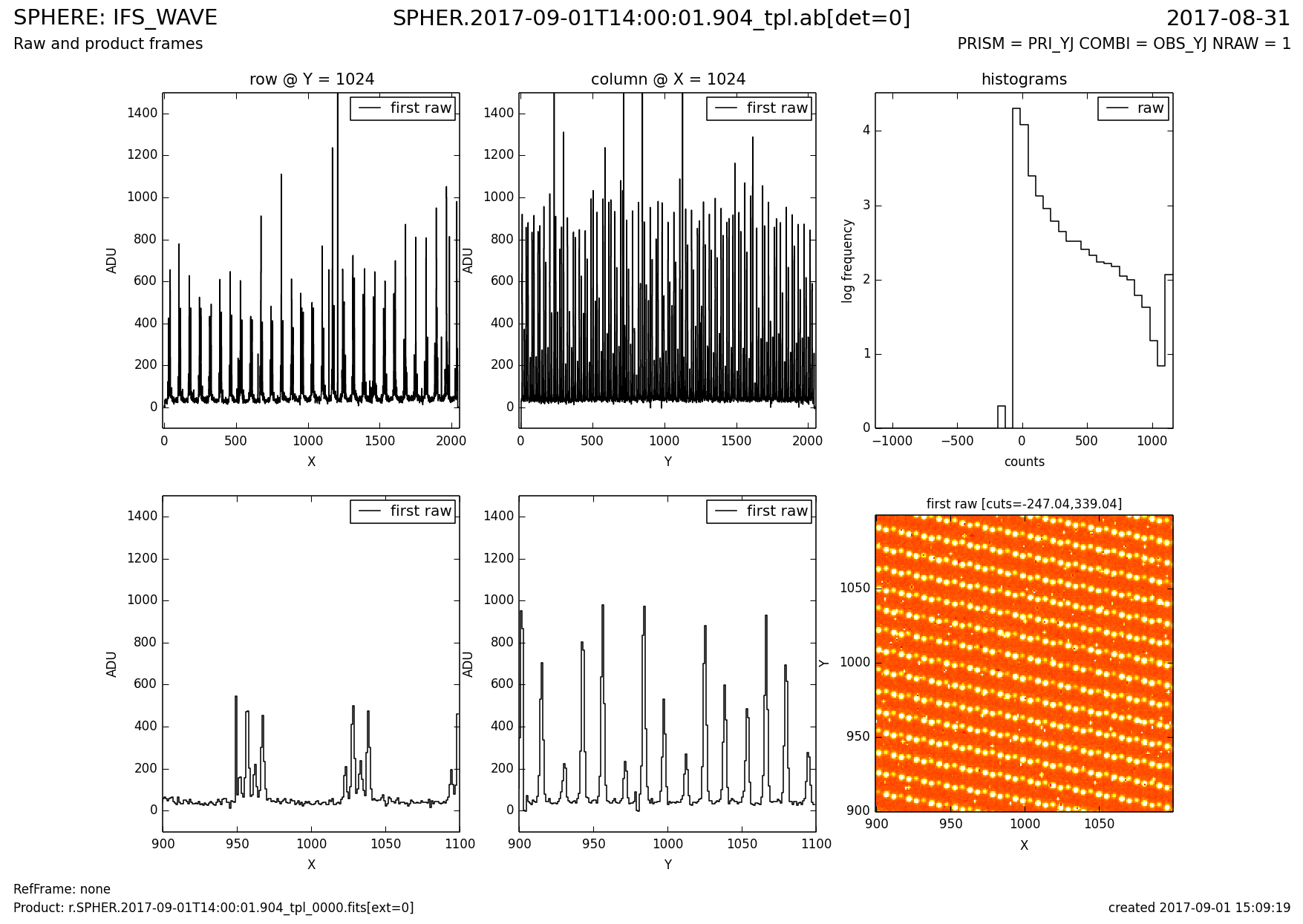

standard cross sections and raw image zoom

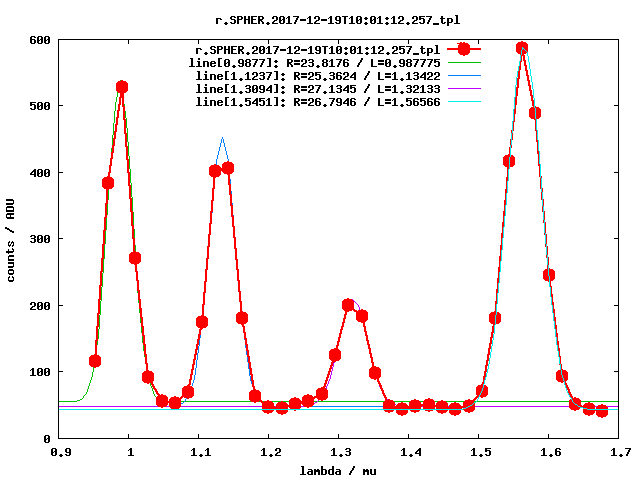

Arc line spectrum and Gaussian fit results from QC script

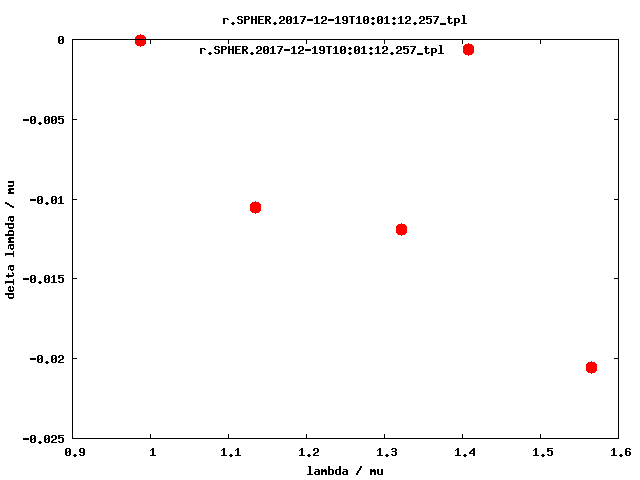

DeltaLambda versus Lambda, dispersion error from QC script
QC1PARAM QC1 parameters written into QC1 table:
QC.LAMP.FLUX.AVG, qc_lamp_flux, lamp
QC.LAMP.FLUX.VARIANCE, qc_lamp_var, rms of lamp
QC.NUM.OUT.OF.DISP, qc_numoutofdisp, (not documented)
QC.BAD.SPECTRA, qc_numbadspec, number of bad spectra
QC.MEDIAN.RESOLVING.POWER, qc_resol_power, resolving power
QC.MEDIAN.DISPERSION, qc_med_dispers, dispersion
ALGORITHM Description of algorithms:
see pipeline user manual.
CERTIF Reasons for rejections: lamp is off
COMMENTS
