QC documentation system: QC procedure qc_ZPL_BIAS_IMG for SPHERE

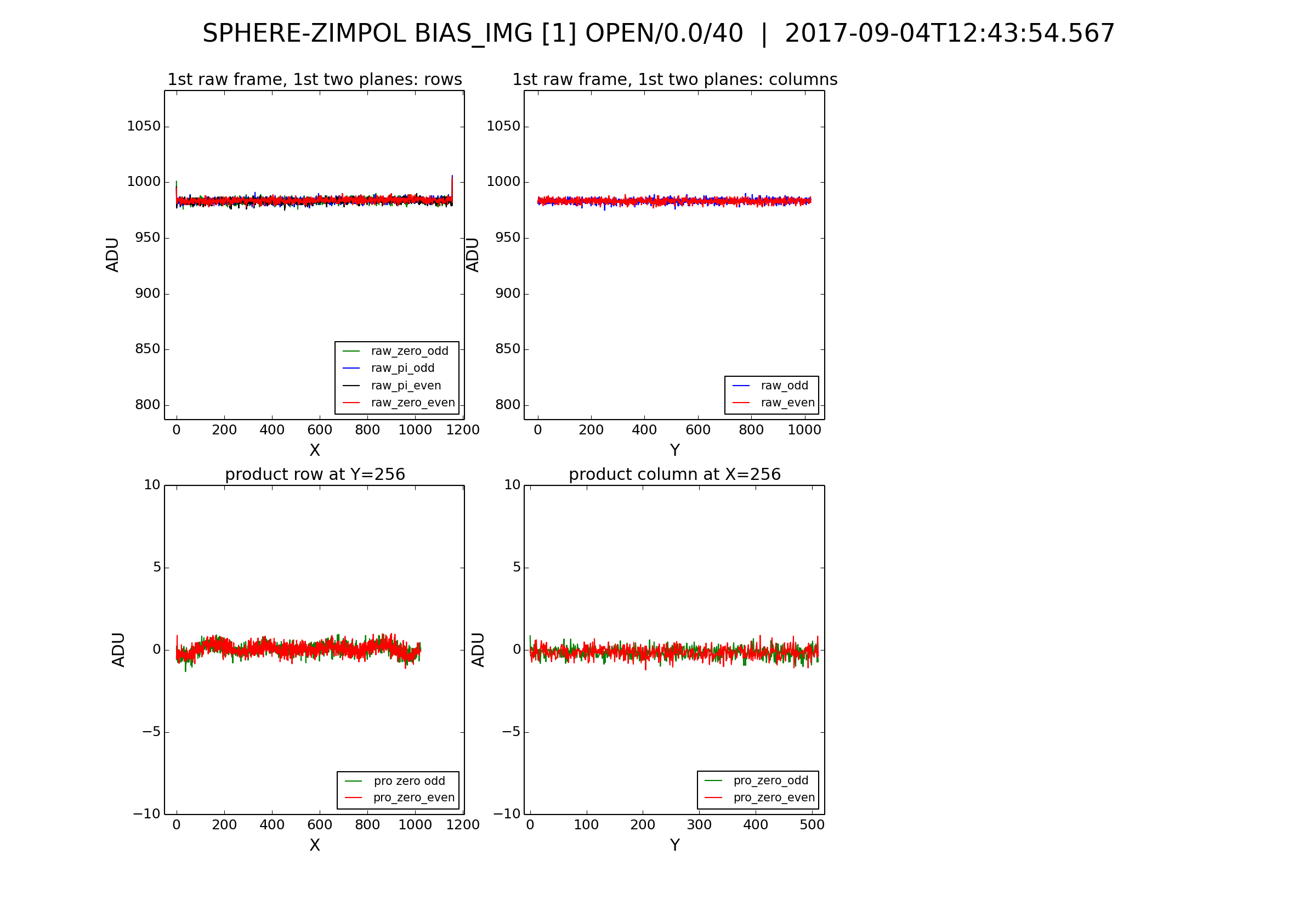

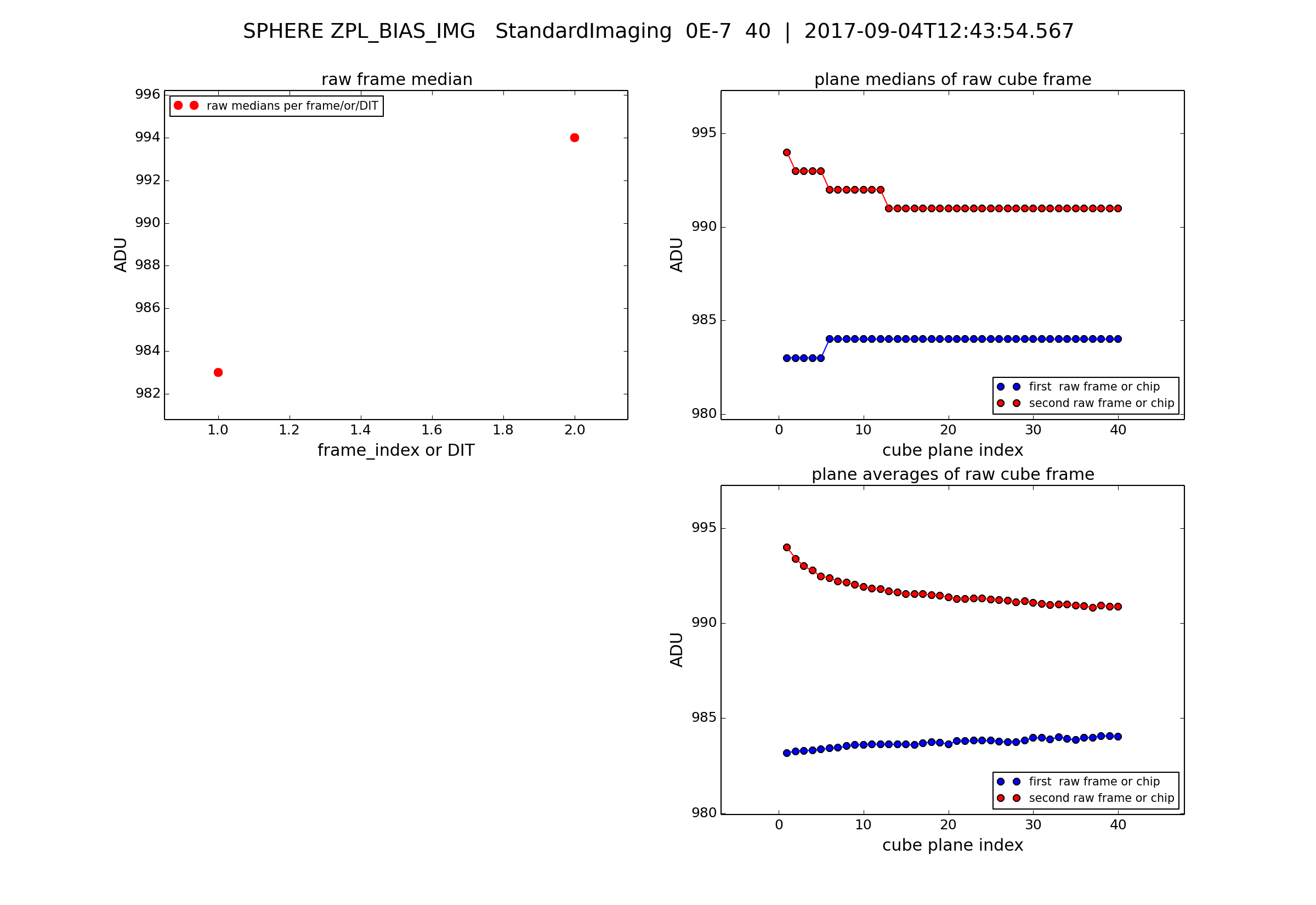

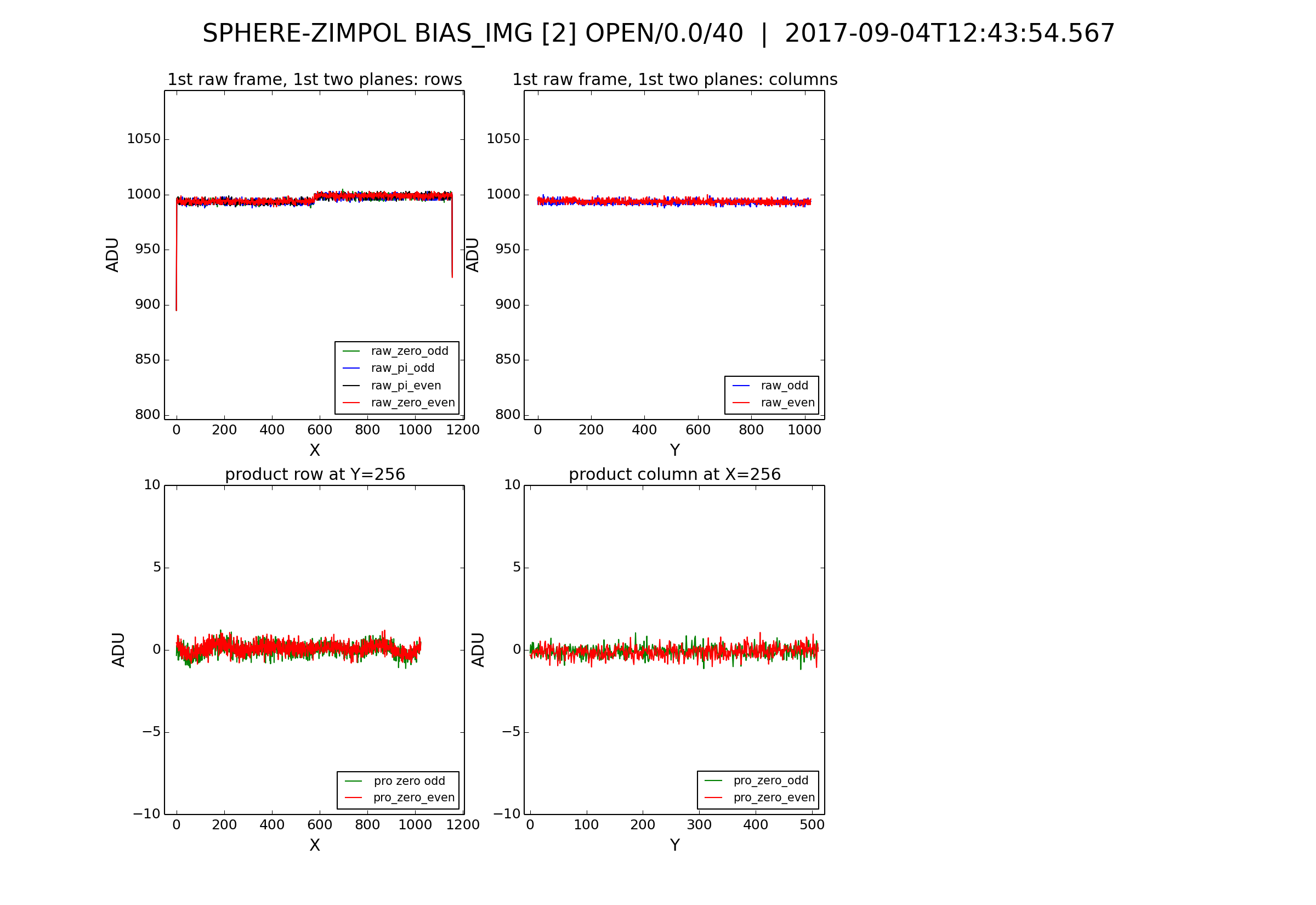

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] qc_IRD_DARK qc_IRD_BACK qc_IRD_FLAT qc_IRD_DIST qc_IFS_DARK qc_IFS_BACK qc_IFS_DFLAT qc_IFS_SPOS qc_IFS_WAVE qc_IFS_FLAT qc_IFS_DIST qc_ZPL_BIAS_IMG qc_ZPL_BIAS_POL qc_ZPL_DARK_IMG qc_ZPL_DARK_POL qc_ZPL_IFLAT_IMG qc_ZPL_IFLAT_POL qc_ZPL_MODEM_EFF   bottom  plots   |   contact NAME qc_ZPL_BIAS_IMG.sh VERSION 1.0 -- 2014-02-27 1.1 -- 2017-09-05 docu updated SYNTAX SHELL CALL called by processQC from $DFS_PRODUCT/ZPL_BIAS_IMG/$DATE as qc_ZPL_BIAS_IMG -a $AB -u sphere -level 1 2\>\&1 \> $DFS_LOG/$AB.qclog<\b> meaning output is logges to $DFS_LOG/$AB.qclog !!! INSTRUMENT SPHERE RAWTYPE ZPL_BIAS_ZPL_BIAS_IMG PURPOSE quality control script for SPHERE ZIMPOL BIAS_IMG pipeline products level 0 : writeQC scoreQC. level 1 : calls gen_pipe_suppl_histofit_I.py -a $AB -e $extension level 1 : calls gen_pipe_raw_stat_IV.py -a $AB -e $extension PROCINPUT -a AB -level level QC1TABLE trending | table(s) in QC1 database: sphere_zimpol_bias_img TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_ZIMPOL_IMG_BLEV_HC.html | trend_report_ZIMPOL_IMG_BRON_HC.html QC1PAGE trending | associated documentation: SP_ZPL_bias_qc1.html QC1PLOTS top r.SPHER.2017-09-04T12:43:54.567_tpl_0010.png standard cross section raw data cube r.SPHER.2017-09-04T12:43:54.567_tpl_0000_1.png cross sections through raw and product of chip #1 (Callas) r.SPHER.2017-09-04T12:43:54.567_tpl_0001_1.png cross sections through raw and product of chip #2 (Bartoli) QC1PARAM QC1 parameters written into QC1 table: qc_biasbias level qc_ronread out noise ALGORITHM median level of bias raw frame rms over the cube for each pixel, then the median over the rms frame is taken CERTIF all bias frames are accepted COMMENTS QC parameters calulated by QC script please watch chip #1 top [2017-12-22T12:30:44]         created by qcDocu v1.1.2, a tqs tool
