NAME qc_ZPL_IFLAT_IMG.sh
VERSION 1.0 -- 2014-02-27 first version
1.1 -- 2017-09-05 factsheet updated
SYNTAX SHELL
CALL called by processQC
from $DFS_PRODUCT/ZPL_IFLAT_IMG/$DATE as
qc_ZPL_IFLAT_IMG -a $AB -u sphere -level 1 2\>\&1 \> $DFS_LOG/$AB.qclog
meaning output is logges to $DFS_LOG/$AB.qclog !!!
INSTRUMENT SPHERE
RAWTYPE ZPL_IFLAT_IMG
PURPOSE quality control script for SPHERE ZIMPOL FLAT_IMG pipeline products
level 0 : writeQC scoreQC.
level 1 : calls gen_pipe_suppl_histofit_I.py -a $AB -e $extension
level 1 : calls gen_pipe_raw_stat_IV.py -a $AB -e $extension
PROCINPUT -a AB -level level
QC1TABLE trending | table(s) in QC1 database:
sphere_zimpol_iflat_img
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
trend_report_ZIMPOL_IMG_LAMP_HC.html | trend_report_ZIMPOL_IMG_SNR_HC.html | trend_report_ZIMPOL_IMG_RMS_HC.html | trend_report_ZIMPOL_IMG_SHUTTER_HC.html
QC1PAGE trending | associated documentation:
SP_ZPL_flat_qc1.html
QC1PLOTS
top

standard QC report cube view: one raw frame, two extensions, NDIT=NAXIS3=8 planes

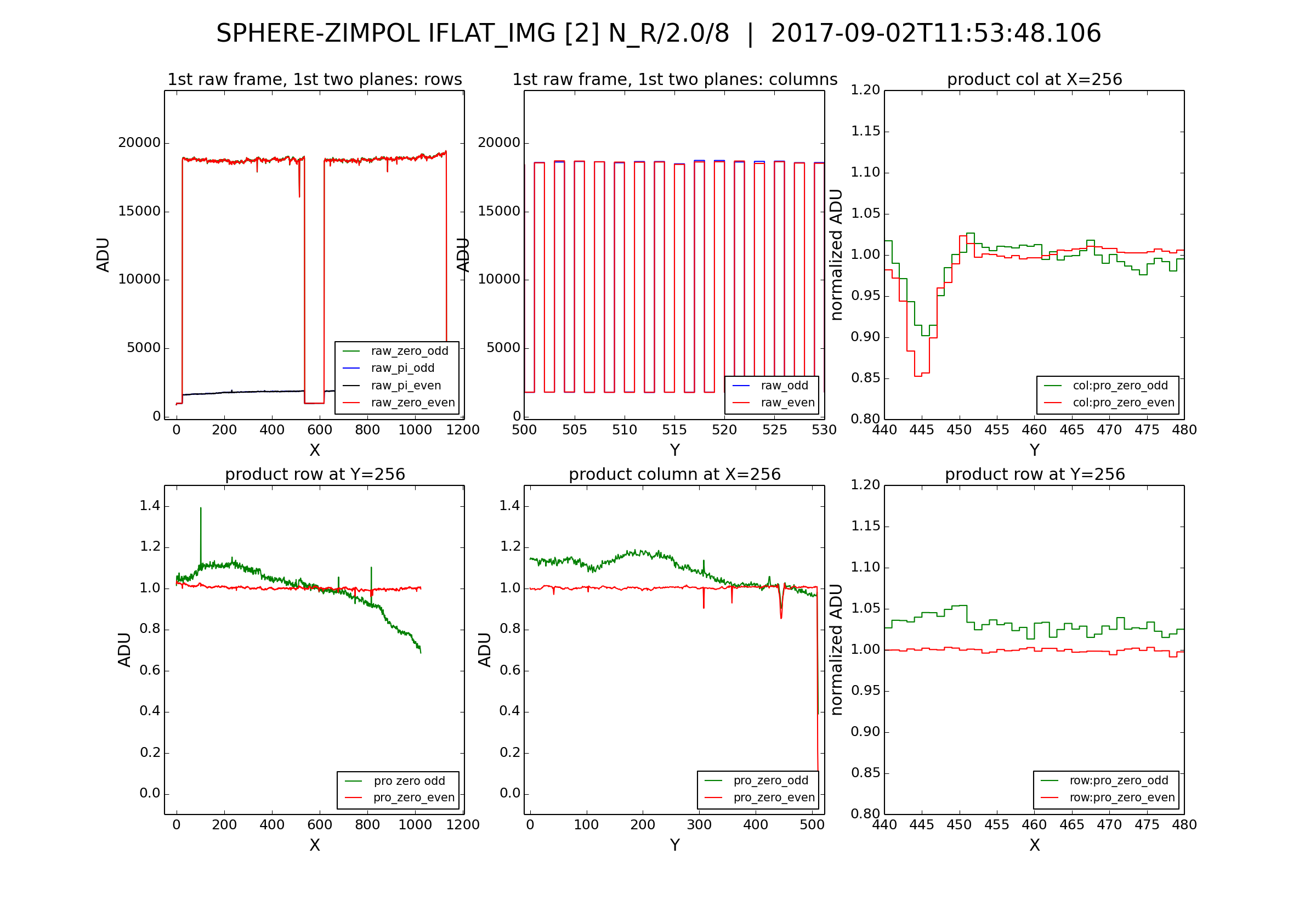

raw frame and products cross sections detector=1
raw frame and products cross sections detector=2
QC1PARAM QC1 parameters written into QC1 table:
qc_iframe_raw_med median of raw frame
qc_SNR_iframe signal-to-noise ratio in product frame
qc_rms_iframe rms of product frame
qc_plane_rms rms of plane medians to check for shutter issues
ALGORITHM see QC script
CERTIF lamp flats can saturate or can be under-illuminated
COMMENTS NONE
