NAME qc_IRD_FLAT.sh
VERSION 1.0 -- 2014-04-01 start of commissioning
1.0 -- 2017-09-03 docu updated
SYNTAX SHELL
CALL called by processQC
from $DFS_PRODUCT/IRD_FLAT/$DATE as
CALL_SYNTAX IRD_FLAT 0000.fits &&qc_IRD_FLAT -a $AB -u vircam -e 0 -level 3 2\>\&1 \> $DFS_LOG/$AB.qclog&&
meaning output the is logged to $DFS_LOG/$AB.qclog !!!
INSTRUMENT SPHERE
RAWTYPE IRD_CLI_FLAT, IRD_DBI_FLAT, IRD_DPI_FLAT
PURPOSE quality control script for SPHERE IRDIS CLI, DBI and DPI FLAT pipeline products
level 0 : debug case, only implicit call of writeQC scoreQC.
level 1 : calls ${HOME}/python/qc_mstplt.py -a $AB
and calls ${HOME}/progs/gen_pipe_suppl_raw_I.py -a $AB
PROCINPUT -a AB -e extension -level level
QC1TABLE trending | table(s) in QC1 database:
sphere_irdis_flat
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
trend_report_IRDIS_CLI_FLAT_HC.html | trend_report_IRDIS_CLI_RMS_HC.html | trend_report_IRDIS_CLI_FPN_HC.html | trend_report_IRDIS_CLI_NBP_HC.html | trend_report_IRDIS_DBI_FLAT_HC.html | trend_report_IRDIS_DBI_RMS_HC.html | trend_report_IRDIS_DBI_FPN_HC.html | trend_report_IRDIS_DBI_NBP_HC.html | trend_report_IRDIS_DPI_FLAT_HC.html | trend_report_IRDIS_LSS_FLAT_HC.html | trend_report_IRDIS_LSS_RMS_HC.html | trend_report_IRDIS_LSS_FPN_HC.html | trend_report_IRDIS_LSS_NBP_HC.html | ../../../ALL/ref_frames/ref_sphere.html
QC1PAGE trending | associated documentation:
SP_IRD_flat_qc1.html
QC1PLOTS
top

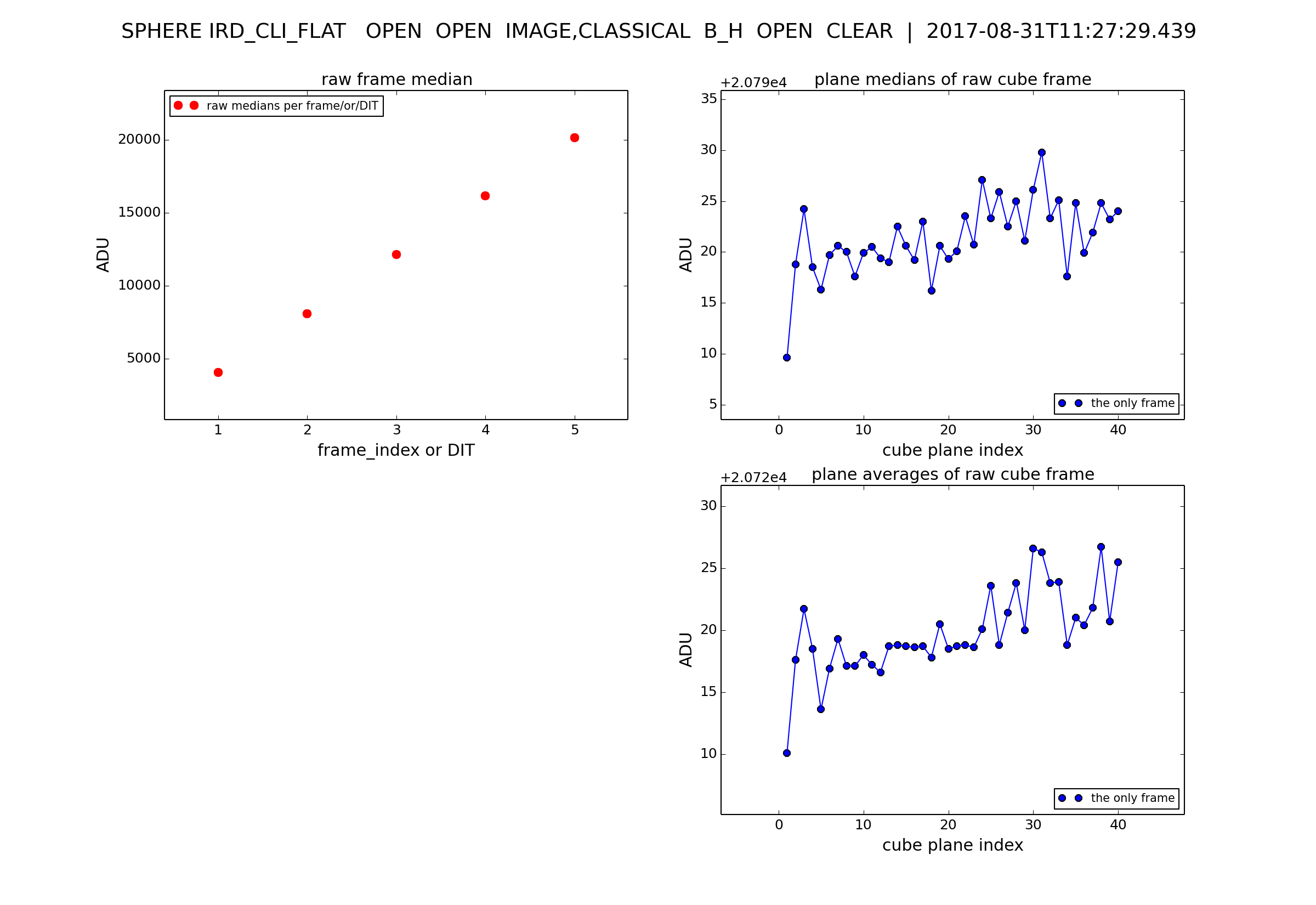

five raw frames with increasing DIT and counts
median and mean values of the raw data cube planes

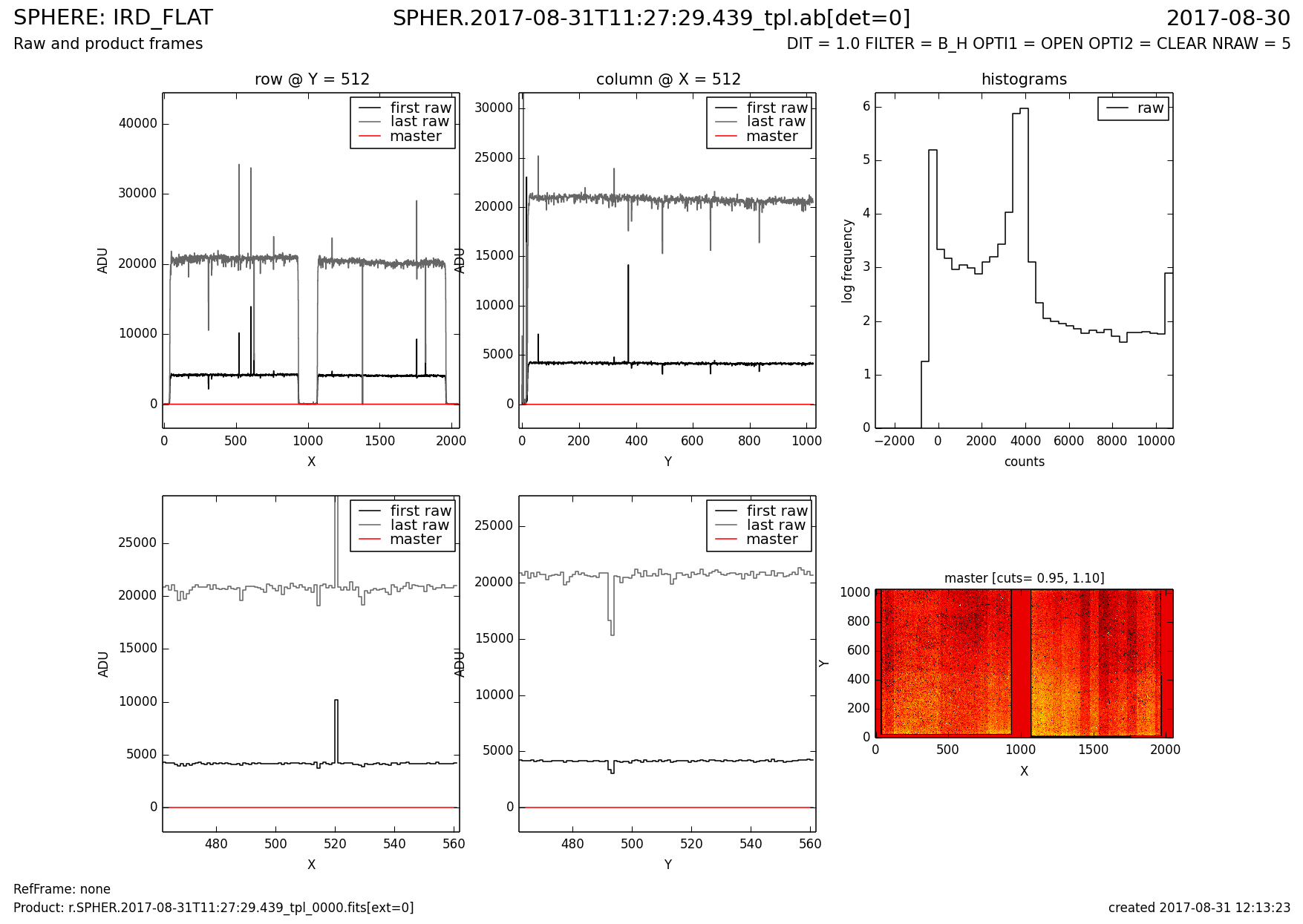

plot X00: CLI standard cross sections through the raw frame and the master

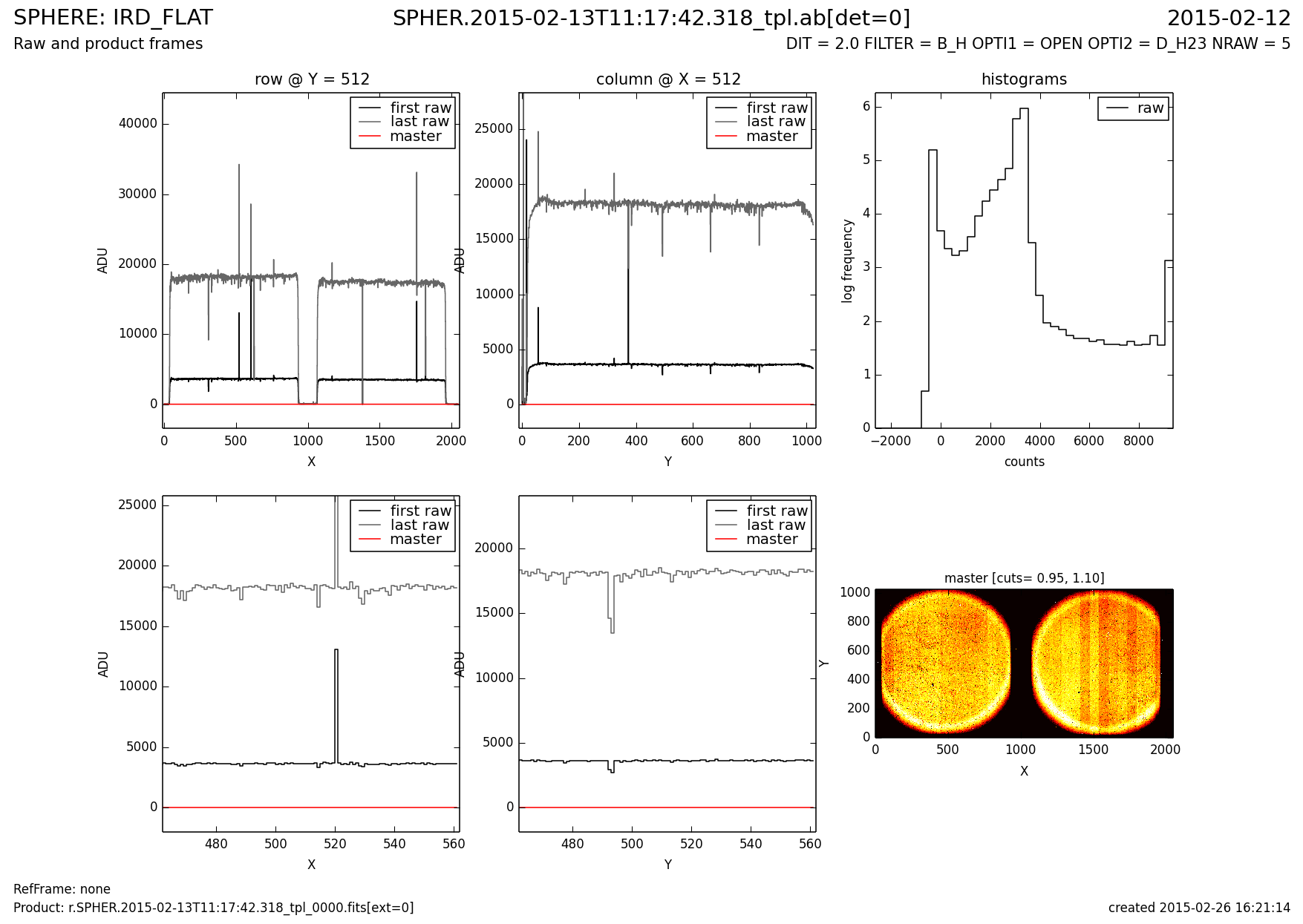

plot X00: DBI standard cross sections through the raw frame and the master
QC1PARAM QC1 parameters written into QC1 table:
QC.LAMP.FLUX.AVG.LEFT.4, QC.LAMP.FLUX.AVG.RIGHT.4qc_flux_left_4, qc_flux_right_4 counts in the fifth raw frame QC.RMS.LEFT, QC.RMS.RIGHT qc_rms_left, qc_rms_right rms of master flat per beam
QC.FPN.LEFT, QC.FPN.RIGHT qc_fpn_left, qc_fpn_right fpn of master flat per beam
ALGORITHM Description of algorithms:
Is not documented in pipeline user manual
CERTIF Reasons for rejection:
COMMENTS 2015-03-17: There are about 2 related open pipeline tickets
