| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | qc_IRD_DIST.sh | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- 2015-04-01 | ||||||||||||||||||||||||||||
| SYNTAX | SHELL | ||||||||||||||||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/IRD_DIST/$DATE as CALL_SYNTAX IRD_DIST 0000.fits &&qc_IRD_DIST -a $AB -u vircam -e 0 -level 3 2\>\&1 \> $DFS_LOG/$AB.qclog&& meaning output is logged to $DFS_LOG/$AB.qclog !!! | ||||||||||||||||||||||||||||
| INSTRUMENT | SPHERE | ||||||||||||||||||||||||||||
| RAWTYPE | IRD_DIST | ||||||||||||||||||||||||||||
| PURPOSE |
quality control script for SPHERE IRDIS distortion pipeline products level 0 : debug, implicit call of writeQC scoreQC. level 1 : calls ${HOME}/python/qc_mstplt.py -a $AB level 1 : and calls ${HOME}/progs/gen_pipe_suppl_raw_I.py -a $AB | ||||||||||||||||||||||||||||
| PROCINPUT |
-a AB -e extension -level level | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: sphere_irdis_distmap | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_IRDIS_CLI_OPAXX_HC.html | trend_report_IRDIS_CLI_DIST_YL_HC.html | trend_report_IRDIS_DBI_OPAXX_HC.html | trend_report_IRDIS_DBI_DIST_YL_HC.html | ../../../ALL/ref_frames/ref_sphere.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: SP_IRD_dist_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

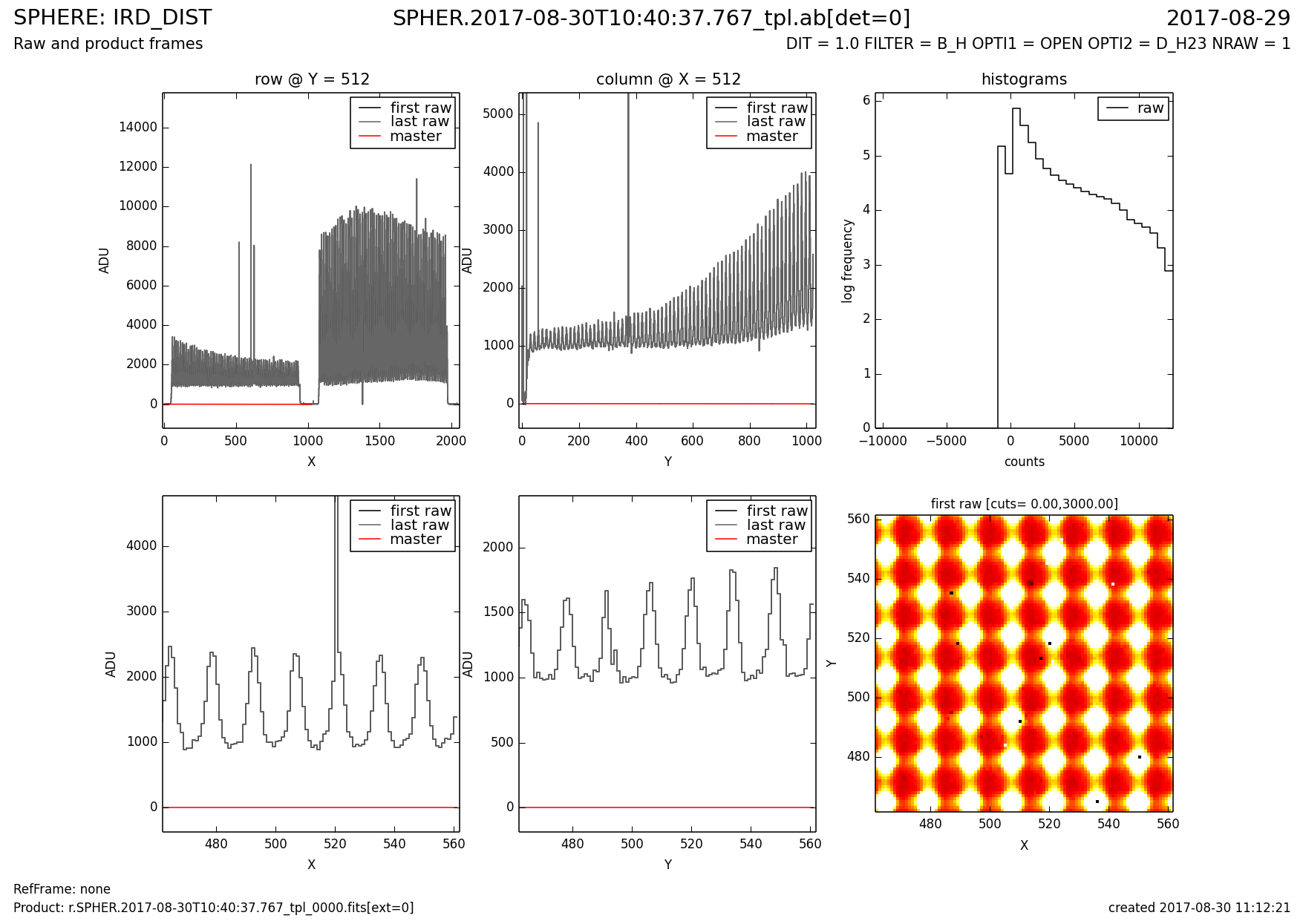

r.SPHER.2017-08-30T10:40:37.767_tpl_0010.png one raw frame, a cube with NDIT = NAXIS3 = 10 r.SPHER.2017-08-30T10:40:37.767_tpl_X00.png several cross sections of the raw frame histogram and zoom in first plane of the raw frame cube | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC.DISTMAP.OPT.AXIS.X,Y qc_optaxis_x, qc_optaxis_y position of optical axis DRS.DIST.X.COEFF.0_0, ...,coeff_x_0_0, optical distortion coefficient DRS.DIST.Y.COEFF.3_3, ...,coeff_y_3_3, optical distortion coefficient | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: see the pipeline user manual. | ||||||||||||||||||||||||||||
| CERTIF |
Reasons for rejections: lamp is off | ||||||||||||||||||||||||||||
| COMMENTS |
The sphere_irdis_distmap QC1 DB table has a different structure than the
sphere_irdis_flat QC1 DB table. The config.writeQC_IRD_LEFT and config.writeQC_IRD_RIGHT
configuration files are used to ingest the QC parameters into the DB for each beam separately.
As soon as the corresponding pipeline ticket is solved, The QC1 DB can be restructured. This raw type is no longer pipeline supported since 2016-10-01 | ||||||||||||||||||||||||||||
