| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | qc_ZPL_IFLAT_POL.sh | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- 2014-02-27 first version 1.1 -- 2017-09-05 docu updated | ||||||||||||||||||||||||||||
| SYNTAX | SHELL | ||||||||||||||||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/ZPL_IFLAT_POL/$DATE as c_ZPL_IFLAT_POL -a $AB -u sphere -level 1 2\>\&1 \> $DFS_LOG/$AB.qclog meaning output is logges to $DFS_LOG/$AB.qclog !!! | ||||||||||||||||||||||||||||
| INSTRUMENT | SPHERE | ||||||||||||||||||||||||||||
| RAWTYPE | ZPL_IFLAT_POL | ||||||||||||||||||||||||||||
| PURPOSE |
quality control script for SPHERE ZIMPOL BIAS_POL pipeline products level 0 : writeQC scoreQC. level 1 : calls gen_pipe_suppl_histofit_I.py -a $AB -e $extension level 1 : calls gen_pipe_raw_stat_IV.py -a $AB -e $extension | ||||||||||||||||||||||||||||
| PROCINPUT |
-a AB -level level | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: sphere_zimpol_iflat_pol | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_ZIMPOL_POL_LAMP_V_HC.html | trend_report_ZIMPOL_POL_LAMP_R_HC.html | trend_report_ZIMPOL_POL_LAMP_I_HC.html | trend_report_ZIMPOL_POL_SNR_V_HC.html | trend_report_ZIMPOL_POL_SNR_R_HC.html | trend_report_ZIMPOL_POL_SNR_I_HC.html | trend_report_ZIMPOL_POL_RMS_V_HC.html | trend_report_ZIMPOL_POL_RMS_R_HC.html | trend_report_ZIMPOL_POL_RMS_I_HC.html | trend_report_ZIMPOL_POL_SHUTTER_V_HC.html | trend_report_ZIMPOL_POL_SHUTTER_R_HC.html | trend_report_ZIMPOL_POL_SHUTTER_I_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: SP_ZPL_flat_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

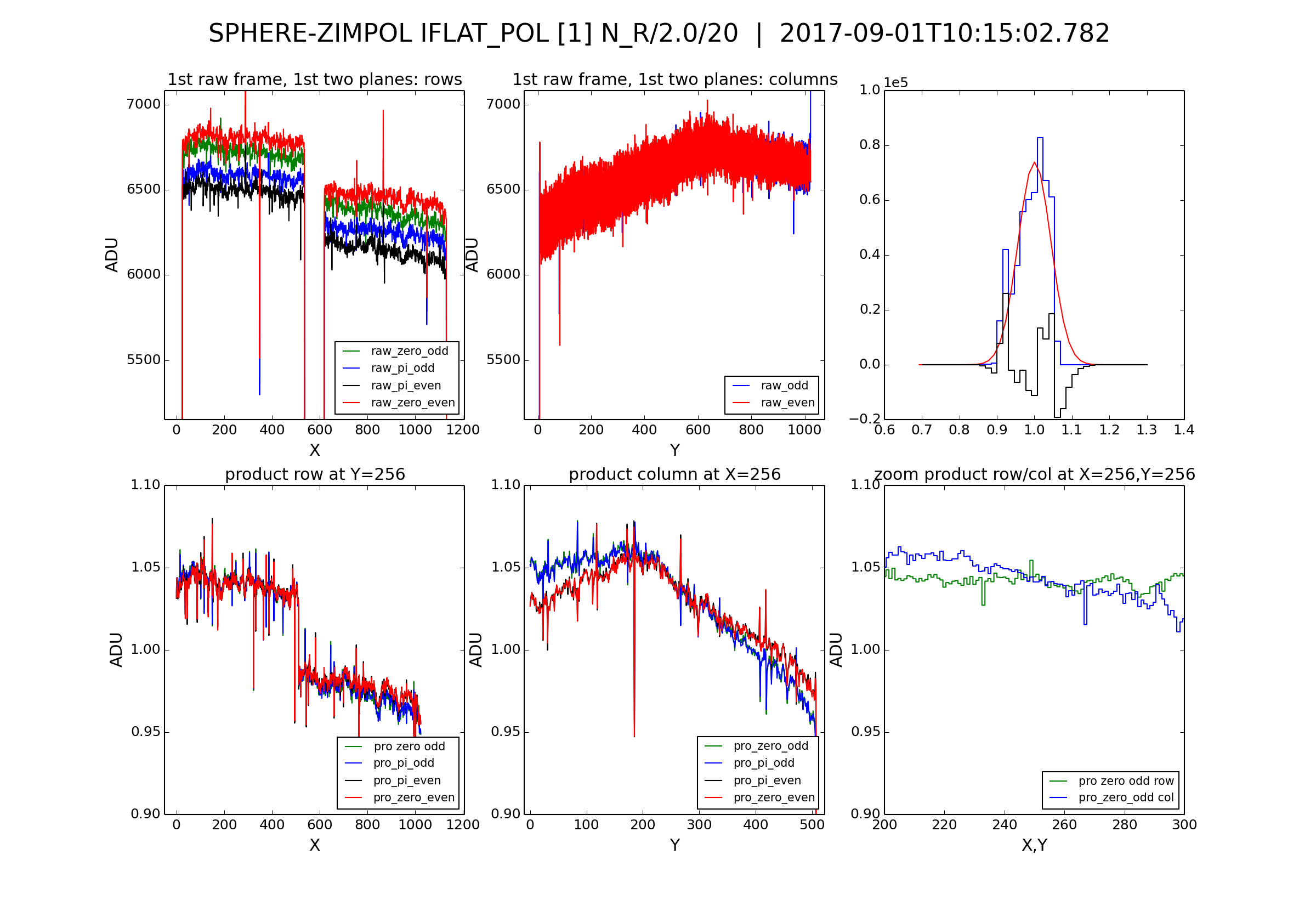

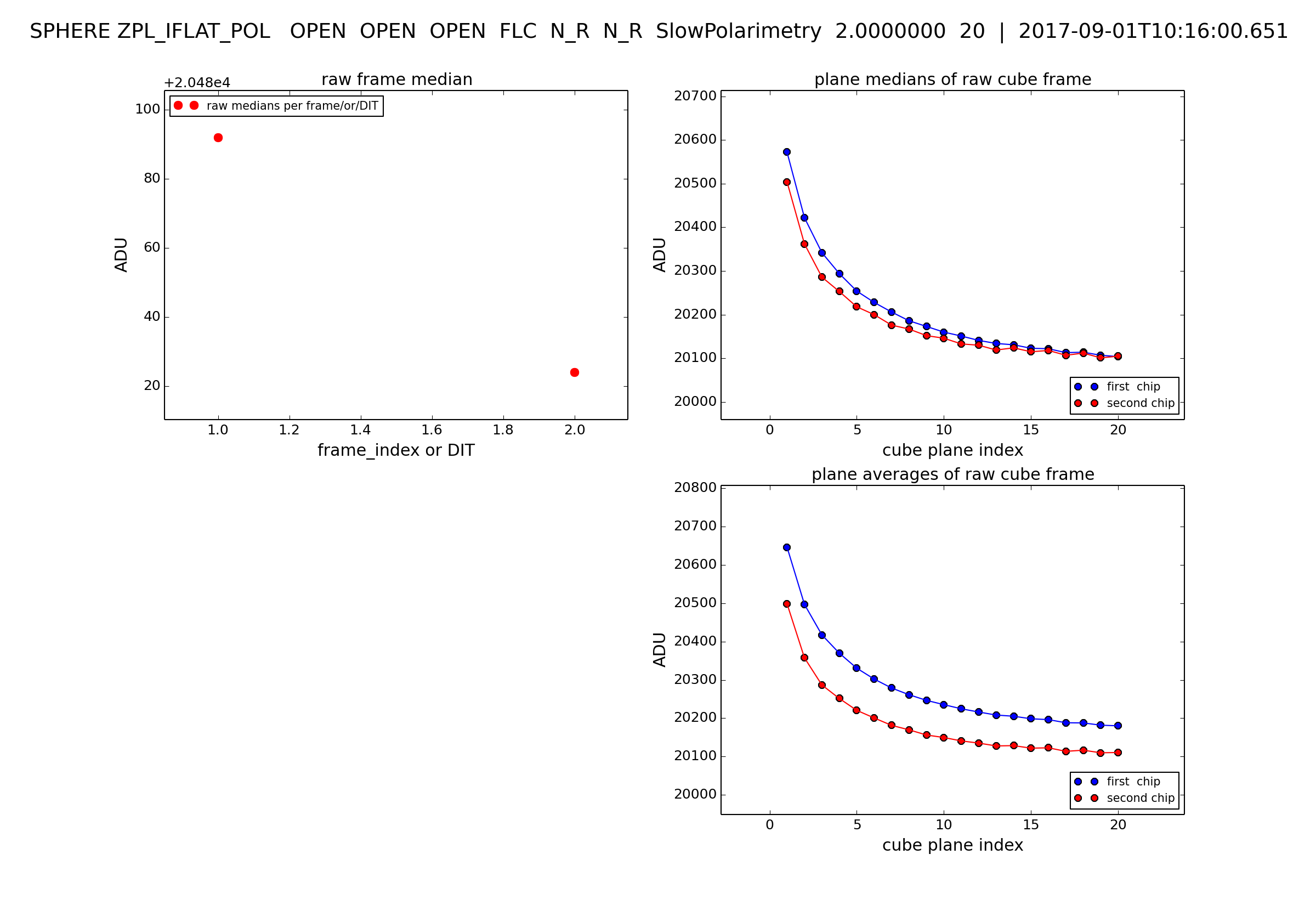

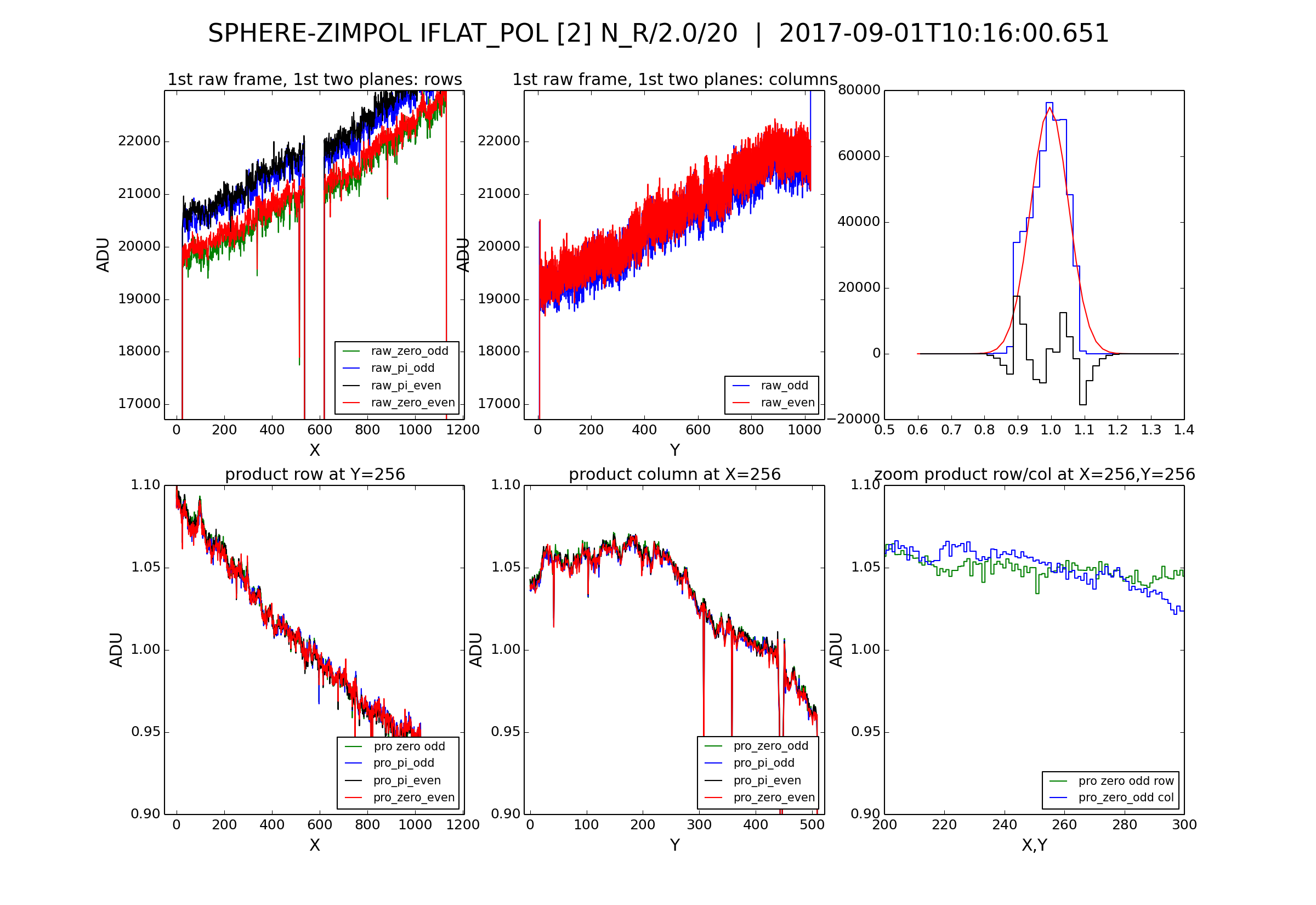

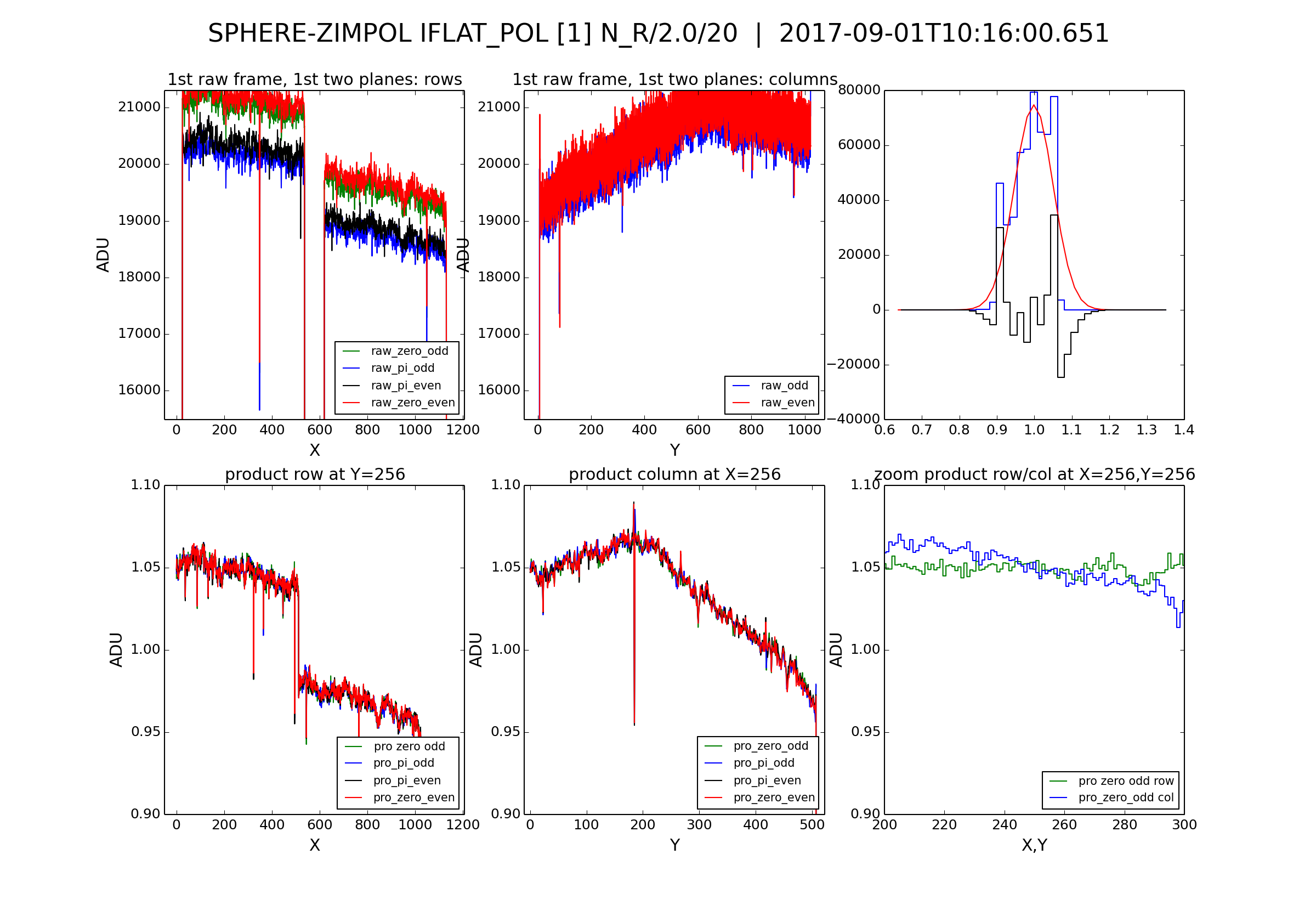

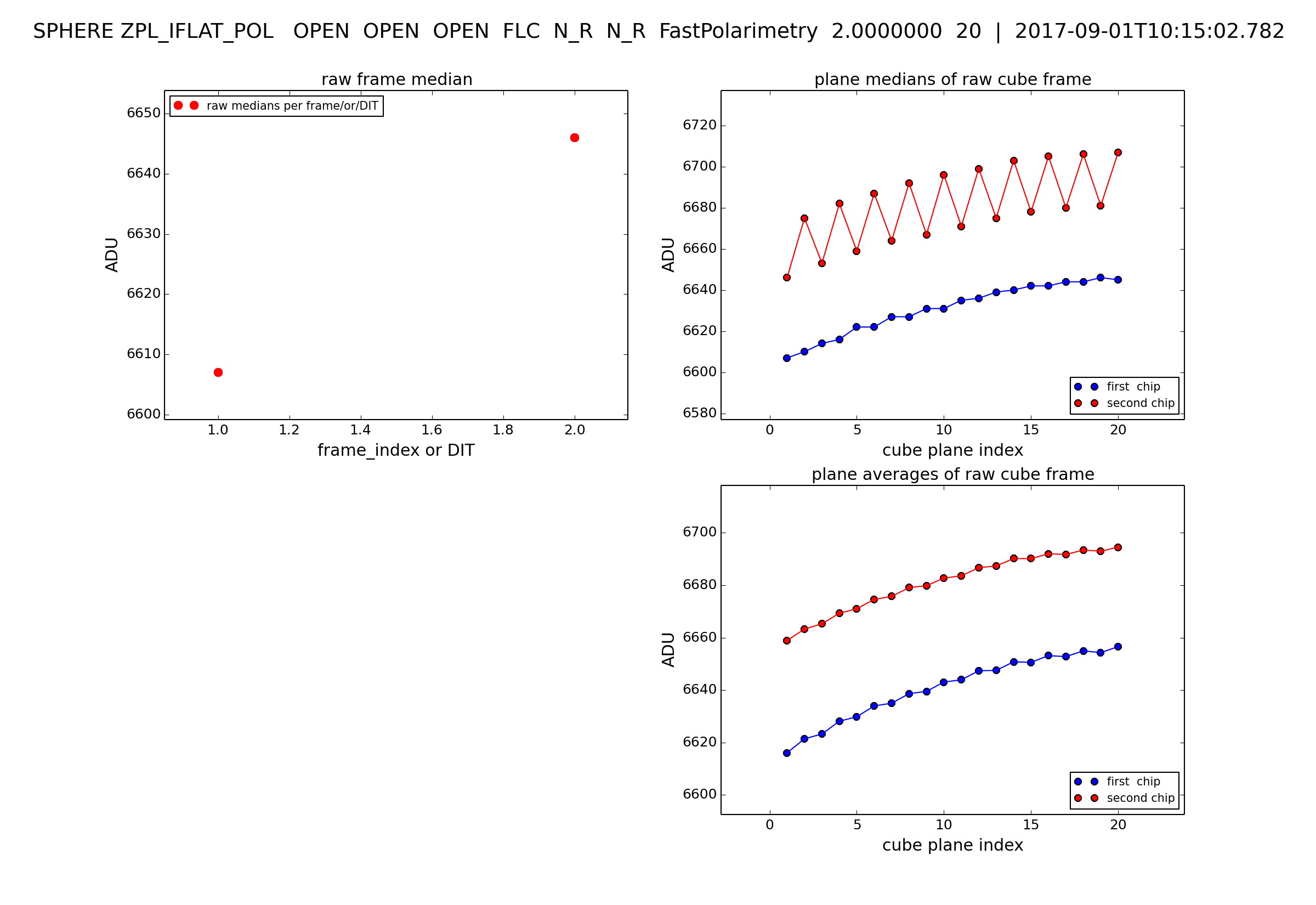

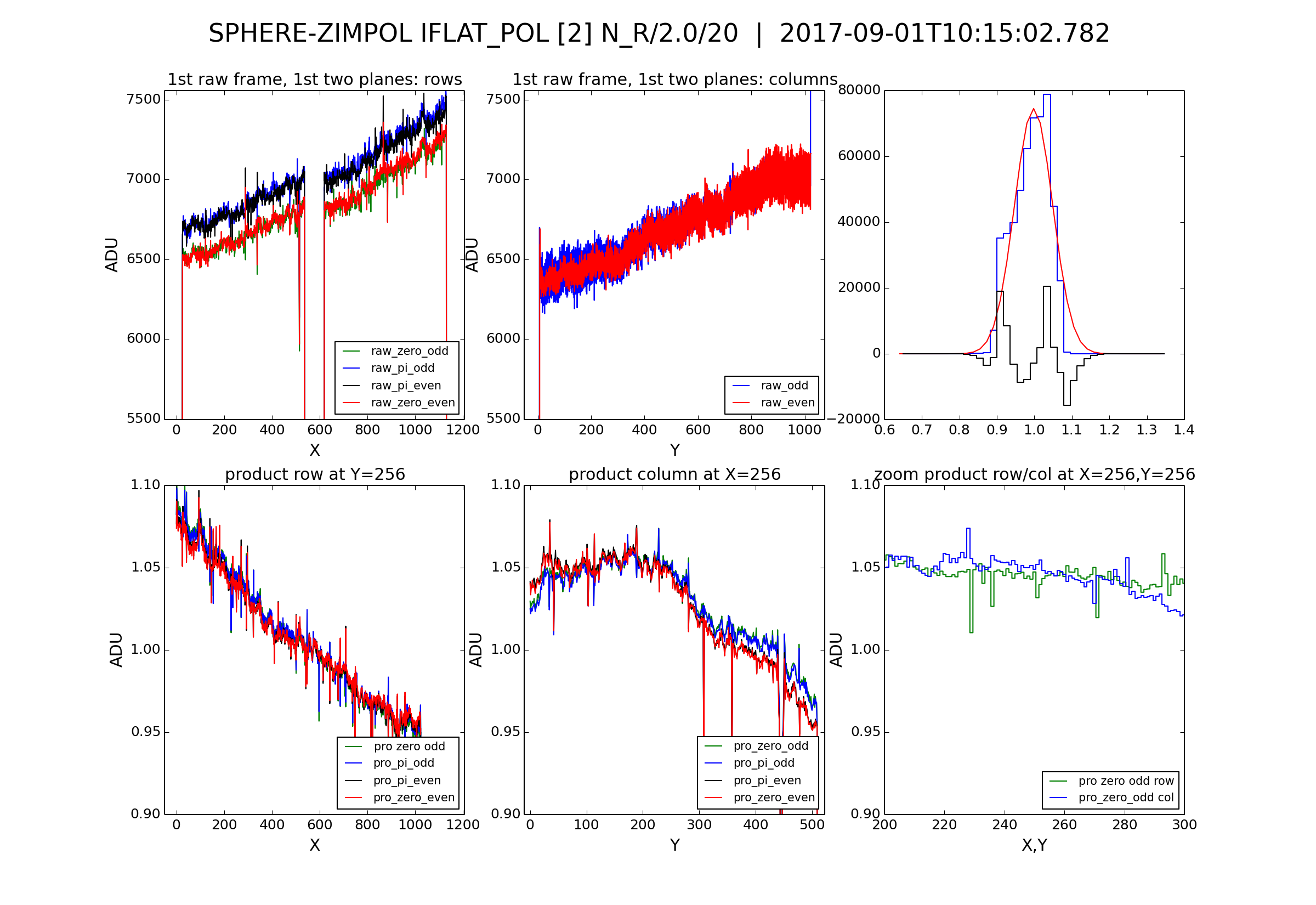

r.SPHER.2017-09-01T10:16:00.651_tpl_0010.png slow read mode raw cube trace r.SPHER.2017-09-01T10:16:00.651_tpl_0000_1.png chip #1 raw frame and product cross sections r.SPHER.2017-09-01T10:16:00.651_tpl_0001_1.png chip #2 raw frame and product cross sections r.SPHER.2017-09-01T10:15:02.782_tpl_0010.png slow read mode raw cube trace r.SPHER.2017-09-01T10:15:02.782_tpl_0000_1.png chip #1 raw frame and product cross sections r.SPHER.2017-09-01T10:15:02.782_tpl_0001_1.png chip #2 raw frame and product cross sections | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: qc_rawmed_zero_odd , raw frame counts qc_SNR_zero_odd , product signal-to-noise ratio qc_rms_zero_odd , product rms qc_plane_rms , rms of plane medians to check for shutter issue | ||||||||||||||||||||||||||||
| ALGORITHM |
see pipeline user manual or QC script | ||||||||||||||||||||||||||||
| CERTIF |
lamp flats can saturate for broad band filtesr and can be under-illuminated for narrow band filters | ||||||||||||||||||||||||||||
| COMMENTS | NONE | ||||||||||||||||||||||||||||
