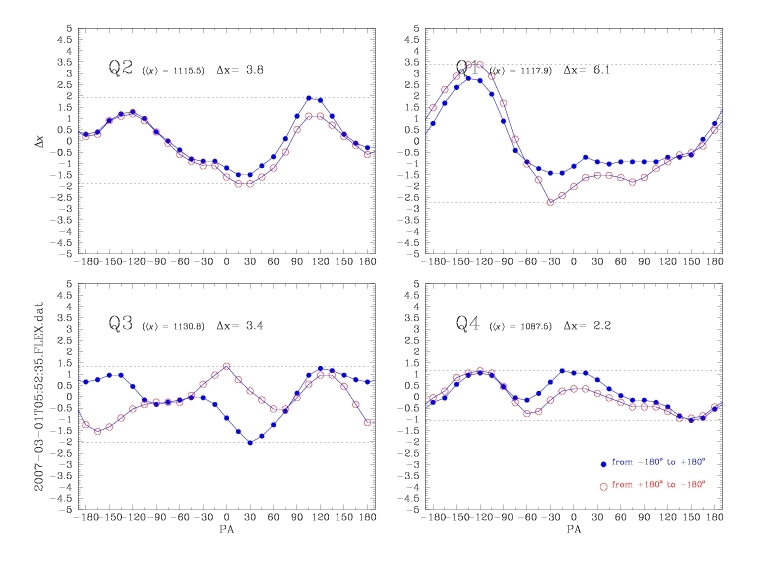

The following images show the last measured instrument flexures in the x direction:
![[Click here to download pdf file]](/sci/facilities/paranal/instruments/vimos/inst/flexures/flex_b_march_2007_x_rot.jpg)

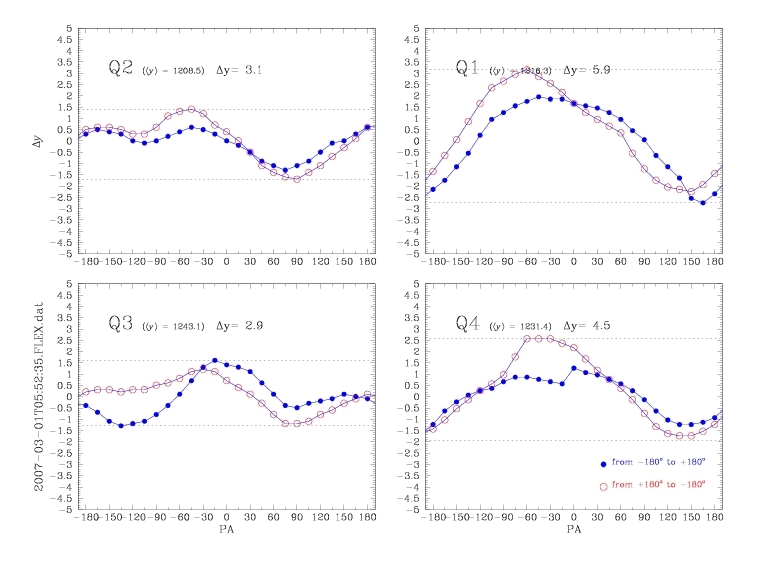

The following images show the last measured instrument flexures in the y direction:
![[Click here to download pdf file]](/sci/facilities/paranal/instruments/vimos/inst/flexures/flex_b_march_2007_y_rot.jpg)

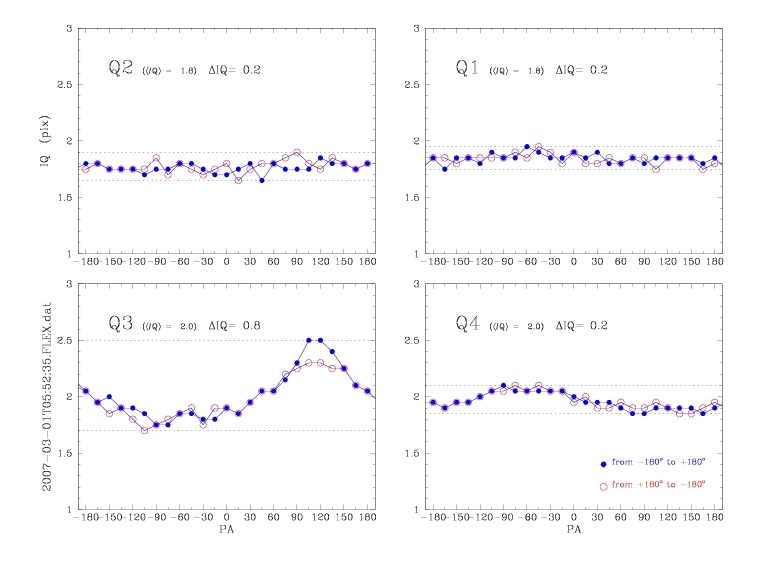

The following images show the last measured image quality (IQ) as a function of rotator angle. The reported IQs are theFWHM measured with a pinhole mask at the focal plane.:
![[Click here to download pdf file]](/sci/facilities/paranal/instruments/vimos/inst/flexures/flex_b_march_2007_IQ_rot.jpg)
