NAME	qc_DIST.sh
VERSION	1.0 -- 2006-06-20 fill template by handbook 1.0 -- 2006-07-07 completed
INSTRUMENT	SINFONI
SYNTAX	SHELL
RAWTYPE	DIST
CALL	measureQuality from $DFS_PRODUCT/DIST/$DATE: qc_DIST -d $DATE -f $primfile
PURPOSE	a) generates QC report, b) writes QC1 parameters into local database
PROCINPUT	a) $DATE in yyyy-mm-dd, b) $primfile is the PRO.CATG=DISTORTION product with the _0000.fits extension. c) raw frames are implicitely read from the AB. d) Reference DISTORTION and SLITLETS_DISTANCE are implicitely read from $DFO_QC_DIR/references/DIST.
QC1TABLE	trending | table in QC1 database: sinfoni_dist

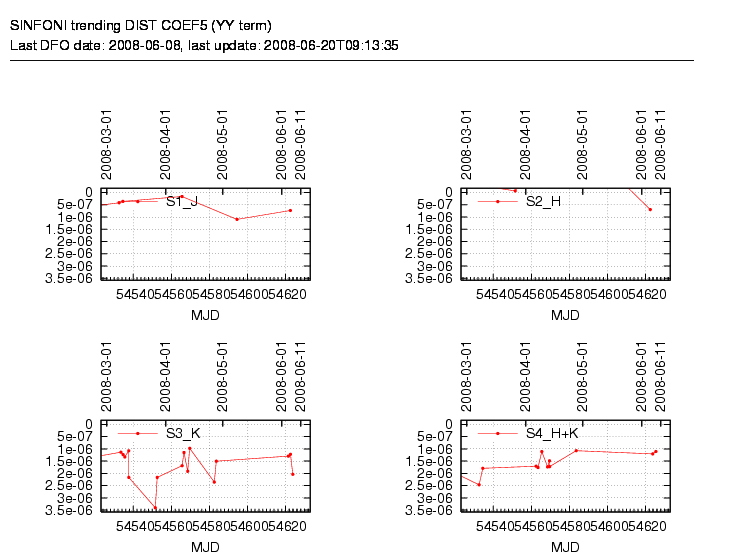

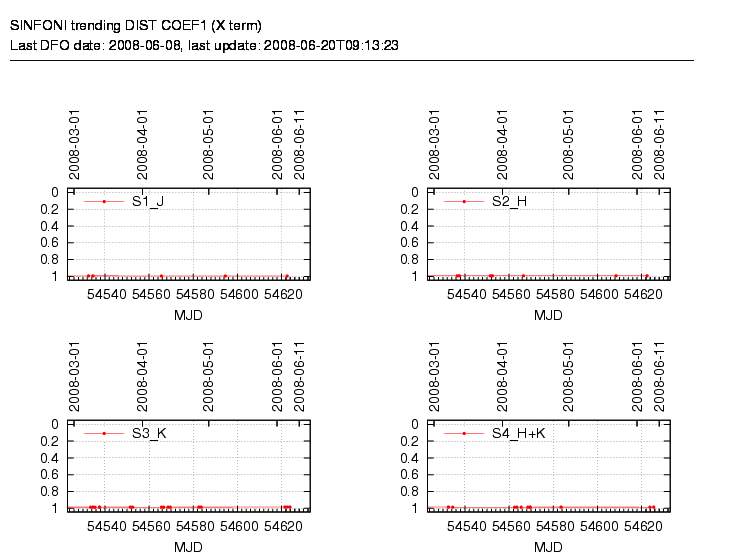

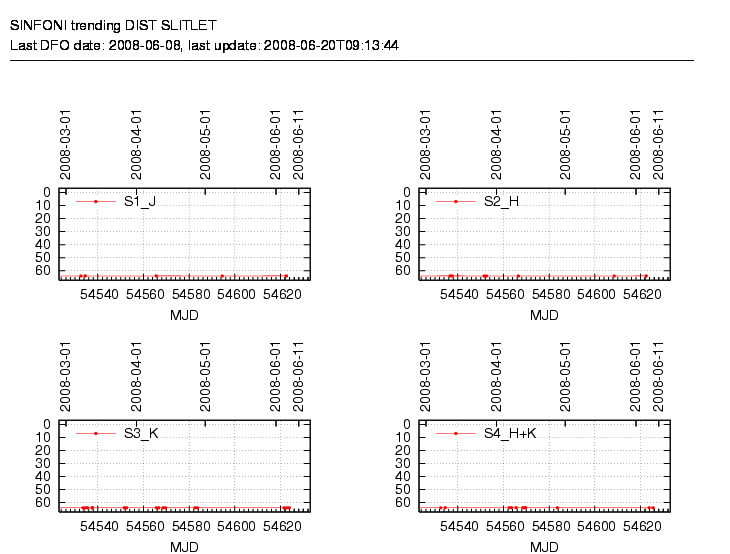

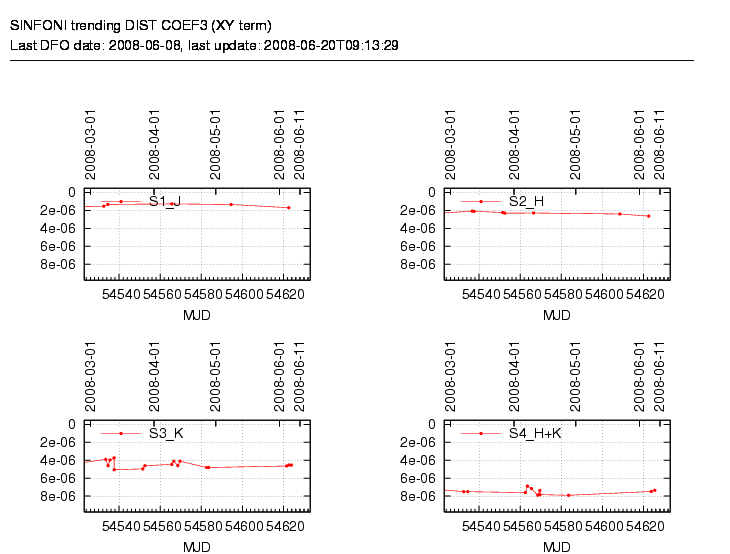

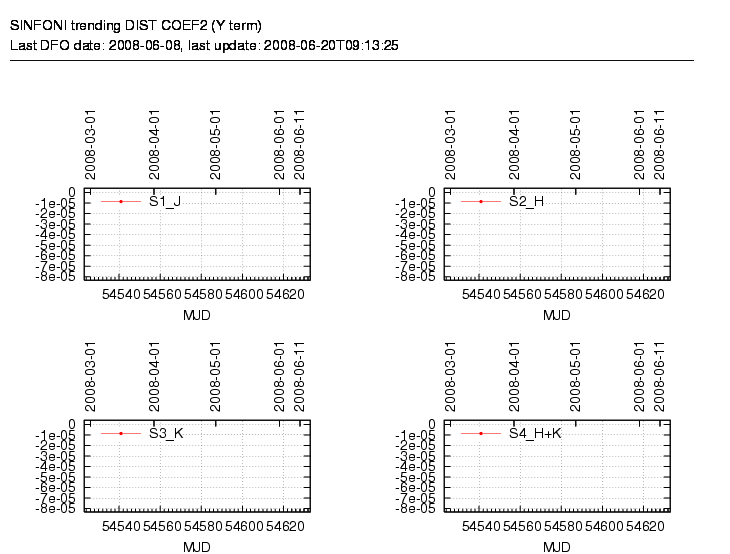

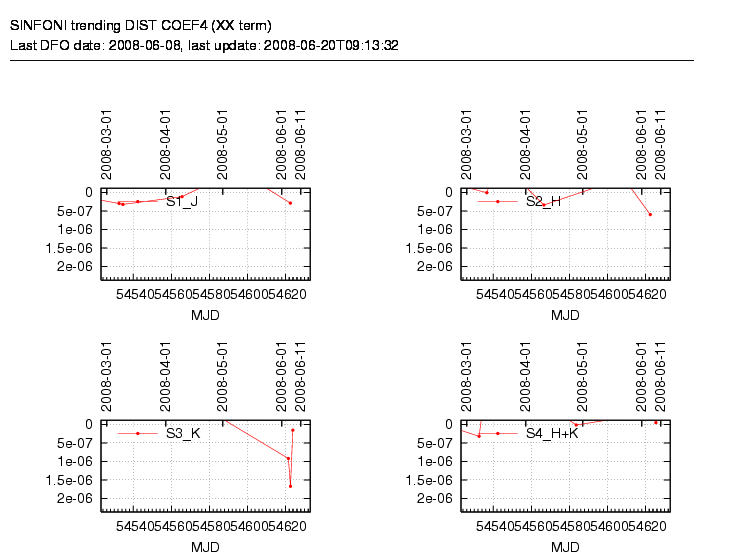

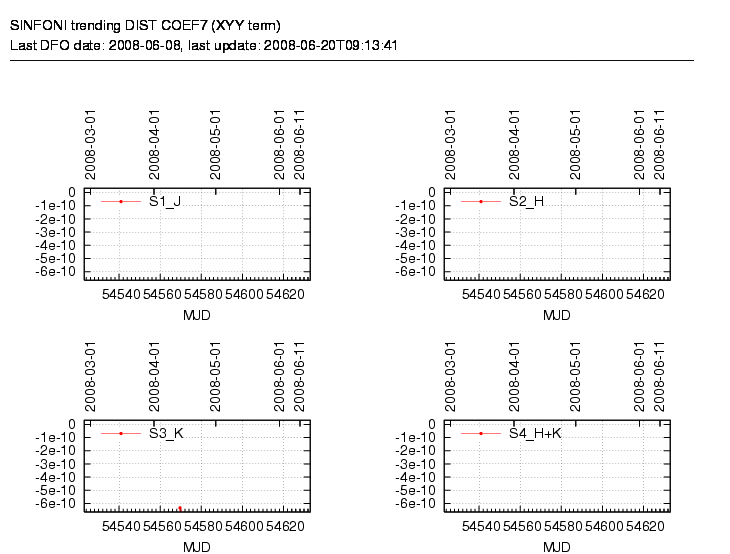

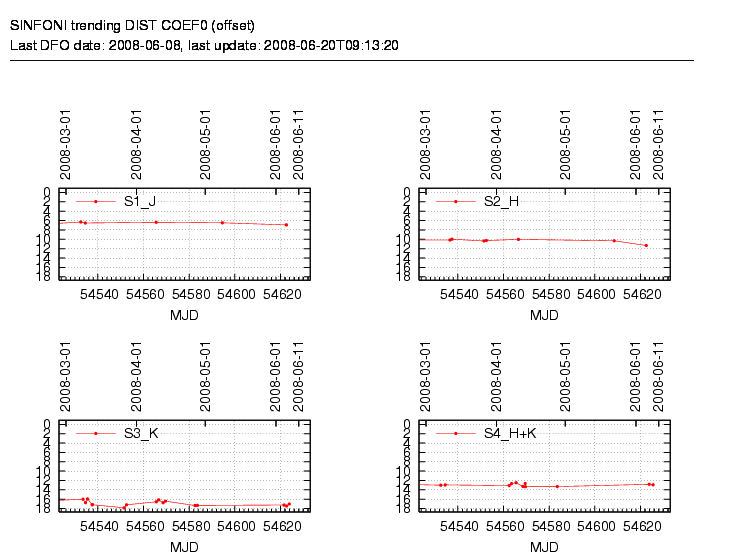

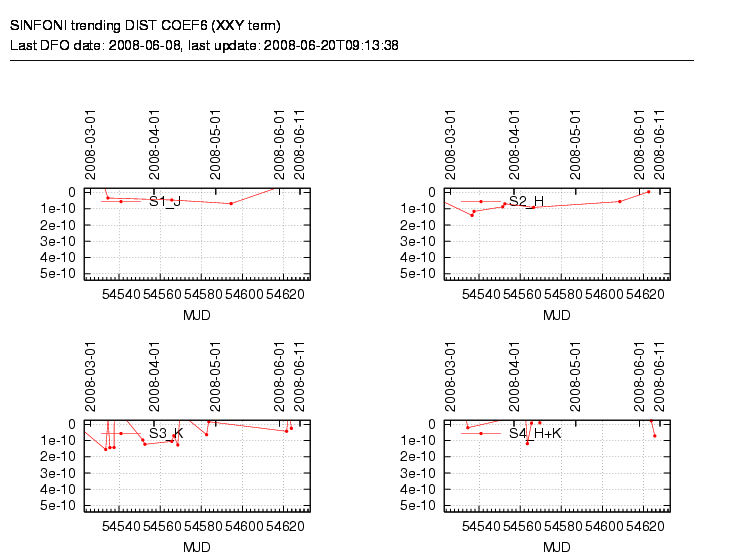

TRENDPLOT	trending | current trending plot associated to this procedure: trend_SI_DI_C0_current.gif trend_SI_DI_C1_current.gif trend_SI_DI_C2_current.gif trend_SI_DI_C3_current.gif trend_SI_DI_C4_current.gif trend_SI_DI_C5_current.gif trend_SI_DI_C6_current.gif trend_SI_DI_C7_current.gif trend_SI_DI_SL_current.gif
QC1PAGE	trending | associated trending page: qc_SI_dist.html
QC1PLOTS	dist0.png load the FIBRE_NS_STACKED_DIST product on the Rtda (check right rim, TBD: QC report) dist1.png L: 31 slitlets distances R: distortion coefficients applied to 5 points: chip center and 4
QC1PARAM	QC1 parameters written into QC1 table: FITSNAME, DBNAME , typical value, description: QC.COEFF00 , qc_coeff_00, 15.8275 / Polynomial distortion coefficient QC.COEFF10 , qc_coeff_10, 0.986956 / Polynomial distortion coefficient QC.COEFF01 , qc_coeff_01, -0.00380703 / Polynomial distortion coefficient QC.COEFF11 , qc_coeff_11, 5.30532E-06 / Polynomial distortion coefficient QC.COEFF20 , qc_coeff_20, 2.66288E-07 / Polynomial distortion coefficient QC.COEFF02 , qc_coeff_02, 7.15443E-07 / Polynomial distortion coefficient QC.COEFF21 , qc_coeff_21, -4.82633E-10 / Polynomial distortion coefficient QC.COEFF12 , qc_coeff_12, -7.58699E-10 / Polynomial distortion coefficient QC.XSHIFT.UL , qc_xhift_ul, -8.12058 / X shift in x_l,y_u QC.XSHIFT.CC , qc_xhift_cc, -3.83163 / X shift in x_c,y_c QC.XSHIFT.LL , qc_xhift_ll, -8.68128 / X shift in x_l,y_l QC.XSHIFT.UR , qc_xhift_ur, -0.278897 / X shift in x_u,y_u QC.XSHIFT.LR , qc_xhift_lr, 2.0577 / X shift in x_u,y_l QC.SL.DISTAVG , qc_sl_distavg, 63.9512 / Average Slitlet distance QC.SL.DISTRMS , qc_sl_distrms, 0.518605 / RMS Slitlet distance
ALGORITHM	qc_coeff_00 .. qc_coeff_21: a set of about 80 fiber frames is used to derive the optical distortion of the spectra. TBD more degrees used since 2006-06 qc_xhsift_ll .. qc_xshift_cc The distortion coefficients applied to dedicated positions on the chip. These are the center of each of the four quadrants ([@512:@512], [@1536:@1536], [@512,@1536], [@1536:@512]) and the central pixel ([@1024:@1024]). qc_sl_distavg is the average of all 31 slitlets distances. The recipe generates for each slitlets distance a QC1 parameter, but only the average and the stdev are trended. qc_sl_distrms use the scatter within the sample of 31 slitlets distances
CERTIF	Reasons for rejection: - not enough frames
COMMENTS	The recipe generates about 40 more QC parameters of less importance that are not trendend. local difference frames (current product minus last one) and reference difference frames (current product minus reference) are provided in the detailed section of certifyProducts
created by qcDocu, a tqs tool
