QC documentation system: QC procedure zeroflat.prg for UVES

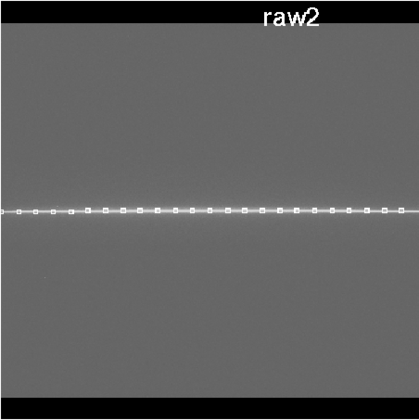

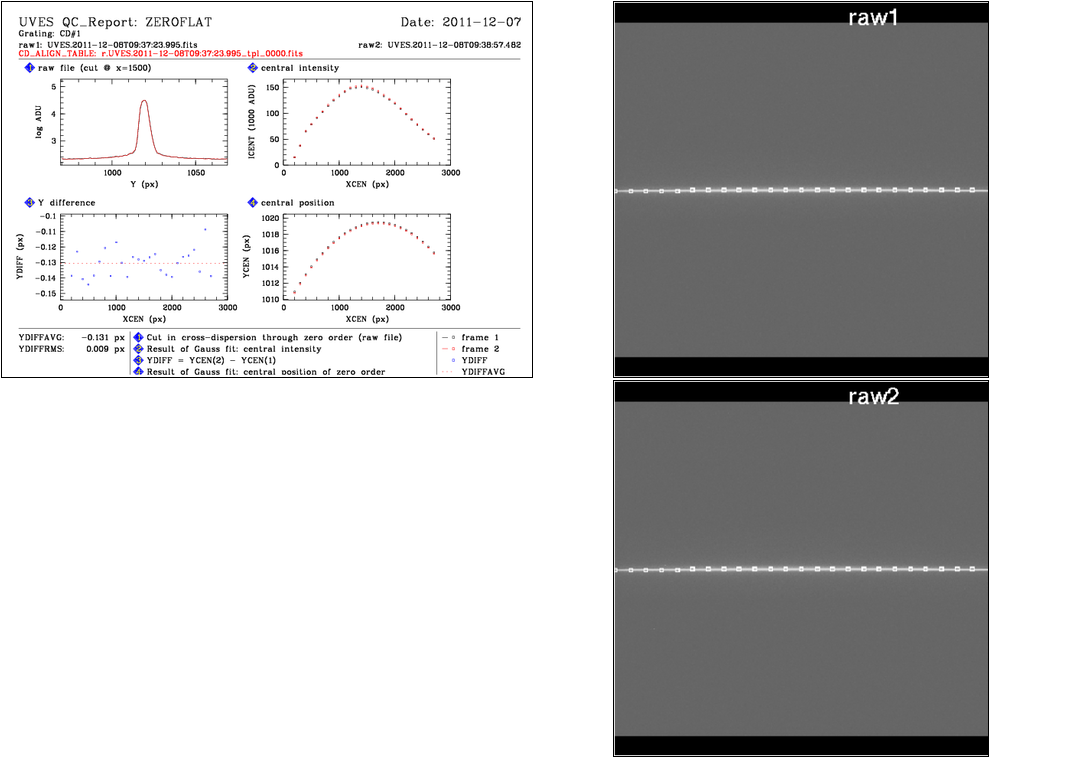

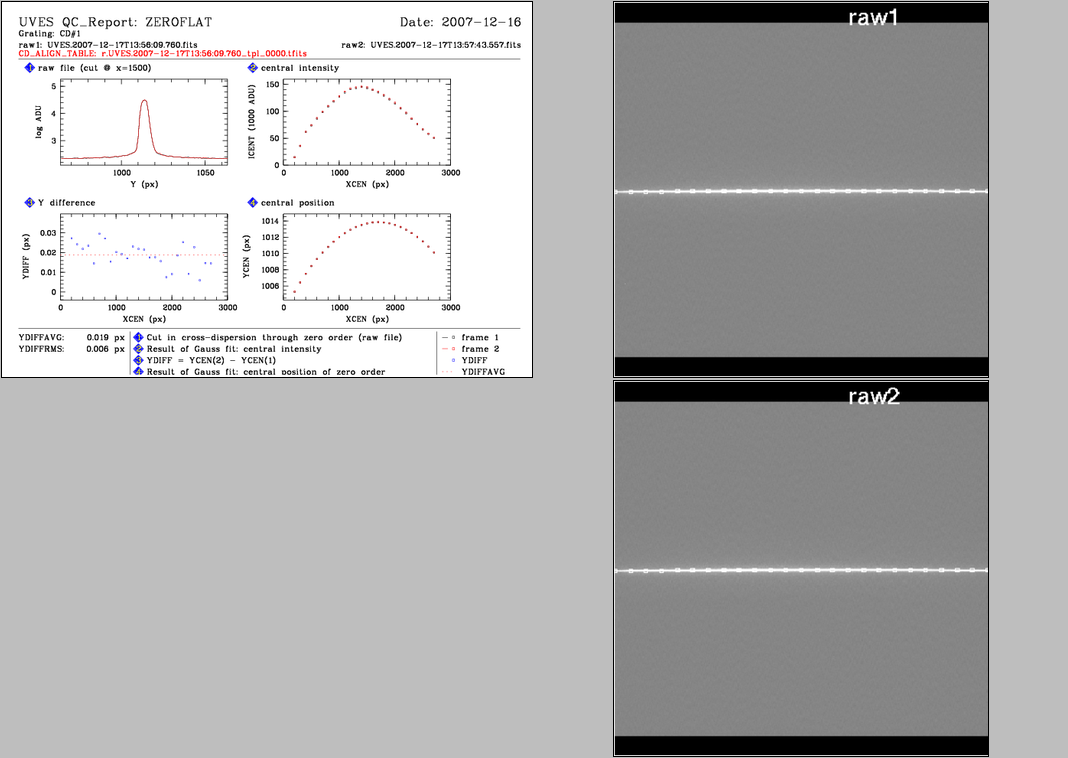

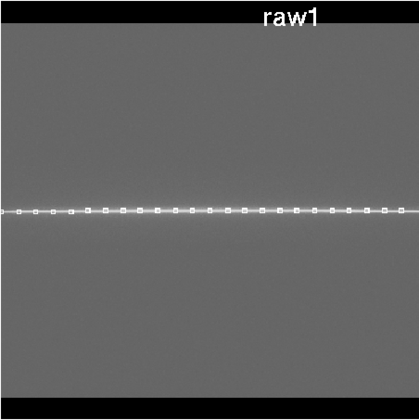

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] bias_blue.prg bias_red.prg dark_blue.prg dark_red.prg zeroflat.prg fmtcheck_blue.prg fmtcheck_red.prg orderdef_blue.prg orderdef_red.prg flat_blue.prg flat_red.prg wave_blue.prg wave_red.prg std_blue.prg std_red.prg fmtcheck_fib.prg orderdef_fib.prg sflat_fib.prg fflat_fib.prg wave_fib.prg   bottom  plots   |   contact NAME zeroflat.prg VERSION 1.1 SYNTAX MIDAS CALL from $DFS_PRODUCT/CD_ALIGN_ECH_BLUE/$DATE or $DFS_PRODUCT/CD_ALIGN_ECH_RED/$DATE: uves.MeasureQuality -a <AB> -c zeroflat.prg [-i|--NOingestQC1pars] where <AB> is the Association Block [-i] forces QC1 parameter ingestion (default) [--NOingestQC1pars] prevents QC1 parameter ingestion INSTRUMENT UVES RAWTYPE CD_ALIGN_ECH_BLUE & CD_ALIGN_ECH_RED PURPOSE Comparison of raw, master and reference Cross-Disperser Alignment files for UVES QC assessment; QC1 values are calculated and fed into the QC1 table. QC1 plot(s) and/or display(s) are generated, and later reviewed within certifyProducts. The generated plots stored in $DFO_PLT_DIR/$DATE with the name r.<DPid>_tpl_0000.fits.png where <DPid> is the Data Product Identification of the first frame of the template. PROCINPUT Both RAW files of the AB and the CD_ALIGN_TABLE_[BLUE|RED] product QC1TABLE trending | table(s) in QC1 database: uves_zflat TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: HEALTH/trend_report_CD_ALIGN_DHC_HC.html QC1PAGE trending | associated documentation: cdAlign_qc1.html QC1PLOTS top cd_align_ech_blue.montage.png A montage image made up of the following individual reports simply for the purposes of easier/better display in XV during the certification process. Created together with the reference montage (see below) within the uves.MeasureQuality script. Can be recreated manually by calling the script uves.makeQCreportMontage -a <AB>, see uves.makeQCreportMontage -h for more details. cd_align_ech_blue.montage.ref.png A montage image made up from the individual QC reports of the reference AB located by the script uves.getRefAB. During certification, the two montage images are blinked to facilitate identification of unusual features. This reference montage created at the same time as the AB montage (see above).The montage of the reference AB is easily identified during the blinking as the one with the grey background. cd_align_ech_blue_0000.fits.png plot 1:cut in cross-dispersion through zeroth order of the two RAW files (black - first frame, red second frame) plot 2:central intensity from results of gaussian fits to the cross-dispersion profiles at each point sampled along the zeroth order (black - first frame, red second frame) plot 3:differences between the centers of the gaussian fits to the cross-dispersion profiles of the two frames at each point sampled along the zeroth order (black - first frame, red second frame) plot 4:the centers of the gaussian fits to the cross-dispersion profiles of the two frames at each point sampled along the zeroth order (black - first frame, red second frame) cd_align_ech_blue_0000.fits_1.ima.png full display of first raw frame with locations of centers of fitted guassians indicated by small squares cd_align_ech_blue_0000.fits_2.ima.png full display of second raw frame with locations of centers of fitted guassians indicated by small squares QC1PARAM QC1 parameters written into QC1 table: QC1db names: ydiffavg | ydiffrms FITS key names: QC.YDIFFAVG | QC.YDIFFRMS QC1 params created by pipeline: ydiffavg | ydiffrms QC1 params created by this procedure: None ALGORITHM Description of algorithms: Algorithms for pipeline created keywords are (in principal) described in the pipeline user's manual ydiffavg: average y difference of zero orders, product keyword QC.YDIFFAVG Description: Average order position shift. We monitor the Cross Disperser position reproducibility ydiffrms: rms of y difference, product keyword QC.YDIFFRMS Description: RMS order position shift. We monitor the Cross Disperser position reproducibility CERTIF Technical calibrations, never rejected (apart from trivial reasons such as no light, saturation, not two frames...) COMMENTS None top [2015-10-30T08:20:40]         created by qcDocu v1.1.2, a tqs tool
