QC documentation system: QC procedure sflat_fib.prg for UVES

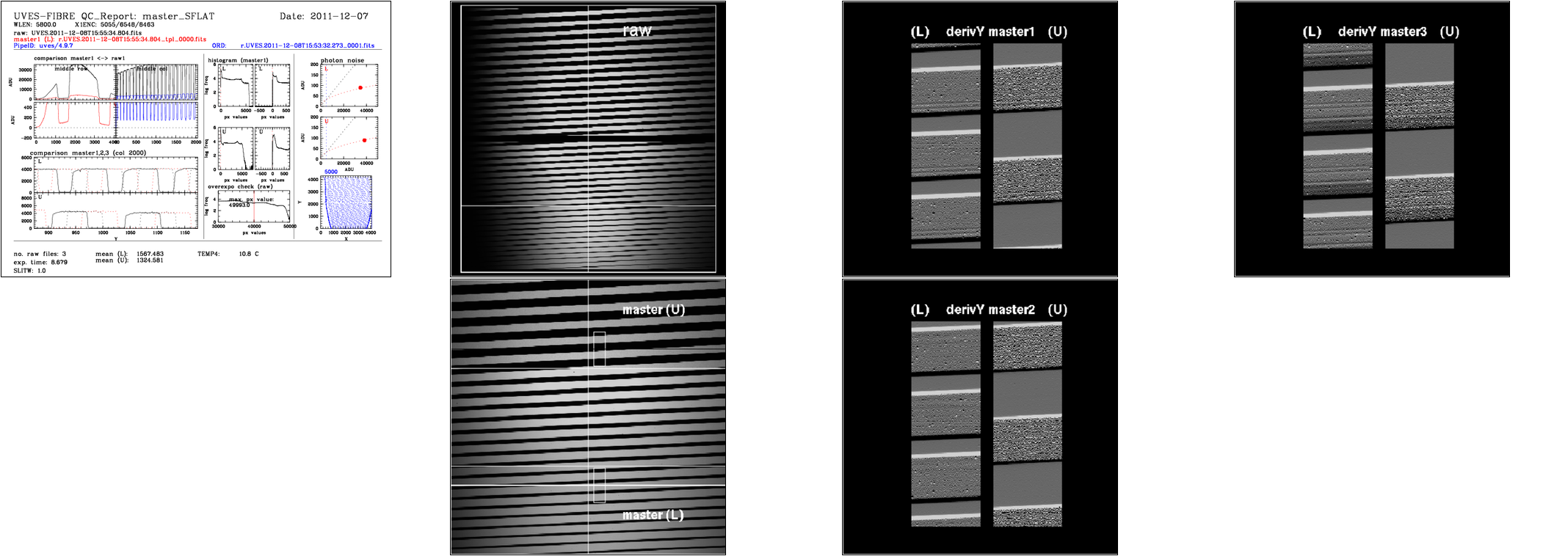

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] bias_blue.prg bias_red.prg dark_blue.prg dark_red.prg zeroflat.prg fmtcheck_blue.prg fmtcheck_red.prg orderdef_blue.prg orderdef_red.prg flat_blue.prg flat_red.prg wave_blue.prg wave_red.prg std_blue.prg std_red.prg fmtcheck_fib.prg orderdef_fib.prg sflat_fib.prg fflat_fib.prg wave_fib.prg   bottom  plots   |   contact NAME sflat_fib.prg VERSION 1.3 SYNTAX MIDAS CALL from $DFS_PRODUCT/BIAS_RED/$DATE: uves.MeasureQuality -a <AB> -c sflat_fib.prg [-i|--NOingestQC1pars] where <AB> is the Association Block [-i] forces QC1 parameter ingestion (default) [--NOingestQC1pars] prevents QC1 parameter ingestion INSTRUMENT UVES RAWTYPE SFLAT_MOS_RED PURPOSE Comparison of raw, master and/or reference SFLAT_MOS_RED files for UVES QC assessment; QC1 values are calculated and fed into the QC1 table. QC1 plot(s) and/or display(s) are generated, and later reviewed within certifyProducts. The generated plots stored in $DFO_PLT_DIR/$DATE with the name r.<DPid>_tpl_0000.fits.png where <DPid> is the Data Product Identification of the first frame of the template. PROCINPUT first RAW frame from AB; MASTER_SFLAT_RED[U|L](s) products QC1TABLE trending | table(s) in QC1 database: uves_fib_sflat TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: None QC1PAGE trending | associated documentation: None QC1PLOTS top sflat_mos_red.montage.png A montage image made up of the following individual reports simply for the purposes of easier/better display in XV during the certification process. Created together with the reference montage (see below) within the uves.MeasureQuality script. Can be recreated manually by calling the script uves.makeQCreportMontage -a <AB>, see uves.makeQCreportMontage -h for more details. sflat_mos_red.montage.ref.png A montage image made up from the individual QC reports of the reference AB located by the script uves.getRefAB. During certification, the two montage images are blinked to facilitate identification of unusual features. This reference montage created at the same time as the AB montage (see above).The montage of the reference AB is easily identified during the blinking as the one with the grey background. sflat_mos_red_0000.fits.png TBD sflat_mos_red_0000.fits_1.ima.png TBD sflat_mos_red_0000.fits_2.ima.png TBD sflat_mos_red_0000.fits_3.ima.png TBD sflat_mos_red_0000.fits_4.ima.png TBD sflat_mos_red_0000.fits_5.ima.png TBD QC1PARAM QC1 parameters written into QC1 table: QC1db names: ins_temp4_mean | delta_temp4 | delta_y | mean_master | sigma_ph | sigma_dx | signal_master | sigma_dy FITS key names: INS.TEMP4.MEAN | <qc_script> | <qc_script> | DATAAVG | <qc_script> | <qc_script> | <qc_script> | <qc_script> QC1 params created by pipeline: QC1 params created by this procedure: ALGORITHM Description of algorithms: Algorithms for pipeline created keywords are (in principal) described in the pipeline user's manual ins_temp4_mean: average temperature inside air [C], this QC parameter is taken directly from the header of the first RAW file, it propagates to the PRODUCT file(s) unchanged by the pipeline, product keyword INS.TEMPi.MEAN. Description: TBD delta_temp4: difference temp4_mean to reference, this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: TBD delta_y: difference Y-shift to reference, this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: TBD mean_master: mean value across master frame, this QC parameter is taken directly from the header of the first RAW file, it propagates to the PRODUCT file(s) unchanged by the pipeline, product keyword DATAAVG. Description: TBD sigma_ph: photon noise, this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: TBD sigma_dx: noise from DX derivative, this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: TBD signal_master: mean value across subwindow, this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: TBD sigma_dy: noise from DY derivative, this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: TBD CERTIF Reasons for rejection: - TBD COMMENTS None top [2015-10-30T08:21:25]         created by qcDocu v1.1.2, a tqs tool
