NAME dark_red.prg
VERSION 1.5
SYNTAX MIDAS
CALL from $DFS_PRODUCT/BIAS_RED/$DATE:
uves.MeasureQuality -a <AB> -c dark_red.prg [-i|--NOingestQC1pars]
where
  • <AB> is the Association Block
  • [-i] forces QC1 parameter ingestion (default)
  • [--NOingestQC1pars] prevents QC1 parameter ingestion
INSTRUMENT UVES
RAWTYPE DARK_RED & PDARK_RED
PURPOSE Comparison of raw, master and reference DARK and PARSITIC-DARK files for UVES QC assessment; QC1 values are calculated and fed into the QC1 table. QC1 plot(s) and/or display(s) are generated, and later reviewed within certifyProducts.
The generated plots stored in $DFO_PLT_DIR/$DATE with the name r.<DPid>_tpl_0000.fits.png where <DPid> is the Data Product Identification of the first frame of the template.
PROCINPUT first raw DARK frame from AB; MASTER_DARK_REDU & MASTER_DARK_REDL or MASTER_PDARK_REDU & MASTER_PDARK_REDL, and MASTER_BIAS_REDU & MASTER_BIAS_REDL from AB
QC1TABLE trending | table(s) in QC1 database:
uves_dark
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
HEALTH/trend_report_DARK_SM_HC.html
QC1PAGE trending | associated documentation:
detmon_qc1.html
QC1PLOTS
top

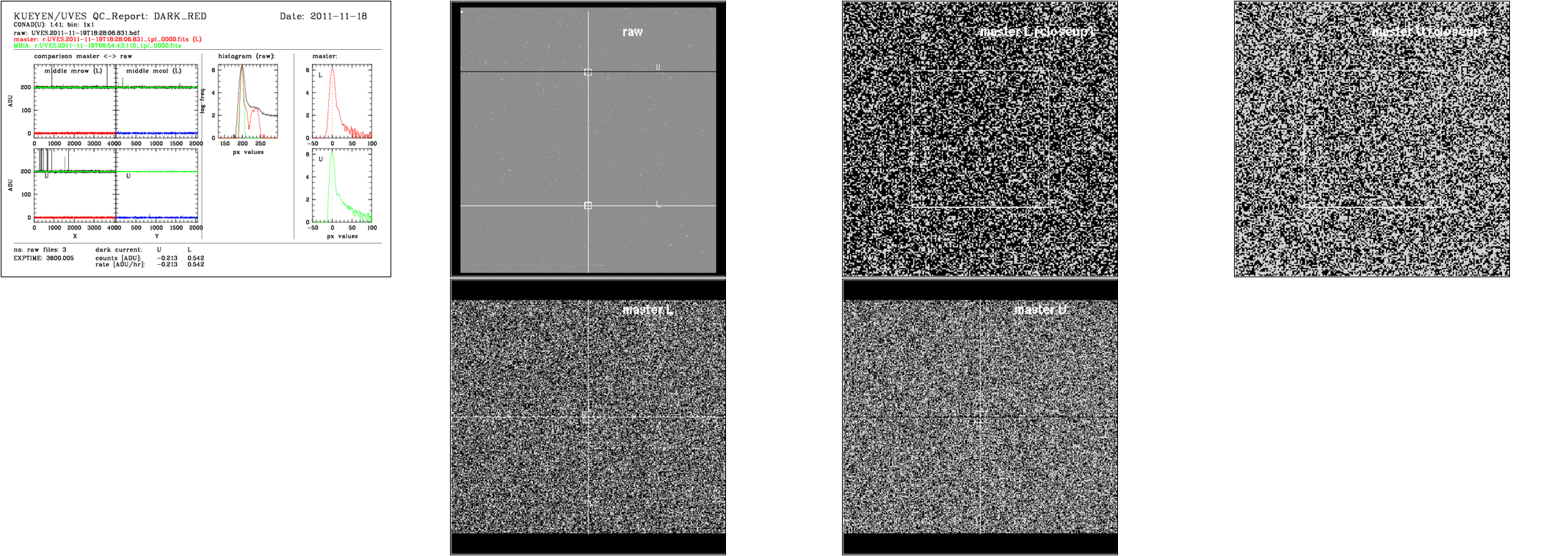

A montage image made up of the following individual reports simply for the purposes of easier/better display in XV during the certification process. Created together with the reference montage (see below) within the uves.MeasureQuality script. Can be recreated manually by calling the script uves.makeQCreportMontage -a <AB>, see uves.makeQCreportMontage -h for more details.

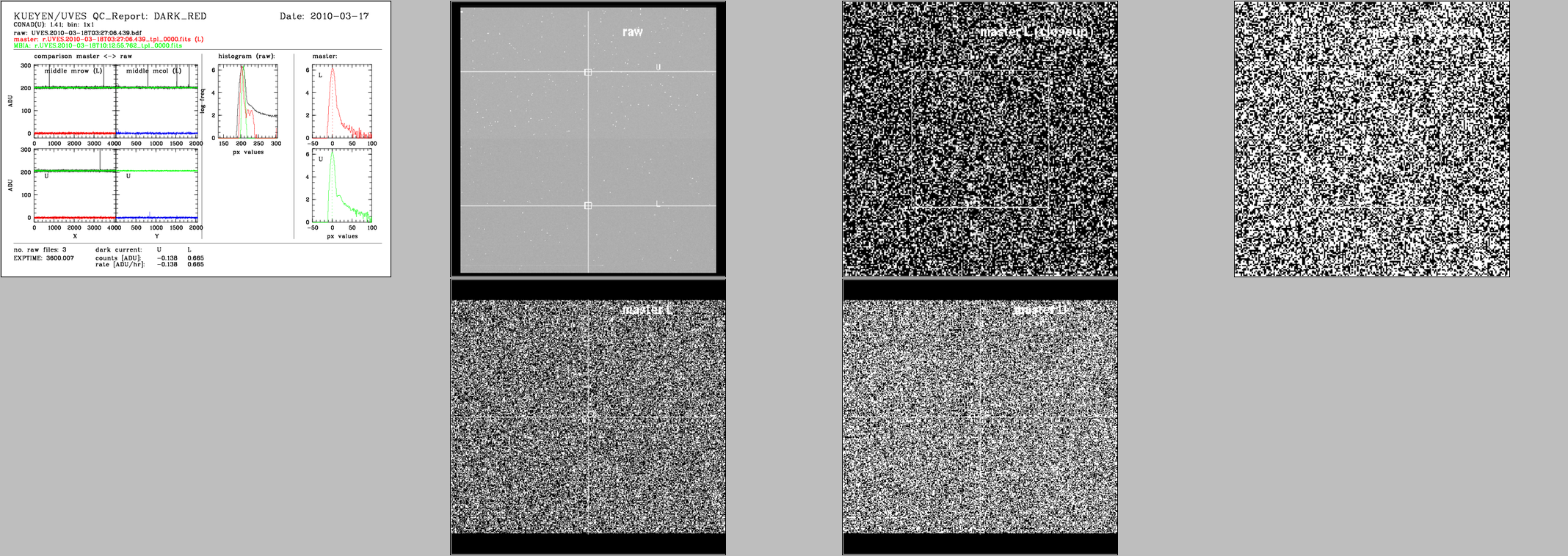

A montage image made up from the individual QC reports of the reference AB located by the script uves.getRefAB. During certification, the two montage images are blinked to facilitate identification of unusual features. This reference montage created at the same time as the AB montage (see above).The montage of the reference AB is easily identified during the blinking as the one with the grey background.

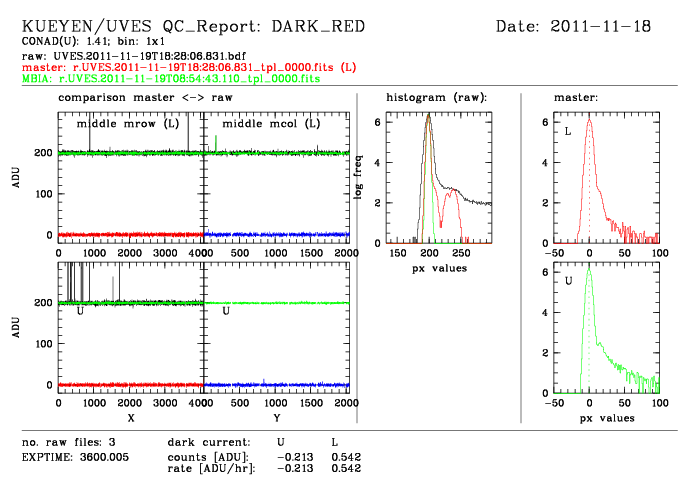

box1: comparison of master DARK (red row, blue column) <-> raw DARK (black) <-> master BIAS (green); upper panel: LOWER chip, middle row and middle column, full pixel range, in ADU; lower panel: UPPER chip, middle row and middle column, full pixel range, in ADU;
box 2: histogram: all pixel values in log frequency histogram; raw DARK: black, master BIAS: green and red; there should be a dominant peak with Gaussian shape (which translates to parabola shape in this log freq diagram)
box 3: histogram: log frequency histogram; master DARK: upper panel: LOWER chip all pixel values; lower panel UPPER chip all pixel values, there should be a dominant peaks with Gaussian shapes (which translates to parabola shapes in this log freq diagram)
top panel: name of analyzed master DARK frame and name of the master BIAS frame used for comparison (and by the pipeline)
bottom panel: some template properties and QC1 parameters

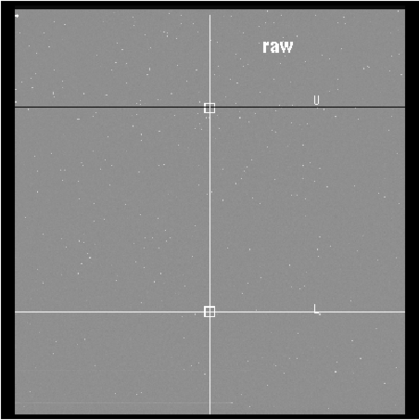

full display of raw frame

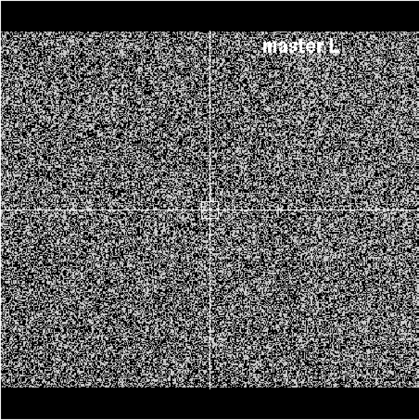

full display of LOWER chip master frame (box: area to be displayed in bias_red_0000.fits_3.png)

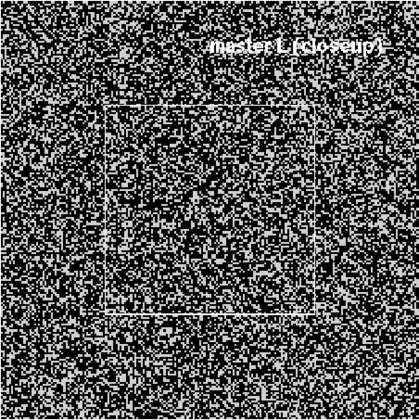

closeup display of LOWER chip master frame

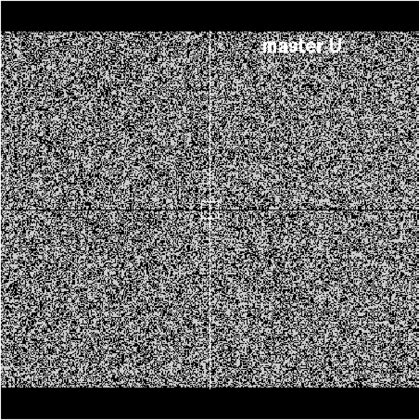

full display of UPPER chip master frame (box: area to be displayed in bias_red_0000.fits_5.png)

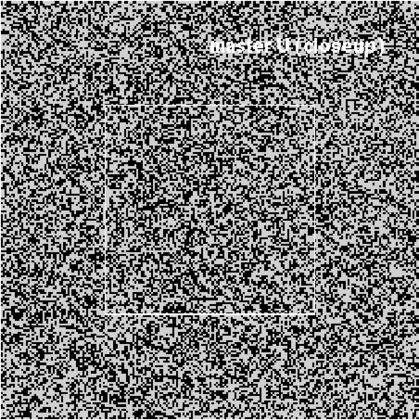

closeup display of UPPER chip master frame
QC1PARAM QC1 parameters written into QC1 table:
QC1db names: mean_raw | mean_dark | current_dark | exptime
FITS key names: <qc_script> | <qc_script> | <qc_script> | EXPTIME
QC1 params created by pipeline: None
QC1 params created by this procedure: mean_dark | current_dark
ALGORITHM Description of algorithms:
Algorithms for pipeline created keywords are (in principal) described in the pipeline user's manual
  • mean_raw: mean value of raw frame, this QC parameter is currently calculated by the QC report script, not by the pipeline.
    Description: Not currently calculated, instead the value NULL is written into the table. Possibly because in the original implementation of the QC report the statistics area spanned the two chips, therefore the mean value calculated was not of either chip in particular, so not written.
  • mean_dark: mean value across master dark, this QC parameter is currently calculated by the QC report script, not by the pipeline.
    Description: computed for each chip with the MIDAS command:
     stat/ima <PRO.CATG=MASTER_[P]DARK_RED[L|U]> [@1,@1:@{XEND},@{YEND}] bins=1 exc={lower_master},{upper_master}
    XEND & YEND are the full sizes of the chips.
    lower_master & upper_master are the min and max values of half of and twice the means of the central regions of the UPPER and LOWER MASTER DARK frames.
  • current_dark: mean_dark normalized to 3600 secs exposure time (i.e. ADU/hr), this QC parameter is currently calculated by the QC report script, not by the pipeline. Description: computed for each chip with the MIDAS command:
    current_dark = mean_dark/EXPTIME*3600
  • exptime: exposure time in secs., this QC parameter is taken directly from the header of the first RAW file, it propagates to the PRODUCT file(s) unchanged by the pipeline, product keyword EXPTIME.
CERTIF Reasons for rejection:
For DARKs:
  • less than three frames in a DARK frame set
  • differing exposure times in the frame set (often because the last frame is stopped early)
  • very short exposure times (less than 1000sec, normal exposure time is 3600 sec, anything less than this is probably a TEST frame or similar)
PDARKs are never rejected as these are technical calibrations.
Remnants from previous 860nm wave calibratuion exposures are sometimes seen, especially in PDARKs which are normally single frames data-sets..
COMMENTS See also the PDARK trending plot here.
