QC documentation system: QC procedure orderdef_blue.prg for UVES

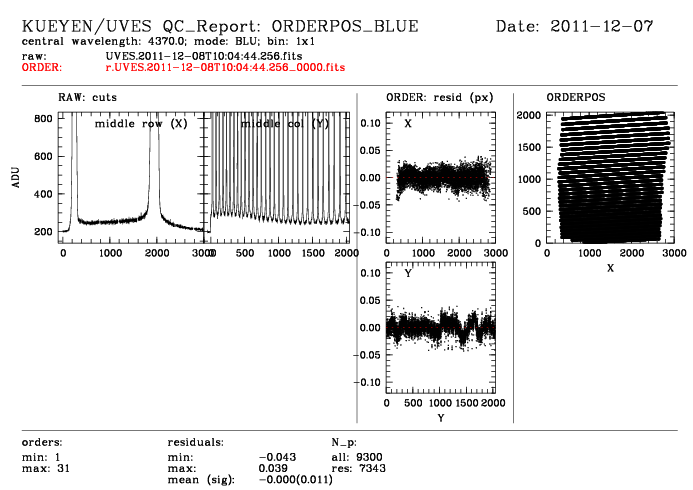

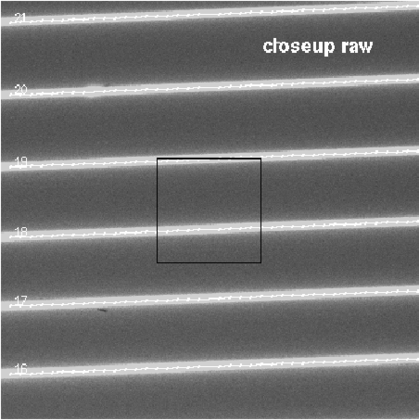

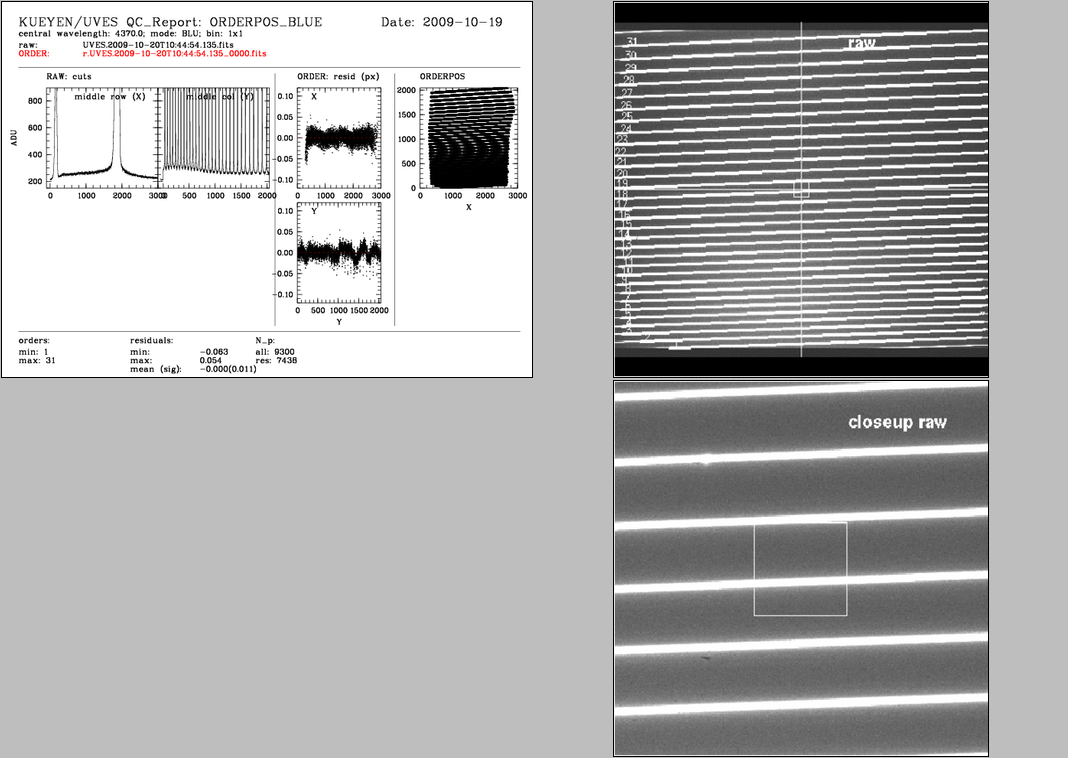

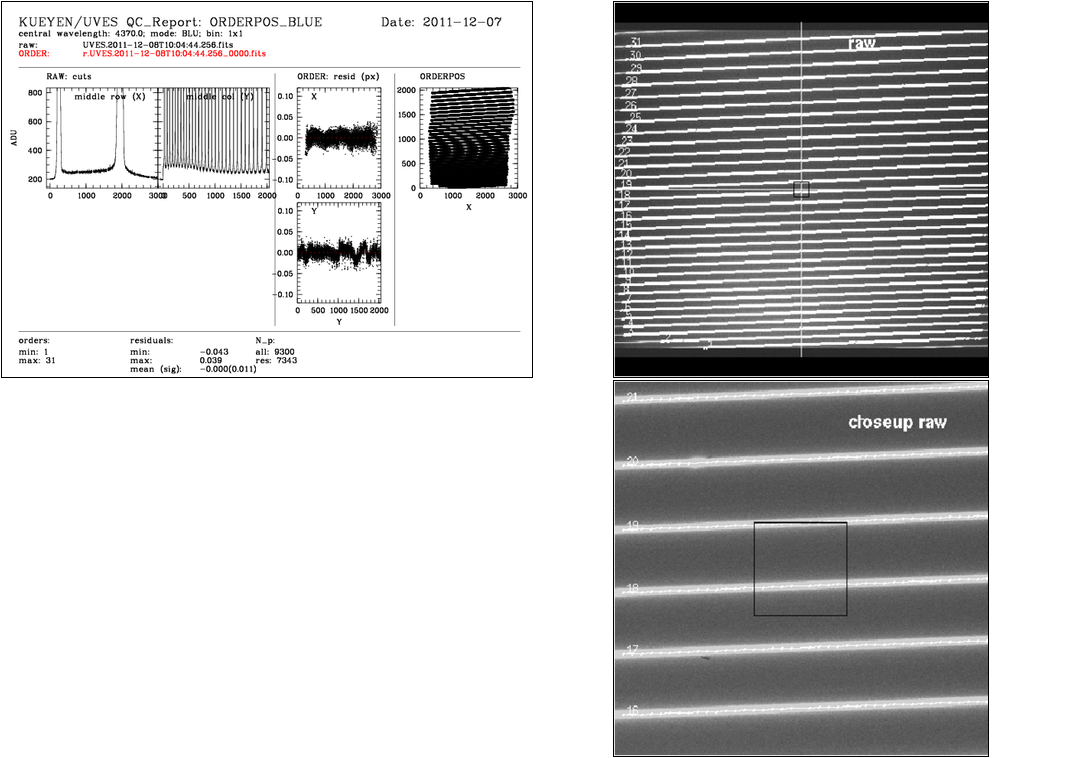

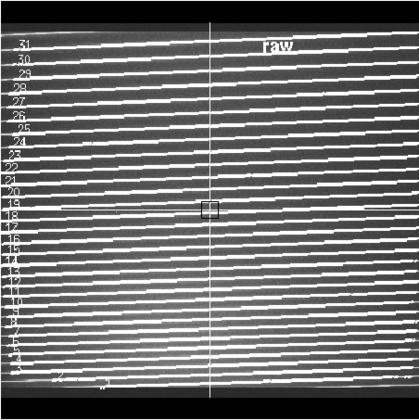

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] bias_blue.prg bias_red.prg dark_blue.prg dark_red.prg zeroflat.prg fmtcheck_blue.prg fmtcheck_red.prg orderdef_blue.prg orderdef_red.prg flat_blue.prg flat_red.prg wave_blue.prg wave_red.prg std_blue.prg std_red.prg fmtcheck_fib.prg orderdef_fib.prg sflat_fib.prg fflat_fib.prg wave_fib.prg   bottom  plots   |   contact NAME orderdef_blue.prg VERSION 2.3 SYNTAX MIDAS CALL from $DFS_PRODUCT/BIAS_RED/$DATE: uves.MeasureQuality -a <AB> -c orderdef_blue.prg [-i|--NOingestQC1pars] where <AB> is the Association Block [-i] forces QC1 parameter ingestion (default) [--NOingestQC1pars] prevents QC1 parameter ingestion INSTRUMENT UVES RAWTYPE ORDERDEF_ECH_BLUE PURPOSE Comparison of raw, master and/or reference ORDERDEF_ECH_BLUE files for UVES QC assessment; QC1 values are calculated and fed into the QC1 table. QC1 plot(s) and/or display(s) are generated, and later reviewed within certifyProducts. The generated plots stored in $DFO_PLT_DIR/$DATE with the name r.<DPid>_tpl_0000.fits.png where <DPid> is the Data Product Identification of the first frame of the template. PROCINPUT RAW frame from AB; ORDER_TABLE_BLUE & BACKGR_TABLE_BLUE products QC1TABLE trending | table(s) in QC1 database: uves_orderdef TRENDPLOT trending | HealthCheck plot associated to this procedure: none QC1PAGE trending | associated documentation: none QC1PLOTS top orderdef_ech_blue.montage.png A montage image made up of the following individual reports simply for the purposes of easier/better display in XV during the certification process. Created together with the reference montage (see below) within the uves.MeasureQuality script. Can be recreated manually by calling the script uves.makeQCreportMontage -a <AB>, see uves.makeQCreportMontage -h for more details. orderdef_ech_blue.montage.ref.png A montage image made up from the individual QC reports of the reference AB located by the script uves.getRefAB. During certification, the two montage images are blinked to facilitate identification of unusual features. This reference montage created at the same time as the AB montage (see above).The montage of the reference AB is easily identified during the blinking as the one with the grey background. orderdef_ech_blue_0000.fits.png From left to right, top to bottom: plot 1:trace across the central row of the RAW frame plot 2:trace across the central column of the RAW frame plot 3:Residuals in X (i.e. along the order, dispersion direction) of the fitted positions of the order with respect to the expected positions of the physical model plot 4:Representation of the order positions in X-Y pixel space. plot 5:Residuals in Y (i.e. across the order, cross-dispersion direction) of the fitted positions of the order with respect to the expected positions of the physical model orderdef_ech_blue_0000.fits_1.ima.png MIDAS display of the RAW frame with the located and traced orders indicated by squares (in this view the squares are relatively large and close together giving the impression of continuous lines). Each order is traced at regular steps along the order, each step is inducated by a square. orderdef_ech_blue_0000.fits_2.ima.png Same as previous but closeup of central region with each step indicated by a (rather) small cross and joined by a line. QC1PARAM QC1 parameters written into QC1 table: QC1db names: order_min | order_max | resid_min | resid_max | resid_mean | resid_sigma | npos_all | npos_sel FITS key names: QC.ORDMIN | QC.ORDMAX | QC.ORD.RESIDMIN | QC.ORD.RESIDMAX | QC.ORD.RESIDAVG | QC.ORD.RESIDRMS | QC.ORD.NPOSALL | QC.ORD.NPOSSEL QC1 params created by pipeline: All QC1 params created by this procedure: None ALGORITHM Description of algorithms: Algorithms for pipeline created keywords are (in principal) described in the pipeline user's manual order_min: minimum order number, product keyword QC.ORDMIN Description: minimum order number detected order_max: maximum order number, product keyword QC.ORDMAX Description: maximum order number detected resid_min: minimum value of residuals, product keyword QC.ORD.RESIDMIN Description: we check residual in order def step to check if the geometrical spectral format predicted from the physical model match the actual detected spectral format (which may contain less orders due to unsufficient detector illumination). resid_max: maximum value of residuals, product keyword QC.ORD.RESIDMAX Description: we check residual in order def step to check if the geometrical spectral format predicted from the physical model match the actual detected spectral format (which may contain less orders due to unsufficient detector illumination). resid_mean: mean value of residuals, product keyword QC.ORD.RESIDAVG Description: we check residual in order def step to check if the geometrical spectral format predicted from the physical model match the actual detected spectral format (which may contain less orders due to unsufficient detector illumination). resid_sigma: rms value of residuals, product keyword QC.ORD.RESIDRMS Description: we check residual in order def step to check if the geometrical spectral format predicted from the physical model match the actual detected spectral format (which may contain less orders due to unsufficient detector illumination). npos_all: total number of positions found, product keyword QC.ORD.NPOSALL Description: we check in order def step if the geometrical spectral format predicted from the physical model match the actual detected spectral format (which may contain less orders due to unsufficient detector illumination). This number give a more detailed information on the overal order detection (respect to QC NPRED and QC NALL) npos_sel: number of positions selected, product keyword QC.ORD.NPOSSEL Description: we check in order def step if the geometrical spectral format predicted from the physical model match the actual detected spectral format (which may contain less orders due to unsufficient detector illumination). This number give a more detailed information on the overal order detection (respect to QC NPRED and QC NALL) CERTIF No light or low light level (meaning too few orders can be found) Saturation (meaning too few orders can be found) Failure to find expected orders COMMENTS top [2015-10-30T08:20:49]         created by qcDocu v1.1.2, a tqs tool
