QC documentation system: QC procedure wave_fib.prg for UVES

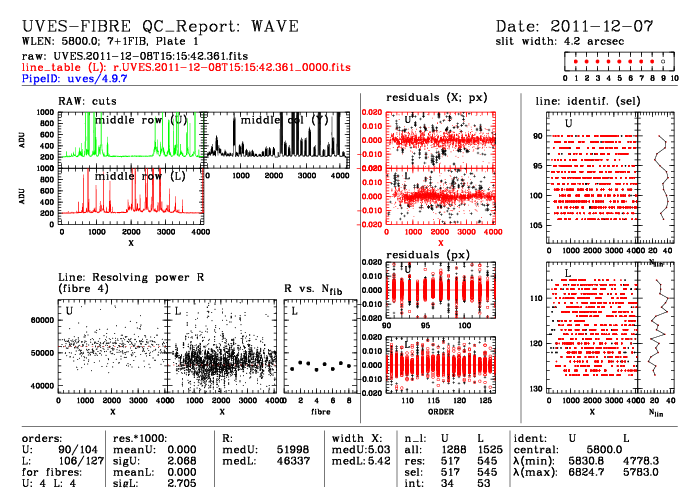

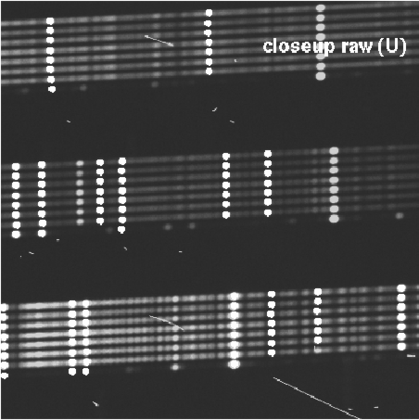

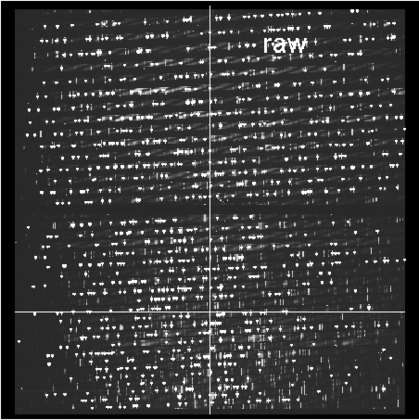

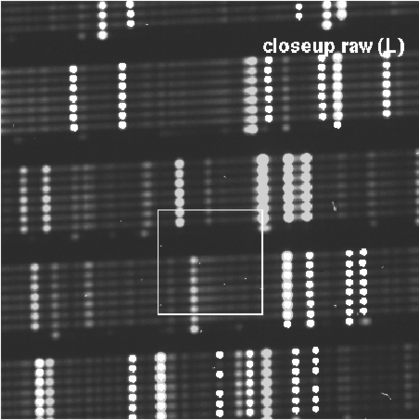

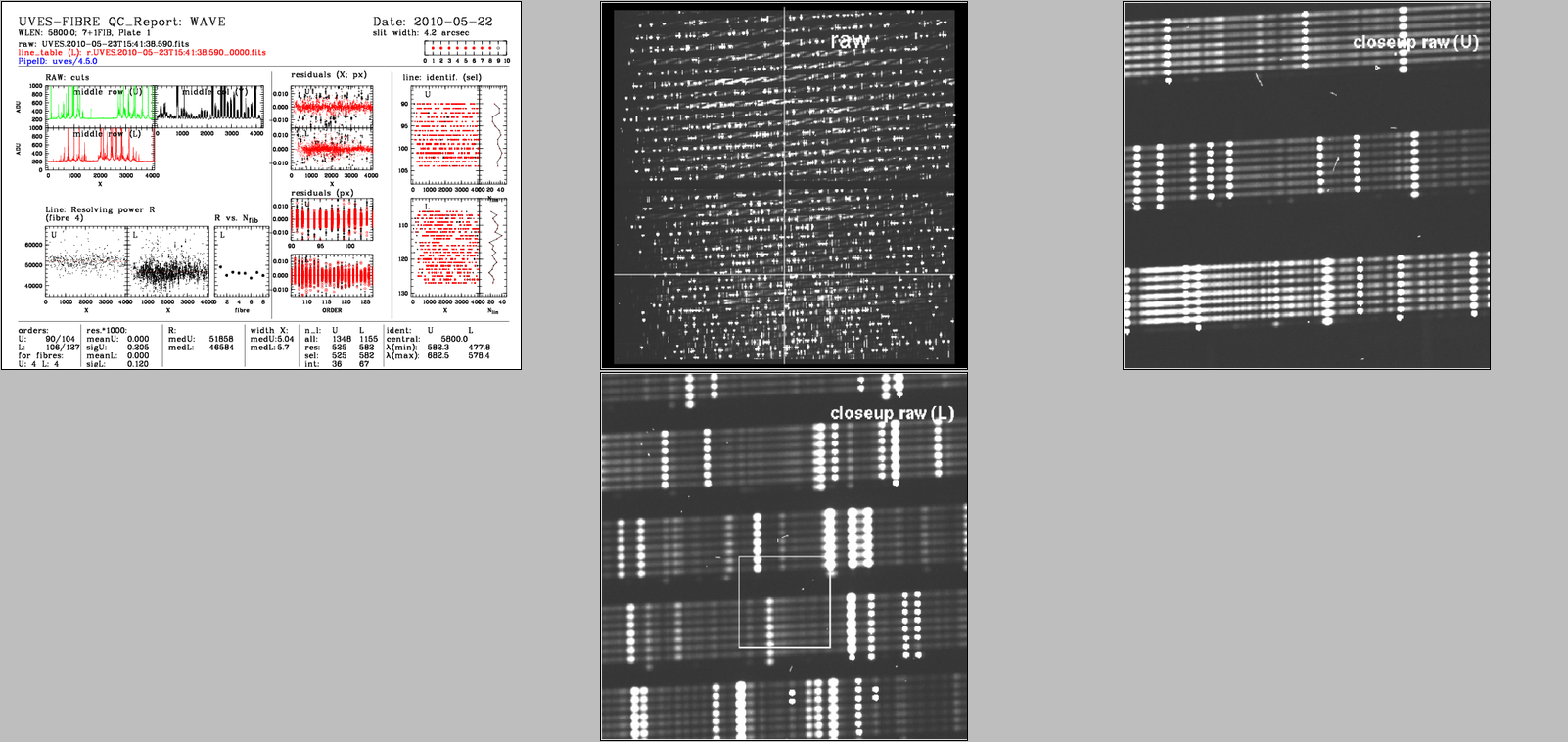

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] bias_blue.prg bias_red.prg dark_blue.prg dark_red.prg zeroflat.prg fmtcheck_blue.prg fmtcheck_red.prg orderdef_blue.prg orderdef_red.prg flat_blue.prg flat_red.prg wave_blue.prg wave_red.prg std_blue.prg std_red.prg fmtcheck_fib.prg orderdef_fib.prg sflat_fib.prg fflat_fib.prg wave_fib.prg   bottom  plots   |   contact NAME wave_fib.prg VERSION 1.2 SYNTAX MIDAS CALL from $DFS_PRODUCT/BIAS_RED/$DATE: uves.MeasureQuality -a <AB> -c wave_fib.prg [-i|--NOingestQC1pars] where <AB> is the Association Block [-i] forces QC1 parameter ingestion (default) [--NOingestQC1pars] prevents QC1 parameter ingestion INSTRUMENT UVES RAWTYPE WAVE_MOS_RED PURPOSE Comparison of raw, master and/or reference WAVE_MOS_RED files for UVES QC assessment; QC1 values are calculated and fed into the QC1 table. QC1 plot(s) and/or display(s) are generated, and later reviewed within certifyProducts. The generated plots stored in $DFO_PLT_DIR/$DATE with the name r.<DPid>_tpl_0000.fits.png where <DPid> is the Data Product Identification of the first frame of the template. PROCINPUT RAW frame from AB; FIB_LINE_TABLE_RED[U|L](s) products QC1TABLE trending | table(s) in QC1 database: uves_fib_wave TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: HEALTH/trend_report_MOS_WAVE_ResolvingPower_580_7+1_U_DHC_HC.html QC1PAGE trending | associated documentation: fwave_qc1.html QC1PLOTS top wave_mos_red.montage.png A montage image made up of the following individual reports simply for the purposes of easier/better display in XV during the certification process. Created together with the reference montage (see below) within the uves.MeasureQuality script. Can be recreated manually by calling the script uves.makeQCreportMontage -a <AB>, see uves.makeQCreportMontage -h for more details. wave_mos_red.montage.ref.png A montage image made up from the individual QC reports of the reference AB located by the script uves.getRefAB. During certification, the two montage images are blinked to facilitate identification of unusual features. This reference montage created at the same time as the AB montage (see above).The montage of the reference AB is easily identified during the blinking as the one with the grey background. wave_mos_red_0000.fits.png box 1, left to right, top to bottom: plot 1:trace across the middle row of the UPPER chip RAW frame plot 2:trace across the middle column of the RAW frames (ie both chips 'stuck together') plot 3:trace across the middle row of the LOWER chip RAW frame plot 4:For Fibre 4 (arbitrarily selected as representative), measured resolving power of each line used in the solution for the UPPER chip as a function of X plot 5:For Fibre 4 (arbitrarily selected as representative), measured resolving power of each line used in the solution for the LOWER chip as a function of X box 2, top to bottom: plot 6:For Fibre 4 (arbitrarily selected as representative), residuals of measured line positions with respect to the physical model for the UPPER chip as a function of X pixels coordinate; for the lines included in the final solution (red crosses) and those not included in the final solution (black crosses) plot 7:For Fibre 4 (arbitrarily selected as representative), residuals of measured line positions with respect to the physical model for the LOWER chip as a function of X pixels coordinate; for the lines included in the final solution (red crosses) and those not included in the final solution (black crosses) plot 8:For Fibre 4 (arbitrarily selected as representative), residuals of measured line positions with respect to the physical model for the UPPER chip as a function of order number; for the lines included in the final solution (red crosses) and those not included in the final solution (black crosses) plot 9:For Fibre 4 (arbitrarily selected as representative), residuals of measured line positions with respect to the physical model for the LOWER chip as a function of order number; for the lines included in the final solution (red crosses) and those not included in the final solution (black crosses) box 3, top to bottom: plot 10:For Fibre 4 (arbitrarily selected as representative), pixel-space representation of found but not used (black) and found and used (red) in the solution lines as a function of order for the UPPER chip plot 11:For Fibre 4 (arbitrarily selected as representative), pixel-space representation of found but not used (black) and found and used (red) in the solution lines as a function of order for the UPPER chip wave_mos_red_0000.fits_1.ima.png MIDAS display of the RAW frame (both chips) with the located emission lines indicated by filled circle symbols wave_mos_red_0000.fits_2.ima.png closeup of MIDAS display of the LOWER chip RAW frame with the located emission lines indicated by filled circle symbols wave_mos_red_0000.fits_3.ima.png closeup of MIDAS display of the UPPER chip RAW frame with the located emission lines indicated by filled circle symbols QC1PARAM QC1 parameters written into QC1 table: QC1db names: lambda_min | lambda_max | order_min | order_max | resid_avg | resid_rms | resol_med | resol_rms | fwhm_med | fwhm_rms | nlin_tot | nlin_res | nlin_sel | nlin_int | int_avg | ins_temp4_mean FITS key names: QC.WLENMIN | QC.WLENMAX | QC.ORDMIN | QC.ORDMAX | QC.LINE.RESIDAVG | QC.LINE.RESIDRMS | QC.RESOLMED | QC.RESOLRMS | QC.FWHMMED | QC.FWHMRMS | QC.NLINTOT | QC.NLINRES1 | QC.NLINSEL | QC.NLININT | QC.INTAVG | INS.TEMP4.MEAN QC1 params created by pipeline: QC1 params created by this procedure: ALGORITHM Description of algorithms: Algorithms for pipeline created keywords are (in principal) described in the pipeline user's manual lambda_min: minimum wavelength [Angstrom], product keyword QC.WLENMIN Description: minimum wavelength lambda_max: maximum wavelength [Angstrom], product keyword QC.WLENMAX Description: maximum wavelength order_min: minimum order number, product keyword QC.ORDMIN Description: minimum order number detected order_max: maximum order number, product keyword QC.ORDMAX Description: maximum order number detected resid_avg: mean residual of line positions to fit [10**-12 m], product keyword QC.LINE.RESIDAVG Description: Parameter useful to check precision of wavelength calibration solution. We use picometer units at it comes out a very small number. resid_rms: sigma of residual of line positions to fit [10**-12 m], product keyword QC.LINE.RESIDRMS Description: Parameter useful to check precision of wavelength calibration solution We use picometer units at it comes out a very small number. resol_med: median resolving power of lines selected, product keyword QC.RESOLMED Description: measured median resolving power of lines selected resol_rms: sigma of resolving power of lines selected, product keyword QC.RESOLRMS Description: measured average resolving power of lines selected fwhm_med: median FWHM in X of lines selected, product keyword QC.FWHMMED Description: measured median FWHM in x of lines selected fwhm_rms: sigma of FWHM in X of lines selected, product keyword QC.FWHMRMS Description: measured standard deviation of FWHM in x of lines selected nlin_tot: total number of lines found, product keyword QC.NLINTOT Description: number of lines found nlin_res: number of lines with residuals < 0.1, product keyword QC.NLINRESi Description: No of lines with residual < 0.1 nm. These are residuals with value less than 0.1 nm. This number gives an idea of the precision of the final solution. The higher the number the more precise is the solution. # # CCDTEST: Bias # nlin_sel: number of lines selected, product keyword QC.NLINSEL Description: number of lines which could be cross-identified with the catalogue nlin_int: number of lines selected in ThAr intensity check, product keyword QC.NLININT Description: To monitor ThAr intensity we measure the average intensity of a selected line list. int_avg: average intensity of ThAr lines (divided by EXPTIME), product keyword QC.INTAVG Description: To monitor ThAr intensity we measure the average intensity of a selected line list. ins_temp4_mean: average temperature inside air [C], product keyword INS.TEMPi.MEAN Description: Mean Temperature during the exposure. CERTIF Reasons for rejection: Too little light Severe Saturation, there will often be some saturation in some lines which is fine, but if most lines were saturated such that too few non saturated lines could be found (never actually seen in 'recorded history' of normal operatiuons) Insufficient lines in solution mean residuals too large Resolving power out of specificaition COMMENTS None top [2015-10-30T08:24:42]         created by qcDocu v1.1.2, a tqs tool
