QC documentation system: QC procedure muse_std.py for MUSE

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).

HOME

CRIRES
FORS1
FORS2
KMOS
NACO

GIRAFFE
UVES
XSHOOTER

ISAAC
SPHERE
VIMOS
VISIR

HAWKI
MUSE
SINFONI

AMBER
MIDI
PIONIER

OMEGACAM
VIRCAM
[best viewing with style sheets and javascript enabled]
muse_bias.py muse_dark.py
muse_lampflat.py muse_skyflat.py muse_arc.py muse_throughput.py
muse_std.py muse_astrometry.py

bottom  plots   |   contact
NAME muse_std.py
VERSION 1.0 -- copied from v. 0.1 when Muse became operational September 2014
SYNTAX PYTHON
CALL processQC
from $DFS_PRODUCT/STD/$DATE
/home/muse/python/muse_std.py -i -a $AB
INSTRUMENT MUSE
RAWTYPE STD
PURPOSE QC check on intermediate (PRO.CATG=PIXTABLE_STD) and master (PRO.CATG=DATACUBE_STD) std frames check done per CHANEL/IFU (x24) of the PIXTABLE_STD frames check done also on the combined DATACUBE_STD frame
PROCINPUT PIXTABLE_STD and DATACUBE_STD products
QC1TABLE trending | table(s) in QC1 database:
muse_std
TRENDPLOT trending | HealthCheck plot associated to this procedure: none
QC1PAGE trending | associated documentation: none
QC1PLOTS
top

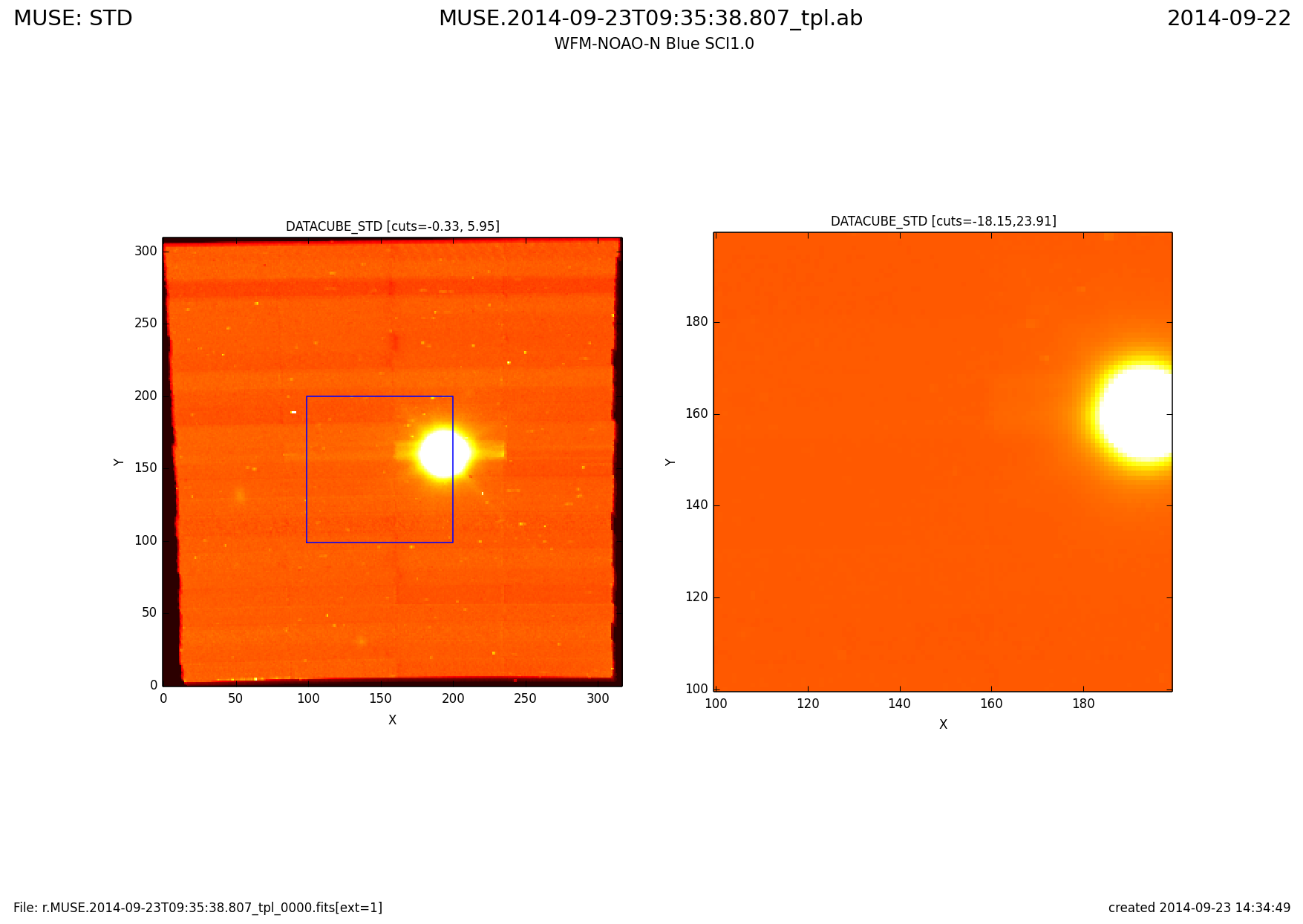

left panel: 3D cube collapsed along wavelength direction
righ panel: zoom of the central area of the 3D cube collapsed along wavelength direction
QC1PARAM QC1 parameters written in QC1 database:
QC1 DB names: nsaturated | lambda_shift | pos1_x | pos1_y | fwhm1_x | fwhm1_y
All parameters are calculated by the pipeline recipe.
ALGORITHM
CERTIF Reasons for rejection:
saturation, no target in the FOV
COMMENTS based on original Python script from March 2014
top [2015-11-05T15:00:22]         created by qcDocu v1.1.2, a tqs tool
