| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | muse_arc.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from v. 0.1 when Muse became operational September 2014 | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/ARC/$DATE /home/muse/python/muse_arc.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | MUSE | |||||||||||||||||||||||||||
| RAWTYPE | ARC | |||||||||||||||||||||||||||
| PURPOSE | QC check on raw and master arc frames check done per CHANEL/IFU (x24) and slice (x48) of the raw and master arc frames | |||||||||||||||||||||||||||
| PROCINPUT | raw arc frames and WAVECAL_TABLE product | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: muse_wave | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_ARC_wavecal_HC.html | trend_report_ARC_fit_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: wave_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

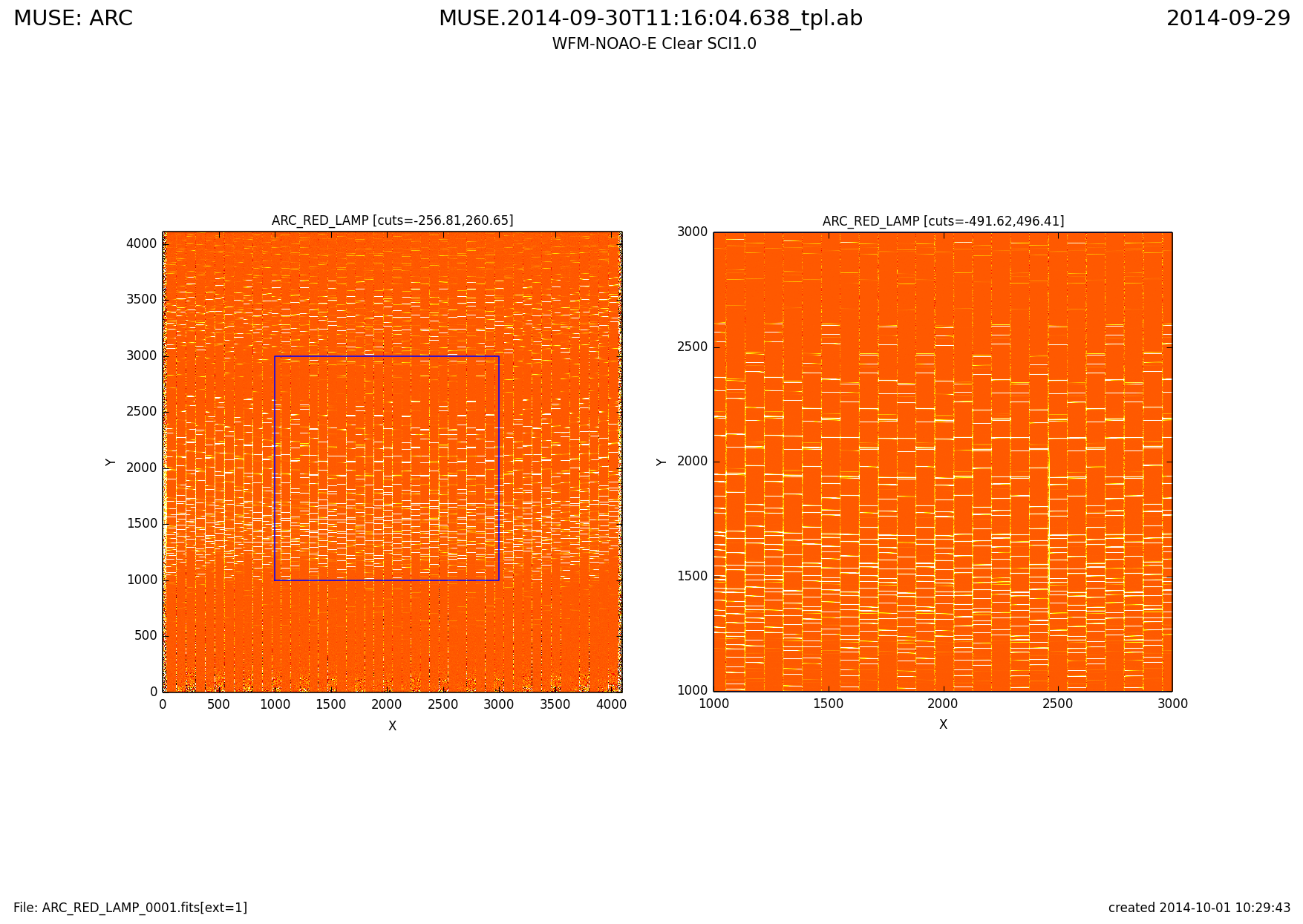

arc0.png snapshot of all detectors | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: slice1/../48_fit_nlines | slice1/../48_fit_rms | slice1/../48_lines_fwhm_mean | slice1/../48_resol | slice1/../48_wlen | slice1/../48_wlpos All parameters are calculated by the pipeline recipe | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: slice1/../48_fit_nlines: Number of arc lines used in calibration solution fit in slice slice1/../48_lines_nid: Number of identified arc lines per slice slice1/../48_resol: Mean spectral resolution R determined in slice slice1/../48_wlen: Wavelength associated to WLPOS in slice slice1/../48_wlpos: Wavelength associated to WLPOS in slice | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: too small number of arc lines used in wavelength solution, bad fit | |||||||||||||||||||||||||||
| COMMENTS | based on original Python script from March 2014 | |||||||||||||||||||||||||||
| top | [2015-11-05T15:00:17] created by qcDocu v1.1.2, a tqs tool | |||||||||||||||||||||||||||
