| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | muse_bias.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from v. 0.1 when Muse became operational September 2014 | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/BIAS/$DATE /home/muse/python/muse_bias.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | MUSE | |||||||||||||||||||||||||||
| RAWTYPE | BIAS | |||||||||||||||||||||||||||
| PURPOSE | QC check on raw and master bias frames check done per CHANEL/IFU (x24) of the raw and master bias frames | |||||||||||||||||||||||||||
| PROCINPUT | raw bias frames and MASTER_BIAS product | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: muse_bias | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_BIAS_median_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: bias_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

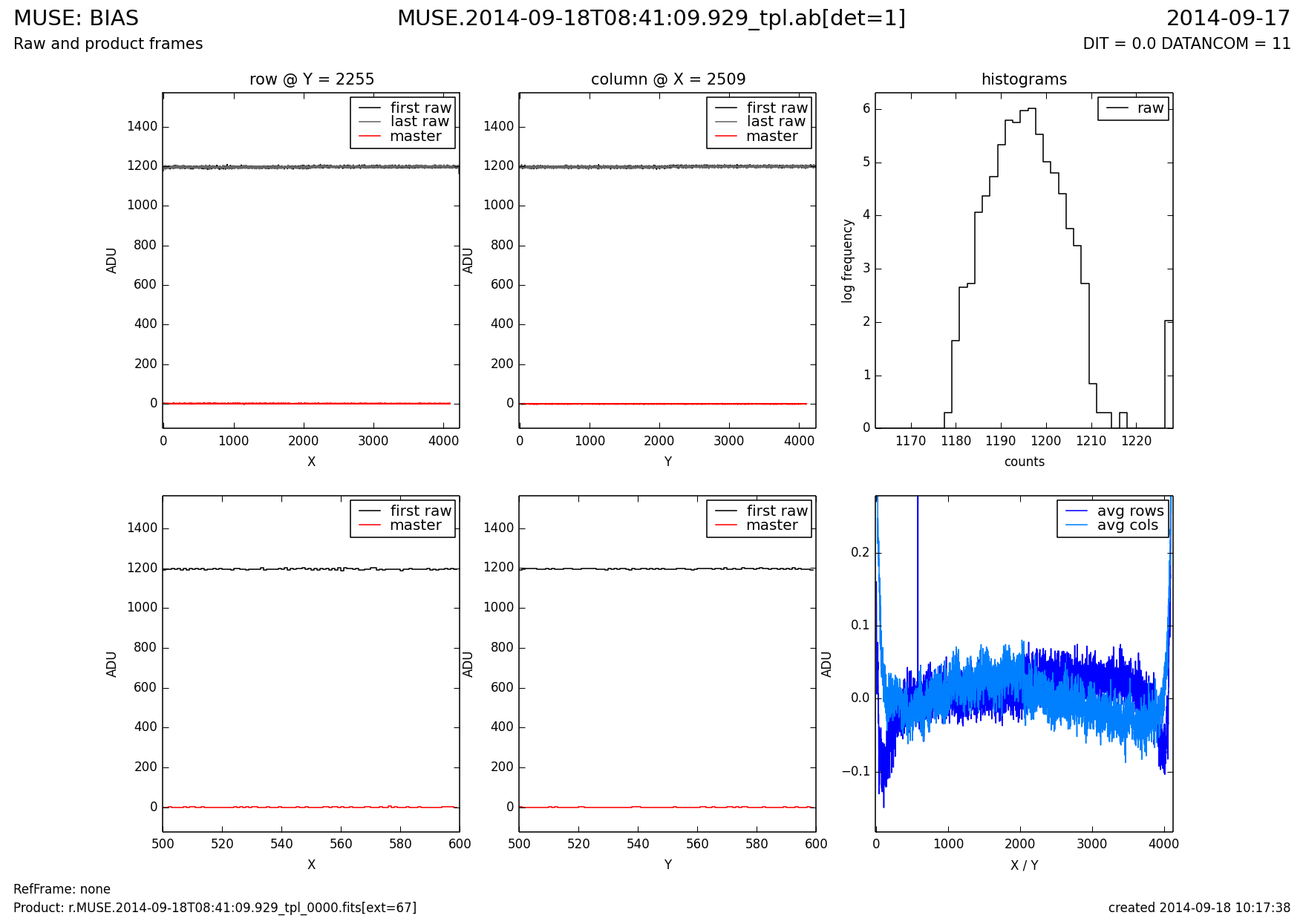

bias0.png upper left panel: cuts through first raw frame and master bias in X direction upper middle panel: cuts through first raw frame and master bias in Y direction upper right panel: histrograms of first raw frame and master, Gauss fit to master central left panel: cuts through first raw frame and master in X direction, central area central middle panel: cuts through first raw frame and master in Y direction, central area central right panel: row and column averages of master lower left panel: comparison to reference (current master - reference), cut in X direction lower middle panel: comparison to reference (current master - reference), cut in Y direction lower right panel: comparison to reference, histogram bias1.png snapshot of all detectors | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: master1/2/3/4/_median | master1/2/3/4_mean | master1/2/3/4_stdev | master1/2/3/4_min | master1/2/3/4_max | master1/2/3/4_ron | master1/2/3/4_slope_x | master1/2/3/4/_slope_y All parameters are calculated by the pipeline recipe. | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: master1/2/3/4/_median: median in the 1/2/3/4/quadrant of the master bias master1/2/3/4/_mean: mean in the 1/2/3/4/quadrant of the master bias master1/2/3/4/_stdev: standard deviation of the master bias in quadrant1/2/3/4 master1/2/3/4/_min: minimum value in the 1/2/3/4/quadrant of the master bias master1/2/3/4/_max: maximum value in the 1/2/3/4/quadrant of the master bias master1/2/3/4/_ron: read-out-noise in 1/2/3/4/quadrant from difference images of each adjacent pair of biases in the input dataset in randomly placed windows master1/2/3/4/_ronerr: read-out-noise error in 1/2/3/4/quadrant from difference images of each adjacent pair of biases in the input dataset in randomly placed windows master1/2/3/4_slope.x: average horizontal slope of master bias in quadrant1/2/3/4 master1/2/3/4_slope.y: average vertical slope of master bias in quadrant1/2/3/4 | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: unusual high bias level or read-out noise, change of structure, lower DATANCOM value | |||||||||||||||||||||||||||
| COMMENTS | based on original Python script from March 2014 | |||||||||||||||||||||||||||
