| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | muse_skyflat.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from v. 0.1 when Muse became operational September 2014 | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/SKY_FLAT/$DATE /home/muse/python/muse_skyflat.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | MUSE | |||||||||||||||||||||||||||
| RAWTYPE | SKY_FLAT | |||||||||||||||||||||||||||
| PURPOSE | QC check on raw and master sky flat frames check done per CHANEL/IFU (x24) of the raw and master skyflat frames | |||||||||||||||||||||||||||
| PROCINPUT | raw skyflat frames and MASTER_SKYFLAT product | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: muse_skyflat | |||||||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | |||||||||||||||||||||||||||
| QC1PAGE | trending | associated documentation: none | |||||||||||||||||||||||||||
| QC1PLOTS top |

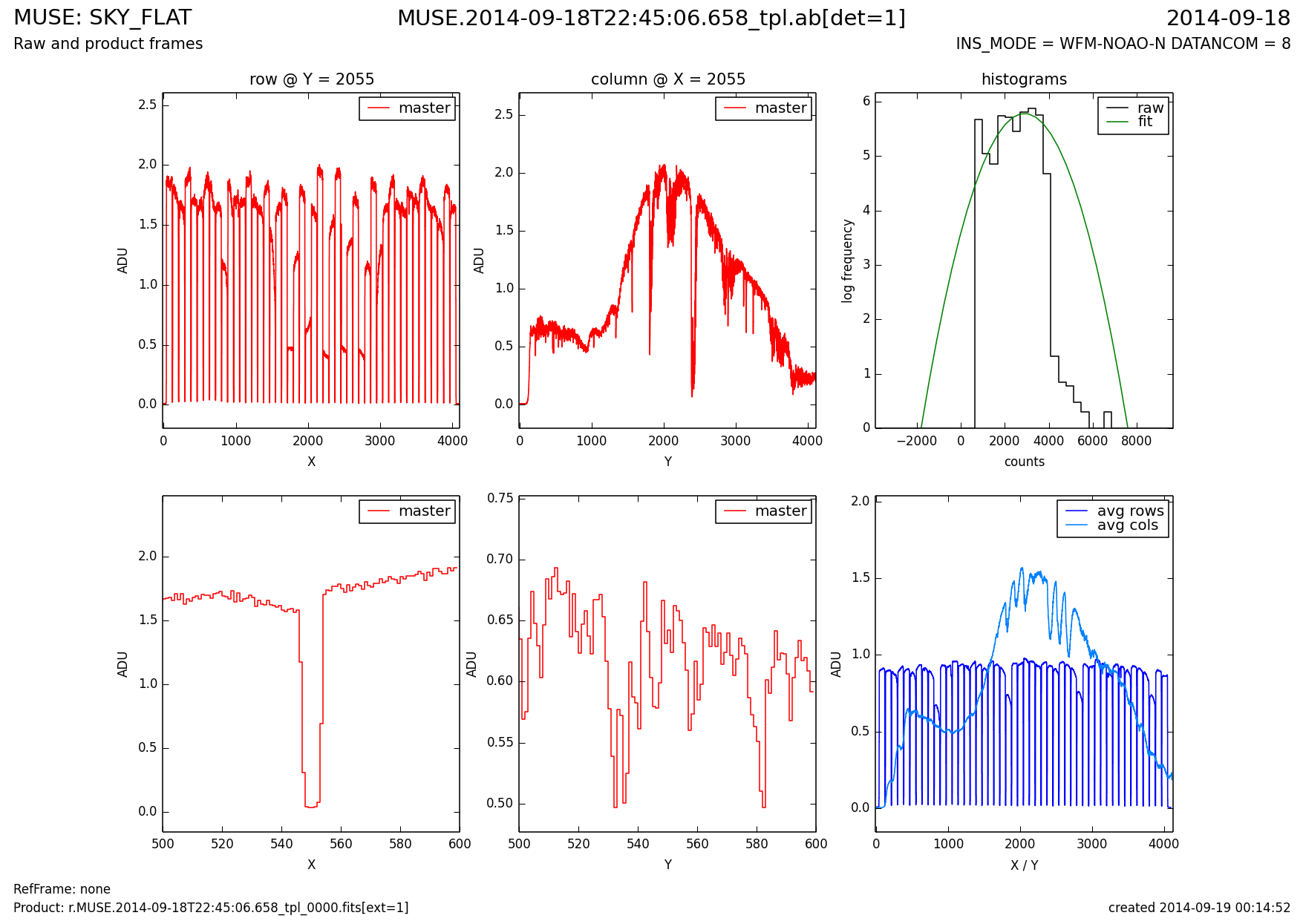

skyflat0.png upper left panel: cuts through first raw frame and master skyflat in X direction upper middle panel: cuts through first raw frame and master skyflat in Y direction upper right panel: histrograms of first raw frame and master, Gauss fit to master central left panel: cuts through first raw frame and master in X direction, central area central middle panel: cuts through first raw frame and master in Y direction, central area central right panel: row and column averages of master lower left panel: comparison to reference (current master - reference), cut in X direction lower middle panel: comparison to reference (current master - reference), cut in Y direction lower right panel: comparison to reference, histogram | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: skyflat_intflux | skyflat_median | skyflat_mean | skyflat_stdev | skyflat_min | skyflat_max | skyflat_nsaturated | skyflat_slice1/../48_intflux ALL parameters are calculated by the pipeline recipe | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: skyflat_intflux: flux integrated over the whole master skyflat (all slices) skyflat_median: median of the master skyflat skyflat_mean: mean of the master skyflat skyflat_stdev: standard deviation of the master skyflat skyflat_min: minimum value of the master skyflat skyflat_max: maximum value of the master skyflat skyflat_nsaturated: number of saturated pixels in output data skyflat_slice1/../48_intflux: flux integrated over slice1/../48 | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: unusual high/low flux level | |||||||||||||||||||||||||||
| COMMENTS | based on original Python script from March 2014 | |||||||||||||||||||||||||||
