QC documentation system: QC procedure muse_dark.py for MUSE

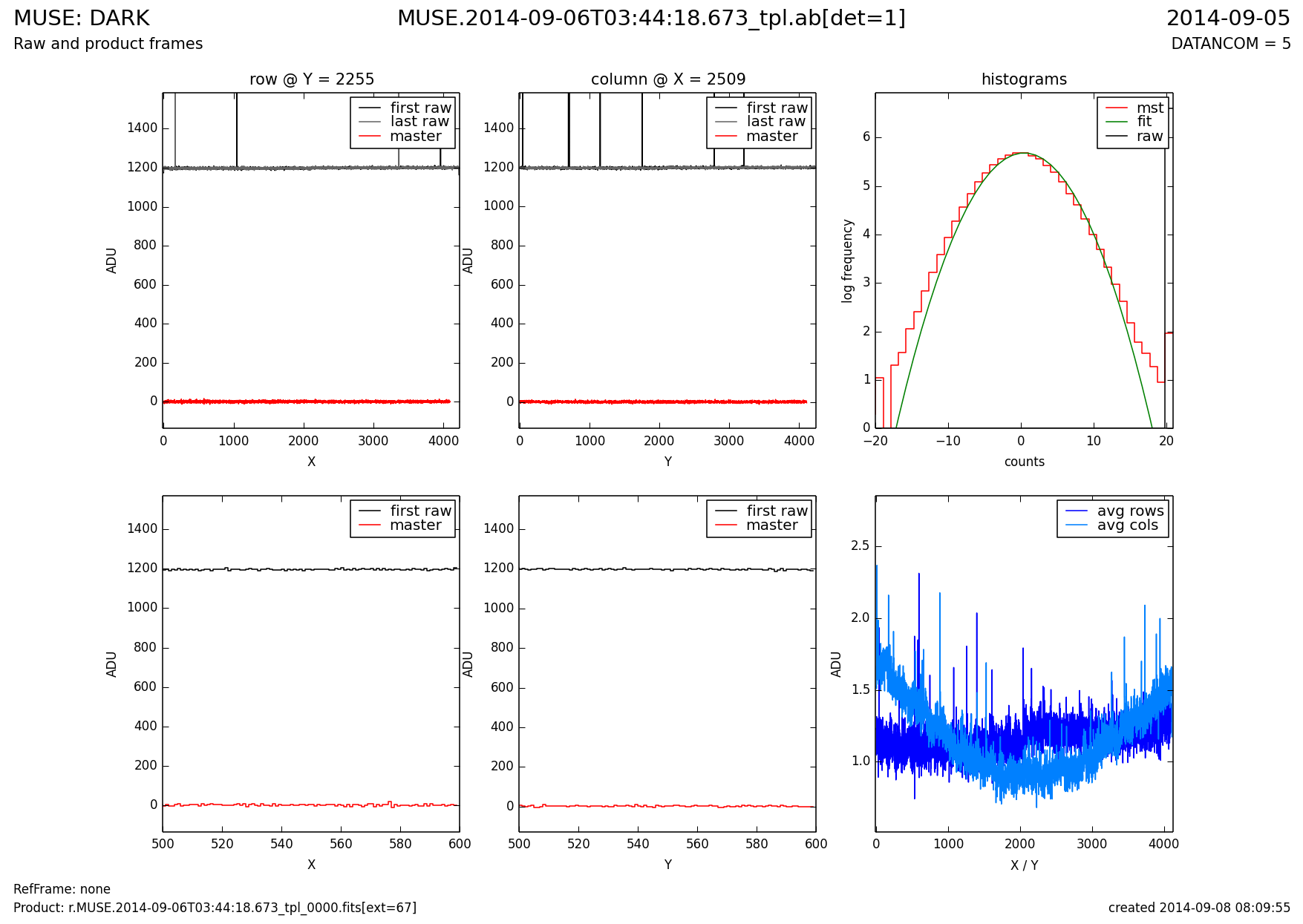

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] muse_bias.py muse_dark.py muse_lampflat.py muse_skyflat.py muse_arc.py muse_throughput.py muse_std.py muse_astrometry.py   bottom  plots   |   contact NAME muse_dark.py VERSION 1.0 -- copied from v. 0.1 when Muse became operational September 2014 SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/DARK/$DATE /home/muse/python/muse_dark.py -i -a $AB INSTRUMENT MUSE RAWTYPE DARK PURPOSE QC check on raw and master dark frames check done per CHANEL/IFU (x24) of the raw and master dark frames PROCINPUT raw dark frames and MASTER_DARK product QC1TABLE trending | table(s) in QC1 database: muse_dark TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_DARK_med_HC.html QC1PAGE trending | associated documentation: dark_qc1.html QC1PLOTS top dark0.png upper left panel: cuts through first raw frame and master dark in X direction upper middle panel: cuts through first raw frame and master dark in Y direction upper right panel: histrograms of first raw frame and master, Gauss fit to master central left panel: cuts through first raw frame and master in X direction, central area central middle panel: cuts through first raw frame and master in Y direction, central area central right panel: row and column averages of master lower left panel: comparison to reference (current master - reference), cut in X direction lower middle panel: comparison to reference (current master - reference), cut in Y direction lower right panel: comparison to reference, histogram QC1PARAM QC1 parameters written in QC1 database: QC1 DB names: master_dc | master_dcerr | master_max | master_mean | master_stdev | master_median | master_min | master_nbadpix | master_nsaturated All parameters are calculated by the pipeline recipe. ALGORITHM Description of algorithms: master_dc: dark current measured on master dark in randomly placed windows master_dcerr: dark current error measured on master dark in randomly placed windows master_median: median of the master dark master_mean: mean the master dark master_stdev: standard deviation of the master dark master_min: minimum value of the master dark master_max: maximum value of the master dark CERTIF Reasons for rejection: unusual high dark level, change of structure, lower DATANCOM value COMMENTS based on original Python script from March 2014 top [2015-11-05T14:58:11]         created by qcDocu v1.1.2, a tqs tool
