| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | muse_lampflat.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from v. 0.1 when Muse became operational September 2014 | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/LAMP_FLAT/$DATE /home/muse/python/muse_lampflat.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | MUSE | |||||||||||||||||||||||||||
| RAWTYPE | LAMP_FLAT | |||||||||||||||||||||||||||
| PURPOSE | QC check on raw and master lamp flat frames check done per CHANEL/IFU (x24) of the raw and master lampflat frames | |||||||||||||||||||||||||||
| PROCINPUT | raw lampflat frames and MASTER_LAMPFLAT product | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: muse_lampflat | muse_tracetable | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_FLAT_mean_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: lampflat_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

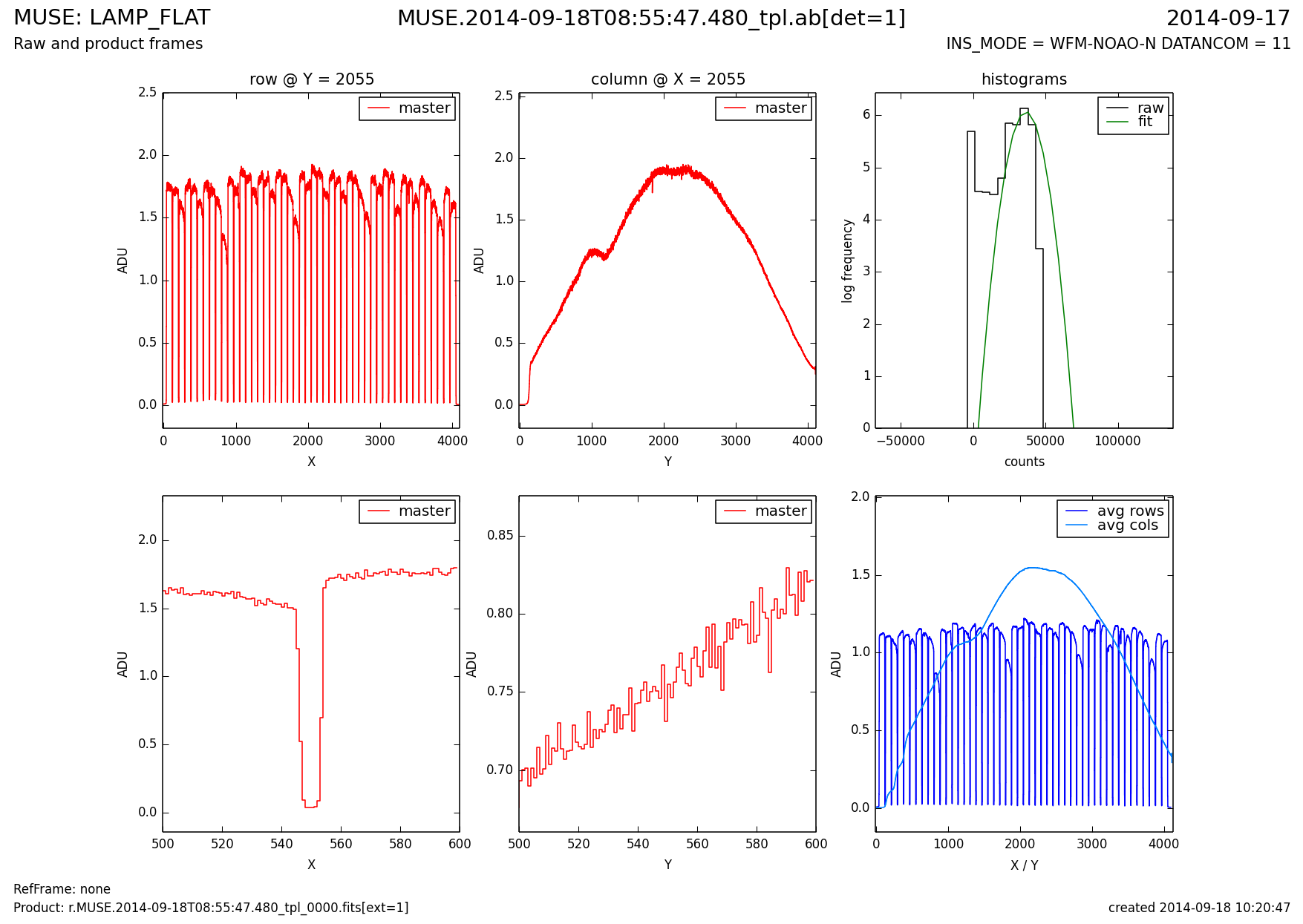

lampflat0.png upper left panel: cuts through first raw frame and master lampflat in X direction upper middle panel: cuts through first raw frame and master lampflat in Y direction upper right panel: histrograms of first raw frame and master, Gauss fit to master central left panel: cuts through first raw frame and master in X direction, central area central middle panel: cuts through first raw frame and master in Y direction, central area central right panel: row and column averages of master lower left panel: comparison to reference (current master - reference), cut in X direction lower middle panel: comparison to reference (current master - reference), cut in Y direction lower right panel: comparison to reference, histogram lampflat1.png snapshots of all the detecors | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB muse_flat names: flat_intflux | flat_median | flat_mean | flat_stdev | flat_min | flat_max | flat_nsaturated | flat_slice1/../48_mean | flat_slice1/../48_stdev | ntracetable QC1 DB muse_tracetable names: trace_gaps_max | trace_gaps_median | trace_gaps_mean | trace_gaps_stdev | trace_gaps_min | trace_wid_max | trace_wid_median | trace_wid_mean | trace_wid_stdev | trace_slice_l_tilt | trace_slice_l_xpos | trace_slice_r_tilt | trace_slice_r_xpos Most parameters are calculated by the pipeline recipe; ntracetable in qc script | |||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: muse_lampflat qc1 database table: flat_intflux: flux integrated over the whole master flat before normalization flat_median: median of the master lampflat before normalization flat_mean: mean of the master lampflat before normalization flat_stdev: standard deviation of the master lampflat before normalization flat_min: minimum value of the master lampflat before normalization flat_max: maximum value of the master lampflat before normalization flat_nsaturated: number of saturated pixels in output data flat_slice1/../48_mean: mean value around vertical center of slice1/../48 before normalization flat_slice1/../48_stdev: standard deviation around vertical center of slice1/../48 before normalization ntracetable: number of trace tables created Description of algorithms: muse_tracetable qc1 database table: trace_gaps_max: maximum gap between slices trace_gaps_median: median of gaps between slices trace_gaps_stdev: median of gaps between slices trace_wid_max: maximum width of slices trace_wid_median: median width of slices trace_wid_stdev: median width of slices trace_slice_l_tilt: tilt of leftmost slice measured as angle from vertical direction trace_slice_l_xpos: location of midpont of leftmost slice trace_slice_r_tilt: tilt of rightmost slice measured as angle from vertical direction trace_slice_r_xpos: location of midpont of rightmost slice | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: unusual high/low lampflat level, not all 24 tracetables created | |||||||||||||||||||||||||||
| COMMENTS | based on original Python script from March 2014 | |||||||||||||||||||||||||||
