| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||
| NAME | sci_lss_qc_2CCD.prg | ||||||||||||||||||||||
| VERSION |
1.0 -- adapted for new pipeline (SM, 10/2006) 1.1 -- adapted for new CCDs (SM, 04/2007) | ||||||||||||||||||||||
| SYNTAX | MIDAS | ||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/SCI_LSS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/sci_lss_qc.prg $date $PF" | ||||||||||||||||||||||
| INSTRUMENT | FORS1 | ||||||||||||||||||||||
| RAWTYPE | SCI_LSS | ||||||||||||||||||||||
| PURPOSE |
compares raw and product SCI_LSS files
for FORS1 QC assessment; the plots are later reviewed within certifyProducts and stored in $DFO_PLT_DIR | ||||||||||||||||||||||
| PROCINPUT |
raw image from AB; SCI_LSS product; | ||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors1_sci_lss | ||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | ||||||||||||||||||||||
| QC1PAGE | trending | associated documentation: none | ||||||||||||||||||||||
| QC1PLOTS top |

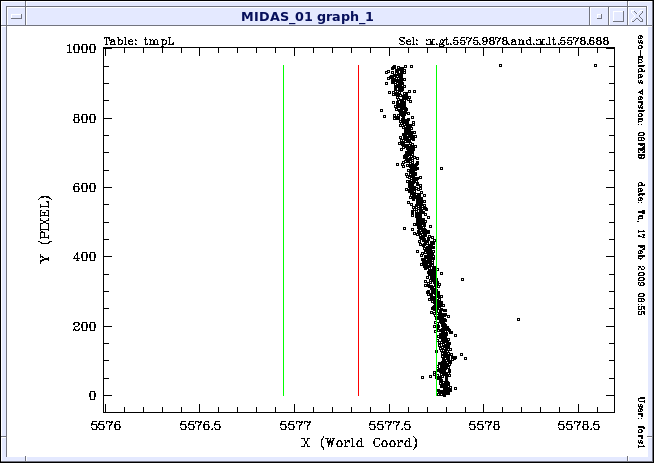

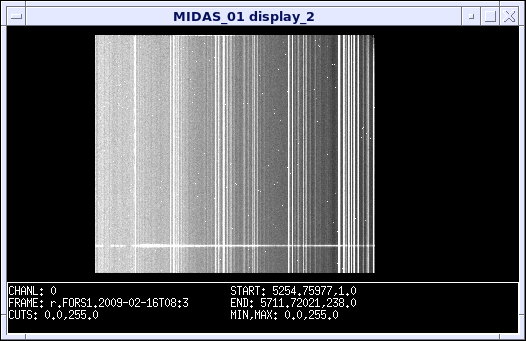

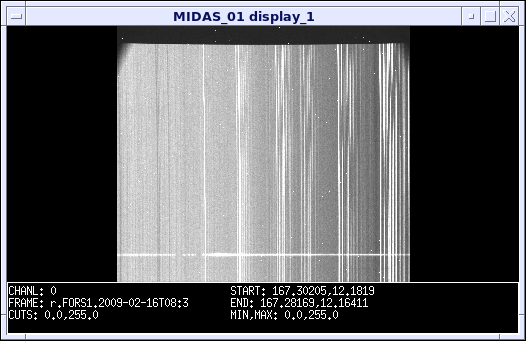

sci_lss_grap1.png upper panel: extracted, sky-subtracted spectrum of brightest source (black) with error spectrum (green) lower panel: extracted sky background for brightest object (black) with sky lines marked (magenta) sci_lss_grap2.png position of a bright sky line along the slit sci_lss_disp1.png full display of raw frame sci_lss_disp2.png full display of reduced frame | ||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: skyline_position | skyline_rms | skyline_offset | skyline_number | avg_accuracy QC1 params created by pipeline: avg_accuracy (from wavelength calibration data) QC1 params created by this procedure: all others | ||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: The whole rebinned frame is searched for emission lines. Then lines within +/- 1 pixel around skyline_position are selected and their offset with respect to the reference line is determined. The mean and rms of these offsets are stored in skyline_offset and skyline_rms. The number of skylines used is stored in skyline_number | ||||||||||||||||||||||
| CERTIF |
- to be rejected only if obviously bad, e.g. curved or
slanted sky lines - skyline offsets of more than 0.3 pixels violate the nominal calibration accuracy, but may be due to temperature differences between science and calibration data and are no cause for rejection | ||||||||||||||||||||||
| COMMENTS | |||||||||||||||||||||||
