Documentation of QC procedures: procedure std_mos_qc_2CCD.prg for FORS1

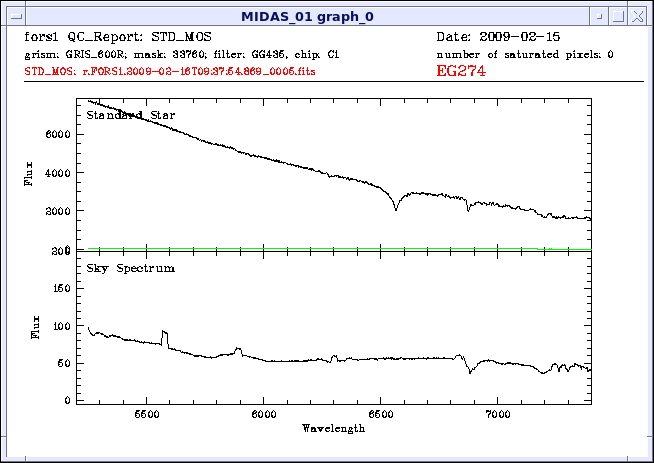

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS2 ISAAC   FORS1 GIRAFFE UVES XSHOOTER   VIMOS VISIR   HAWK-I NACO SINFONI   AMBER MIDI   VIRCAM [best viewing with style sheets and javascript enabled] bias_qc_2CCD.prg dark_qc_2CCD.prg detmon_qc.prg flat_scr_qc_2CCD.prg lamp_std_qc_2CCD.prg lamp_lss_qc_2CCD.prg lamp_mos_qc_2CCD.prg flat_sky_qc_2CCD.prg std_ima_qc_2CCD.prg std_lss_qc_2CCD.prg std_mos_qc_2CCD.prg sci_img_qc_2CCD.prg sci_lss_qc_2CCD.prg sci_mos_qc_2CCD.prg   bottom  plots   |   contact NAME std_mos_qc_2CCD.prg VERSION 1.0 -- adapted for FORS2 (PS, 05/2002) 1.1 -- adapted for FORS1 (SM, 04/2007) SYNTAX MIDAS CALL measureQuality from $DFS_PRODUCT/STD_MOS/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/std_mos_qc.prg $date $PF" INSTRUMENT FORS1 RAWTYPE STD_MOS PURPOSE compares raw and product STD_MOS files for FORS1 QC assessment; the plots are later reviewed within certifyProducts. The first plot (std_mos_grap1.png) is stored as Postscript file in $DFO_PLT_DIR. PROCINPUT raw image from AB; STD_MOS product; QC1TABLE trending | table(s) in QC1 database: fors1_std_mos TRENDPLOT trending | HealthCheck plot associated to this procedure: none QC1PAGE trending | associated documentation: none QC1PLOTS top std_mos_grap1.png left: upper panel: extracted, sky-subtracted spectrum of brightest source (black) with error spectrum (green) lower panel: extracted sky background for brightest object (black) with sky lines marked (magenta) std_mos_disp1.png full display of raw frame std_mos_disp2.png full display of reduced, sky-subtracted frame QC1PARAM QC1db names: n_saturated | object_position | avg_accuracy QC1 params created by pipeline: avg_accuracy (from wavelength calibration data) QC1 params created by this procedure: n_saturated QC1 parameters written into QC1 table: none ALGORITHM Description of algorithms: n_saturated Number of pixels above 60000 counts in the raw frame within the slitlet containing the standard star spectrum. object_position Y position of standard star spectrum. CERTIF Reasons for rejection: - lack of signal; - saturated spectra (flat parts in raw data; not necessarily visible in processed data) if n_saturated > 0 check raw spectrum for flat parts. COMMENTS Chip 2 usually does not contain a spectrum. top [2009-07-30T07:17:12]         created by qcDocu v1.1, a tqs tool
