| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||
| NAME | flat_scr_qc_2CCD.prg | ||||||||||||||||||||||
| VERSION |
1.0 -- taken from FORS1 to FORS2 1.1 -- adapted for two FORS2 CCDs with different field-of-view 1.2 -- taken from FORS2 to FORS1 1.3 -- adapted for new imaging pipeline (2008-03-19) | ||||||||||||||||||||||
| SYNTAX | MIDAS | ||||||||||||||||||||||
| CALL |
measureQuality from $DFS_PRODUCT/FLAT_scr/$DATE: inmidas -P -j "@@ $DFO_PROC_DIR/flat_scr_qc_2CCD.prg $date $PF" | ||||||||||||||||||||||
| INSTRUMENT | FORS1 | ||||||||||||||||||||||
| RAWTYPE | FLAT_SCR | ||||||||||||||||||||||
| PURPOSE | compares raw and product FLAT_SCR files for FORS1 QC assessment; the plots are later reviewed within certifyProducts. The plot (flat_scr_grap1.png) is stored as Postscript file in $DFO_PLT_DIR. | ||||||||||||||||||||||
| PROCINPUT |
first raw flat from AB; MASTER_SCREEN_FLAT_IMG product; | ||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: fors1_scrflat_2CCD | ||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_CONAD_2CCD_HC.html | trend_report_SCR_FF_UB_2CCD_HC.html | ||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: scrflat_2CCD_qc1.html | ||||||||||||||||||||||
| QC1PLOTS top |

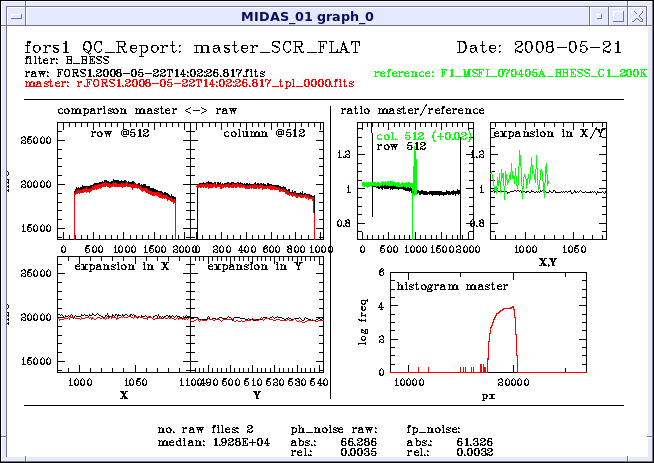

flat_scr_grap1.png left: comparison master (red) <-> raw (black); upper panel: middle row and middle column, full pixel range, in ADU; lower panel: middle row and middle column, central 100 pixels, in ADU top right: ratio master/reference left panel: central row/column, full pixel range right panel: central row/column, central pixel range bottom right: histogram: all pixel values of master skyflat in log frequency histogram flat_scr_disp1.png full display of master frame flat_scr_disp2.png full display of 1st raw frame flat_scr_disp3.png full display of ratio master/reference | ||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: QC1db names: datancom | median_master | sigma_master FITS key names: DATANCOM | (flat_scr_qc.prg) | (flat_scr_qc.prg) QC1db names: efficiency | fixp_noise | FPN_rel | phot_noise FITS key names: QC.FLAT.EFF | QC.FLAT.FPN | QC.FLAT.FPN.REL | QC.FLAT.PHN QC1db names: conad | conad_err FITS key names: QC.FLAT.CONAD | QC.FLAT.CONADERR QC1 params created by pipeline: datancom, conad, conad_err, efficiency, fixed-pattern noise (absolute and relative), photon noise QC1 params created by this procedure: median_master, sigma_master | ||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: median_master: median level of master screen flat within X200...1800, Y400...800 (MIDAS stat/ima; outputr(8)) sigma_master: std.dev. of master screen flat within X200...1800, Y400...800 (MIDAS stat/ima; outputr(4)) | ||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - unusual structure; Smooth, large scale variations, individual bright/dark spots in the central area of the ratio master/reference are no reason for rejection. For the U band the master/reference sometimes shows some circular structure, probably due to the LADC not being in its proper park position. This is no cause for rejection. | ||||||||||||||||||||||
| COMMENTS | |||||||||||||||||||||||
| top | [2009-07-30T07:16:50] created by qcDocu v1.1, a tqs tool | ||||||||||||||||||||||
