| NAME | qc_DARK.sh | |||||||||||||||||||||||
| VERSION |
1.0 -- 2006-07-13 fill template by handbook 1.1 -- 2006-07-14 script prepared for parallel runs 1.2 -- 2006-07-26 docu verified and completed 1.3 -- 2007-01-01 scoreQC implemented 1.4 -- 2007-12-05 docu updated | |||||||||||||||||||||||
| SYNTAX | SHELL | |||||||||||||||||||||||
| CALL |
called by processQC as qc_DARK -d $DATE -f $primfile | |||||||||||||||||||||||
| INSTRUMENT | ISAAC | |||||||||||||||||||||||
| RAWTYPE | DARK | |||||||||||||||||||||||
| PURPOSE |
a) calculates post-pipeline FPN and Gauss-fit QC1 parameters b) generates QC report c) writes QC1 parameters into local list The script reads the DET.NCORRS.NAME (= readmode) and the OCS.SELECT-ARM (arm of instrument) and calls one IS_SIDK_1night.sh, IS_SSDK_1night.sh, IS_LGDU_1night.sh, IS_LGDD_1night.sh | |||||||||||||||||||||||
| PROCINPUT |
a) $DATE in yyyy-mm-dd, b) $primfile is the PRO.CATG=MASTER_DARK product with the _0000.fits extension. c) raw frames are implicitely read from the AB. d) Reference MASTER_DARK are implicitely read from $DFO_QC_DIR/references/DARK. | |||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: isaac_dark | |||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_DARK_SW_DC_HC.html | trend_report_DARK_SW_FPN_HC.html | trend_report_DARK_SW_STD_HC.html | trend_report_RESETANOM_HC.html | |||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: qc_IS_dark.html | qc_dark_samples.html | |||||||||||||||||||||||
| QC1PLOTS top |

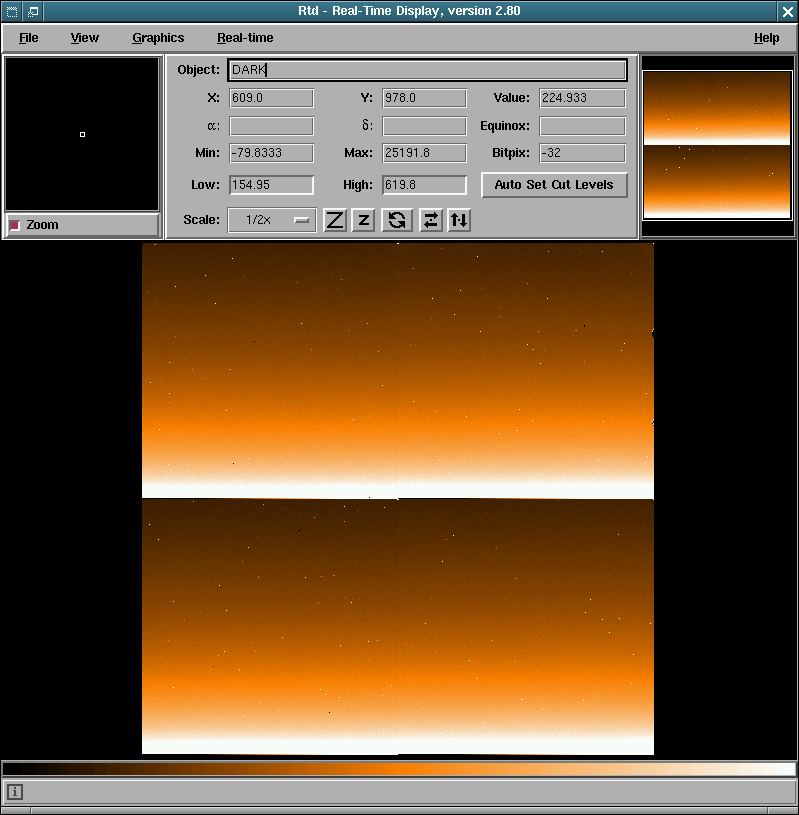

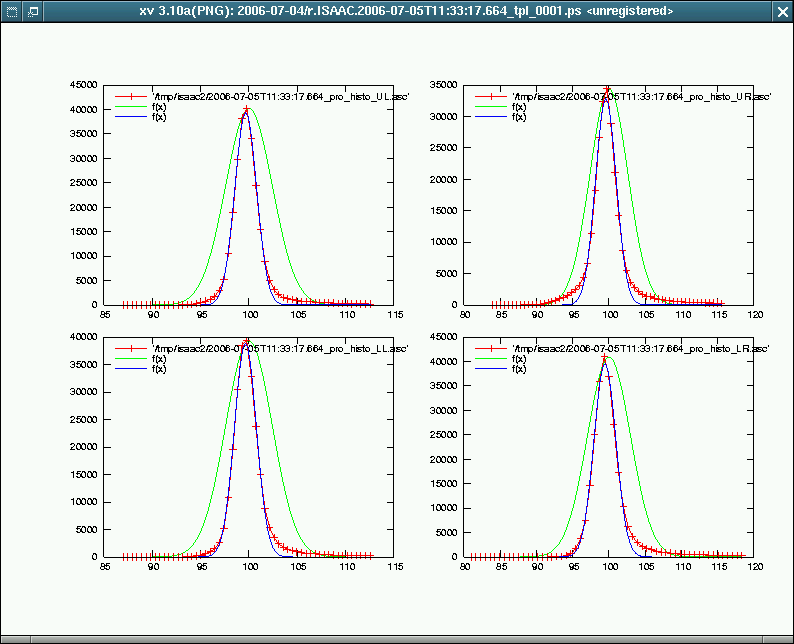

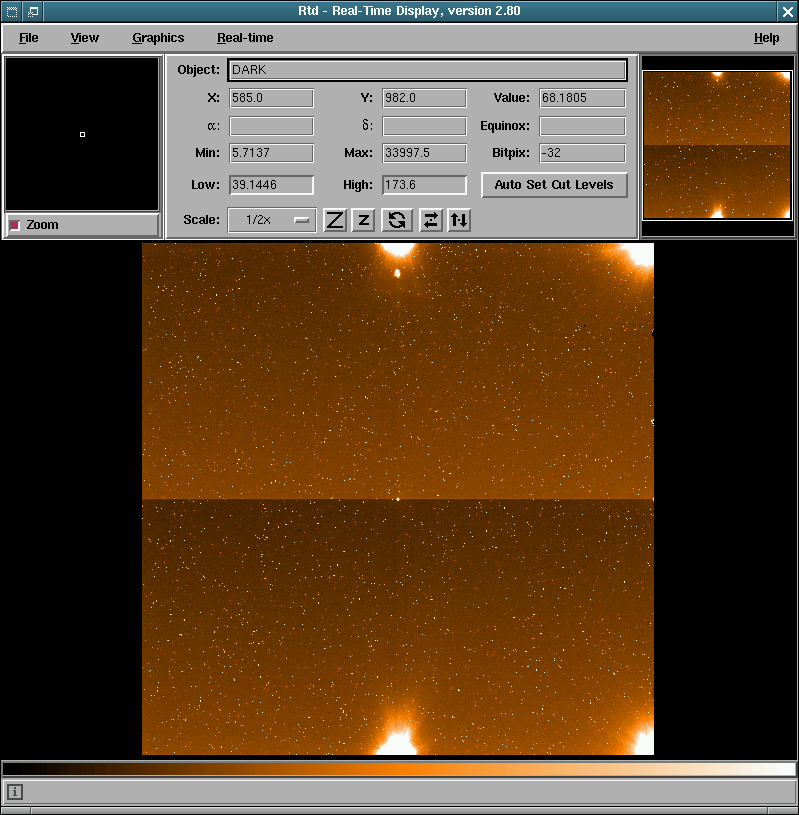

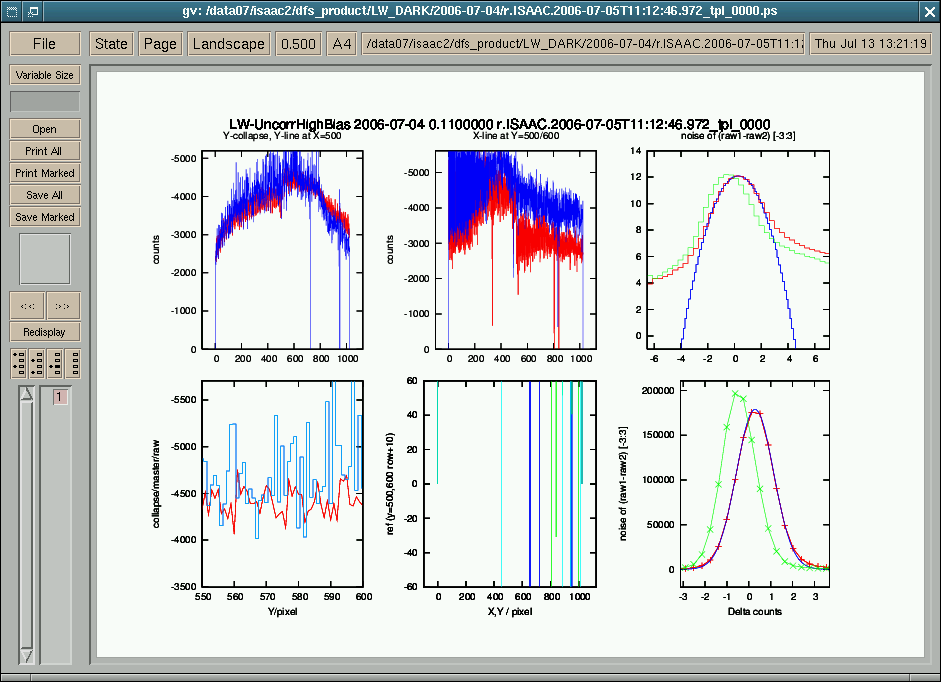

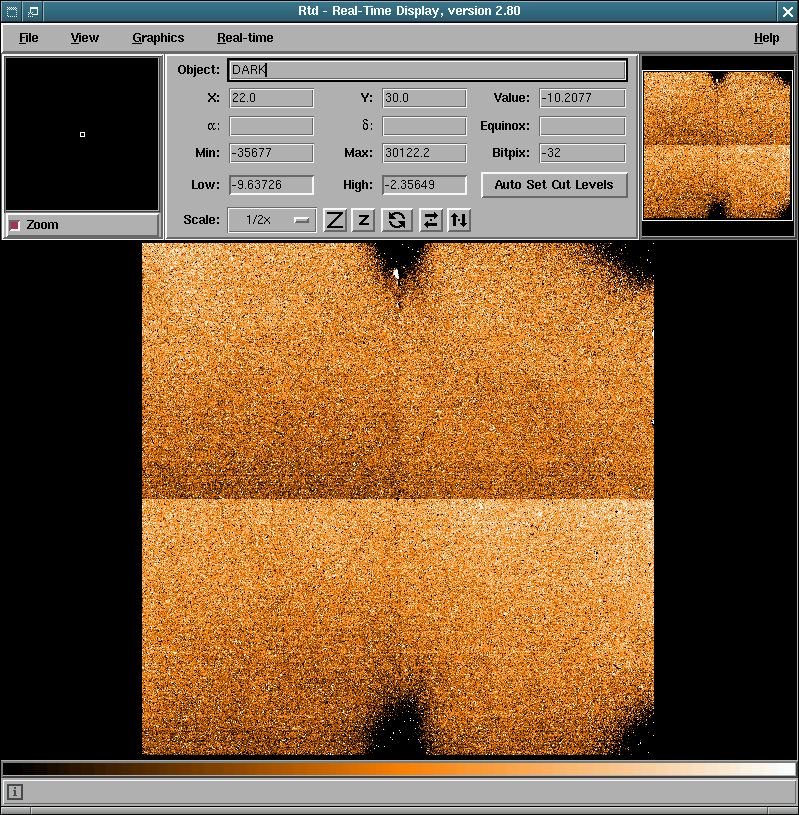

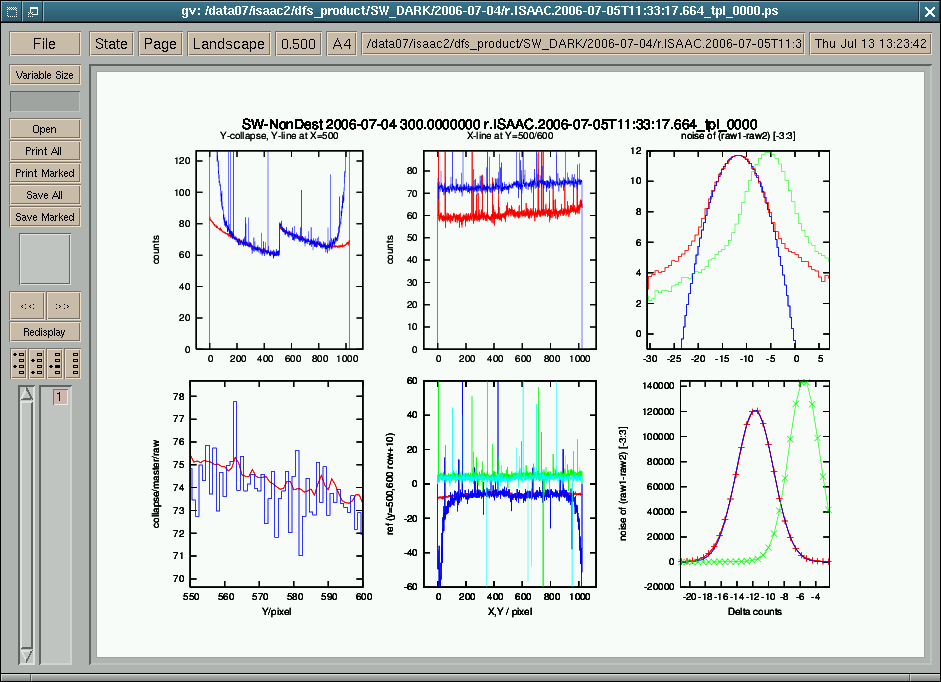

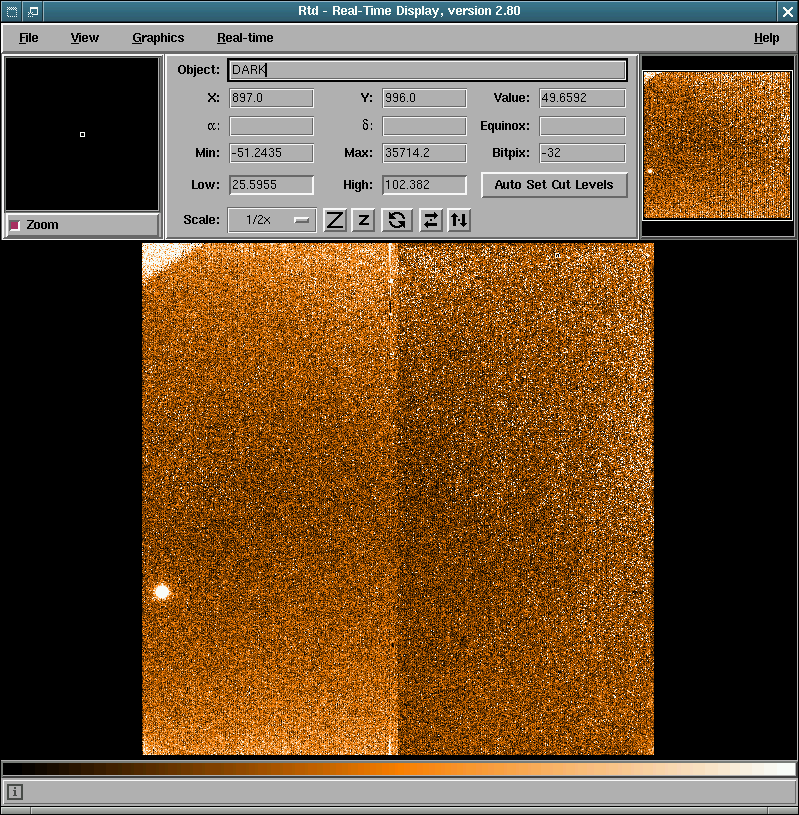

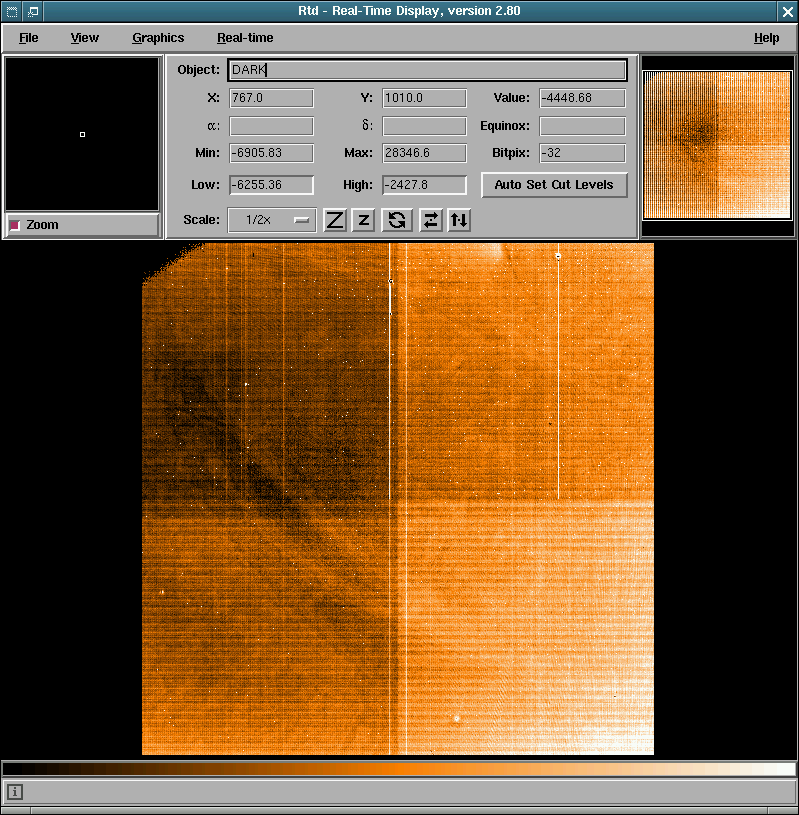

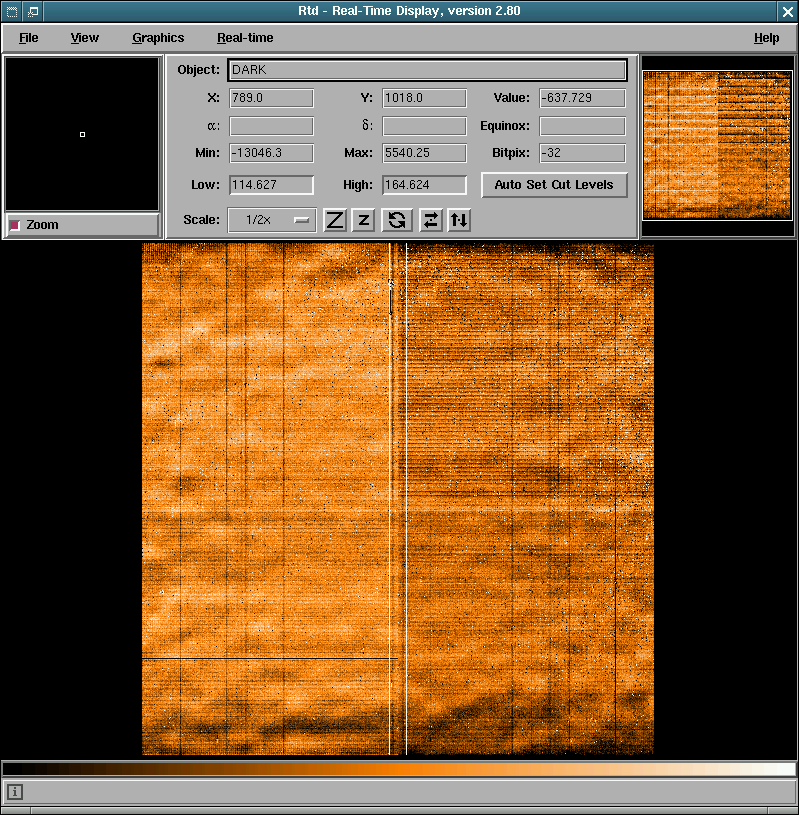

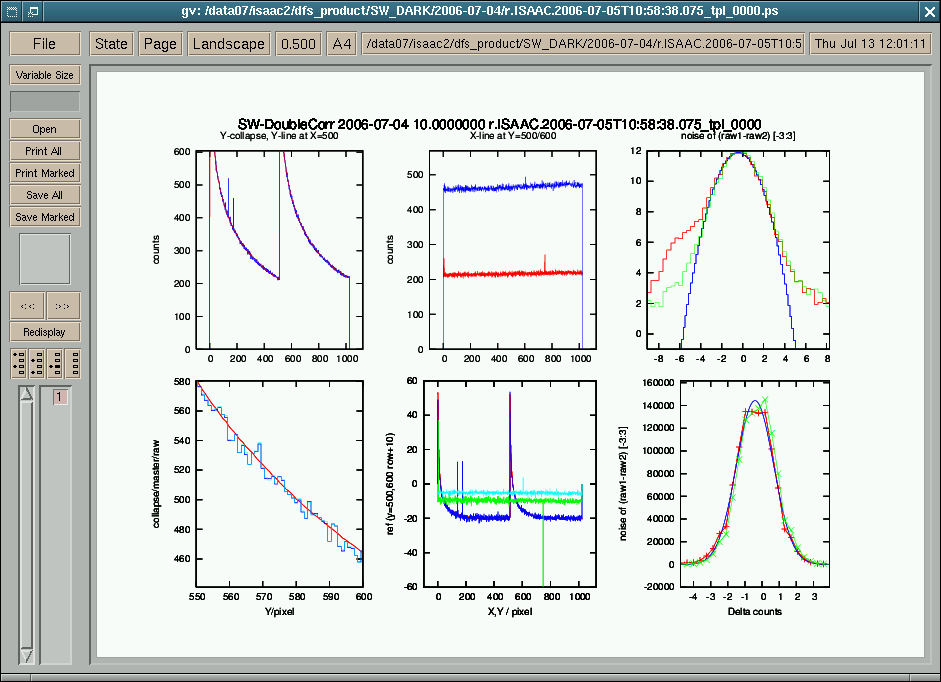

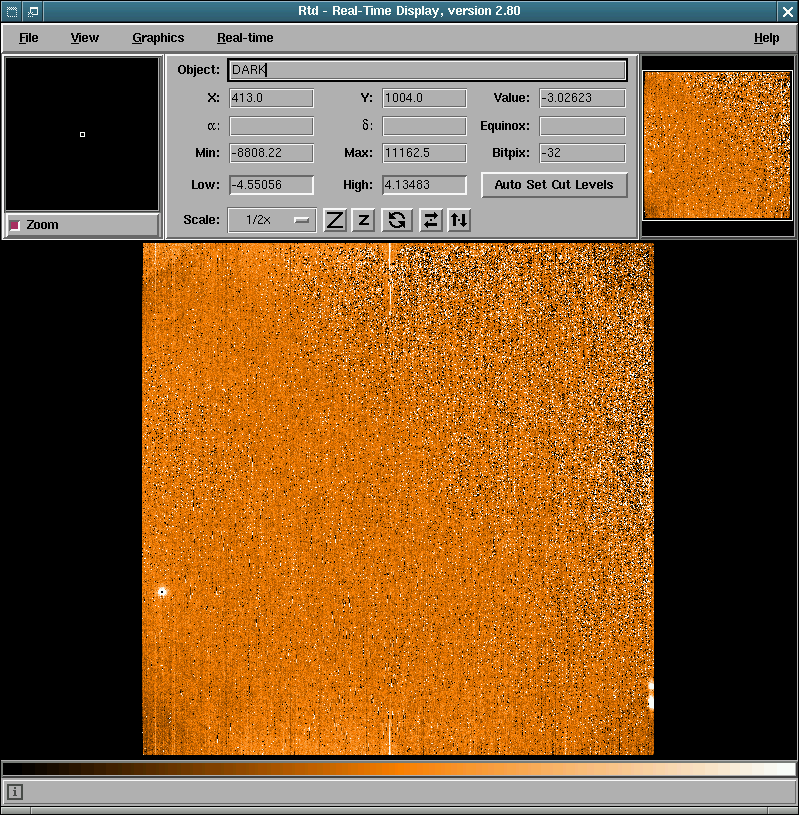

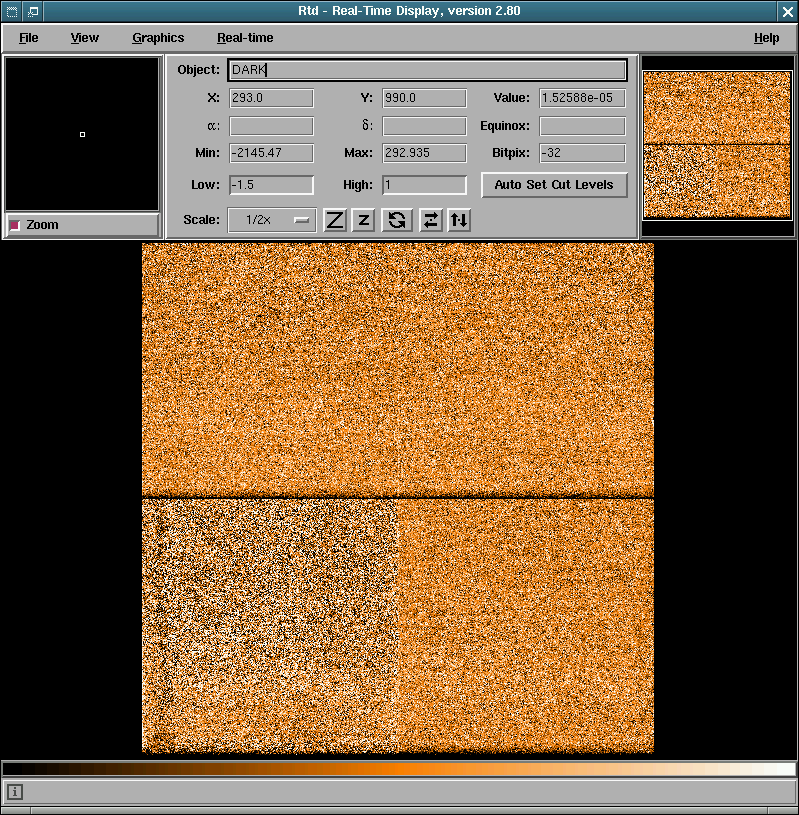

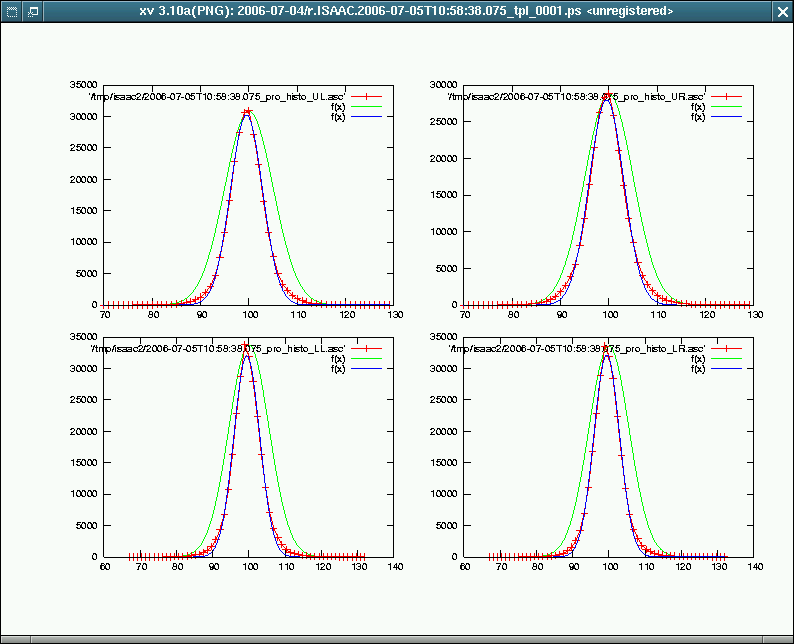

dark0.png display MASTER_DARK for Hawaii-Double readmode on RealTimeDisplay dark1.png UL: The mean (collapsed) column (red) and the column at X=1024/4 of the product frame. UC: Two rows at Y=1024/4 (red) and Y=1024*(3/4) (blue) of the product frame UR: A parabolic function (blue) is fit to the central part (-3 to 3 counts) of the log of the raw2-raw1 difference frame (red). Histogram of the raw3-raw2 difference frame (green). LL: Zoom of UC LC: The Y=500 row of the product minus the Y=500 row of a reference product. Y=600 row of the product minus the Y=600 row of a reference product. X=500 column of the master minus the X=500 column of a reference product. The reference product is renewed usually once a period or after an intervention. LR: Histogram of the difference frame (second raw minus first raw) (red) and Gaussian fit between -3 and 3 counts (blue). Histogram of the raw3-raw2 difference frame (green) dark2.png Histogram of MASTER_DARK per Quadrant, Gaussian fit (initial guess = green; blue = final) to derive robust fixed pattern noise dark3.png current MASTER_DARK minus most recent MASTER_DARK on RTD dark10.png display MASTER_DARK for Hawaii-NonDest on RealTimeDisplay dark11.png As dark1.png, but for Hawaii-NonDest readmode dark12.png As dark2.png, but for Hawaii-NonDest readmode dark13.png As dark3.png, but for Hawaii-NonDest readmode dark20.png display MASTER_DARK for Aladdin-Uncorr readmode on RealTimeDisplay dark21.png As dark1.png, but for Aladdin-Uncorr readmode dark22.png As dark2.png, but for Aladdin-Uncorr readmode. Please note the multi-modal distribution. dark23.png As dark3.png, but for Aladdin-Uncorr readmode dark30.png display MASTER_DARK for Aladdin-DoubleCorrHighBias RealTimeDisplay dark31.png As dark1.png, but for Aladdin-DoubleCorrHighBias readmode dark32.png As dark2.png, but for Aladdin-DoubleCorrHighBias readmode dark33.png As dark3.png, but for Aladdin-DoubleCorrHighBias readmode | |||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: FITSNAME, DBNAME , typical value, description: QC.DARKMED , qc_darkmed, Average of raw darks medians QC.RON1 , qc_ron12, Read Out Noise from first raw frame pair (Aladdin) QC.RON2 , qc_ron23, Read Out Noise from second raw frame pair (Aladdin) QC.UL.RON1 , qc_UL_ron1, RON UL quadrant from first raw frame pair (Hawaii) QC.UL.RON2 , qc_UL_ron2, RON UL quadrant from second raw frame pair (Hawaii) QC.LL.RON1 , qc_LL_ron1, RON LL quadrant from first raw frame pair (Hawaii) QC.LL.RON2 , qc_LL_ron2, RON LL quadrant from second raw frame pair (Hawaii) QC.UR.RON1 , qc_UR_ron1, RON UR quadrant from first raw frame pair (Hawaii) QC.UR.RON2 , qc_UR_ron2, RON UR quadrant from second raw frame pair (Hawaii) QC.LR.RON1 , qc_LR_ron1, RON LR quadrant from first raw frame pair (Hawaii) QC.LR.RON2 , qc_LR_ron2, RON LR quadrant from second raw frame pair (Hawaii) QC.DARKSTEV , qc_dark_stdev, standard deviation of raw dark medians post pipeline script QC1 parameters QC.N.GAF , qc_n_gaf, noise from Guass fit QC.UL.FPN , qc_UL_fpn , UL quadrant FPN from Gaussian fit to histogram QC.LL.FPN , qc_LL_fpn , LL quadrant FPN from Gaussian fit to histogram QC.UR.FPN , qc_UR_fpn , UR quadrant FPN from Gaussian fit to histogram QC.LR.FPN , qc_LR_fpn , LR quadrant FPN from Gaussian fit to histogram QC.UL.FPN , qc_UL_stdev , UL quadrant standard deviation (sensitive to hot pixel) QC.LL.FPN , qc_LL_stdev , LL quadrant standard deviation (sensitive to hot pixel) QC.UR.FPN , qc_UR_stdev , UR quadrant standard deviation (sensitive to hot pixel) QC.LR.FPN , qc_LR_stdev , LR quadrant standard deviation (sensitive to hot pixel) | |||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: RON Median standard deviation of a serieas on N samples of 2h+1 \times 2h+1 size. The parameters h and N differ from readmode to readmode. | |||||||||||||||||||||||
| CERTIF |
Quality diminishing features (not under control, but tolerated) : - persistence in long DIT Hawaii double Darks - persistence of the throgh slit image Reasons for rejection: - internal reflections in Aladdin darks - unsupported readmode - pinhole mask in field of view - odd-evencolumn effect requires special intervention | |||||||||||||||||||||||
| COMMENTS | local difference frames (current product minus last one) and reference difference frames (current product minus reference) are provided in the detailed section of certifyProducts | |||||||||||||||||||||||
| top | [2012-06-20T10:57:01] created by qcDocu v1.1.2, a tqs tool | |||||||||||||||||||||||
