QC documentation system: QC procedure espre_bias.py for ESPRESSO

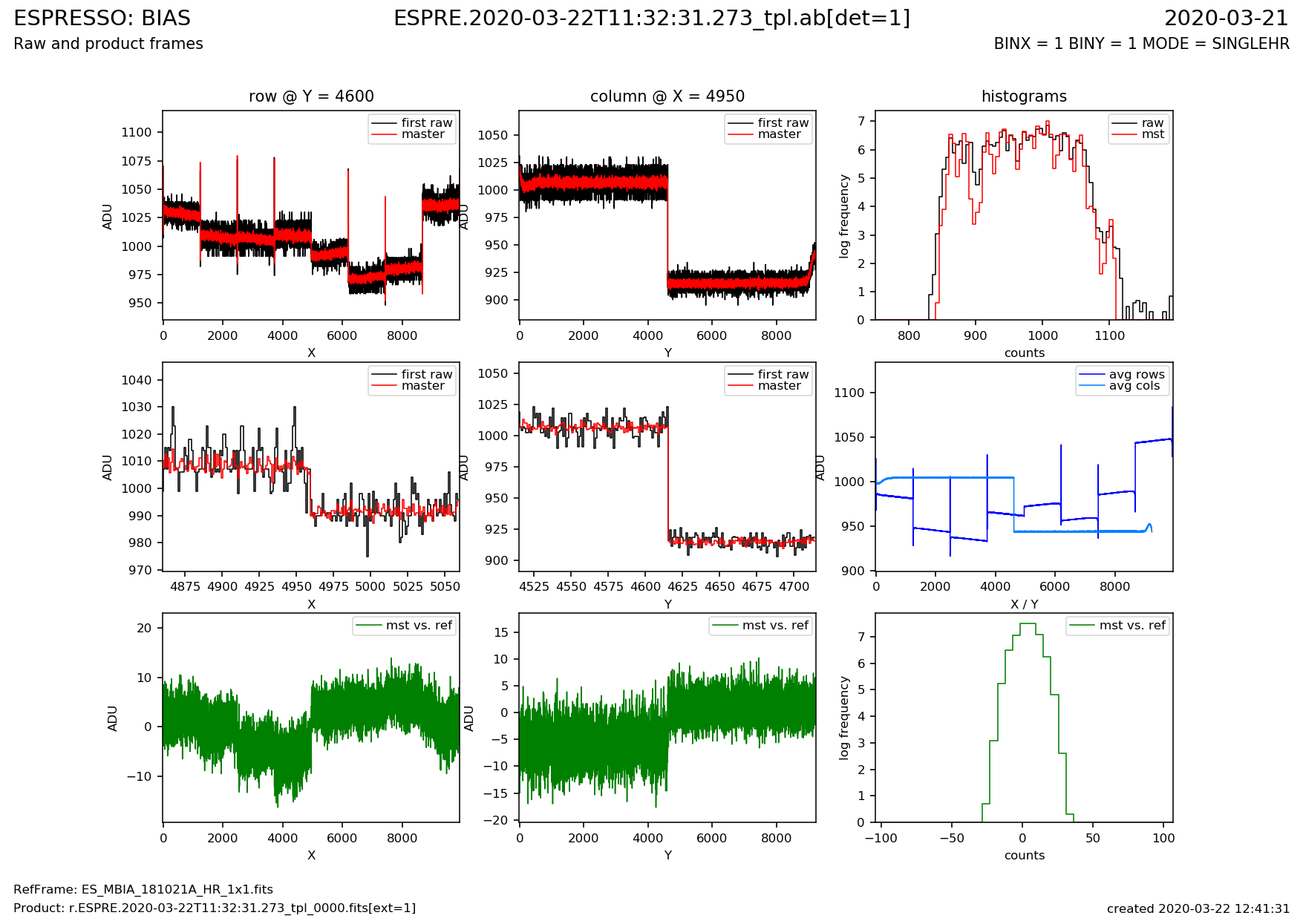

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] espre_bias.py espre_dark.py espre_ledff.py espre_orderdef.py espre_flat.py espre_wave.py   bottom  plots   |   contact NAME espre_bias.py VERSION 1.0 -- October 2018 1.0.1 -- proc_vers QC1 parameter added (2020-08-14) SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/BIAS/$DATE /home/python/espres_bias.py -i -a $AB INSTRUMENT ESPRESSO RAWTYPE BIAS PURPOSE QC check of raw and product bias frame PROCINPUT raw, product, and reference bias frames QC1TABLE trending | table(s) in QC1 database: espresso_bias TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_BIASMEAN_HR1x1_HC.html | trend_report_BIASRON_HR1x1_HC.html QC1PAGE trending | associated documentation: bias_qc1.html QC1PLOTS top bias1.png One plot for BLUE and one for RED MASTER_BIAS upper left: cuts in X direction through master and raw frames upper middle: cuts in Y direction through master and raw frames upper right: histograms of first raw frame and master central left: cuts in X direction through master and raw frames, central area central middle: cuts in Y direction through master and raw frames, central area central right: row and column averages of master lower left: master - reference frame, cut in X direction lower middle: master - reference frame, cut in Y direction lower right: histogram of master - reference frame bias2.png One plot for BLUE and one for RED MASTER_BIAS_RES bias3.png Several 2D overview images of MASTER_BIAS and MASTER_BIAS_RES QC1PARAM QC1 parameters written in QC1 database: QC1 DB names: bias_ron_avg | bias_ron_rms | bias_mean_avg | bias_mean_rms | ovsc_ron_avg | ovsc_ron_rms res_mean_avg | res_mean_rms | res_stdev_avg | res_stdev_rms | bias_structx_avg | bias_structx_rms bias_structy_avg | bias_structy_rms ALGORITHM Pipeline QC parameter come per read-out port. The QC script calculates the average and the RMS across the ports. CERTIF Bias frames with unusual level or RON have to be rejected. COMMENTS None top [2020-09-01T15:35:58]         created by qcDocu v1.1.2, a tqs tool
