QC documentation system: QC procedure espre_orderdef.py for ESPRESSO

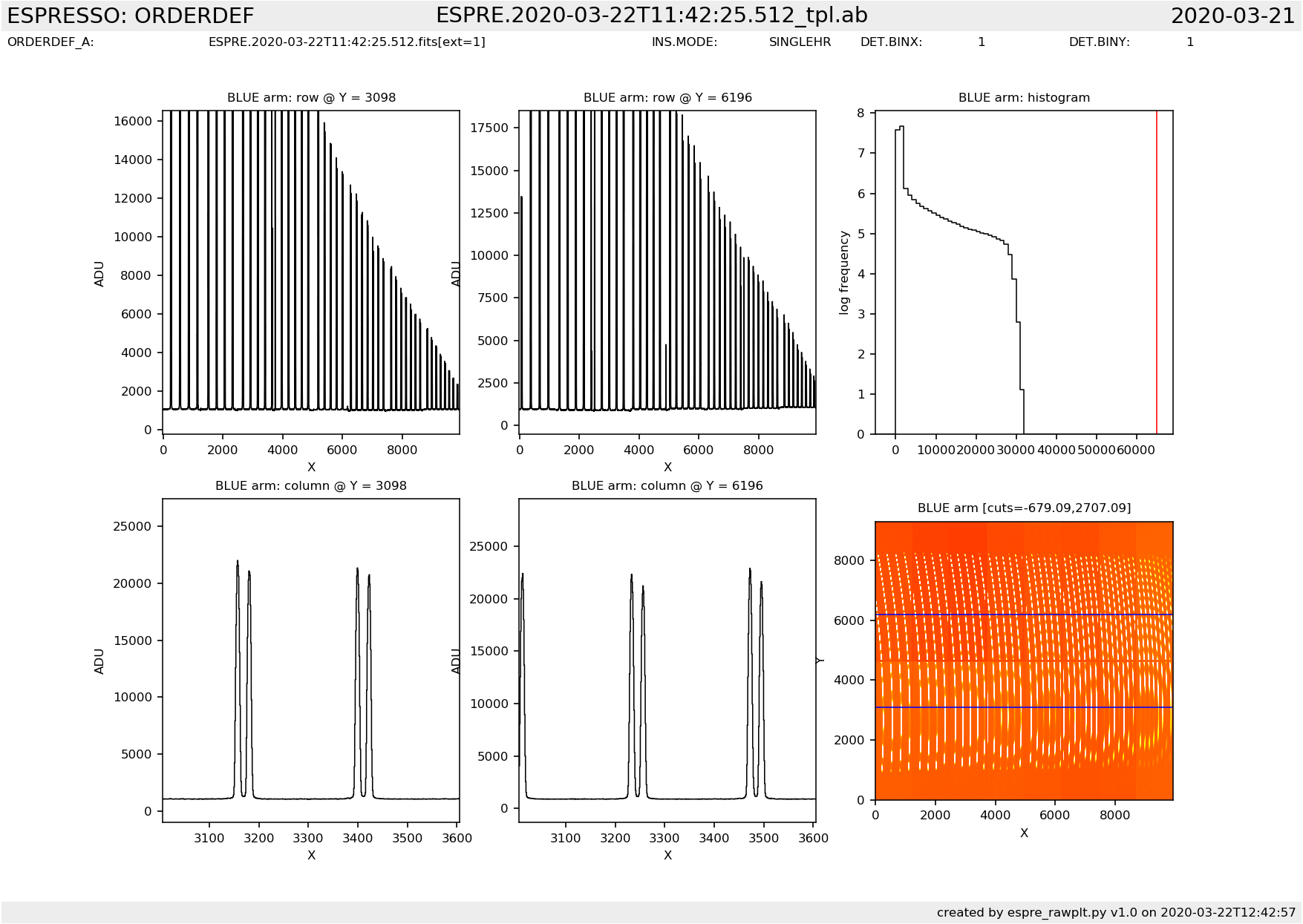

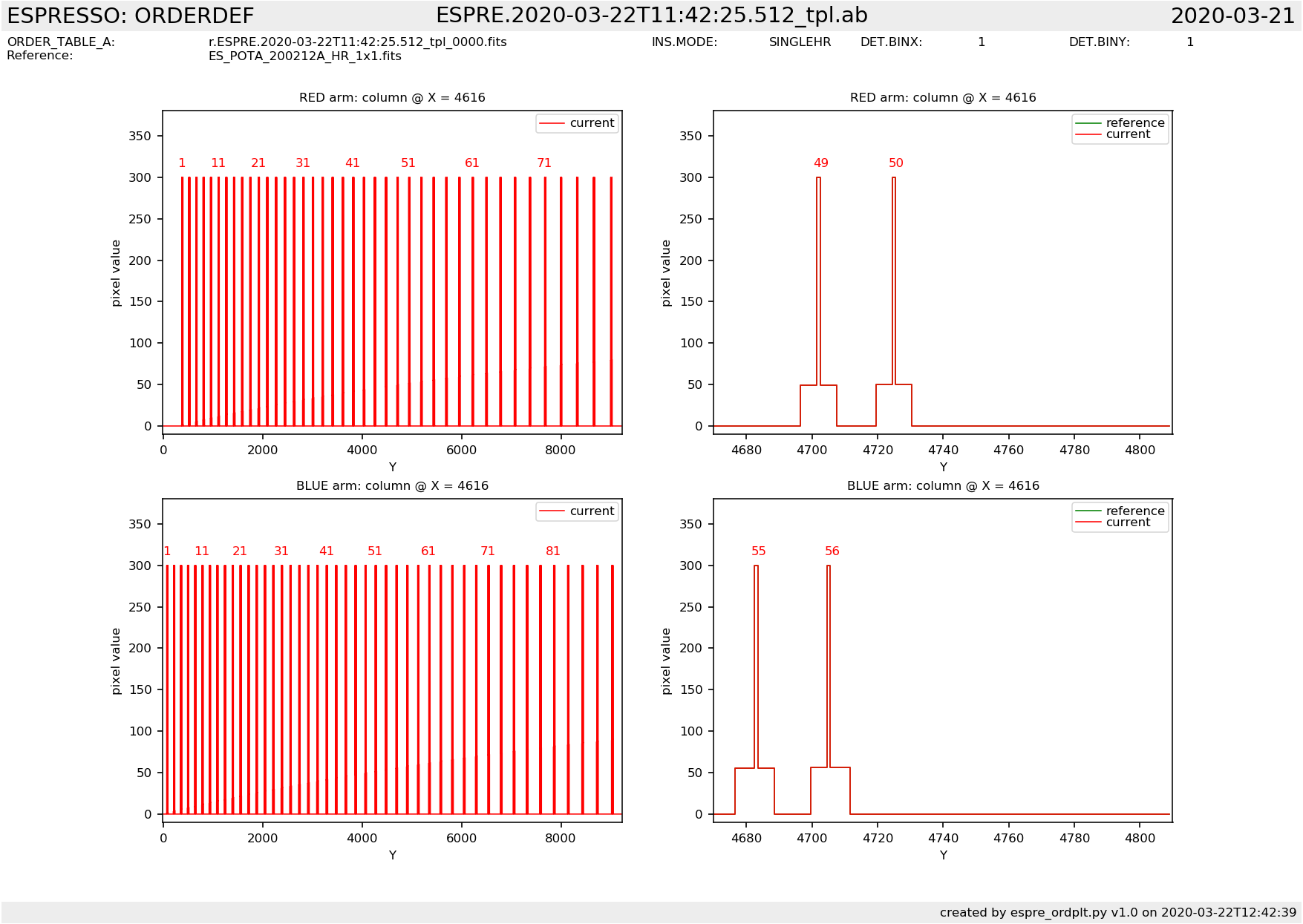

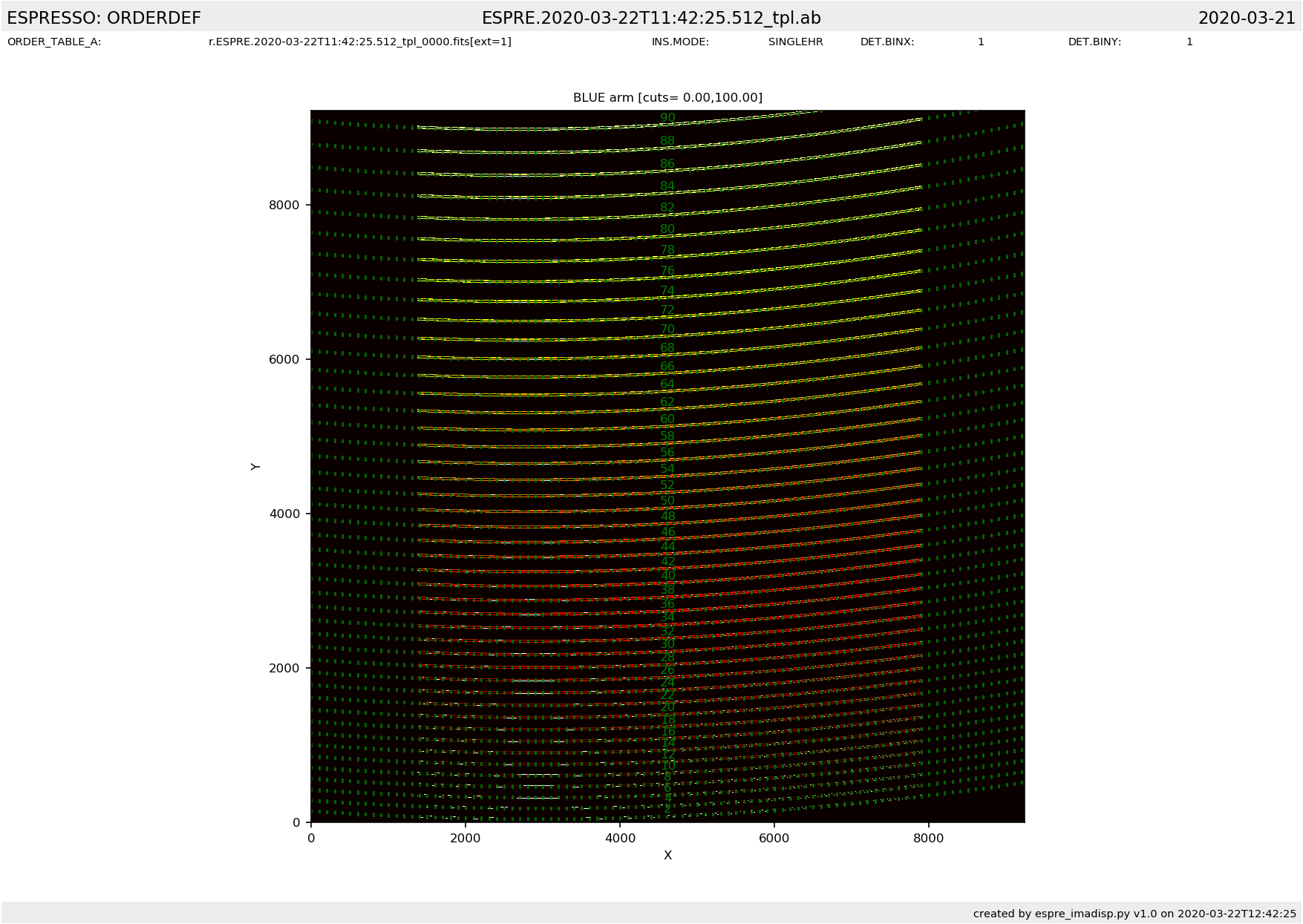

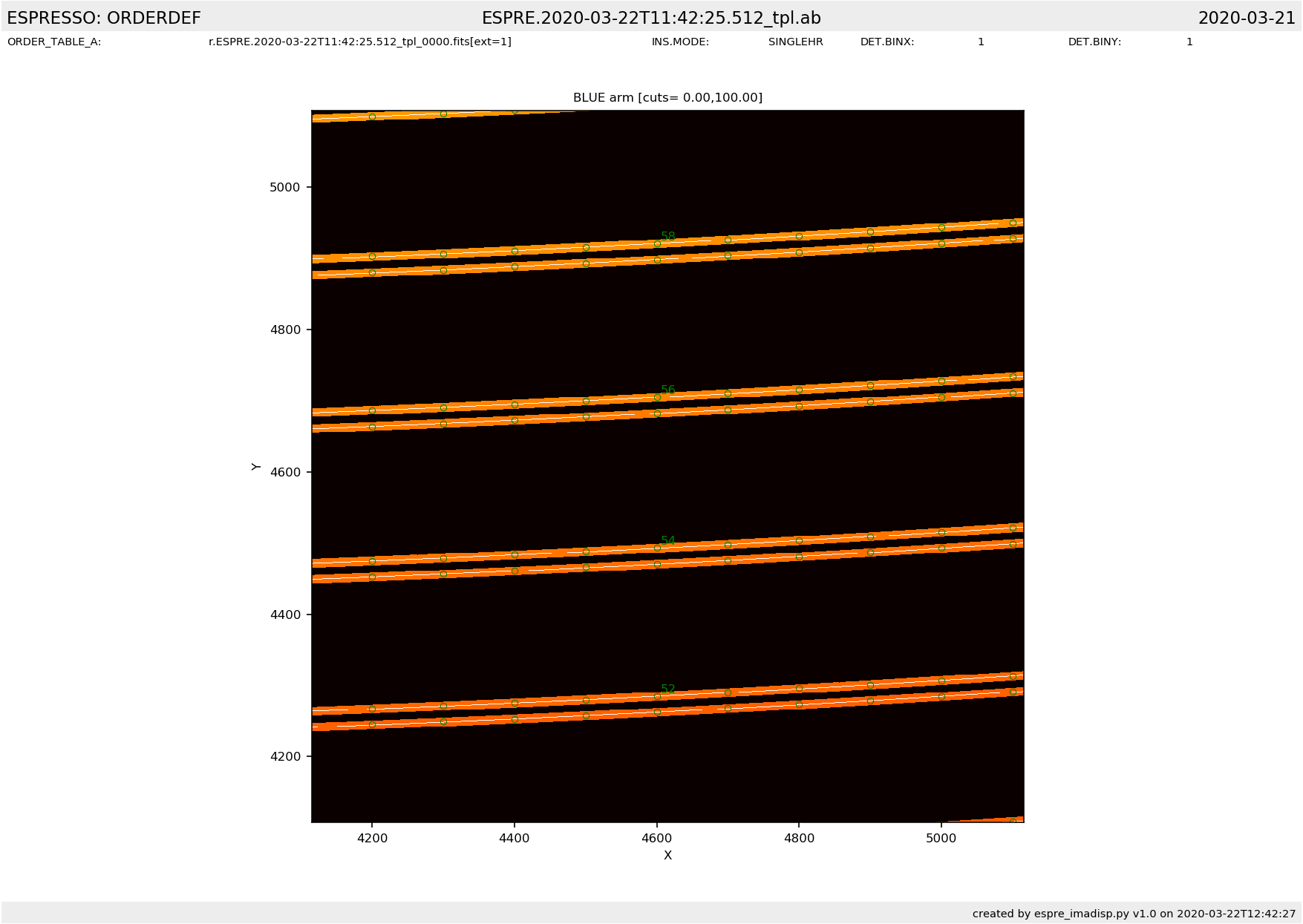

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] espre_bias.py espre_dark.py espre_ledff.py espre_orderdef.py espre_flat.py espre_wave.py   bottom  plots   |   contact NAME espre_orderdef.py VERSION 1.0 -- October 2018 1.0.1 -- maximum number of counts as local QC parameter (2018-11-15) 1.0.2 -- proc_vers QC1 parameter added (2020-08-14) SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/ORDERDEF/$DATE /home/python/kmos_orderdef.py -i -a $AB INSTRUMENT ESPRESSO RAWTYPE ORDERDEF PURPOSE QC check of raw and product order-definition exposures PROCINPUT raw, product, and reference order-definition frames QC1TABLE trending | table(s) in QC1 database: espresso_orderdef TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_ORDERDEF_HR1x1_HC.html | trend_report_ORDER_COUNTS_HR1x1_HC.html QC1PAGE trending | associated documentation: order_qc1.html QC1PLOTS top order1.png top left: found orders, RED arm top right: found orders, RED arm, detail bottom left: found orders, BLUE arm bottom right: found orders, BLUE arm, detail order2.png upper left: cut in X direction through raw frame, lower Y position upper middle: cut in X direction through raw frame, upper Y position upper right: histogram of raw frame upper left: cut in X direction through raw frame, lower Y position, detail upper middle: cut in X direction through raw frame, upper Y position, detail upper right: image of raw frame order3.png found orders overplotted on master (full frame) order4.png found orders overplotted on master (central area) QC1PARAM QC1 parameters written in QC1 database: QC1 DB names: fiba_counts_max | fibb_counts_max | fiba_centorder_pos | fibb_centorder_pos ALGORITHM Most pipeline QC parameters come per order. For the QC1 database, either average/RMS values are calculated or values refer to the central order. CERTIF In rare cases, the pipeline is not able to trace an order because of a strong cosmic. Resulting products cannot be used and have to be rejected. COMMENTS None top [2020-09-01T15:26:15]         created by qcDocu v1.1.2, a tqs tool
