QC documentation system: QC procedure espre_dark.py for ESPRESSO

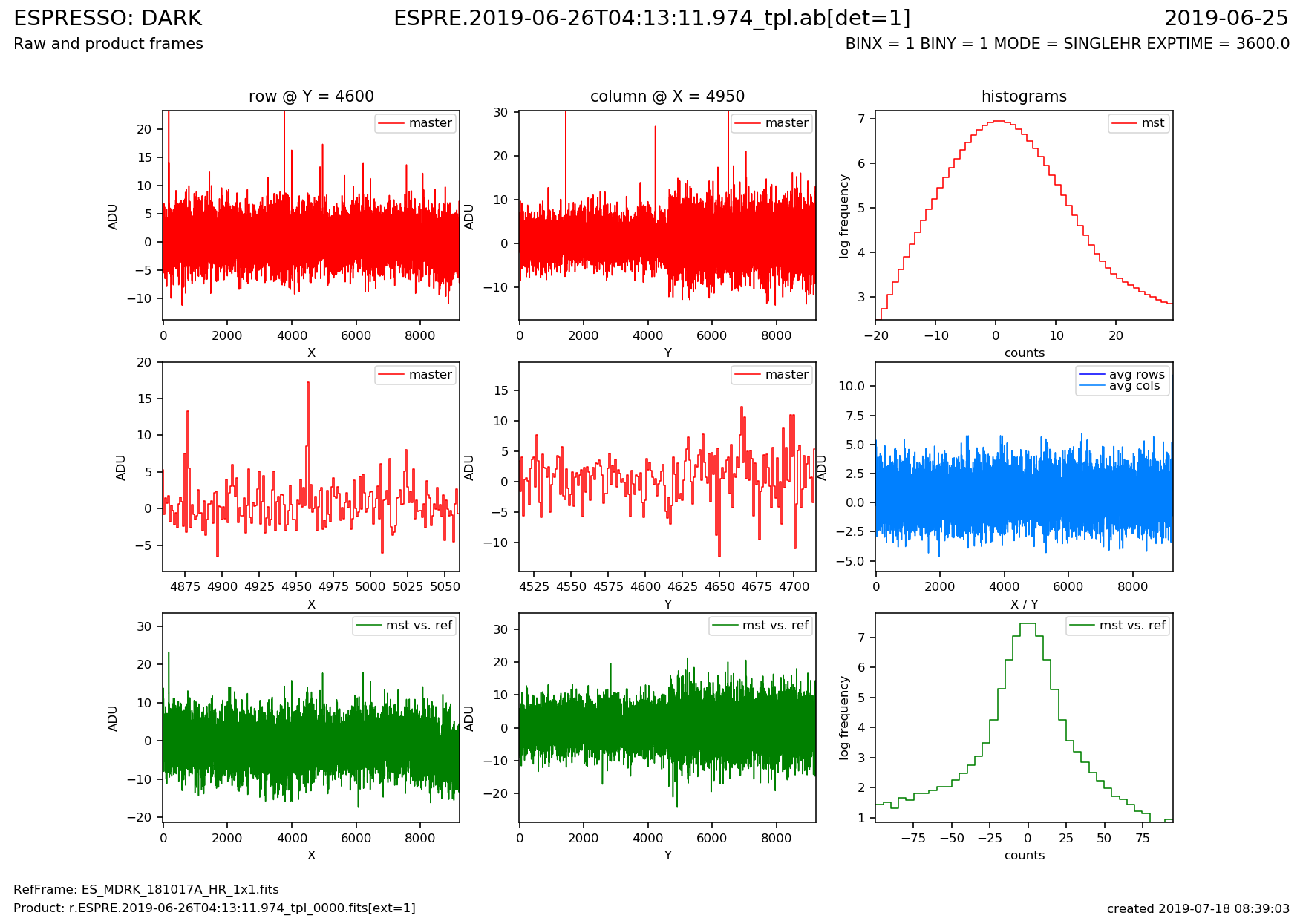

This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey).   HOME   CRIRES FORS1 FORS2 KMOS NACO   GIRAFFE UVES XSHOOTER   ISAAC SPHERE VIMOS VISIR   HAWKI MUSE SINFONI   AMBER GRAVITY MIDI PIONIER   OMEGACAM VIRCAM [best viewing with style sheets and javascript enabled] espre_bias.py espre_dark.py espre_ledff.py espre_orderdef.py espre_flat.py espre_wave.py   bottom  plots   |   contact NAME espre_dark.py VERSION 1.0 -- October 2018 SYNTAX PYTHON CALL processQC from $DFS_PRODUCT/DARK/$DATE /home/python/espre_dark.py -i -a $AB INSTRUMENT ESPRESSO RAWTYPE DARK PURPOSE QC check of raw and product dark exposures PROCINPUT raw, product, and reference dark frames QC1TABLE trending | table(s) in QC1 database: espresso_dark TRENDPLOT trending | HealthCheck plot(s) associated to this procedure: trend_report_DARKMEAN_HR1x1_HC.html QC1PAGE trending | associated documentation: dark_qc1.html QC1PLOTS top dark1.png One plot for BLUE and one for RED MASTER_DARK upper left: cuts in X direction through master upper middle: cuts in Y direction through master upper right: histograms of master central left: cuts in X direction through master, central area central middle: cuts in Y direction through master, central area central right: row and column averages of master lower left: master - reference frame, cut in X direction lower middle: master - reference frame, cut in Y direction lower right: histogram of master - reference frame dark2.png 2D overview image of MASTER_DARK QC1PARAM QC1 parameters written in QC1 database: QC1 DB names: dark_mean_avg | dark_mean_rms | hotpix_nb_avg | hotpix_nb_rms | hotpix_nb_tot ALGORITHM Pipeline QC parameter come per read-out port. The QC script calculates the average and the RMS across the ports plus the total number of hot pixels. CERTIF Frames with unusual high dark values and/or an unusual structure should be rejected. COMMENTS None top [2020-09-01T15:26:28]         created by qcDocu v1.1.2, a tqs tool
