| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | espre_flat.py | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2018 1.0.1 -- proc_vers QC1 parameter added (2020-08-14) | ||||||||||||||||||||||||||||
| SYNTAX | PYTHON | ||||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/FLAT/$DATE /home/python/espre_flat.py -i -a $AB | ||||||||||||||||||||||||||||
| INSTRUMENT | ESPRESSO | ||||||||||||||||||||||||||||
| RAWTYPE | FLAT | ||||||||||||||||||||||||||||
| PURPOSE | QC check of raw and product flat-field exposures | ||||||||||||||||||||||||||||
| PROCINPUT | raw, product, and reference flat-field frames | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: espresso_flat | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_FLATSNR_HR1x1_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: flat_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

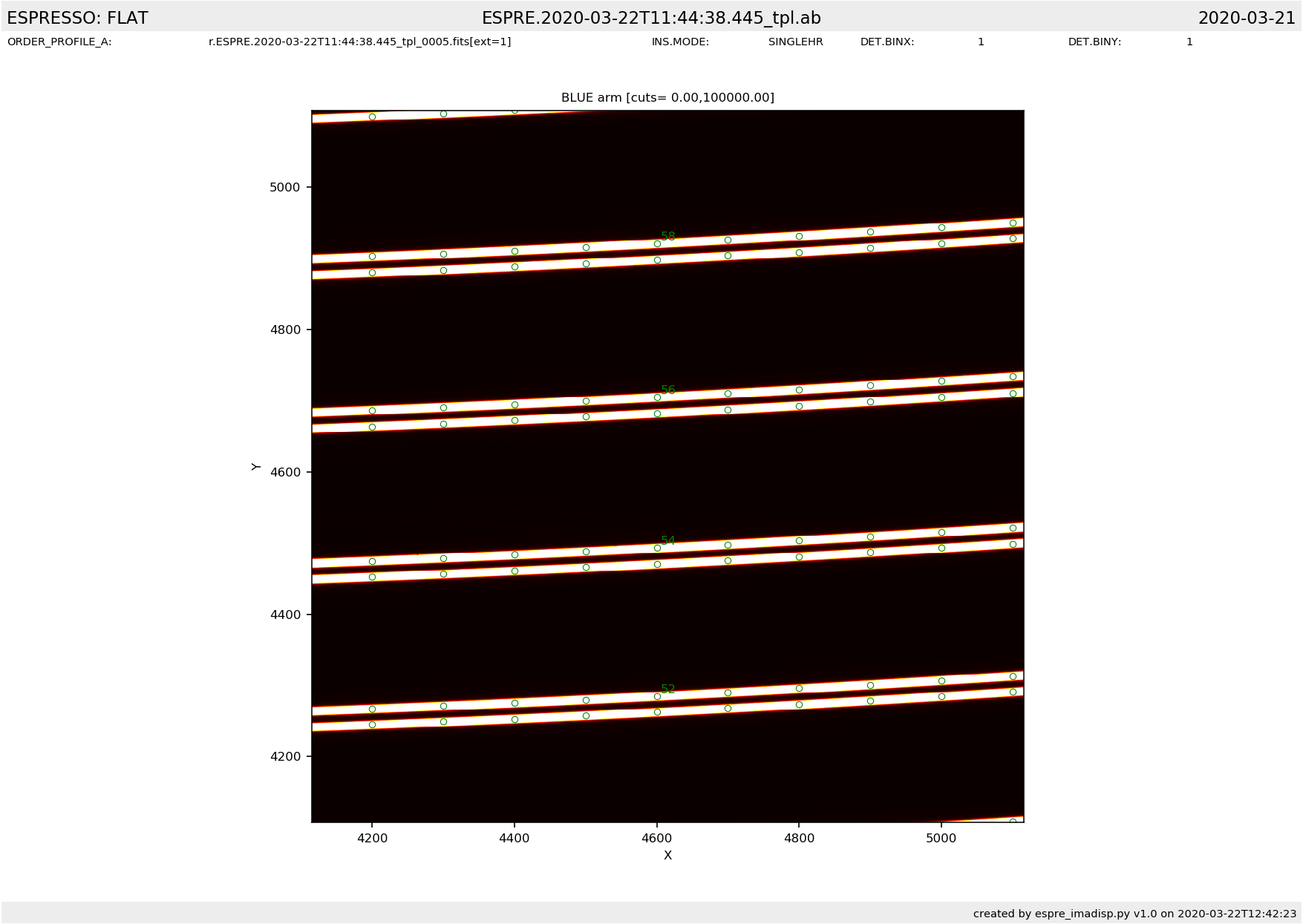

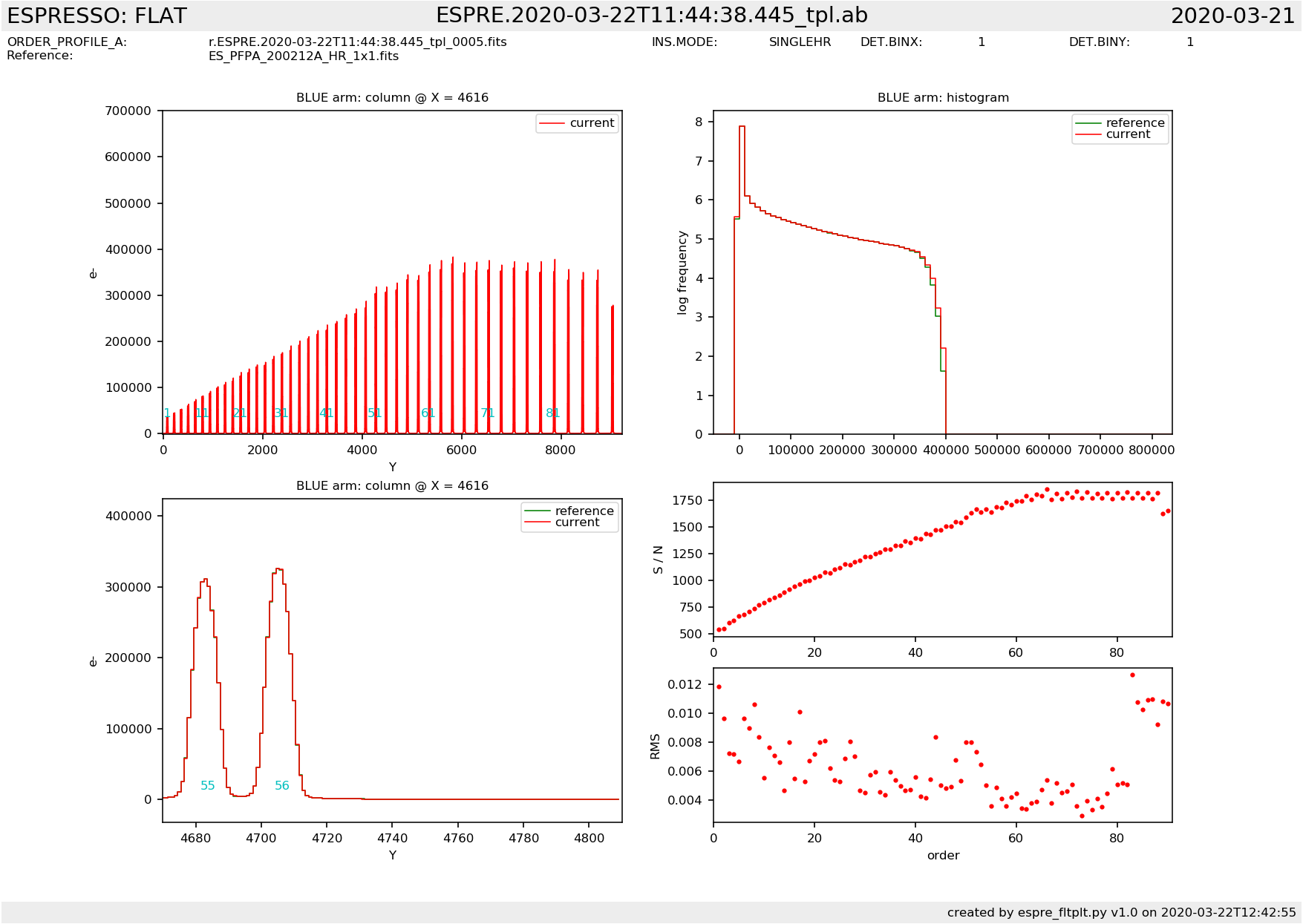

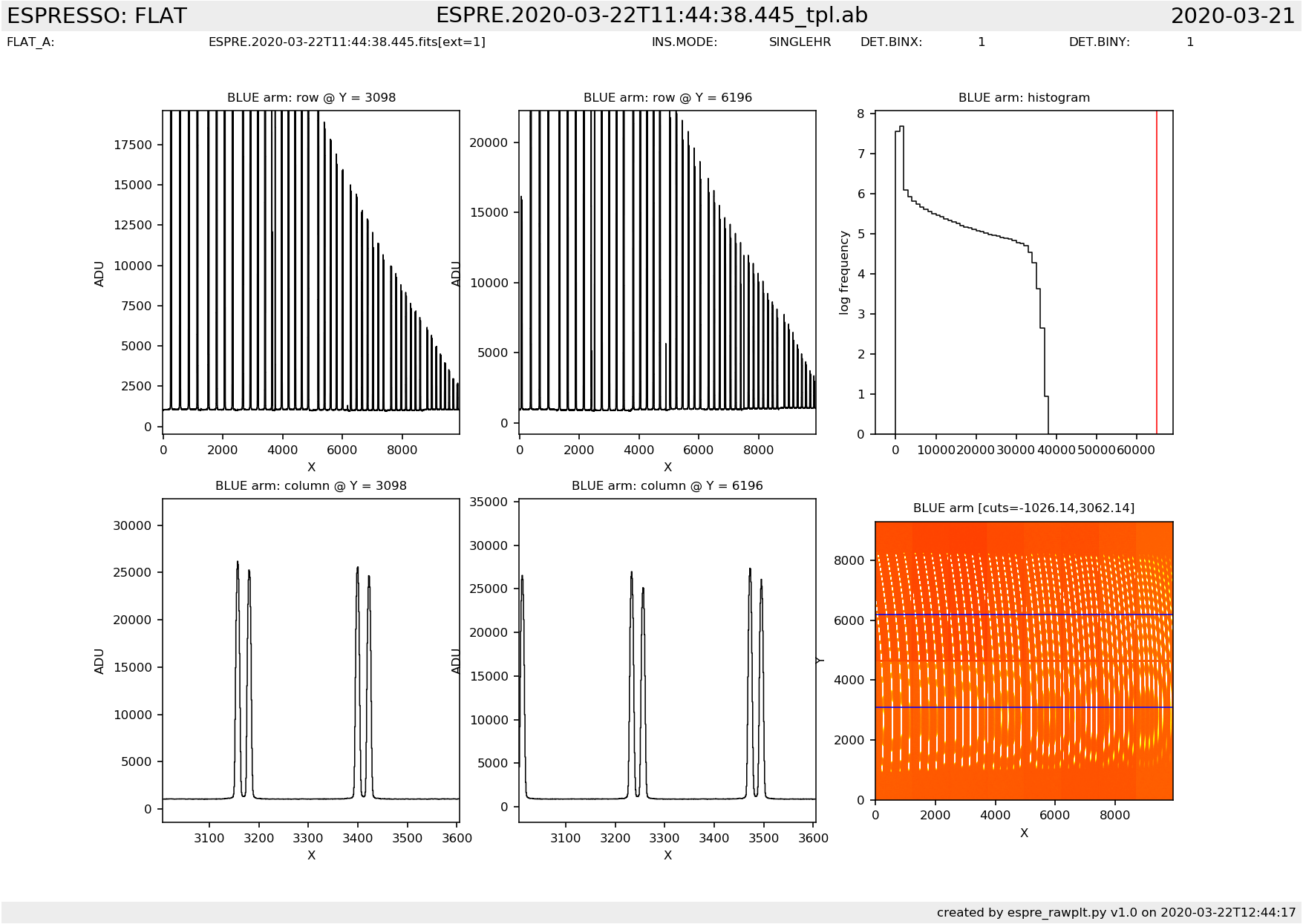

flat1.png top left: cut in Y direction through order profile product top right: histogram of product and reference bottom left: cut in Y direction through order profile product (detail) bottom right: signal-to-noise ratio and fit RMS for each order flat2.png upper left: cut in X direction through raw frame, lower Y position upper middle: cut in X direction through raw frame, upper Y position upper right: histogram of raw frame upper left: cut in X direction through raw frame, lower Y position, detail upper middle: cut in X direction through raw frame, upper Y position, detail upper right: image of raw frame flat3.png orders overplotted on master (full frame) flat4.png orders overplotted on master (central area) | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: fiba_counts_max_blue | fiba_counts_max_red | fibb_counts_max_blue | fibb_counts_max_red | fiba_snr_avg | fibb_snr_avg | ||||||||||||||||||||||||||||
| ALGORITHM |
Most pipeline QC parameters come per order. For the QC1 database, either average/RMS values are calculated or values refer to the central order. | ||||||||||||||||||||||||||||
| CERTIF |
No recurrent issues. | ||||||||||||||||||||||||||||
| COMMENTS | None | ||||||||||||||||||||||||||||
