SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:01:35 (UT)
  | now: 2024-11-22T14:32:58 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: lamp_eff   lamp_badpix lamp_off lamp_fpn1 lamp_fpn2 vignetting_check_sl1 vignetting_check_sl32
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT
2019-06-25
report | NLT
2019-06-26
no data | NLT
2019-06-27
no data | NLT
2019-06-28
no data | NLT
2019-06-29
no data | NLT
2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.566 ADU VAL0.48,1.0 34 qc_rf1 this | last_yr | all relative flux (slitlet 1): J-band/250 mas scale
2 QC1DB MEDIAN 0.591 ADU VAL0.5,1.0 33 qc_rf1 this | last_yr | all relative flux (slitlet 1): H-band/250 mas scale
3 QC1DB MEDIAN 0.535 ADU VAL0.48,1.0 46 qc_rf1 this | last_yr | all relative flux (slitlet 1): K-band at the 250 mas camera scale
4 QC1DB MEDIAN 0.546 ADU VAL0.47,1.0 30 qc_rf1 this | last_yr | all relative flux (slitlet 1): H+K-band at the 250 mas camera scale

5 QC1DB MEDIAN 0.182 ADU VAL0.10,1.0 18 qc_rf1 this | last_yr | all relative flux (slitlet 1): J-band/ 25 mas scale
6 QC1DB MEDIAN 0.235 ADU VAL0.17,1.0 18 qc_rf1 this | last_yr | all relative flux (slitlet 1): H-band/ 25 mas scale
7 QC1DB MEDIAN 0.208 ADU VAL0.16,1.0 31 qc_rf1 this | last_yr | all relative flux (slitlet 1): K-band at the 25 mas camera scale
8 QC1DB MEDIAN 0.223 ADU VAL0.16,1.0 27 qc_rf1 this | last_yr | all relative flux (slitlet 1): H+K-band at the 25 mas camera scale

9 QC1DB MEDIAN 0.282 ADU VAL0.23,1.0 17 qc_rf1 this | last_yr | all relative flux (slitlet 1): J-band/100 mas scale
10 QC1DB MEDIAN 0.314 ADU VAL0.26,1.0 22 qc_rf1 this | last_yr | all relative flux (slitlet 1): H-band/100 mas scale
11 QC1DB MEDIAN 0.279 ADU VAL0.24,1.0 28 qc_rf1 this | last_yr | all relative flux (slitlet 1): K-band at the 100 mas camera scale
12 QC1DB MEDIAN 0.281 ADU VAL0.25,1.0 20 qc_rf1 this | last_yr | all relative flux (slitlet 1): H+K-band at the 100 mas camera scale

*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 2|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.566ADU
fixed thresholds:0.48...1.0ADU
N_data plotted:34
[click plot for closeup]
Plot 2
scores: 5|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.591ADU
fixed thresholds:0.5...1.0ADU
N_data plotted:33
[click plot for closeup]
Plot 3
scores: 5|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.535ADU
fixed thresholds:0.48...1.0ADU
N_data plotted:46
[click plot for closeup]
Plot 4
scores: no current data
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.546ADU
fixed thresholds:0.47...1.0ADU
N_data plotted:30
[click plot for closeup]
Plot 5
scores: 1|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.182ADU
fixed thresholds:0.1...1.0ADU
N_data plotted:18
[click plot for closeup]
Plot 6
scores: 1|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.235ADU
fixed thresholds:0.17...1.0ADU
N_data plotted:18
[click plot for closeup]
Plot 7
scores: 1|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.208ADU
fixed thresholds:0.16...1.0ADU
N_data plotted:31
[click plot for closeup]
Plot 8
scores: no current data
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.223ADU
fixed thresholds:0.16...1.0ADU
N_data plotted:27
[click plot for closeup]
Plot 9
scores: 1|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.282ADU
fixed thresholds:0.23...1.0ADU
N_data plotted:17
[click plot for closeup]
Plot 10
scores: 1|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.314ADU
fixed thresholds:0.26...1.0ADU
N_data plotted:22
[click plot for closeup]
Plot 11
scores: 4|
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.279ADU
fixed thresholds:0.24...1.0ADU
N_data plotted:28
[click plot for closeup]
Plot 12
scores: no current data
data source:sinfoni_flat
(QC1 database)
dataset:qc_rf1
median:0.281ADU
fixed thresholds:0.25...1.0ADU
N_data plotted:20
[click plot for closeup]
This plot

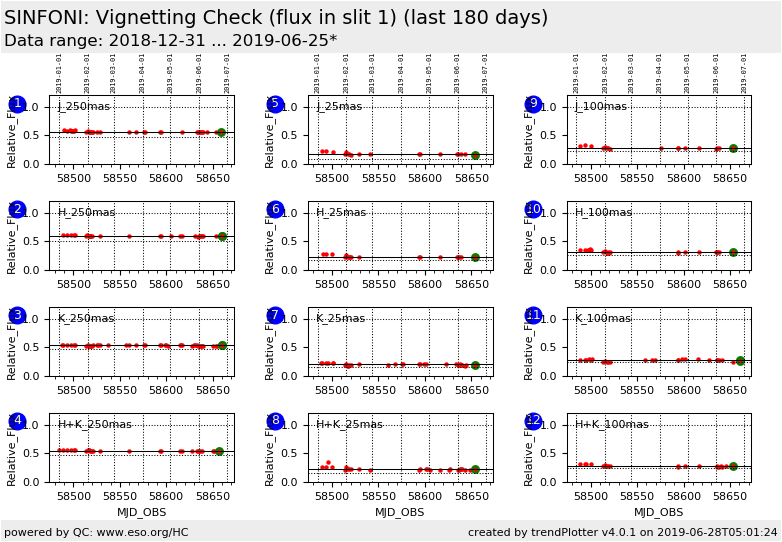

These are the trending plots for the vignetting check computed from the LAMP FLATs.

Slitlets #1 and #32 correspond to the upper-most and the lower-most slitlets in the field-of-view.
As such, these slitlets can be subject to vignetting to the extent that their overall count rates can be a few 10% lower than for other slitlets. Following image reconstruction, these slitlets are located on the central part of the detector. A possible vignetting is monitored by comparing the relative count rates (i.e. the mean counts in the slitlet #1 or #32 divided by the mean counts in all other slitlets).
This QC1 parameter is most relevant following an instrument intervention.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
