SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:01:07 (UT)
  | now: 2024-11-22T08:20:44 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: lamp_eff   lamp_badpix lamp_off lamp_fpn1 lamp_fpn2 vignetting_check_sl1 vignetting_check_sl32
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT
2019-06-25
report | NLT
2019-06-26
no data | NLT
2019-06-27
no data | NLT
2019-06-28
no data | NLT
2019-06-29
no data | NLT
2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 oQC1DB none   ADU VAL4000,11750 69 qc_specflux_cavg this | last_yr | all median lamp counts in the J-band at all camera scales
(this FULL data set is scored)
1 QC1DB none   ADU none  34 qc_specflux_cavg this | last_yr | all median lamp counts: J-band/250 mas scale
1 QC1DB none   ADU none  17 qc_specflux_cavg this | last_yr | all median lamp counts: J-band/100 mas scale
1 QC1DB none   ADU none  18 qc_specflux_cavg this | last_yr | all median lamp counts: J-band/25 mas scale

2 oQC1DB none   ADU VAL4000,11750 73 qc_specflux_cavg this | last_yr | all median lamp counts in the H-band at all camera scales
(this FULL data set is scored)
2 QC1DB none   ADU none  33 qc_specflux_cavg this | last_yr | all median lamp counts in the H-band/250 mas scale
2 QC1DB none   ADU none  22 qc_specflux_cavg this | last_yr | all median lamp counts in the H-band/100 mas scale
2 QC1DB none   ADU none  18 qc_specflux_cavg this | last_yr | all median lamp counts in the H-band/25 mas scale

3 oQC1DB none   ADU VAL4000,13000 105 qc_specflux_cavg this | last_yr | all median lamp counts in the K-band at all camera scales
(this FULL data set is scored)
3 QC1DB none   ADU none  46 qc_specflux_cavg this | last_yr | all median lamp counts in the K-band/250 mas scale
3 QC1DB none   ADU none  28 qc_specflux_cavg this | last_yr | all median lamp counts in the K-band/100 mas scale
3 QC1DB none   ADU none  31 qc_specflux_cavg this | last_yr | all median lamp counts in the K-band/25 mas scale

4 oQC1DB none   ADU VAL4000,11500 77 qc_specflux_cavg this | last_yr | all median lamp counts in the H+K-band at all camera scales
(this FULL data set is scored)
4 QC1DB none   ADU none  30 qc_specflux_cavg this | last_yr | all median lamp counts in the H+K-band/250 mas scale
4 QC1DB none   ADU none  20 qc_specflux_cavg this | last_yr | all median lamp counts in the H+K-band/100 mas scale
4 QC1DB none   ADU none  27 qc_specflux_cavg this | last_yr | all median lamp counts in the H+K-band/25 mas scale
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 4|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_cavgo
average:none
fixed thresholds:4000...11750ADU
N_data plotted:69
[click plot for closeup]
Plot 2
scores: 7|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_cavgo
average:none
fixed thresholds:4000...11750ADU
N_data plotted:73
[click plot for closeup]
Plot 3
scores: 10|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_cavgo
average:none
fixed thresholds:4000...13000ADU
N_data plotted:105
[click plot for closeup]
Plot 4
scores: 6|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_cavgo
average:none
fixed thresholds:4000...11500ADU
N_data plotted:77
[click plot for closeup]
This plot

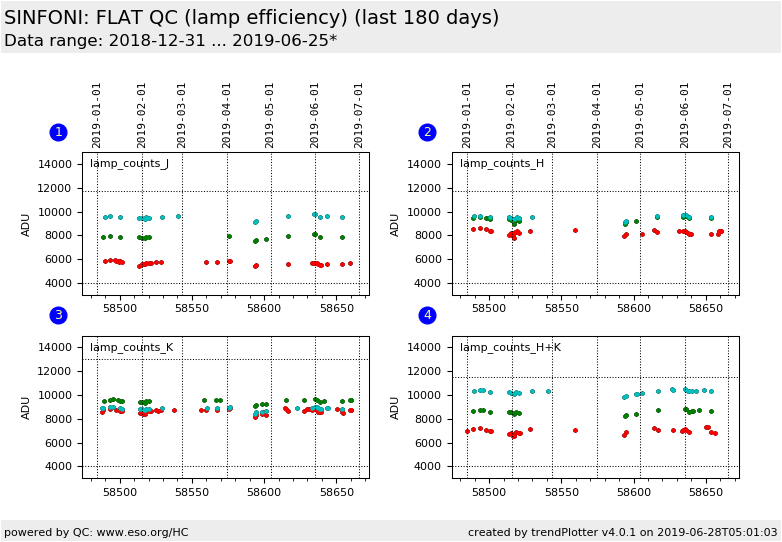

These are the trending plots for the SINFONI QC parameters derived from the LAMP FLATs.

These plots describe:
Day-time FLAT calibrations come in at least five pairs of lamp on/off frames. For each
raw lamp-on frame the corresponding lamp-off frame is subtracted and the median is calculated.
The above lamp efficiencies are the average of these 5 (or more) values.

Median lamp count limits should remain between 4,000 and 10,000 ADU. The lower limit ensures that the flux levels of the flats are sufficiently high for good statistical noise limits, while the upper limit of 10,000 counts should not be exceeded as this can approach the detector's non-linear regime.

1. the median lamp counts in the J-band for the camera scales: 250, 100, and 25 mas
2. the median lamp counts in the H-band for the camera scales: 250, 100, and 25 mas
3. the median lamp counts in the K-band for the camera scales: 250, 100, and 25 mas
4. the median lamp counts in the H+K-band for the camera scales: 250, 100, and 25 mas

Find more information about SINFONI FLAT frames here.




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
