SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:01:11 (UT)
  | now: 2024-12-23T12:04:13 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: lamp_eff   lamp_badpix lamp_off lamp_fpn1 lamp_fpn2 vignetting_check_sl1 vignetting_check_sl32
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT 		2019-06-25
report | NLT 		2019-06-26
no data | NLT 		2019-06-27
no data | NLT 		2019-06-28
no data | NLT 		2019-06-29
no data | NLT 		2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 oQC1DB MEDIAN 0.0399 ADU VAL0.00,0.16 69 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): J-band ALL camera scales
(this FULL data set is scored)
1 •QC1DB none   ADU none  34 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): J-band/250 mas scale
1 •QC1DB none   ADU none  17 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): J-band/100 mas scale
1 •QC1DB none   ADU none  18 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): J-band/ 25 mas scale
2 oQC1DB MEDIAN 0.0344 ADU VAL0.00,0.12 73 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H-band ALL camera scales
(this FULL data set is scored)
2 •QC1DB none   ADU none  33 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H-band/250 mas scale
2 •QC1DB none   ADU none  22 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H-band/100 mas scale
2 •QC1DB none   ADU none  18 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H-band/ 25 mas scale
3 oQC1DB MEDIAN 0.0272 ADU VAL0.00,0.135 105 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): K-band ALL camera scales
(this FULL data set is scored)
3 •QC1DB none   ADU none  46 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): K-band at the 250 mas camera scale
3 •QC1DB none   ADU none  28 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): K-band at the 100 mas camera scale
3 •QC1DB none   ADU none  31 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): K-band at the 25 mas camera scale
4 oQC1DB MEDIAN 0.0444 ADU VAL0.00,0.12 77 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H+K-band ALL camera scales
(this FULL data set is scored)
4 •QC1DB none   ADU none  30 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H+K-band at the 250 mas camera scale
4 •QC1DB none   ADU none  20 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H+K-band at the 100 mas camera scale
4 •QC1DB none   ADU none  27 qc_lflat_fpn2 this | last_yr | all fixed pattern noise (region 2): H+K-band at the 25 mas camera scale
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 4|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn2o
median:0.0399ADU
fixed thresholds:0.0...0.16ADU
N_data plotted:69
[click plot for closeup]
Plot 2
scores: 7|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn2o
median:0.0344ADU
fixed thresholds:0.0...0.12ADU
N_data plotted:73
[click plot for closeup]
Plot 3
scores: 10|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn2o
median:0.0272ADU
fixed thresholds:0.0...0.135ADU
N_data plotted:105
[click plot for closeup]
Plot 4
scores: 6|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn2o
median:0.0444ADU
fixed thresholds:0.0...0.12ADU
N_data plotted:77
[click plot for closeup]

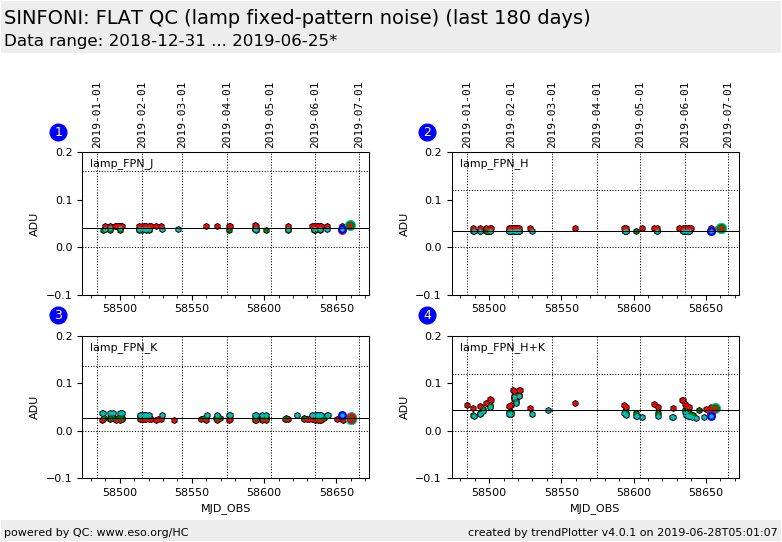

This plot

The FPN is calculated over 2 windows:

FPN1: over the central region of the detector(X: 512-1536 Y: 512-1536
FPN2: over the area of a single slitlet (X: 1360-1400 Y: 1000-1200)

The area where FPN2 is computed was shifted by 10 pixels after the intervention which took place second part of 2013.

Remark: For H+K the area for FPN2 contains some lines, which causes a correlation with humidity

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
